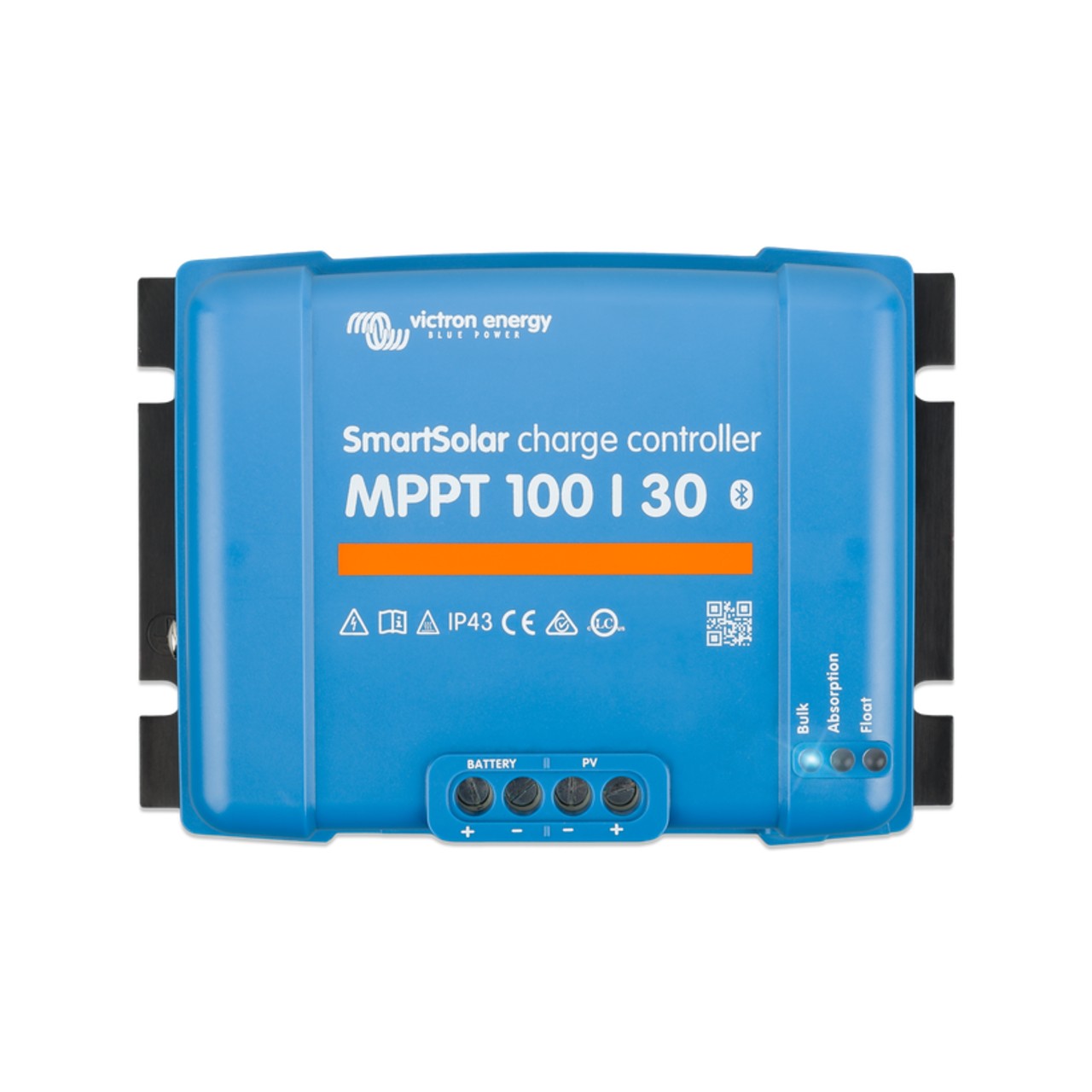

Solar Controller | Victron | SmartSolar MPPT 100/30

SCC110030210

$220.00
$384.00
$220.00

or 4 interest-free payments of  $55.00 with

Subtotal: $220.00
Description

Victron SmartSolar 100 VOC, 30 Amp MPPT solar panel charge controller for 12V and 24V battery systems (including Lithium) with Bluetooth

MPPT: Ultra Fast Maximum Power Point Tracking
By constantly monitoring the voltage and current output of your solar (PV) panels, MPPT technology ensures that every drop of available power is rinsed out of your panels, and harvested for storage. The advantage of this is most noticeable when the sky is partially clouded, and light intensity is constantly changing.

Remote Monitoring and Control
Remotely control and monitor the extensive features of your BlueSolar MPPT charger by attaching a Bluetooth dongle and pairing it with your smartphone or other device via VictronConnect. If your installation is connected to the internet with a GX device, the Victron Remote Management Portal (VRMprovides access to the full power of your MPPT, anytime, anywhere; both VictronConnect and VRM are free to use. For remote installations - even when there is no internet connection nearby - you may be able to monitor your MPPT by connecting the GlobalLink 520.

Load output
The intelligent Load output function prevents damage caused by running batteries 'flat'. You can configure the voltage at which SmartSolar disconnects a load - thereby preventing excessive drain on your batteries. And here's the clever bit: SmartSolar will attempt a 100% recharge every day. If it can't - during periods of poor weather - it raises the disconnect voltage, daily, until it achieves success. We call this feature BatteryLife because it maintains the health, and extends the life of your battery.

Specifications
Rated Charge Current
30A
Nominal Solar Panels
12V - 440W / 24V - 880W
Battery Voltage (auto select)
12/24V
Max. PV open circuit voltage 100V
Operating Temperature Range -30 to +60°C (full rated output up to 40°C)
Peak efficiency
~98%
Max cable terminal size 16 mm² / AWG6
Product Dimensions L 130mm x W 186mm x H 70mm
Net Weight 1.30 Kg

 Please see more details in the 'Data Sheets' tab.

Delivery

All items subject to availability and will generally require a 4-6 week turnaround.

We don't hold the stock on hand but have a trusted supplier who will send this direct from their nearest warehouse to ensure you receive it as soon as possible.

Warranty

There is a 5 year replacement warranty on all Victron equipment (excluding batteries). Products will need to be delivered to an authorised technician to be inspected and evaluated.

Please call us for more details and to discuss your next step.

Data Sheets

Victron SmartSolar MPPT 100/30 Specifications

Victron SmartSolar MPPT 100/30 Manual
