Renogy Off-Grid Wiring Diagram Bundle – 12V Inverter, DC-DC & Solar Charger Setups

Overview

Planning your off-grid 12V setup with Renogy gear? We've bundled our 3 most popular wiring diagrams into one discounted package, perfect for caravans, campervans, and 4WDs running lithium batteries, DC-DC chargers, solar panels, and 240V inverters. Each drawing is clear, easy to follow, and designed by off-grid sparky Landon, with real-world layouts that make wiring simple.

What’s Included

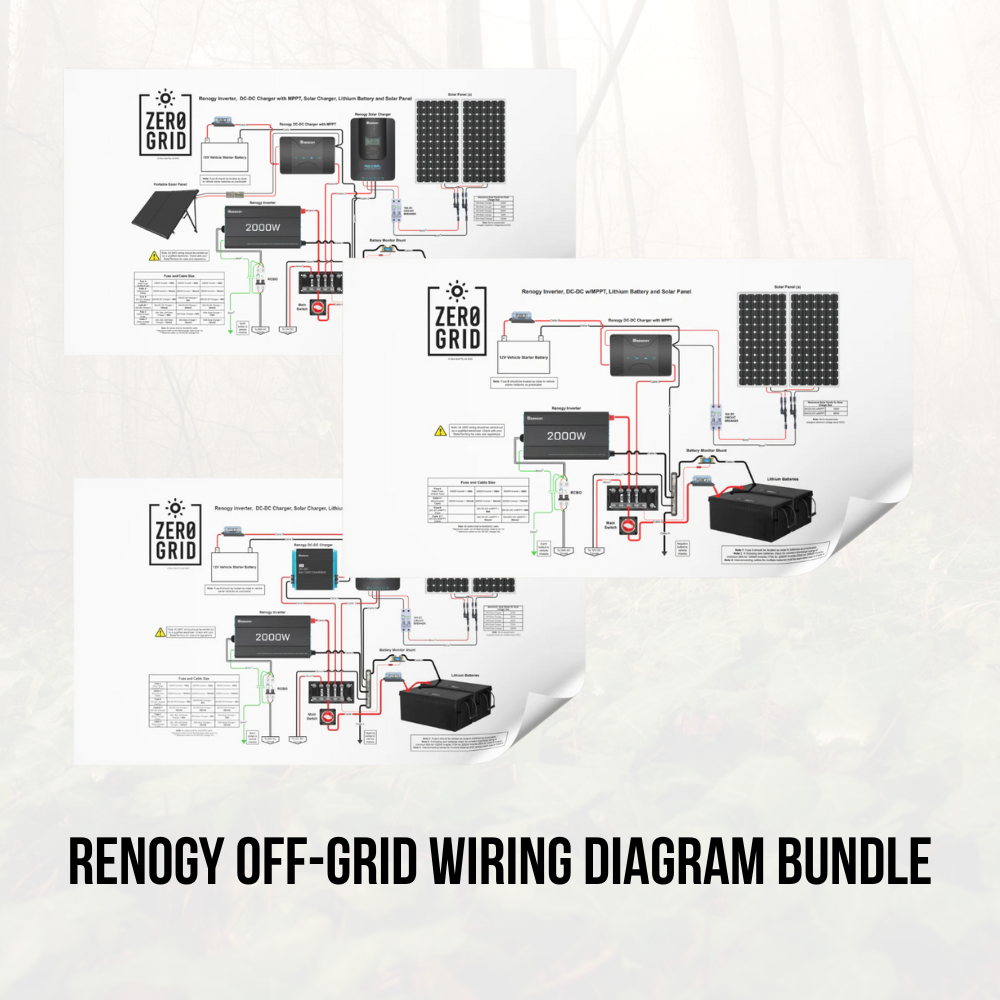

You’ll receive instant access to these 3 diagrams: - Renogy 12V Inverter + DC-DC + MPPT (Ideal for setups with a 240V inverter, DC-DC charger and separate MPPT solar charger) - Renogy All-in-One Inverter Charger Setup (For use with Renogy's combined inverter + charger units alongside solar charging) - Renogy 4WD 12V DC-DC + MPPT + Inverter (Designed for more compact setups in 4WDs and campervans with Renogy gear)

Who It’s For

- DIYers wiring their own 12V off-grid system - Caravan and campervan owners - 4WD tourers and weekend warriors - Anyone using Renogy gear with lithium batteries and solar

Why Choose This Bundle

- Get 3 detailed drawings at a lower price - Mix and match parts of each setup to suit your build - Designed with real-world experience (we live off-grid ourselves)

Delivery

These diagrams are delivered instantly via email as downloadable PDF files after checkout. You’ll get lifetime access to any updated versions.

Need Help?

If you're not sure which setup suits you best, you can book a 1-on-1 call with Landon directly after checkout. We're here to help you get it right the first time.
