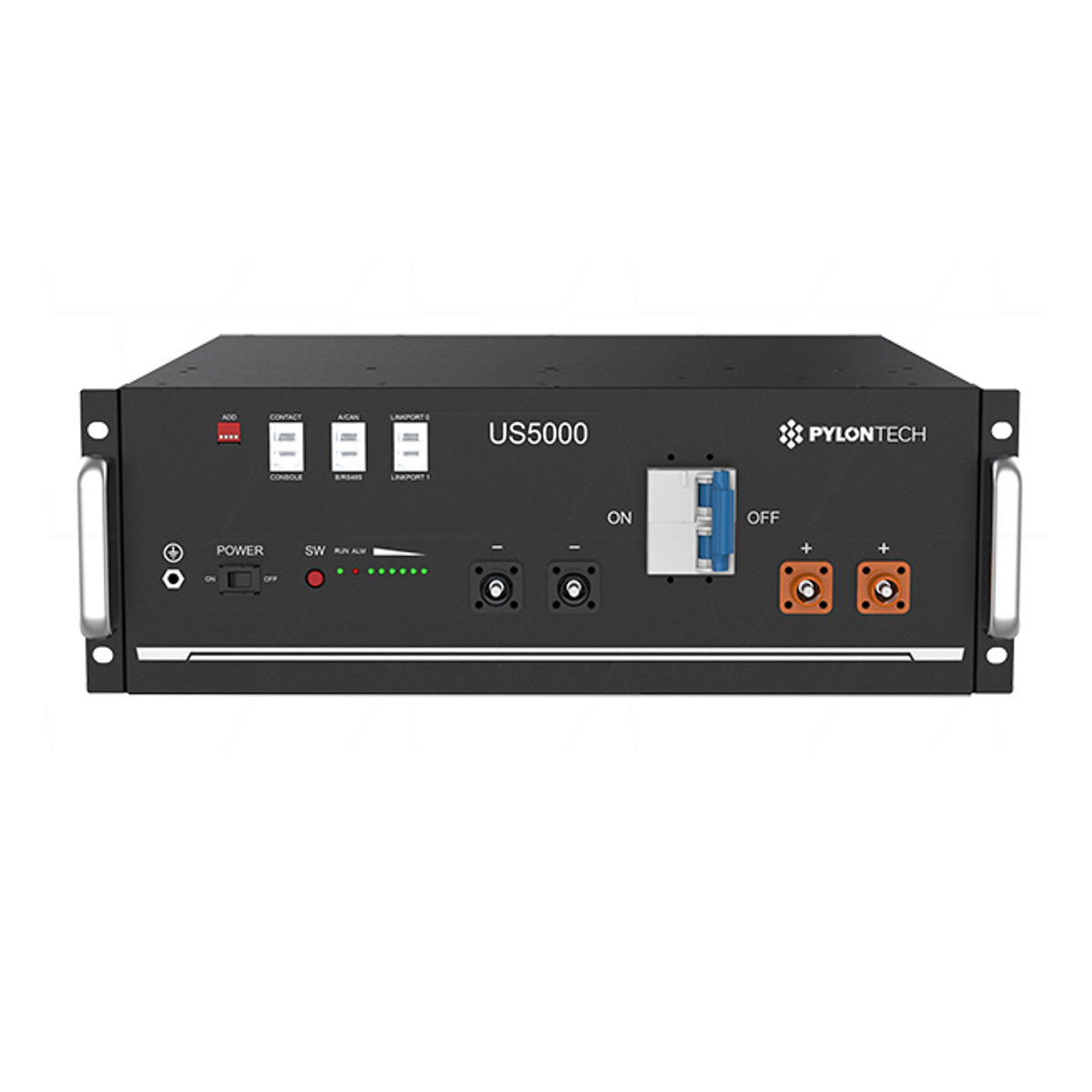

Lithium Battery | Pylontech | US5000B 48V 4.8kWh

Description The US5000B lithium iron phosphate battery is the new energy storage product developed and produced by... Read More
$2,939.00
$2,939.00
Vendor: Pylontech
SKU: PYL.US5000B
Availability: Many In Stock
Subtotal: $2,939.00

30-Day Money-Back Guarantee

Australian Phone Support

Locally-Based Australian Stock

Price Match Guarantee

Description

The US5000B lithium iron phosphate battery is the new energy storage product developed and produced by Pylontech, it can be used to support reliable high power for various types of equipment and systems.

US5000B Features:

  • Built-in soft-start function able to reduce current strike when inverter need to start from the battery
  • Dual active protection on the BMS level
  • Automatic address setting when connecting in multi-group
  • Support wakeup by 5~12V signal from RJ45 port
  • Support upgrade battery module from the upper controller via CAN or RS485 communication
  • Enable 95% depth of discharge, available for the inverter which completely follows Pylontech latest protocol to operate.
  • The module is non-toxic, non-pollution and environmentally friendly
  • The cathode material is made from LiFePO4 with safety performance and long cycle life.
  • The battery management system (BMS)has protection functions including over-discharge, over-charge, over-current and high/low temperature
  • The system can automatically manage the charge and discharge state and balance the voltage of each cell.
  • Flexible configuration, multiple battery modules can be in parallel for expanding capacity and power
  • Adopted self-cooling mode rapidly reduced system entire noise
  • The module has less self-discharge, up to 6 months without charging it on the shelf, no memory effect, and excellent performance of shallow charge and discharge.
  • Small size and lightweight. Standard 19-inch embedded designed module is comfortable for installation and maintenance
  • Compatible with the 48V series battery of Pylontech:
    • *Mixture using master battery priority: US5000>UP5000/US3000C/US2000C>U3000/US2000
    • For the same type of module always use the latest production unit as master.*Mixture using battery deployment option:
    • Master battery (1st) US5000
    • Slave 2nd ~8th US5000/UP5000/US3000C/US2000C/US3000/US2000
    • Slave 9th ~16th US5000/UP5000/US3000C/US2000C
    For more information/setup tutorials check out the Pylontech knowledge centre here
        Specifications
        Nominal Voltage (V)
        48
        Nominal Capacity (Wh)
        4800
        Usable Capacity (Wh)
        4560
        Dimension (mm)
        442*420*161
        Weight (Kg)
        39.7
        Recommended Charge/Discharge Current (A) 80
        Max. Charge/Discharge Current (A) 100
        Peak Charge/Discharge Current 101~120@15min, 121~200@15sec
        Communications
        RS485,CAN
        Single string quantity(pcs) 16
        Working Temperature/ ℃ Charge 0~50
        Working Temperature/ ℃ Discharge -10~50
        Shelf Temperature/ ℃ -20~60
        Short current/duration time <2000A/1ms
        IP rating of enclosure IP20
        Cooling type Natural
        Humidity 5% ~ 95%(RH) No Condensation
        Altitude(M) <4000
        Design life 15+ Years (25℃/77℉)
        Cycle Life >6,000 25℃
        Authentication Level UL1973/UL9540AIEC62619/IEC63056/ICE61000-6-2/3
        /UN38.3
        (Peak 1) 50~89@60sec 74~89@60sec 101~120@15min(Peak 2 ) 90~200@15sec 90~200@15sec 121~200@15secUL1642/ IEC62619
        /ICE63056
        /ICE61000-6-2/3 UN38.3
        UL1973 /UL1642/UL9540A
        /VDE2510-50/IEC63056
        /IEC62619/IEC62040/IEC62477-1
        /ICE61000-6-2/UN38.3

         Please see more details in the 'Data Sheets' tab.

        Delivery

        Delivery Cost for Lithium Batteries can be found here

        All items subject to availability and will generally require a 4-6 week turnaround.

        We don't hold the stock on hand but have a trusted supplier who will send this direct from their nearest warehouse to ensure you receive it as soon as possible.

        Warranty

        There is a 10 year warranty on all Pylontech equipment.  Products will need to be delivered to an authorised technician to be inspected and evaluated.

        Click Here to view Pylontech warranty statement

        Please call us for more details and to discuss your next step.

        Data Sheets



        Pylontech Data / Information Sheet

        Pylontech Warranty Statement
