Lithium Battery | Mictronix | MPS Lithium Battery Module (48V, 5.1kWh)

Description The Mictronix 48V, 5.1Kwh high power LFP battery module is a robust energy storage solution that... Read More
$3,917.00
$3,917.00
Vendor: Mictronix
Availability: Many In Stock
Subtotal: $3,917.00

30-Day Money-Back Guarantee

Australian Phone Support

Locally-Based Australian Stock

Price Match Guarantee

Description

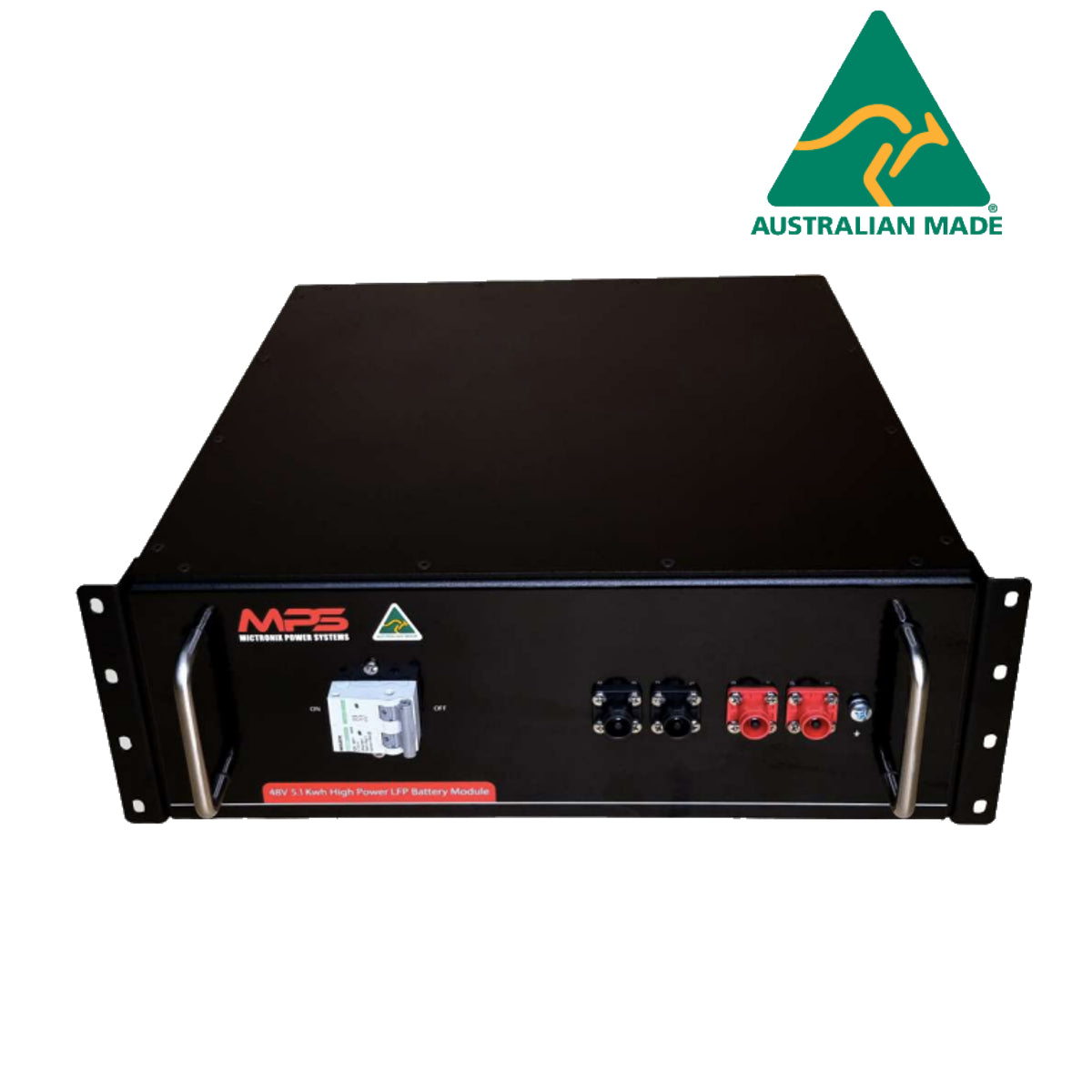

The Mictronix 48V, 5.1Kwh high power LFP battery module is a robust energy storage solution that can be used in a wide range of applications.

The battery module has been designed and made in Australia to suit Australian conditions over a long service life, maintaining maximum performance.

Simplicity of installation and maintenance was a priority in the design process.

Mictronix Power Systems (MPS) strives to manufacture as much of the battery module in Australia as possible, feeding money back into the local economy.

    Specifications
    Nominal Voltage (V)
    51.2
    Nominal Capacity (Wh)
    5100
    Usable Capacity (Wh)
    4590
    Dimension (mm)
    482*470*165
    Weight (Kg)
    44
    Charge Voltage (V)
    56
    Stanby (Float) Voltage (V) 55.9
    Recommended Charge/Discharge Current (A) 33
    Max. Charge/Discharge Current (A) 63
    Peak Charge/Discharge Current 63A for 30min, 80A for 30sec
    Parallel Connection
    Unlimited-contact Mictronix
    Working Temperature/ ℃ Charge 0~55
    Working Temperature/ ℃ Discharge -10~65
    Short current/duration time 250A for 960us
    IP rating of enclosure IP40
    Cooling type Natural
    Humidity < 80% RH
    Altitude(M) <4000
    Design life 15+ Years (25℃/77℉)
    Cycle Life >10,000 (50% dod @ 25℃)
    Authentication Level GB/UN38.3 IEC62619

     Please see more details in the 'Data Sheets' tab.

    Delivery

    All items subject to availability and will generally require a 4-6 week turnaround.

    We don't hold the stock on hand but have a trusted supplier who will send this direct from their nearest warehouse to ensure you receive it as soon as possible.

    Warranty

    There is a 10 year warranty on the Mictronix 48V batteries.  Products will need to be delivered to an authorised technician to be inspected and evaluated.

    Click Here to view Mictronix warranty statement

    Please call us for more details and to discuss your next step.

    Data Sheets



    Mictronix Data / Information Sheet

    Mictronix Warranty Statement
