Description

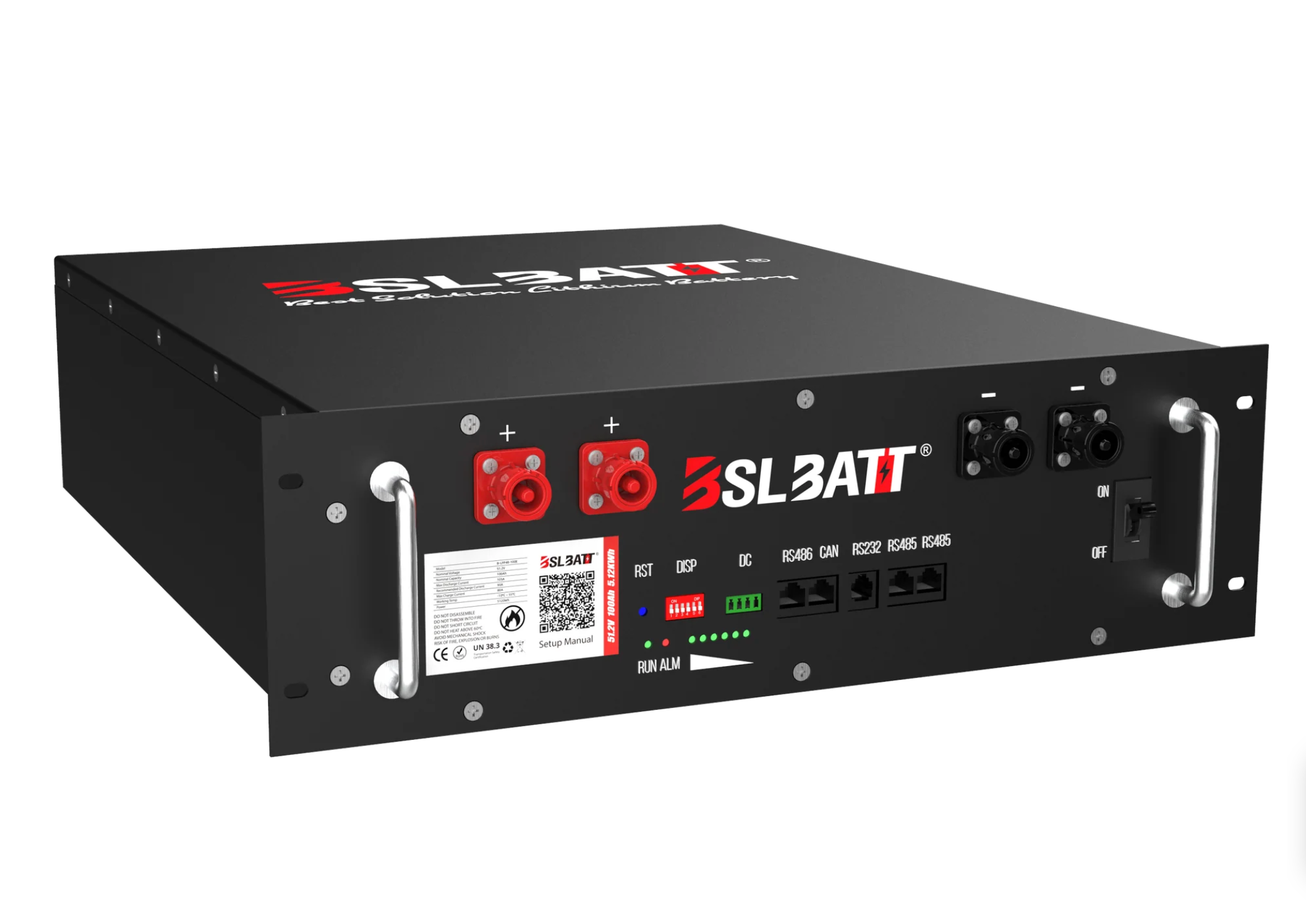

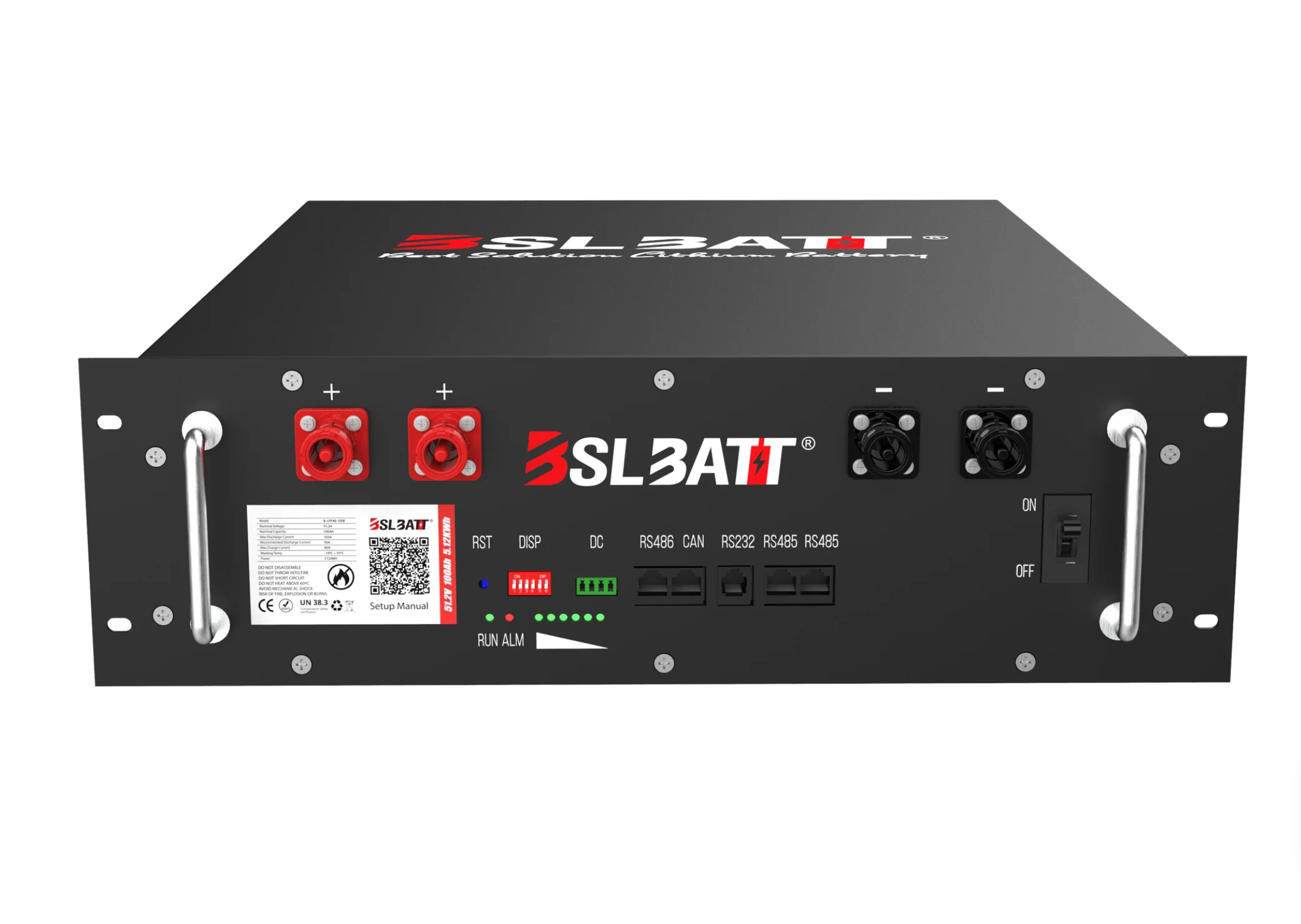

The BSLBATT B-LFP48-100E is a 51.2V 100Ah (5.12kWh) LiFePO4 rack-mount battery built for off-grid systems, solar storage and backup power. Its 3U rack design fits standard server-style racks, and you get 100% usable depth of discharge, so the full 5.12kWh is available to your system.
It has 16 prismatic LiFePO4 cells (16S1P) managed by a built-in 100A BMS. It's rated for more than 6,000 cycles and a design life of over 15 years. RS232, RS485 and CAN communications let it talk to compatible inverters, and you can run up to 63 units in parallel for up to 322.56kWh of storage. That makes it suitable for anything from a single home or RV setup to a large commercial bank. Backed by Zero Grid's commitment to quality, it's ready to power your energy independence.
Key Features
-
5.12kWh Usable Capacity – 100% depth of discharge, so the full rated capacity is usable.
-
6,000+ Cycle Life – More than 6,000 cycles and a 15+ year design life at 25°C.
-
High Power Output – 100A continuous discharge (5.12kW), 120A peak.
-
Highly Scalable – Up to 63 units in parallel for up to 322.56kWh.
-
Inverter Communications – RS232, RS485 and CAN, with optional Wi-Fi and Bluetooth.
-
3U Rack-Mount Design – Space-efficient and easy to integrate into standard racks.
-
Safe LiFePO4 Chemistry – Stable lithium iron phosphate cells with integrated BMS protection, UN38.3 certified.
Specifications
BSLBATT B-LFP48-100E 51.2V 100Ah 5.12kWh Rack Mount LiFePO4 Battery
| General |
| Model |
B-LFP48-100E |
| Battery Type |
LiFePO4 (Lithium Iron Phosphate) |
| Nominal Voltage |
51.2V |
| Capacity |
100Ah |
| Nominal Energy |
5.12kWh |
| Usable Energy |
5.12kWh (100% DoD) |
| Cell Configuration |
16S1P, 16 × 3.2V prismatic cells |
| Electrical |
| Charge Voltage |
55V |
| Discharge Cut-off Voltage |
47V |
| Rated Charge Current / Power |
50A / 2.56kW |
| Max Charge Current / Power |
98A / 5.017kW |
| Rated Discharge Current / Power |
100A / 5.12kW |
| Peak Discharge Current / Power |
120A / 6.144kW (1 second) |
| BMS Rating |
100A |
| Short-Circuit Protection |
350A / 500μs |
| Communication |
RS232, RS485, CAN (Wi-Fi & Bluetooth optional) |
| Parallel Capacity |
Up to 63 units (322.56kWh) |
| Physical & Environmental |
| Form Factor |
3U Rack Mount |
| Dimensions (D × W × H) |
538 × 483 (442) × 136mm |
| Weight |
46kg |
| Ingress Protection |
IP20 (indoor use) |
| Cooling |
Natural |
| Charge Temperature |
0°C to 55°C |
| Discharge Temperature |
-20°C to 55°C |
| Storage Temperature |
0°C to 35°C |
| Humidity |
≤60% |
| Altitude |
<4,000m |
| Self-Discharge |
≤3% per month |
| Lifespan & Compliance |
| Cycle Life |
6,000+ cycles @ 25°C |
| Design Life |
15+ years @ 25°C |
| Certification |
UN38.3 |
| Warranty |
10 Years |
Delivery
We leverage trusted stockists' warehouses to get your battery delivered promptly. For more details on shipping and returns, please check our Shipping and Returns page.
Warranty
This product includes a 10-year manufacturer warranty. If you experience any issues, book a warranty phone call with our team for assistance.
Data Sheets
Download detailed product specifications:
BSLBATT B-LFP48-100E Datasheet
FAQ's
Q: What applications is this battery suited for?
A: Residential solar storage, off-grid systems, hybrid installs, backup power and UPS, telecommunications, remote sites and commercial energy storage.
Q: How long does this battery last?
A: It's rated for more than 6,000 cycles and a design life of over 15 years at 25°C.
Q: Will it work with my inverter?
A: It supports RS232, RS485 and CAN, so it works with many popular 48V inverters. Check that your inverter supports these communications before you install, or contact us and we'll confirm it for you.
Q: Can I add more batteries later?
A: Yes. You can connect up to 63 units in parallel for a maximum of 322.56kWh.
Q: Can it be installed outdoors?
A: No. It's rated IP20, so install it indoors or in a weatherproof enclosure. At 46kg it also needs a rack or mount that can safely hold its weight.
Q: Does this battery include a warranty?
A: Yes, it comes with a 10-year manufacturer warranty.
