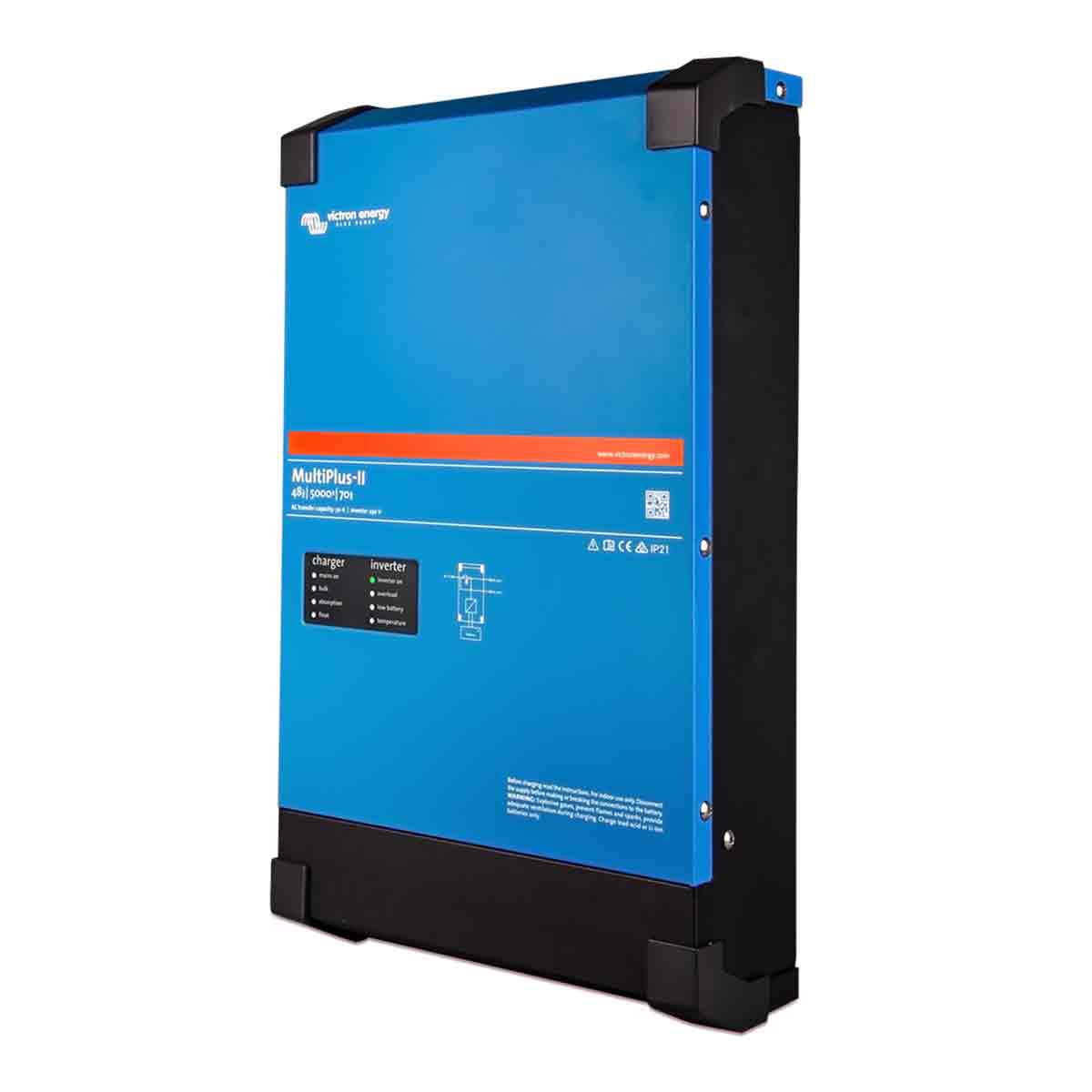

Inverter/Charger | Victron | MultiPlus-II 48V / 8000VA / 110-100 / 100

Subtotal: $4,076.00

Victron MultiPlus II 230-volt AC, 48-volt 8000-VA inverter charger with 110-amp battery charging and 100-amp AC transfer capability compatible with all batteries including Lithium.

Our new inverter/charger

The MultiPlus-II combines the functions of the MultiPlus and the MultiGrid.
It has all the features of the MultiPlus, plus an external current transformer option to implement PowerControl and PowerAssist and to optimize self-consumption with external current sensing (max. 32A).
It also has all the features of the MultiGrid with built-in anti-islanding and an increasingly long list of country approvals.


The MultiPlus-II will prevent overload of a limited AC source, such as a generator or shore power connection. First, battery charging will automatically be reduced when otherwise an overload would occur. The second level will boost the output of a generator or shore side supply with power taken from the battery.

ESS: Energy Storage Systems

The MultiPlus-II is the key component in a Victron ESS system, providing the flexibility to combine with MPPT Solar Chargers or Grid-tie PV Inverters. For examples and more detailed information see the ESS (Energy Storage System) manual.

Uninterrupted AC power (UPS function)

In the event of a grid failure, or when shore or generator power is disconnected, the inverter within the Multi is automatically activated and takes over the supply to the connected loads. This happens so fast (less than 20 milliseconds) that computers and other electronic equipment will continue to operate without disruption.

Remote Monitoring and Control

When coupled with a GX device (e.g. Cerbo GX) you can monitor and control your Multi and system or systems' locally (LAN) or remotely via the internet from anywhere in the world, using the free VRM app and free VRM portal website. Access can be from a phone, tablet, laptop or PC for multiple operating systems. There is no end to the level of control, from adjusting your Multi to auto starting a backupgenerator and more…"

Continuous Power (Watts) 6400W
Peak Power (Watts) 15000W
AC Output (Volts) 230V ±2%
DC Input Range (Volts) 38V - 66 V
Output Current Rating (Amps) 110.0A
Operating Temperature Range -40°C to 65°C
AC Input Range (Volts) 187-265V / 45-65Hz
Inverter Output Efficiency ~95%
No Load Power Consumption 29W / 3W (In Search Mode)
Product Dimensions L 642mm x W 363mm x H 206mm
Net Weight 42 Kg

 Please see more details in the 'Data Sheets' tab.


All items subject to availability and will generally require a 4-6 week turnaround.

We don't hold the stock on hand but have a trusted supplier who will send this direct from their nearest warehouse to ensure you receive it as soon as possible.


There is a 5 year replacement warranty on all Victron equipment (excluding batteries). Products will need to be delivered to an authorised technician to be inspected and evaluated.

Please call us for more details and to discuss your next step.
