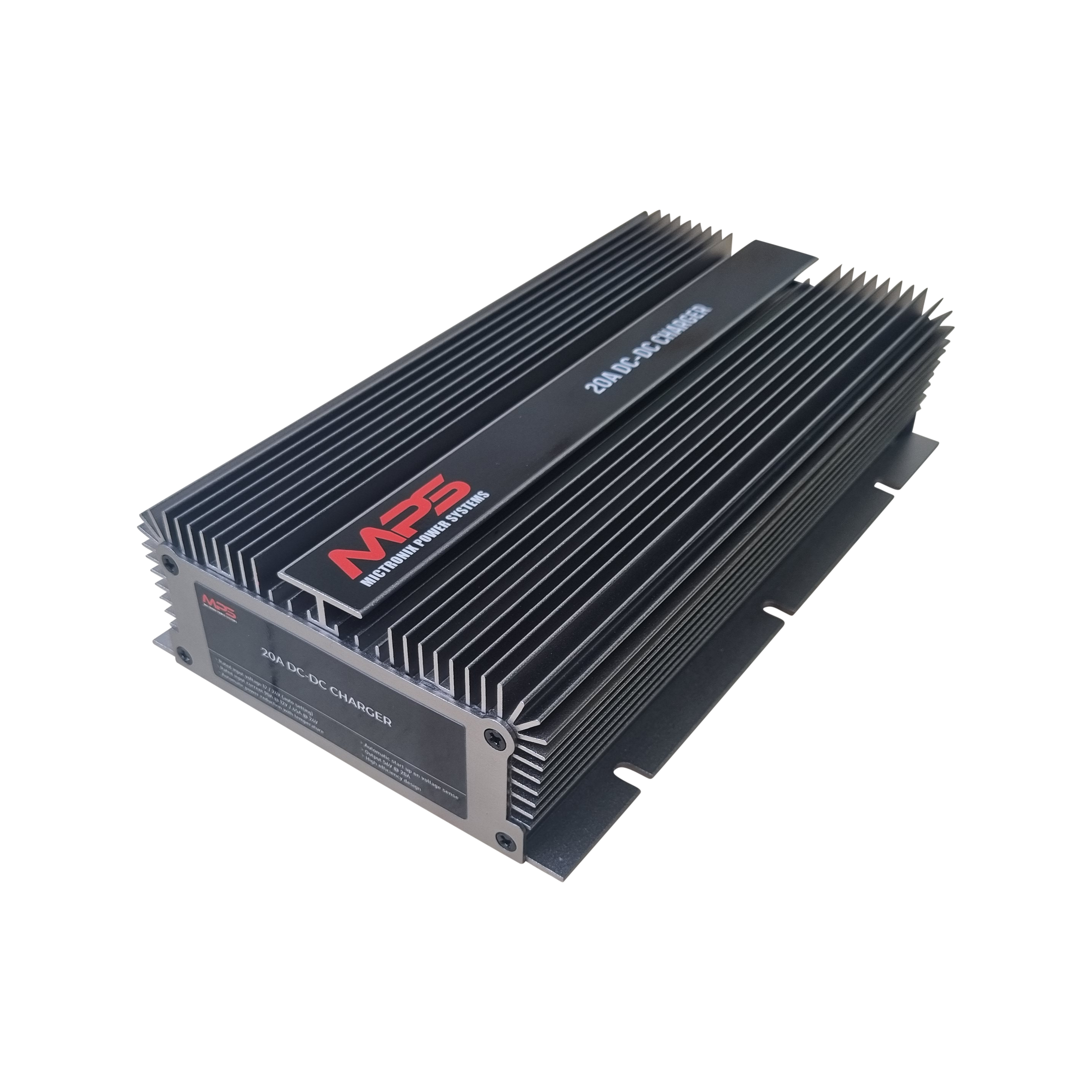

DC-DC Charger | Mictronix | MPS 12/24V to 48V DC-DC 20A Battery Charge

Description   The Mictronix DC-DC Charger features  Automatic input voltage sensing 12V/24V Automatic start and stop based... Read More
$1,247.00
$1,247.00
Vendor: Mictronix
SKU: MPS-DC-20-56
Availability: Many In Stock
Subtotal: $1,247.00

30-Day Money-Back Guarantee

Australian Phone Support

Locally-Based Australian Stock

Price Match Guarantee

Description



The Mictronix DC-DC Charger features

  • Automatic input voltage sensing 12V/24V
  • Automatic start and stop based on input voltage sensing
  • Dedicated Lithium charging profile for both MPS and Pylontech batteries
  • 100% full rated power
  • 100% full stable output Current
  • High efficiency up to 95%
  • IP68 waterproof, Epoxy potting, Anti-vibration, Dustproof
  • Cooling by free air convection
  • Surface mountable
  • 3 years warranty
  • Over current protection, over voltage protection, output short circuit protection
  • Automatic temperature regulation and shutdown on over temperature
Specifications
Input voltage 12V-16.3V / 24V-32V
Output voltage

56.0V

or 52.4V

Input current

90A @ 12.6V, 44A @22.5V

or 86A @ 12.6V, 42A @ 25.2V

Output current 20A
Idle current <5mA
Typical efficiency 95%
Line regulation +0.2%
Load Regulation +0.2%
Voltage accuracy ±1.5%
Temperature derating >50°C
Ambient operating temperature -20 - 60°C
Automatic start voltage 13.4V / 26.6V
Automatic stop voltage 12.4V / 24.8V
Recommended fuse size (input) 60A@12V, 30A@24V
Recommended fuse size (output) 20A
Weight 2450 grams
Dimensions 235 x 130 x 50mm

Please see more details in the 'Data Sheets' tab.

Delivery

All items subject to availability and will generally require a 1-3 week turnaround.

We don't hold the stock on hand but have a trusted supplier who will send this direct from their nearest warehouse to ensure you receive it as soon as possible.

Warranty

Material and Workmanship Warranty: 3-year material warranty

Please call us for more details and to discuss your next step.

Data Sheets

Please see

MPS 12/24V to 48V DC-DC Battery Charger Manual
