Description

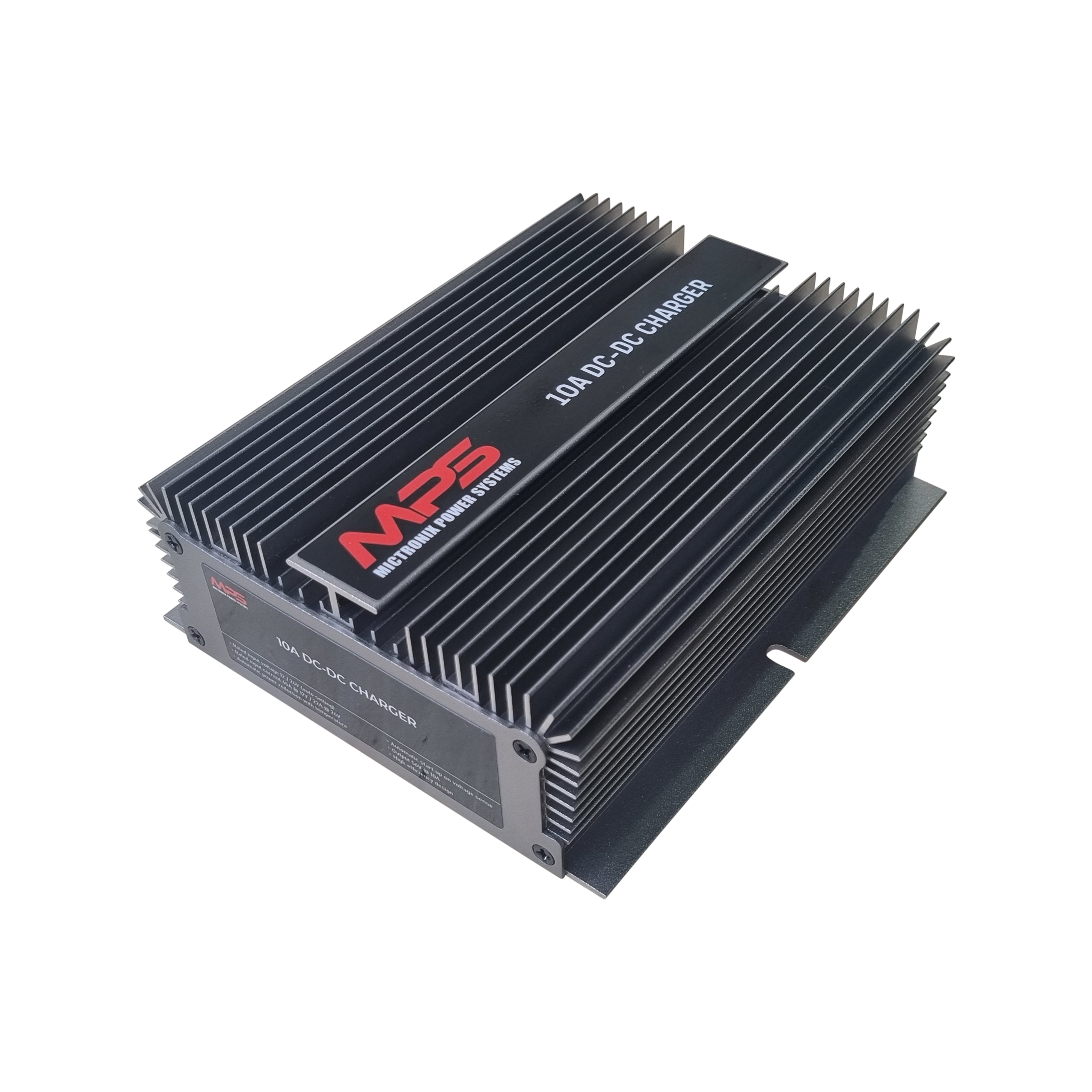

The Mictronix DC-DC Charger features
- Automatic input voltage sensing 12V/24V
- Automatic start and stop based on input voltage sensing
- Dedicated Lithium charging profile for both MPS and Pylontech batteries
- 100% full rated power
- 100% full stable output Current
- High efficiency up to 95%
- IP68 waterproof, Epoxy potting, Anti-vibration, Dustproof
- Cooling by free air convection
- Surface mountable
- 3 years warranty
- Over current protection, over voltage protection, output short circuit protection
- Automatic temperature regulation and shutdown on over temperature
Specifications
| Input voltage |
12V-16.3V / 24V-32V |
| Output voltage |
56.0V
or 52.4V
|
| Input current |
45A @ 12.6V, 22A @22.5V
or 43A @ 12.6V, 21A @ 25.2V
|
| Output current |
10A |
| Idle current |
<5mA |
| Typical efficiency |
95% |
| Line regulation |
+0.2% |
| Load Regulation |
+0.2% |
| Voltage accuracy |
±1.5% |
| Temperature derating |
>50°C |
| Ambient operating temperature |
-20 - 60°C |
| Automatic start voltage |
13.4V / 26.6V |
| Automatic stop voltage |
12.4V / 24.8V |
| Recommended fuse size (input) |
60A@12V, 30A@24V |
| Recommended fuse size (output) |
20A |
| Weight |
1500 grams |
| Dimensions |
165 x 130 x 50mm |
Please see more details in the 'Data Sheets' tab.
Delivery
All items subject to availability and will generally require a 1-3 week turnaround.
We don't hold the stock on hand but have a trusted supplier who will send this direct from their nearest warehouse to ensure you receive it as soon as possible.
Warranty
Material and Workmanship Warranty: 3-year material warranty
Please call us for more details and to discuss your next step.
Data Sheets
Please see
MPS 12/24V to 48V DC-DC Battery Charger Manual
