DC to DC charger | Victron | Isolated Orion-Tr Smart 12/12-30A (360W) *WITH FREE DIAGRAM*

ORI121236120

$370.00
$370.00

or 4 interest-free payments of  $92.50 with

Subtotal: $370.00
Description

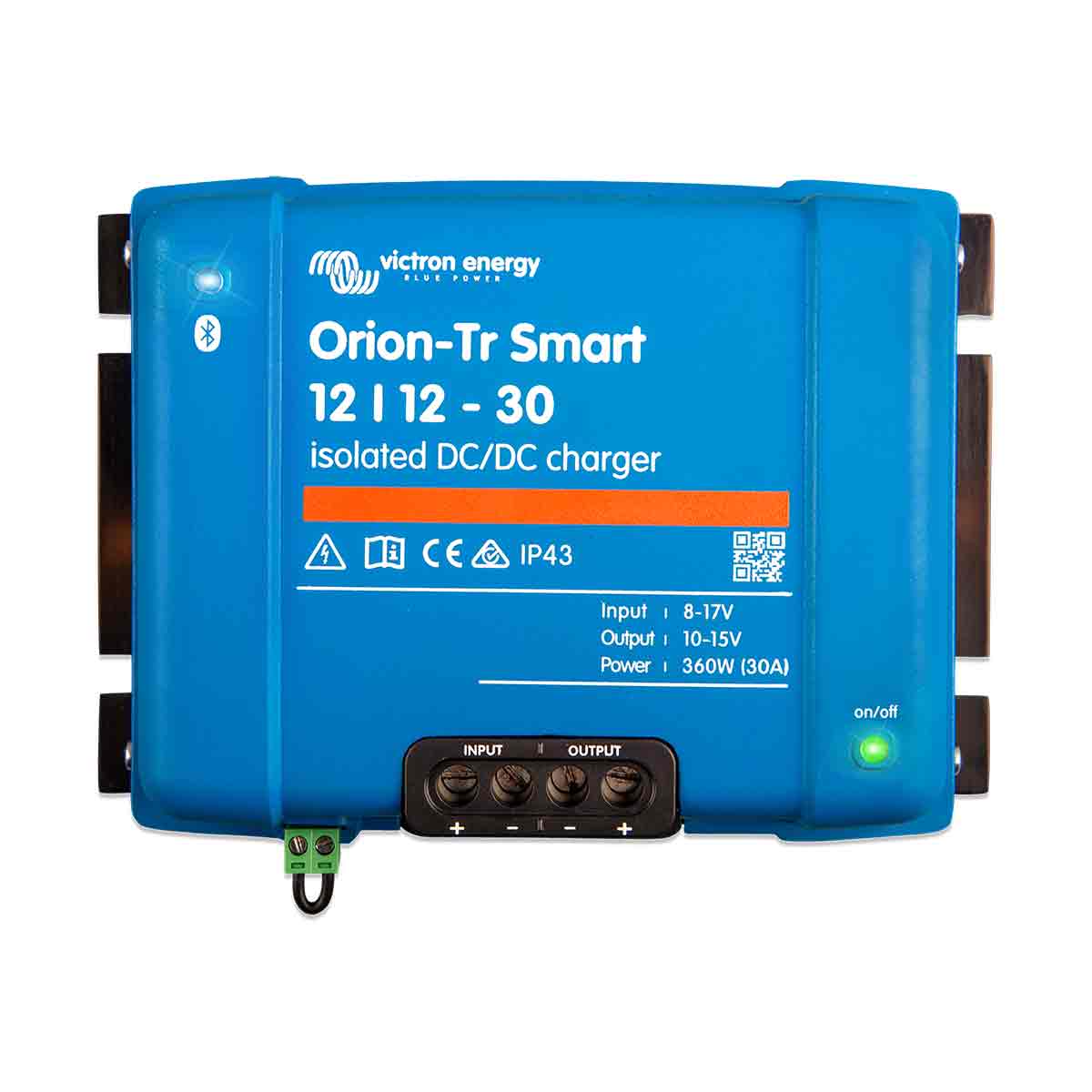

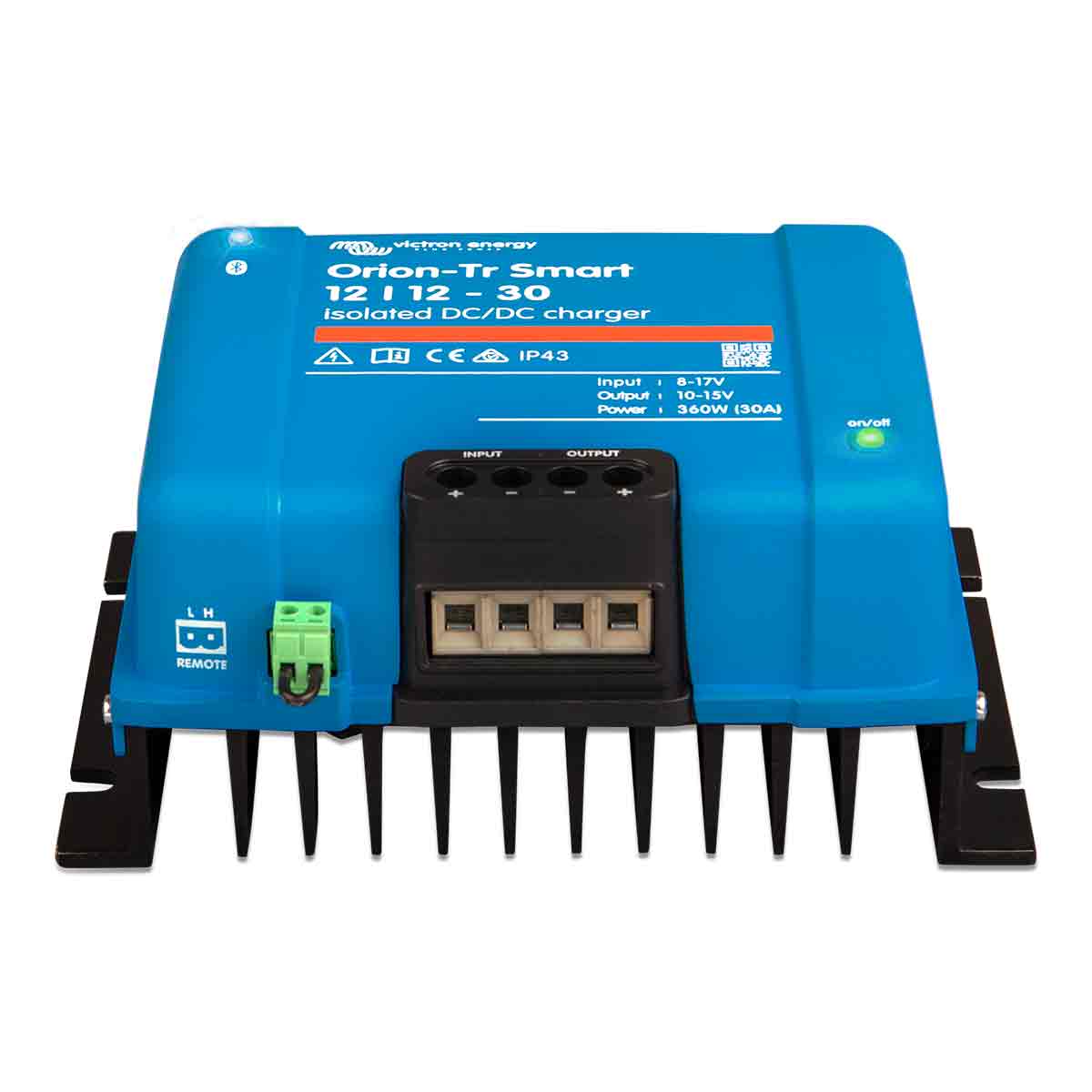

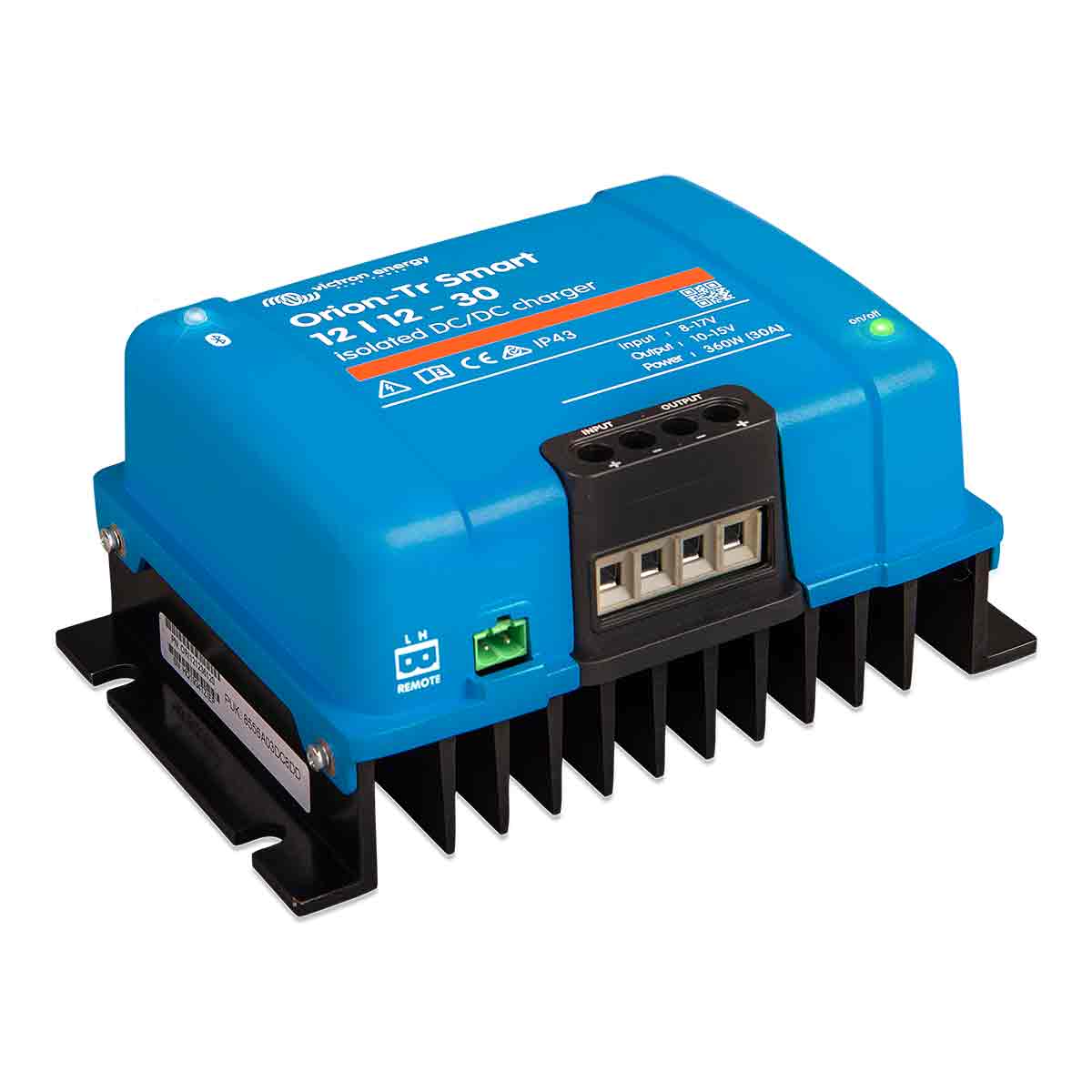

Introducing the Victron Orion-Tr Smart 12/12-30A DC-DC Charger ⚡

Key Features:

  • 12V - 12V / 30Amps
  • Intelligent DC-DC Charging
  • Built-in Bluetooth
  • IP43 Protection
  • Easy Installation


Overview: The Victron Orion-Tr Smart DC-DC Charger is a versatile power solution for dual battery systems in vehicles, boats, and more. Its built-in Bluetooth allows easy monitoring and programming. This charger excels in 12V and 24V systems, working with both lead acid and lithium batteries.

Advanced Charging and Protection: The charger employs a 3-stage charge algorithm, adapting to different battery types. It's equipped with engine running detection and a remote on/off feature for smart charging control.

Full Programmability: Use the VictronConnect app to configure and control the charger.

Applications: Ideal for marine 🛥️, RVs 🚐, motorhomes 🏡, 4WD 🚙, and motor vehicles 🚚.

About Victron: Victron Energy is a trusted name known for technical innovation and reliability in power solutions. Their products are a professional choice for independent electric power.

Upgrade your power system with the Victron Orion-Tr Smart DC-DC Charger.

Specifications

Input Voltage Range

10-17V

Under Voltage Range

7V

Under Voltage Restart

7.5V

Nominal Output Voltage

12.2V

Output Voltage Adjust Range

10-15V

Continuous Output Current at Nominal Output Voltage (40°C)

30A

Maximum Output Current (10s) at Nominal Output Voltage Minus 20%

40A

Short Circuit Output Current

60A

Continuous Output Power at 25°C

430W

Continuous Output Power at 40°C

360W

Efficiency

87%

Operating Temperature Range

-20 to +55 °C (derate 3 % per °C above 40 °C)

DC Connection

Screw Terminals

Maximum Cable Cross-Section

16mm²

Warranty

5 Years

Weight

1.8kg

Dimensions

130 x 186 x 80mm
