Description

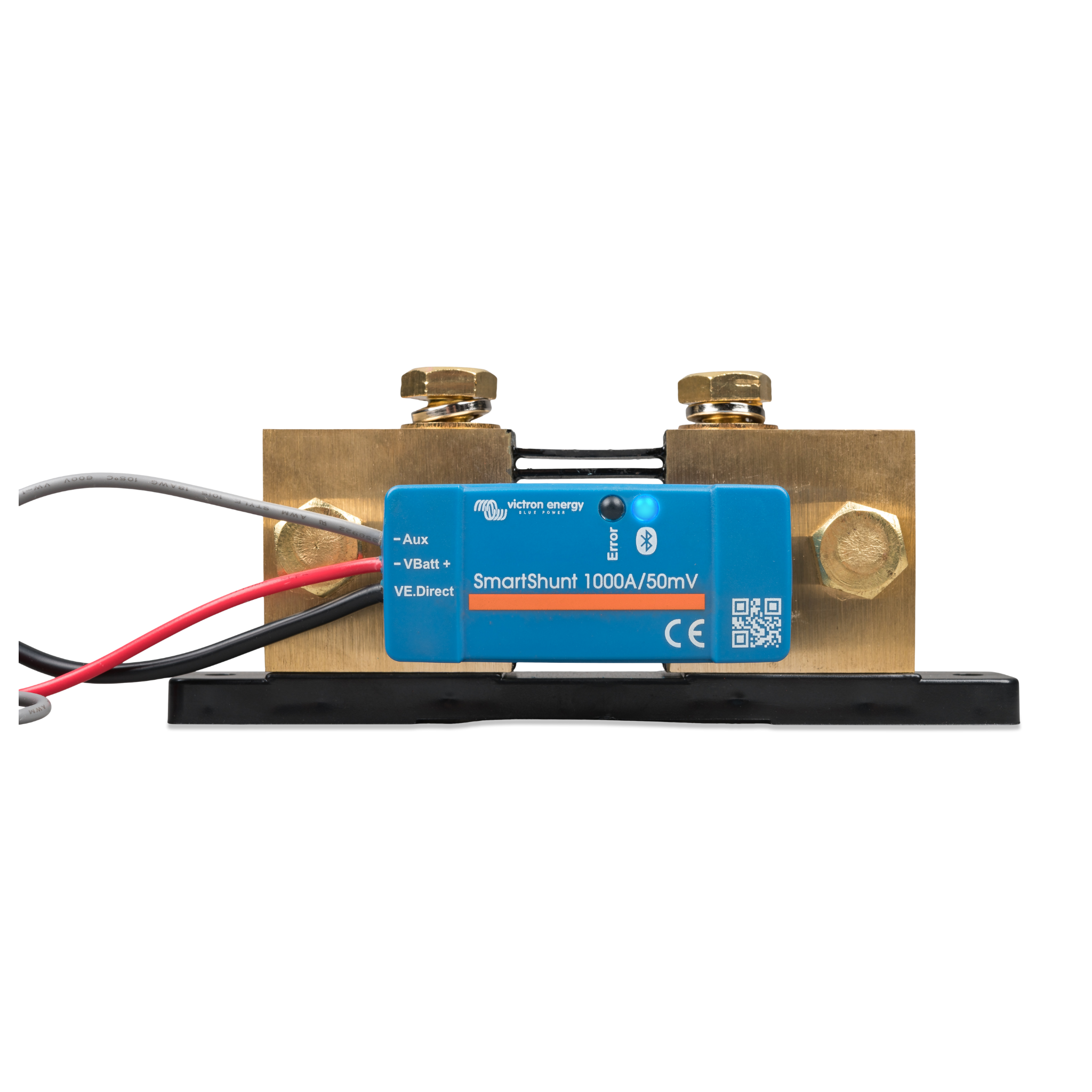

The Victron SmartShunt 1000A IP65 is a rugged and reliable battery monitor designed for high-capacity marine, industrial, and off-grid energy systems. With an IP65 waterproof rating, it provides excellent protection from water and dust, making it ideal for harsh environments. Using Bluetooth, it connects seamlessly to the VictronConnect app, delivering real-time insights into battery performance.
This shunt replaces traditional displays by integrating directly into your power system. Track key metrics such as state of charge, power usage, and remaining battery time to ensure optimal energy management. The SmartShunt also features a VE.Direct port for wired integration with other Victron devices, allowing easy expansion of your monitoring setup.
Built for extreme conditions, the SmartShunt 1000A IP65 performs reliably between -40°C and 60°C, supporting Zero Grid’s mission to provide durable, sustainable energy solutions wherever they are needed.
Key Features
-
Waterproof (IP65 Rating) – Fully protected from dust and water ingress, ideal for outdoor and marine applications.
-
Bluetooth Connectivity – Monitor your system with the VictronConnect app from any mobile device.
-
High Capacity Monitoring – Supports battery systems with up to 1000A continuous current.
-
Display-Free Design – Saves space and integrates seamlessly into your energy setup.
-
VE.Direct Port – Enables easy integration with other Victron products.
-
Wide Compatibility – Works with lithium, AGM, and lead-acid batteries.
Specifications
Victron SmartShunt 1000A IP65
| Product SKU |
SHU050410250 |
| Maximum Current |
1000 A |
| Voltage Range |
6.5 V - 70 V |
| Shunt Voltage |
50 mV |
| Power Consumption |
1 mA @ 12V |
| Operating Temperature Range |
-40°C to 60°C |
| Ingress Protection |
IP65 |
| Connection Options |
Bluetooth / VE.Direct |
| Product Dimensions |
L 120 mm x W 54 mm x H 30 mm |
| Net Weight |
0.2 Kg |
Delivery
We’ll tap into our trusted stockists' warehouses and distribution networks to get your gear to you as quickly as possible. No waiting around—we aim to have it on your doorstep and ready for action before you know it. For more details on shipping and returns, head over to our Shipping and Returns page.
Warranty
This product includes a 5-year replacement warranty. If you ever run into any issues with your product—whether it’s day one or years down the track—we’re here to help. Simply book a warranty phone call, and we’ll guide you through the next steps to get things sorted with minimal hassle.
An authorised Victron technician may need to assess the product, but don’t worry—we’ll be with you every step of the way. Contact us whenever you need assistance.
Data Sheets
Download detailed product specifications and installation instructions:
Victron SmartShunt 1000A IP65 Specifications
Victron SmartShunt 1000A IP65 Manual
FAQ's
Q: Is the SmartShunt 1000A IP65 waterproof?
A: Yes, it has an IP65 rating, offering protection against water and dust ingress.
Q: How do I monitor my battery system with the SmartShunt?
A: Use the VictronConnect app to pair the SmartShunt via Bluetooth for wireless monitoring.
Q: Is the SmartShunt compatible with lithium batteries?
A: Yes, it supports lithium, AGM, and lead-acid batteries for precise monitoring.
