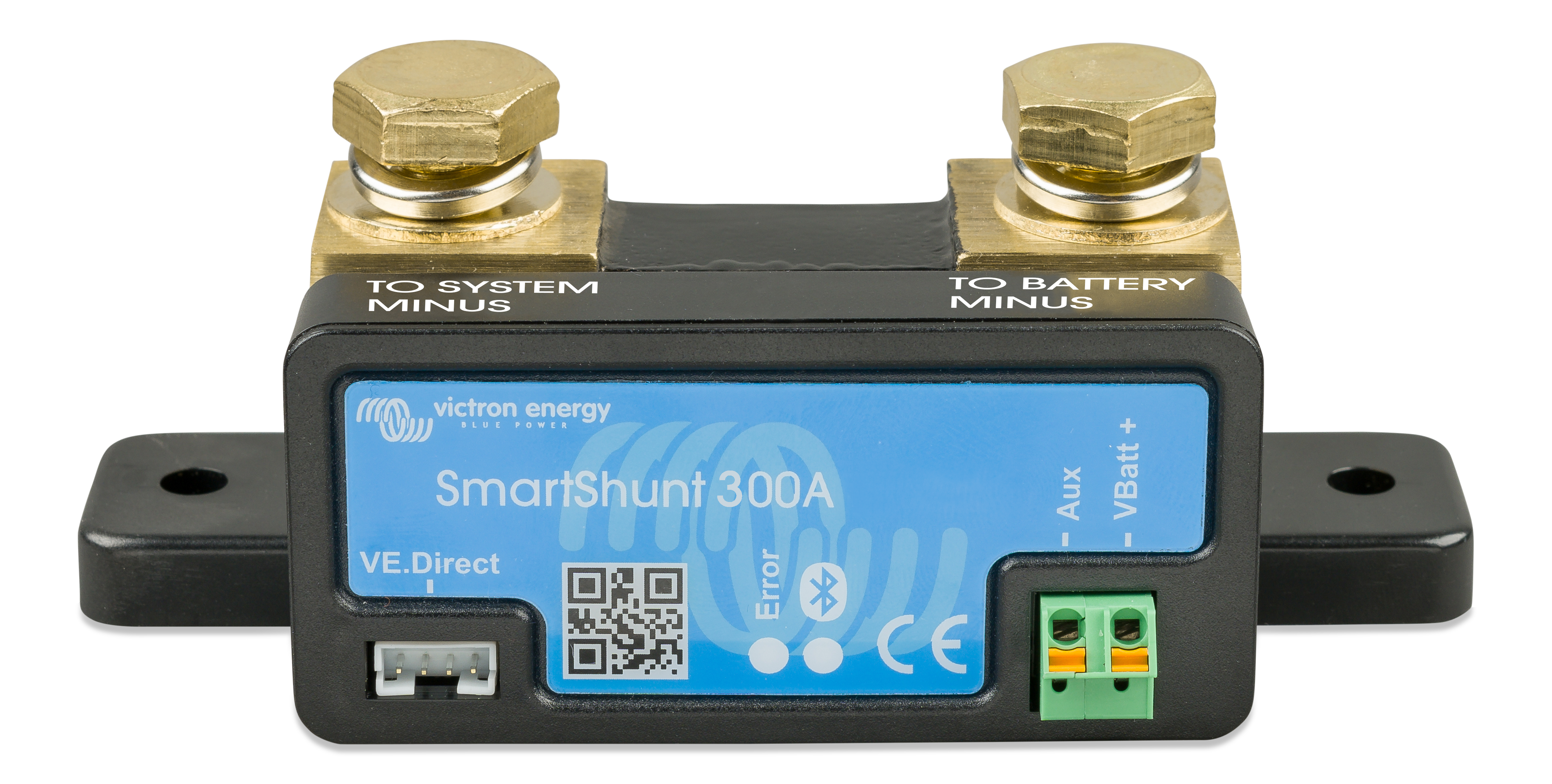

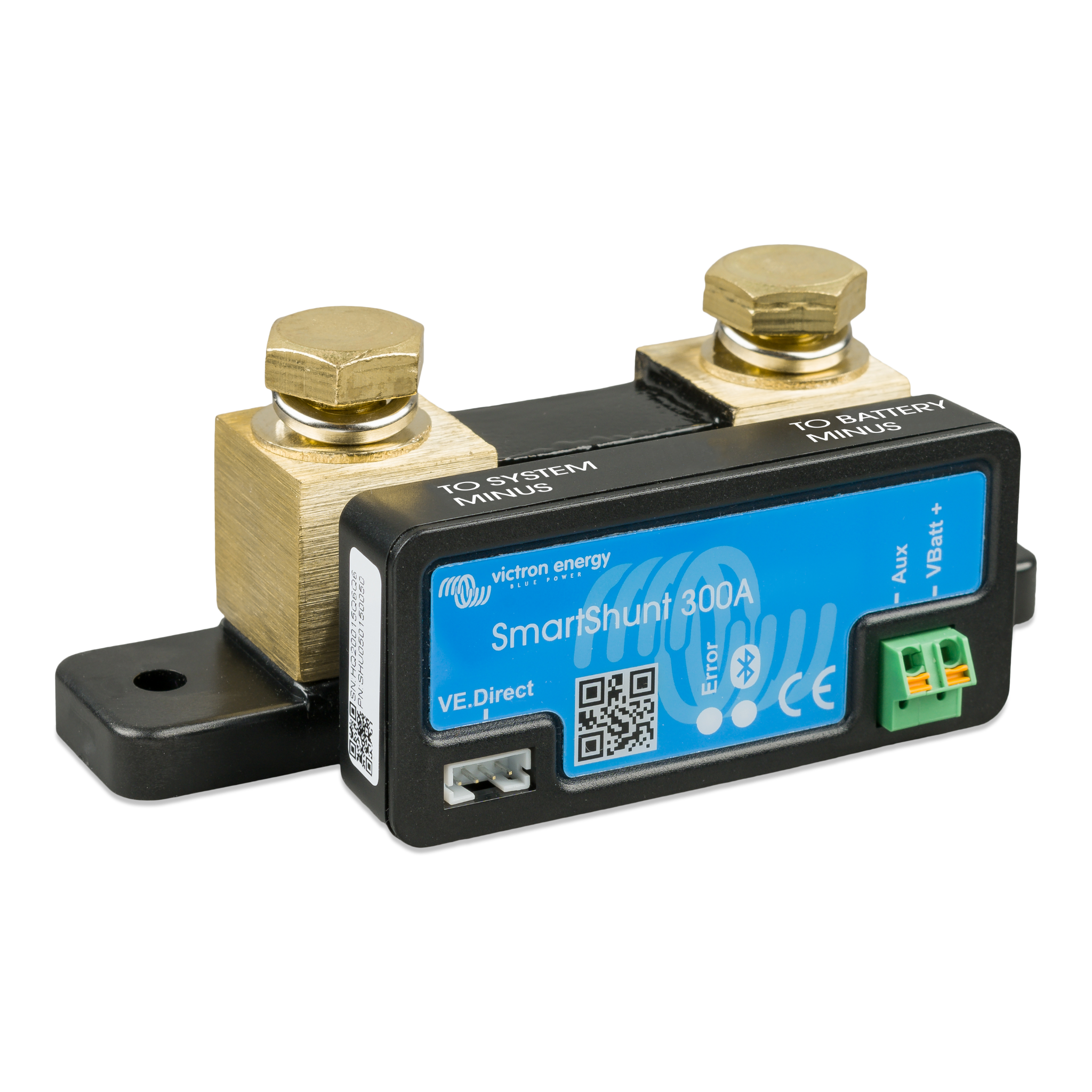

Victron Smart Shunt 300A
Victron SmartShunt 300A Side

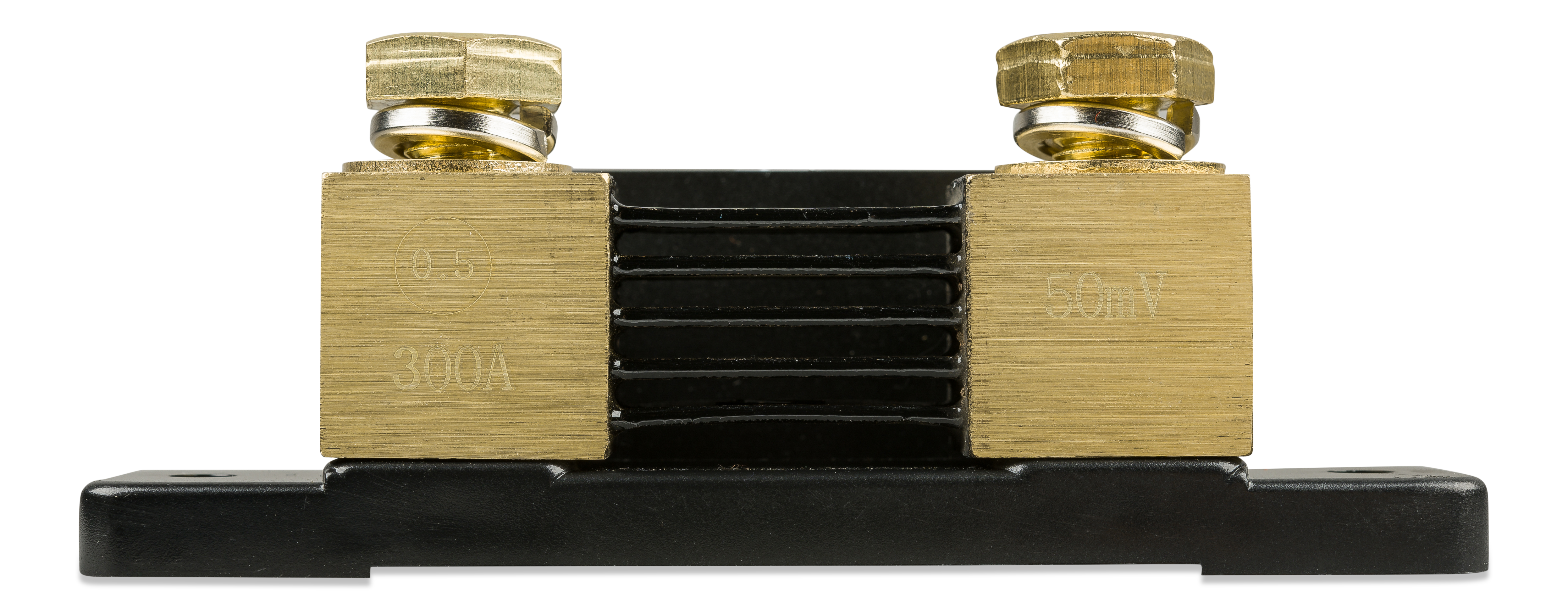

Victron SmartShunt 300A Back

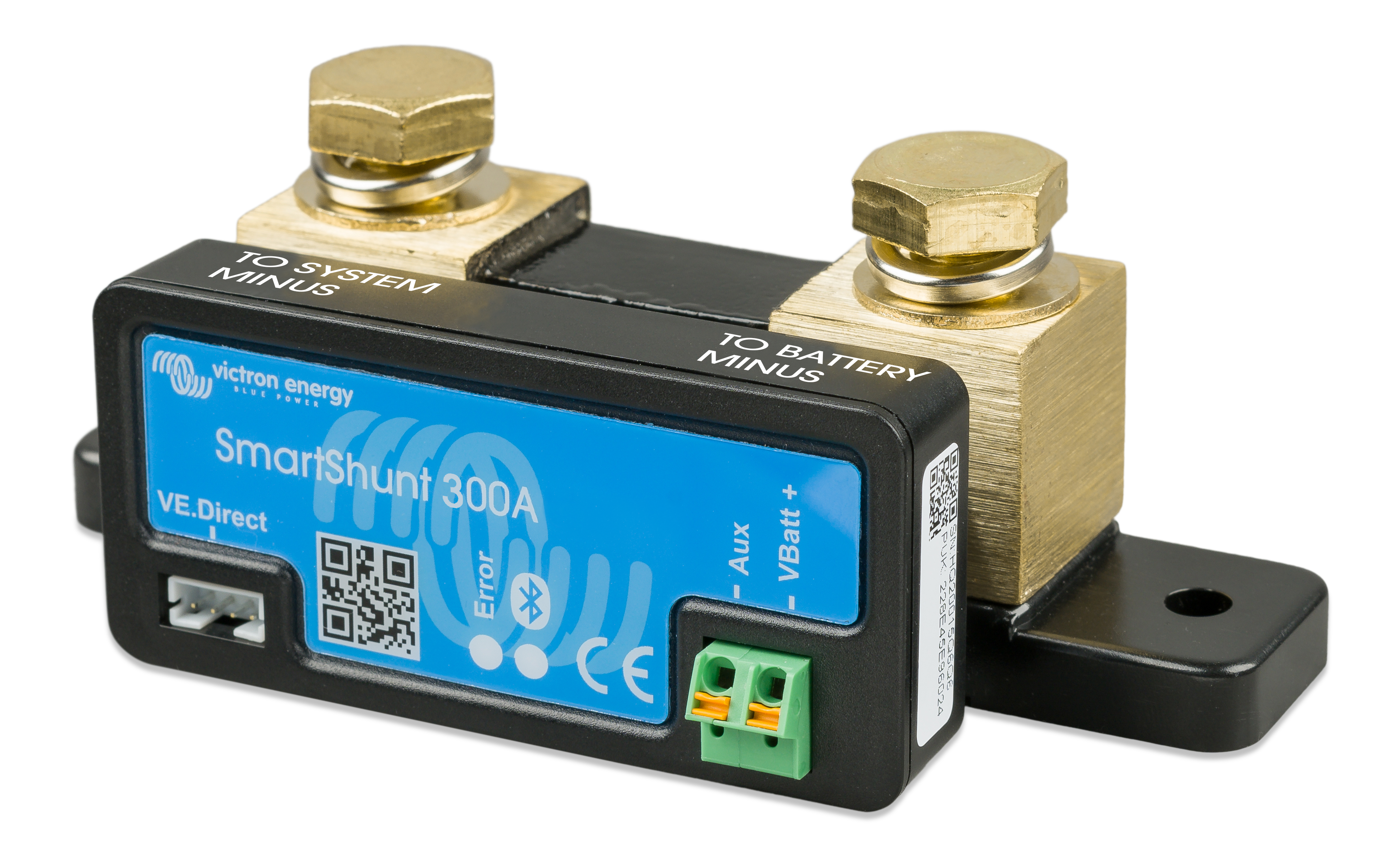

Victron SmartShunt 300A Side Angle
Victron SmartShunt 300A Connections
Victron SmartShunt 300A M10 Bolts
10 customers are viewing this product

Victron Smart Shunt 300A/50mV

$120.00
$120.00

or 4 interest-free payments of $30.00 with

• Bluetooth Connectivity: Monitor your battery system wirelessly with the VictronConnect app.

• Compact & Display-Free: Saves space by eliminating the need for a traditional display.

• Real-Time Monitoring: Track power consumption, battery charge, and time remaining.

• Multiple Connection Options: Supports Bluetooth and VE.Direct for seamless system integration.

• Wide Compatibility: Works with lithium, AGM, and lead-acid batteries.

SKU: SHU050130050

Subtotal: $120.00
Victron Smart Shunt 300A

Victron Smart Shunt 300A/50mV

$120.00

Victron Smart Shunt 300A/50mV

$120.00
Description

The Victron SmartShunt 300A/50mV is a compact, display-free battery monitor designed to offer seamless monitoring for off-grid, marine, and RV applications. Using Bluetooth technology, it connects to your smartphone or tablet, giving you real-time insights via the VictronConnect app. Monitor your battery’s state of charge, power consumption, and remaining time, ensuring you always stay on top of your energy needs.

This device integrates easily into your system without the need for a traditional display, reducing complexity and saving space. It’s compatible with lithium, AGM, and lead-acid batteries and supports both Bluetooth and VE.Direct for flexible connectivity with other Victron products. Whether for off-grid living, boating, or RV adventures, the SmartShunt 300A/50mV provides precise data to help you manage your battery system efficiently.

Perfectly suited for various power setups, the SmartShunt operates reliably from -40°C to 60°C, supporting Zero Grid’s commitment to sustainable and dependable energy solutions.

Key Features

  • Bluetooth Connectivity – Wirelessly monitor your battery system using the VictronConnect app on your mobile device.
  • Compact & Display-Free Design – Saves space by eliminating the need for a traditional monitor display.
  • Precision Monitoring – Get real-time data on state of charge, power usage, and battery time remaining.
  • VE.Direct Port – Seamless integration with other Victron devices through wired connectivity.
  • Versatile Compatibility – Supports lithium, AGM, and lead-acid batteries.
Specifications

Victron SmartShunt 300A/50mV

Product SKU SHU050230050
Maximum Current 300 A
Voltage Range 6.5 V - 70 V
Shunt Voltage 50 mV
Power Consumption 1 mA @ 12V
Operating Temperature Range -40°C to 60°C
Connection Options Bluetooth / VE.Direct
Product Dimensions L 120 mm x W 54 mm x H 30 mm
Net Weight 0.2 Kg
Delivery

We’ll tap into our trusted stockists' warehouses and distribution networks to get your gear to you as quickly as possible. No waiting around—we aim to have it on your doorstep and ready for action before you know it. For more details on shipping and returns, head over to our Shipping and Returns page.

Warranty

This product includes a 5-year replacement warranty. If you ever run into any issues with your product—whether it’s day one or years down the track—we’re here to help. Simply book a warranty phone call, and we’ll guide you through the next steps to get things sorted with minimal hassle.

An authorised Victron technician may need to assess the product, but don’t worry—we’ll be with you every step of the way. Contact us whenever you need assistance.

Data Sheets

Download detailed product specifications and installation instructions:

Victron SmartShunt 300A/50mV Specifications

Victron SmartShunt 300A/50mV Manual

FAQ's

Q: Can the Victron SmartShunt monitor a battery bank?
A: Yes, the SmartShunt can monitor both a single battery and a battery bank.

Q: How do I connect the SmartShunt to my phone?
A: Use the VictronConnect app, available on iOS and Android, to pair the SmartShunt via Bluetooth.

Q: Is the SmartShunt compatible with lithium batteries?
A: Yes, it works with lithium, AGM, and lead-acid batteries, providing accurate monitoring for all types.
