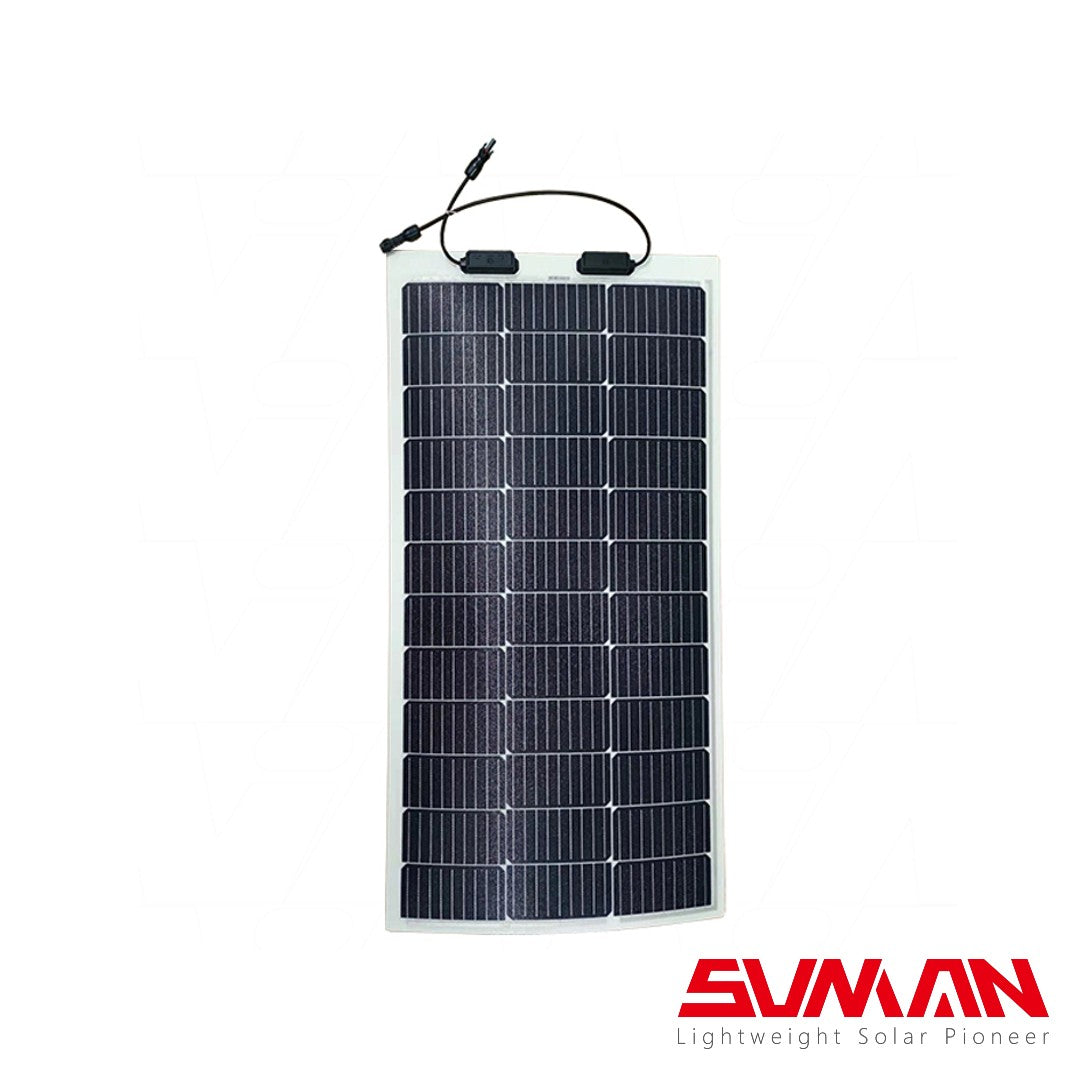

Solar Panel | Sunman | 100 Watt eArc Frameless Flexible Solar Panel

$222.00
$0.00
$222.00

Read More Below

Subtotal: $222.00

COMING SOON! OCTOBER DISPATCH

Sunman's eArc series flexible solar panels are a game changer!

eArc is the world's first glassless solar module. An innovation combining proven crystalline silicon solar cells with Sunman's patented composite material (ZL201610927464.6, ZL201610927383.6 EP3534410), eArc has the same durability and robustness of conventional glass modules.

Unlike glass: eArc is akin to a flexible"solar skin", 70% lighter and up to 95% thinner. eArc requires 0 penetration or mounting equipment during installation, cutting time-on-site by 40%.  eArc is easier to transport in bulk - up to 60% more kW per pallet. eArc targets a variety of applications glass modules cannot service.

Same Durability as Glass: eArc is the first module of its kind to pass the same durability and safety tests as glass modules, including IEC 61215:2016, IEC61730:2016 and UL1703 (USA). The IEC61215 confirms eArc's ability to withstand prolonged exposure to open air climates. eArc has also passed additional module quality assessments, including 3000 hours of damp heat, UV exposure (25 years equivalent), PID, salt mist and ammonia corrosion tests.

Features & Benefits:

  • Lightweight & Durable
  • Ultra slim profile - just 2mm thick
  • Highly efficient Mono-Perc cells for optimum performance
  • Flexible and suitable for use on a variety of different surfaces
  • MC4 connector system to daisy chain multiple panels together



Specifications
 Rated Power - Pmax (watts)   100W
 Max. Power Voltage VMP (V)  21.2V
 Max. Power Current IMP (A)  4.75A
 Open Circuit Voltage Voc (V)  25.2V
 Short Circuit Current Isc (A)  5.12A
 Max. System Voltage  600VDC (IEC)
 Max Series Fuse Rating (A)  20A
 Module Efficiency  15.7%
 Operating Temperature  -40°C to +85°C
 No of Cells  36 (3 x 12)
 Junction Box  Yes, IP68
 Connectors / Output Cable  (+) 150mm, (-) 450mm long x 4mm2 leads with MC4 compatible connectors



Data sheet

100 Watt eArc Frameless Flexible Solar Panel Data Sheet
