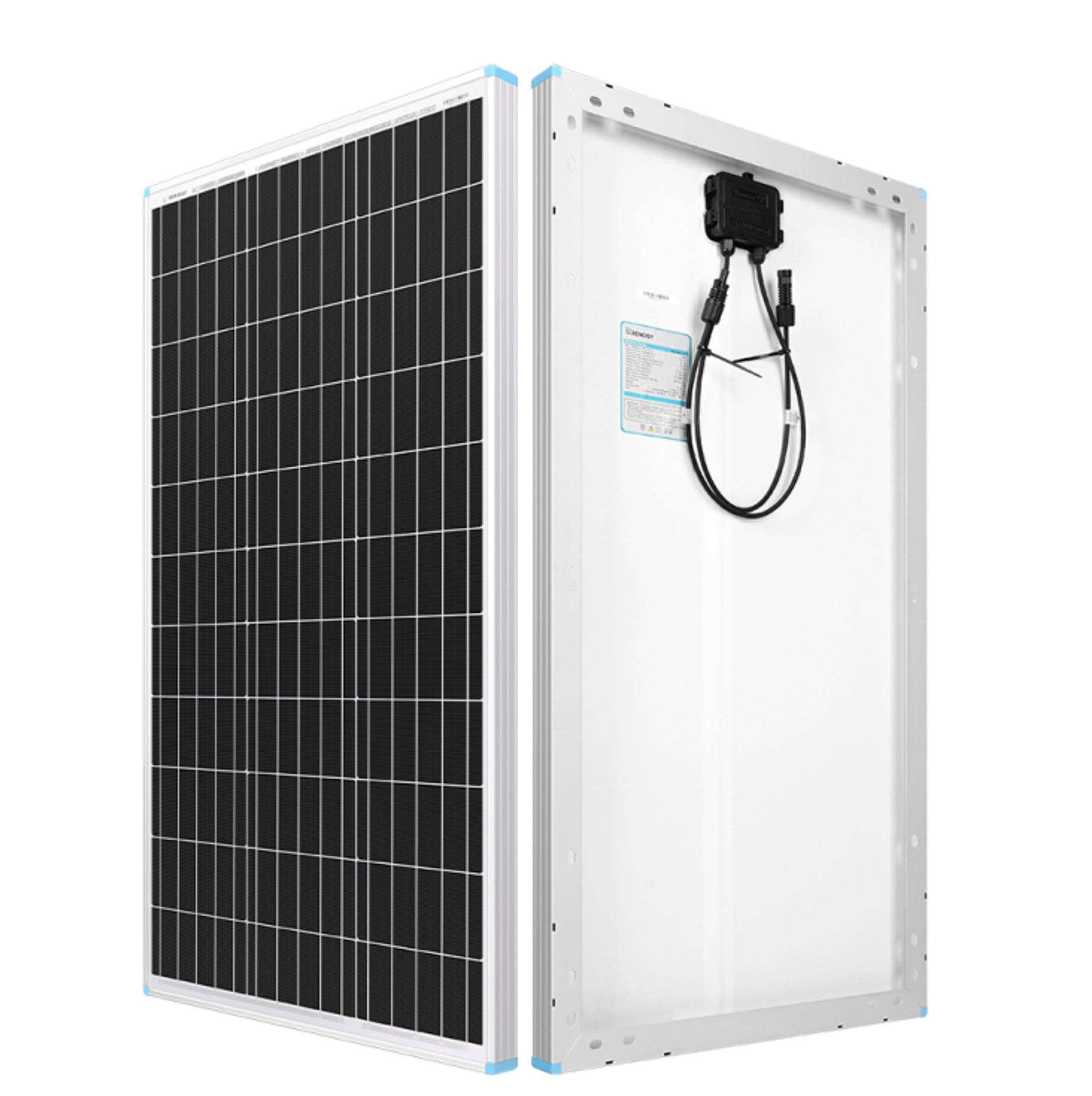

Solar Panel | Renogy | 80 Watt 12 Volt Monocrystalline Solar Panel

Description High in power, compact in size, this Renogy 80 Watt Monocrystalline Solar Panel is the perfect... Read More
$149.99
$0.00
$149.99
Vendor: Renogy
SKU: RNG-80D-SS-AU
Availability: Many In Stock
Subtotal: $149.99

30-Day Money-Back Guarantee

Australian Phone Support

Locally-Based Australian Stock

Price Match Guarantee

Description

High in power, compact in size, this Renogy 80 Watt Monocrystalline Solar Panel is the perfect option for any off-grid application. Ideal for RVs, motorhomes, cabins, marine areas, home backup power, and more. This panel uses premium Grade A+ monocrystalline solar cells, more efficient than conventional polycrystalline solar cells. Ideal for starting a new project or expanding an existing one, Renogy 80W Monocrystalline Solar Panels provide excellent efficiency that will not disappoint.

KEY FEATURES

Reliable Power Output
Renogy's 80W monocrystalline solar panel can provide an average of 320-400 Watt-hours (Wh) of electric power per day (depending on sun availability).

Efficient Performance
Bypass diodes protect the solar cells from overheating and allow the solar panel to continue working during accidental shading by bypassing the underperforming cells.

Industry-Leading Technology
This Renogy 80W Monocrystalline Panel uses high purity silicon cells coated with advanced encapsulation material with multi-layered sheet laminations to enhance cell performance and provide long-lasting durability.

Built to Last
Corrosion-resistant aluminium frame provides extended outdoor use that ensures the panel can last for decades. The IP65 rated junction box is versatile due to its ability to withstand dirt, dust, debris, and low-pressure water jets. This panel is built to withstand high winds (2400 Pa) and snow loads (5400 Pa).

Fast and Easy Installation
Pre-drilled holes on the back of the panel allow for fast mounting and securing, ideal for off-grid applications including RVs, rooftops, cabins, boats, and more. They are directly compatible with Renogy ground mounts, Z Brackets, Corner Brackets, Pole Mounts, and Tilt Mounts.

PACKAGE INCLUDES

80 Watt 12 Volt Monocrystalline Solar Panel

Renogy 80 Watt 12 Volt Monocrystalline Solar Panel

1 x



Specifications
Max Power at STC 80W
Short Circuit Current (Isc) 4.7A
Optimum Operating Current (Imp) 4.3A
Open Circuit Voltage (Voc) 22.3V
Optimum Operating Voltage (Vmp) 18.6V
Operating Temperature  -40°C to 90°C / -40°F to 194°F
Module Efficiency 16.75%
Maximum System Voltage 600 VDC (UL)
Number of Cells 33
Dimensions

938mm x 509mm x 35mm

Weight 5.5kg
Panel Leads (Pair) 2.0809mm2, 600mm
Certifications CE, ISO

Please see more details in the 'Data Sheets' tab.

Delivery

All items subject to availability and will generally require a 1-3 business day turnaround.

We don't hold the stock on hand but have a trusted supplier who will send this direct from their nearest warehouse to ensure you receive it as soon as possible.

Warranty

25 year power output warranty: 5 year 95% output, 10 year 90% output, 25 year 80% output.

Material and Workmanship Warranty: 5 year warranty

Accessories: 1 year warranty

Please call us for more details and to discuss your next step.

Data Sheets

Please see

80 Watt 12 Volt Monocrystalline Solar Panel Manual

80 Watt 12 Volt Monocrystalline Solar Panel Warranty
