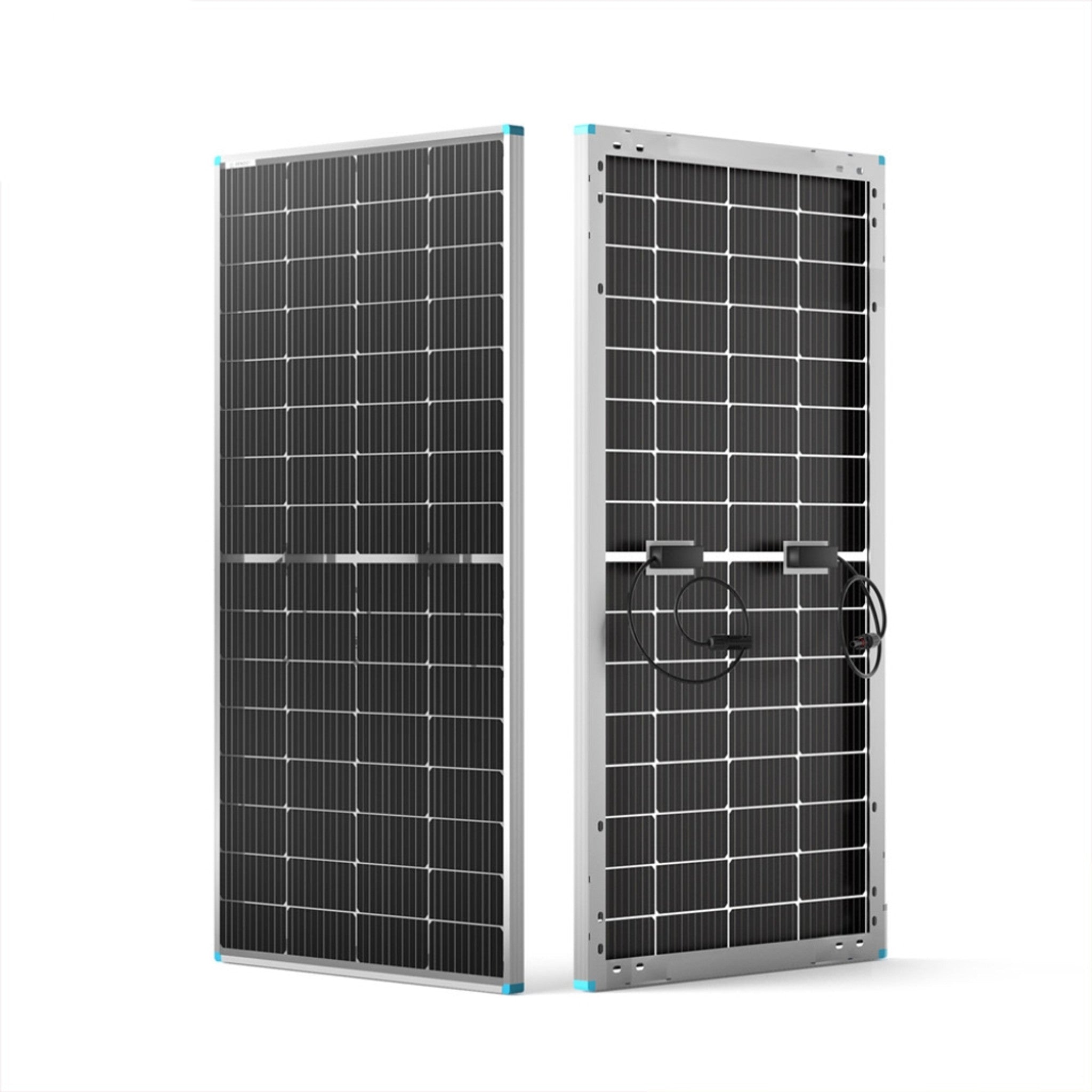

Solar Panel | Renogy | 220 Watt 12 Volt Bifacial Monocrystalline Solar Panel

Description Renogy's latest innovative 220W bifacial solar panel is among the best solar panels for marine and... Read More
$669.99
$429.99
$669.99
Vendor: Renogy
SKU: RSP220DT-AU
Availability: Many In Stock
Subtotal: $669.99

30-Day Money-Back Guarantee

Australian Phone Support

Locally-Based Australian Stock

Price Match Guarantee

Description

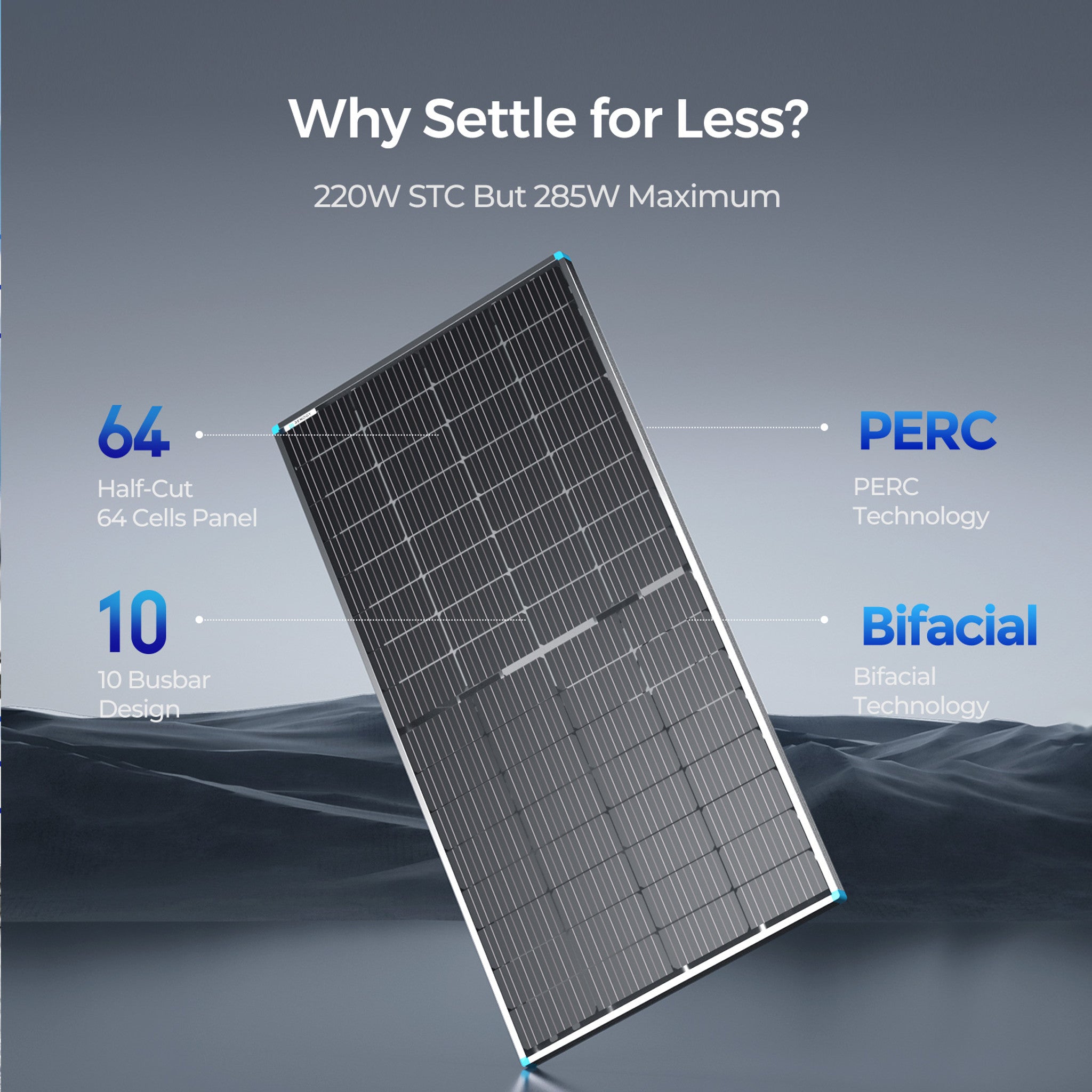

Renogy's latest innovative 220W bifacial solar panel is among the best solar panels for marine and RV applications, offering up to 30% higher energy output than traditional solar panels thanks to its bifacial design that captures sunlight from both sides. Featuring premium Grade A+ monocrystalline solar cells, PERC technology, half-cut cells, 10 busbars, and bypass diode network, this monocrystalline solar panel ensures high solar cell efficiency and solar panel output. It is a great option that can provide power even in the toughest environmental conditions.

KEY FEATURES

Reliable Power Output

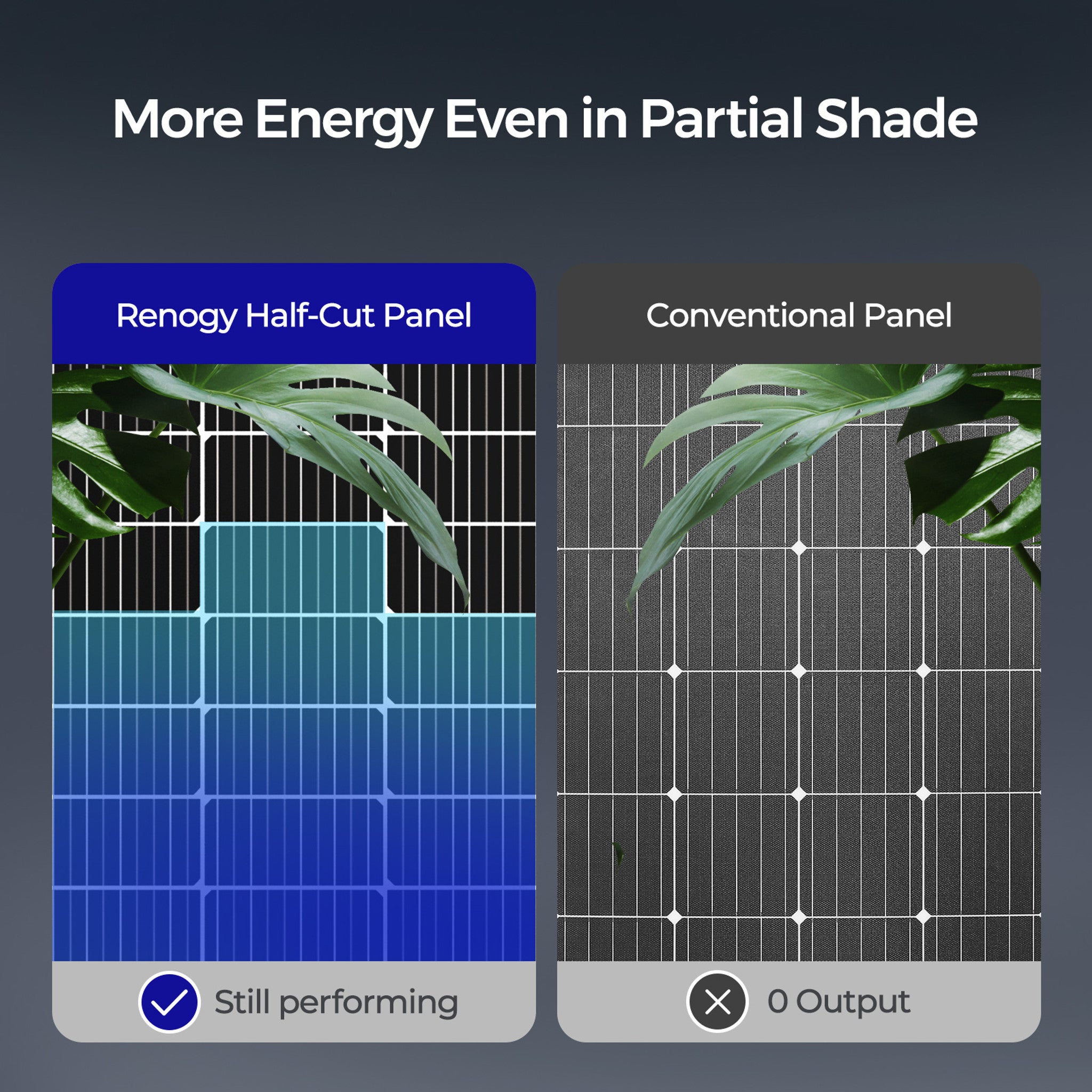

With its innovative design that incorporates PERC, half-cut cell, bypass diodes, and 10 busbar technologies, this panel can maximize energy output even when partially shaded and protect the solar cells from overheating.

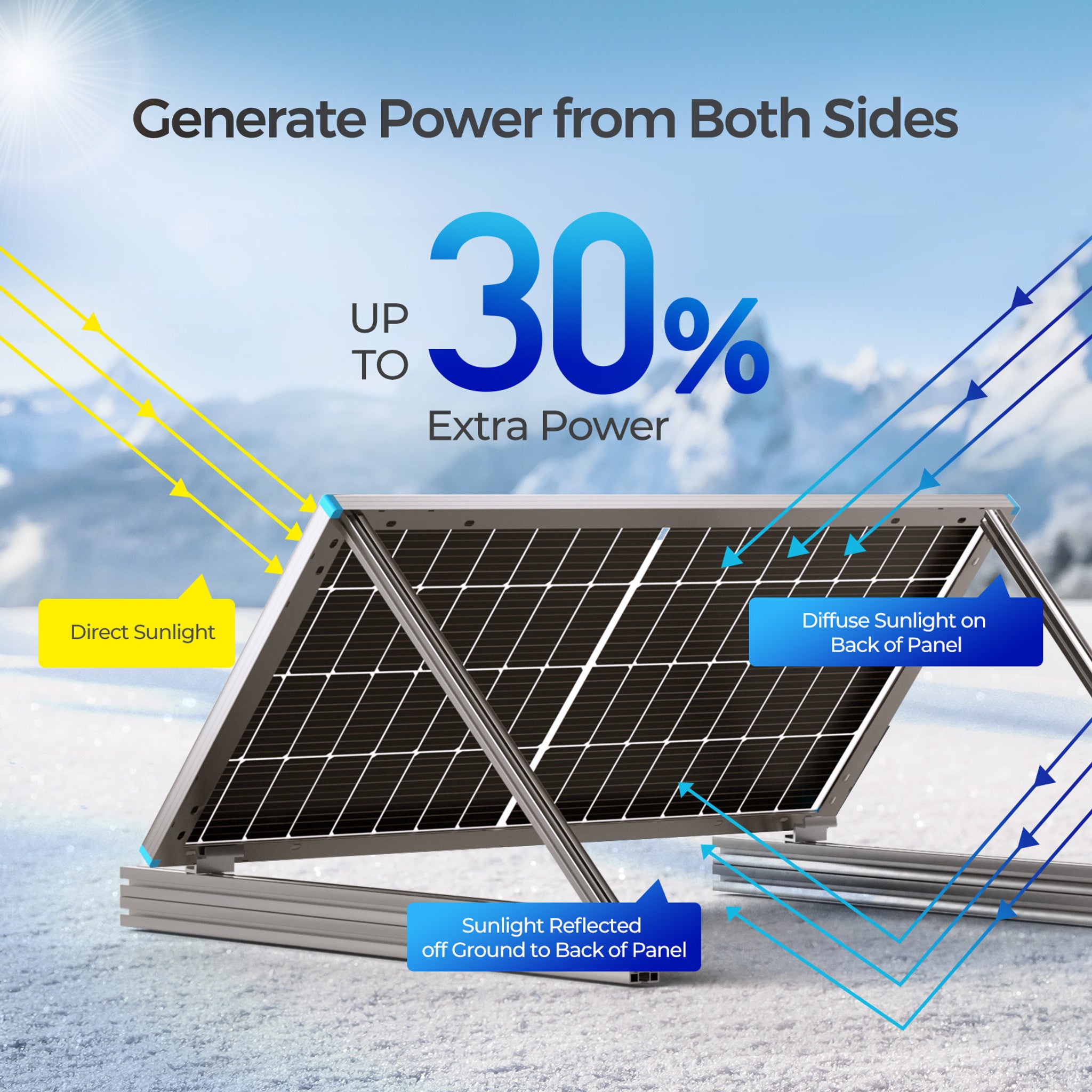

Bifacial Energy Yield
With the ability to capture sunlight from both sides, this panel can provide up to 30% more energy compared to traditional solar panels.

Industry-Leading Technology

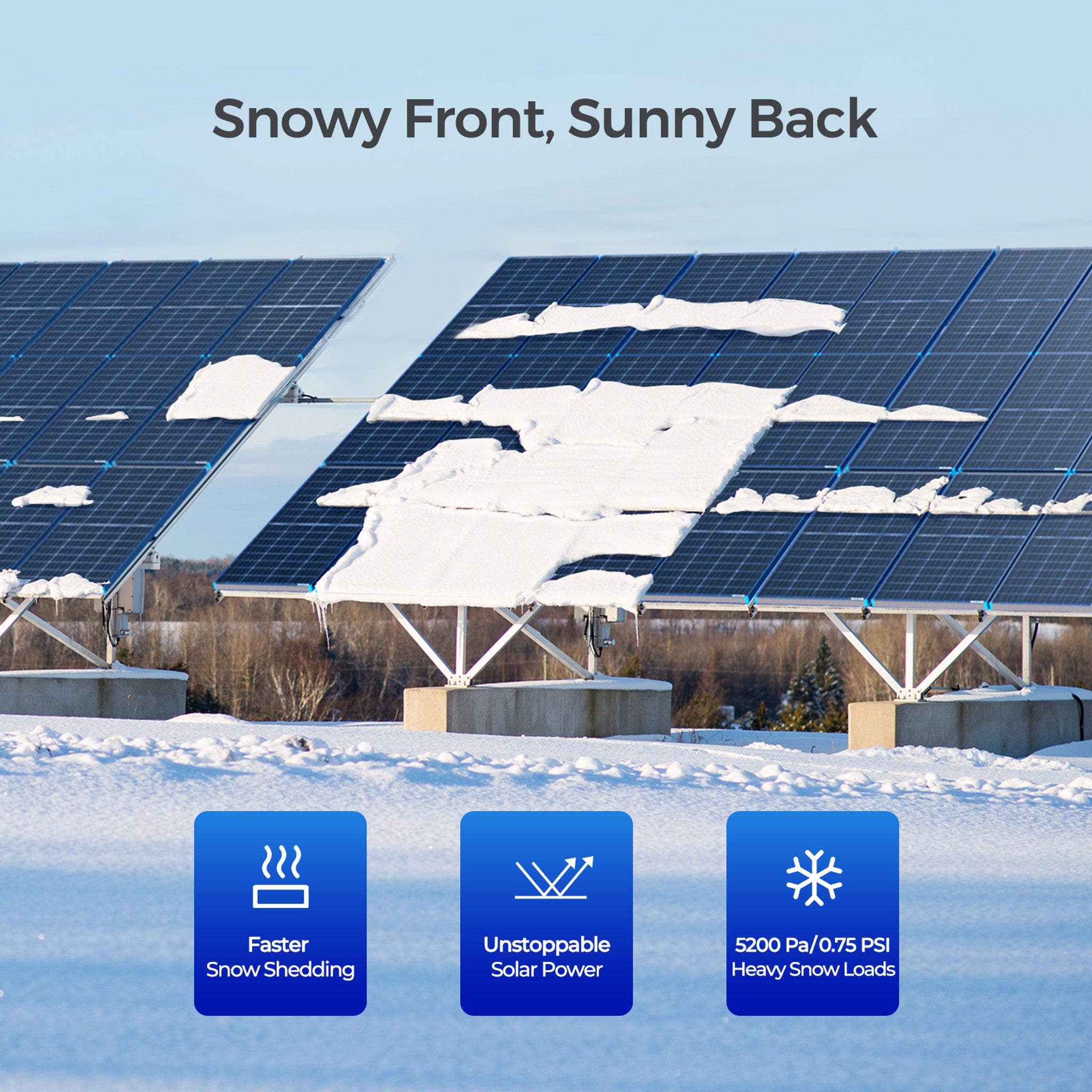

The bifacial design of our solar panel helps to accelerate snow shedding and warm up the panel more quickly. Additionally, with the back side always available, our panel can continue to provide unstoppable solar power for your off-grid life.

Built to Last

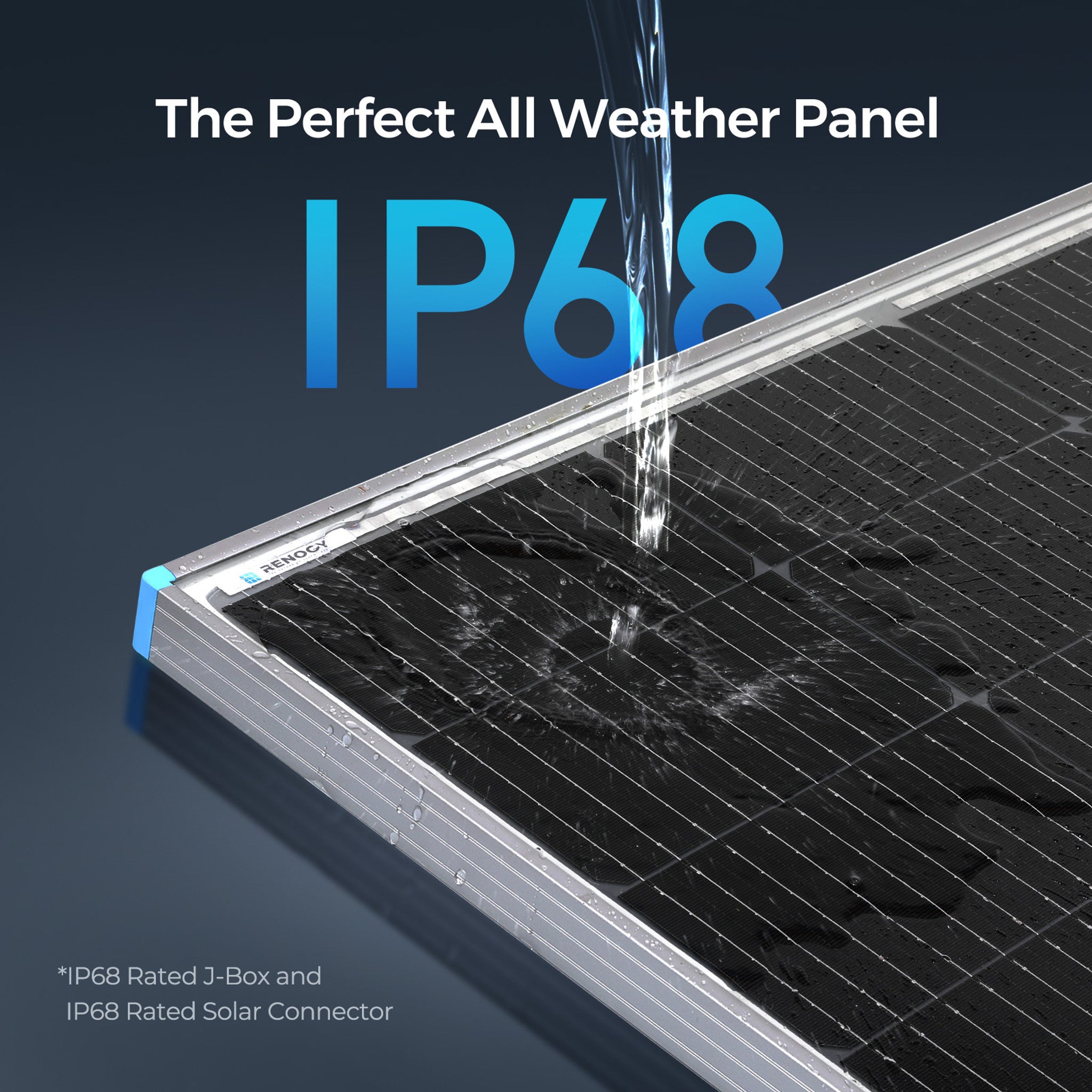

Corrosion-resistant aluminium frame provides extended outdoor use that ensures the panel can last for decades. The IP68 rated junction box is versatile due to its ability to withstand dirt, dust, debris, and low-pressure water jets.

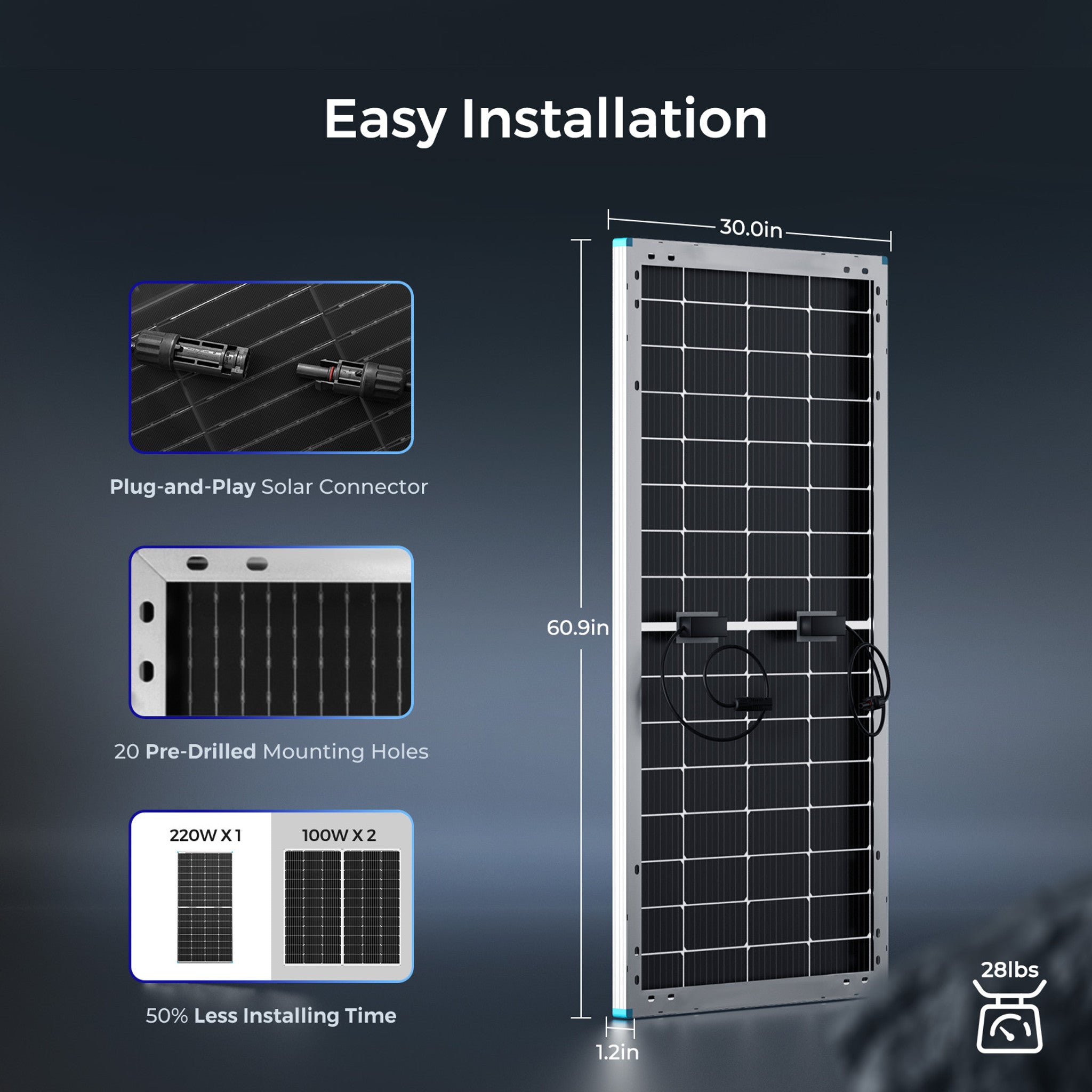

Fast and Easy Installation

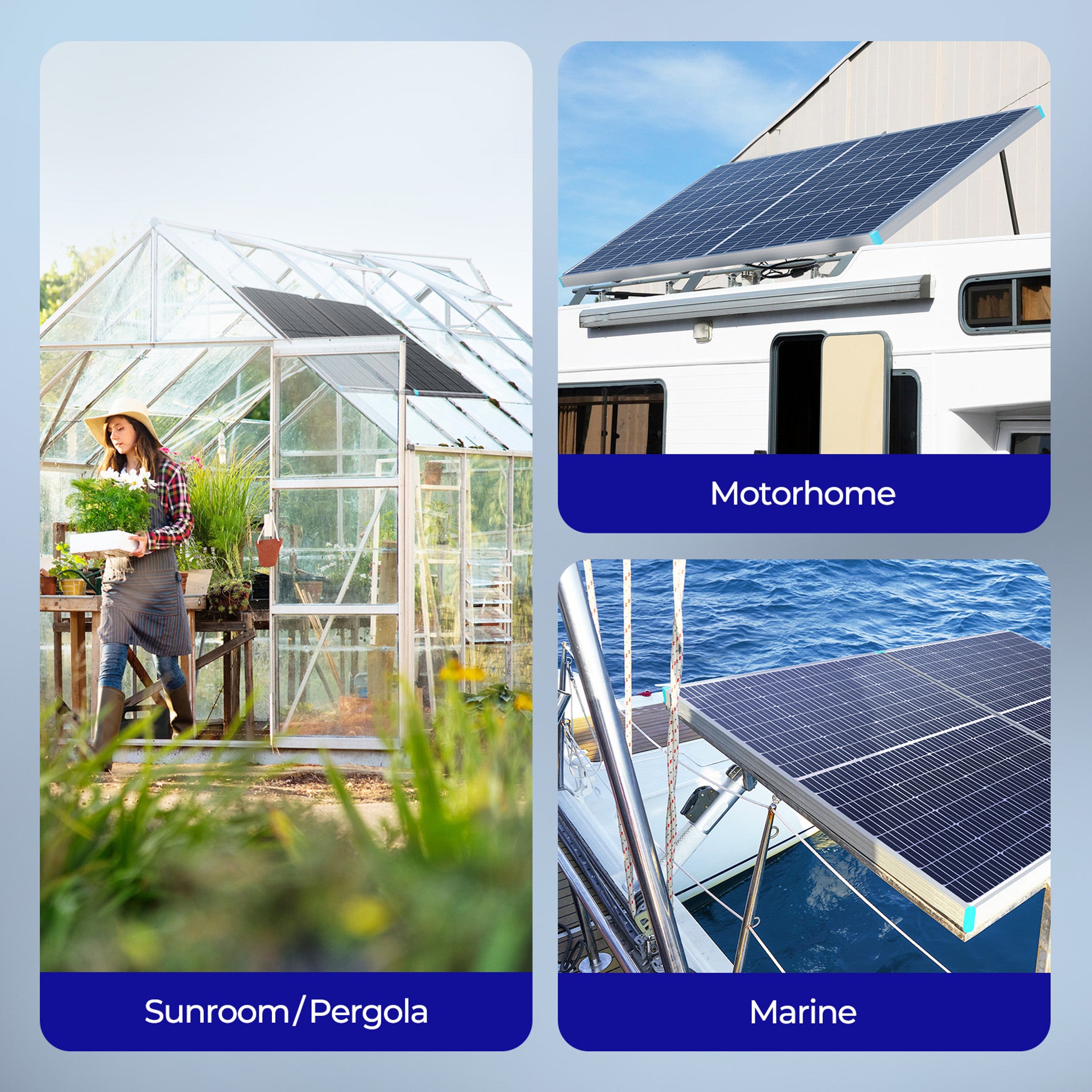

Pre-drilled holes on the back of the panel allow for fast mounting and securing, ideal for off-grid applications including RVs, rooftops, cabins, yachts, and more. They are directly compatible with Renogy ground mounts, Z Brackets, Corner Brackets, Pole Mounts, and Tilt Mounts.



PACKAGE INCLUDES

Bifacial 220 Watt 12 Volt Monocrystalline Solar Panel

1 x 220 Watt 12 Volt Bifacial Monocrystalline Solar Panel
1 x Ewarranty card


Specifications
Max Power at STC 220W
Short Circuit Current (Isc) 13.41A
Optimum Operating Current (Imp) 12.24A
Open Circuit Voltage (Voc) 21.86V
Optimum Operating Voltage (Vmp) 18.78V
Operating Temperature  -40°C to 85°C / -40°F to 185°F
Module Efficiency 18.6%
Maximum System Voltage 1000 VDC (UL)
Number of Cells 64
Dimensions

1547mm x 763mm x 30mm

Weight 12.4kg
Certifications CE, ISO

Please see more details in the 'Data Sheets' tab.

Delivery

All items subject to availability and will generally require a 1-3 business day turnaround.

We don't hold the stock on hand but have a trusted supplier who will send this direct from their nearest warehouse to ensure you receive it as soon as possible.

Warranty

Material and Workmanship Warranty: 10 year warranty

25 year Power Output Warranty: 5 year 95% output, 10 year 90% output, 25 year 80% output.
Please call us for more details and to discuss your next step.

Data Sheets

Please see

220 Watt 12 Volt Bifacial Monocrystalline Solar Panel Manual

220 Watt 12 Volt Bifacial Monocrystalline Solar Panel Warranty
