Solar Panel | Renogy | 175 Watt Monocrystalline Solar Panel


Read More Below

Subtotal: $299.99

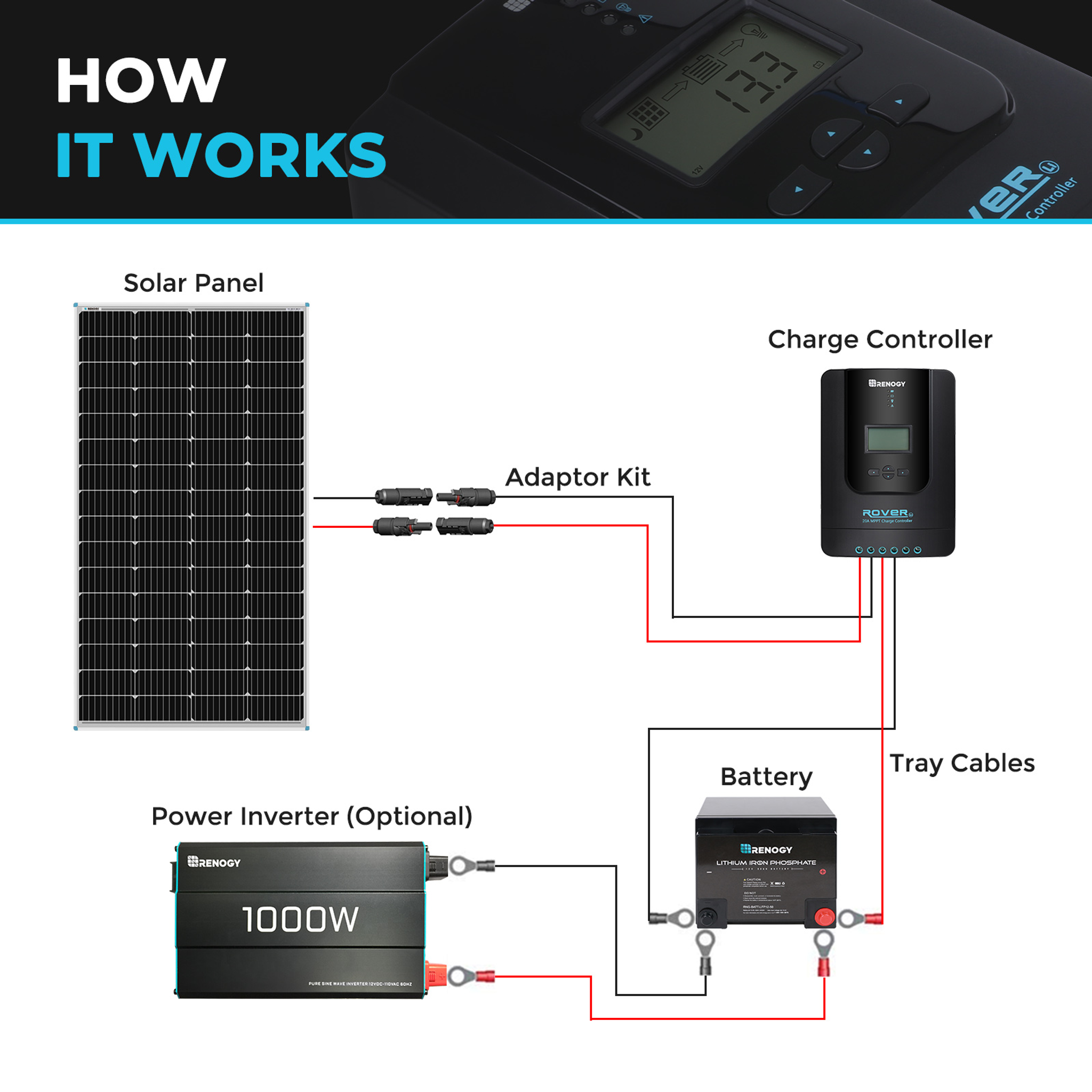

The Renogy 175 Watt 12 Volt Monocrystalline Solar Panel is a key component to any solar power (PV) system. Each solar panel includes solar connectors that extend from the junction box affixed to the back of each panel. The solar connectors are compatible with the Renogy solar connector Adaptor Kit - allowing for a quick and simple connection. Whether you take it camping in the mountains or for a trip to the beach, this off-grid panel can be a great start or addition to any Renogy off-grid system!

Each Renogy 175W Monocrystalline Solar Panel is capable of withstanding heavy snow and strong wind loads. Each panel is quality tested to ensure safety and longevity.

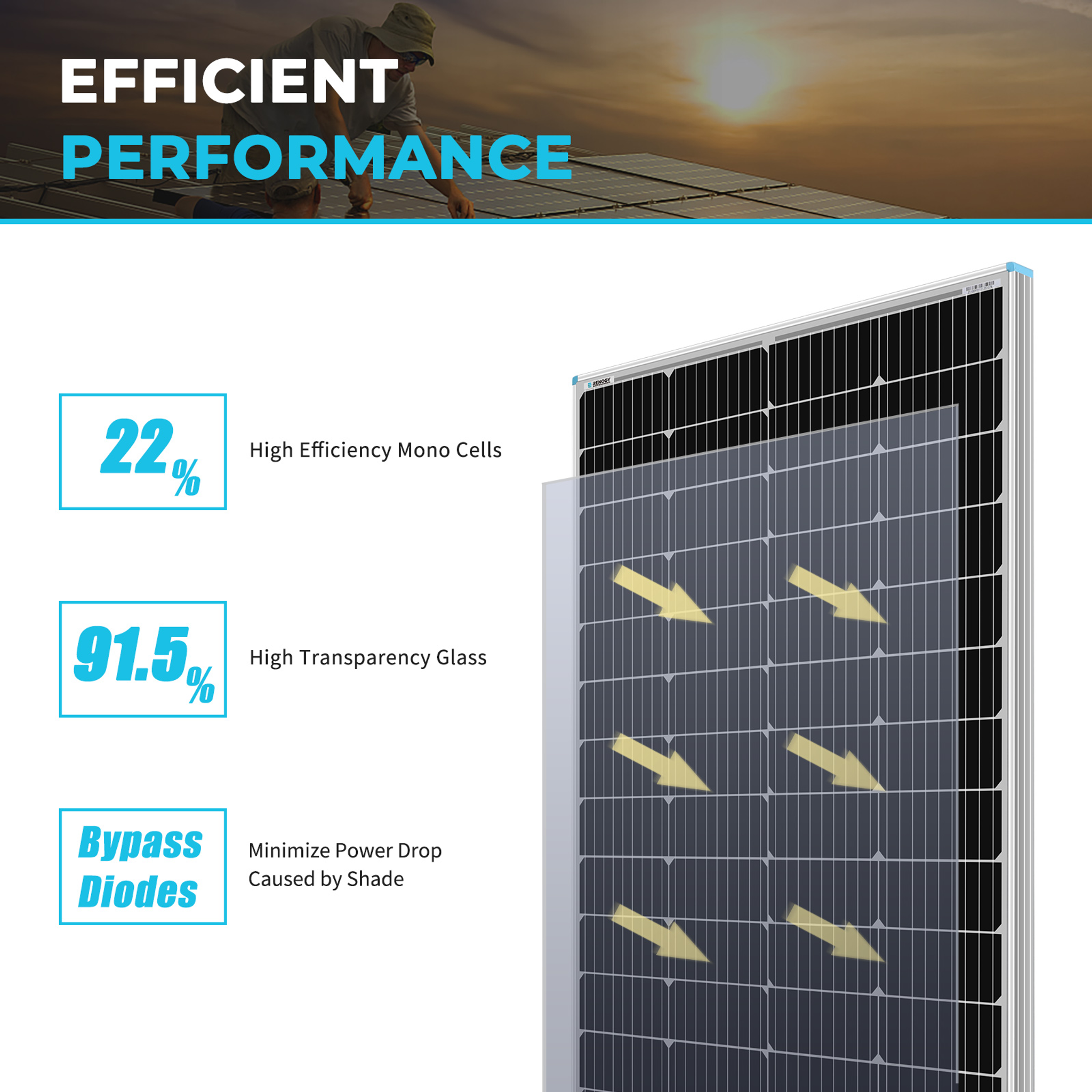

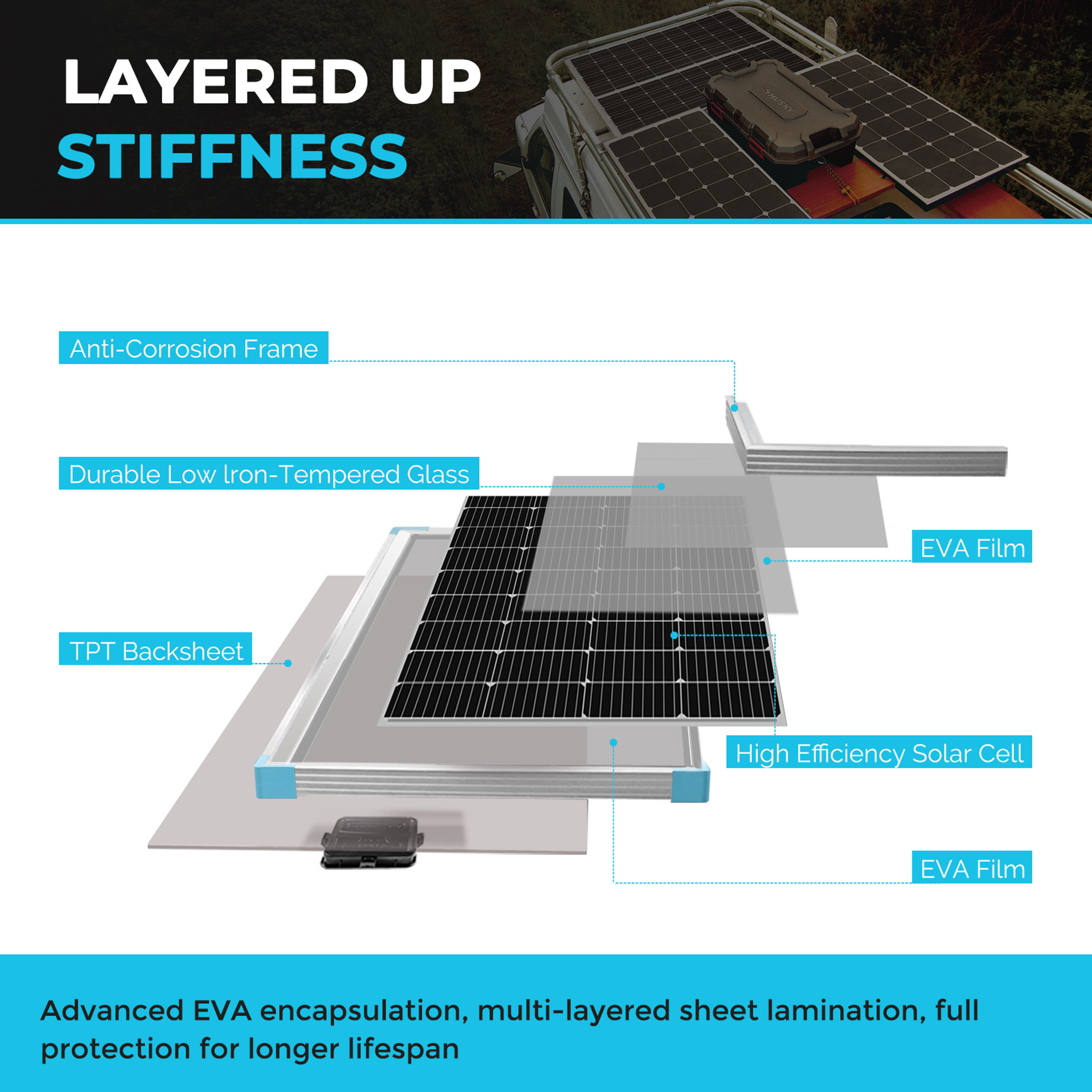

Renogy's multi-layered sheet laminations enhance cell performance and ensure a long service life. With EL tested solar modules, a no hot-spot heating is a guarantee. Diodes with a bypass ability minimize power drops caused by shade and ensure continued excellent performance in low light environments. A TPT back sheet allows for the dissipation of any heat to ensure regular performance over a long period of time.

Built to Last

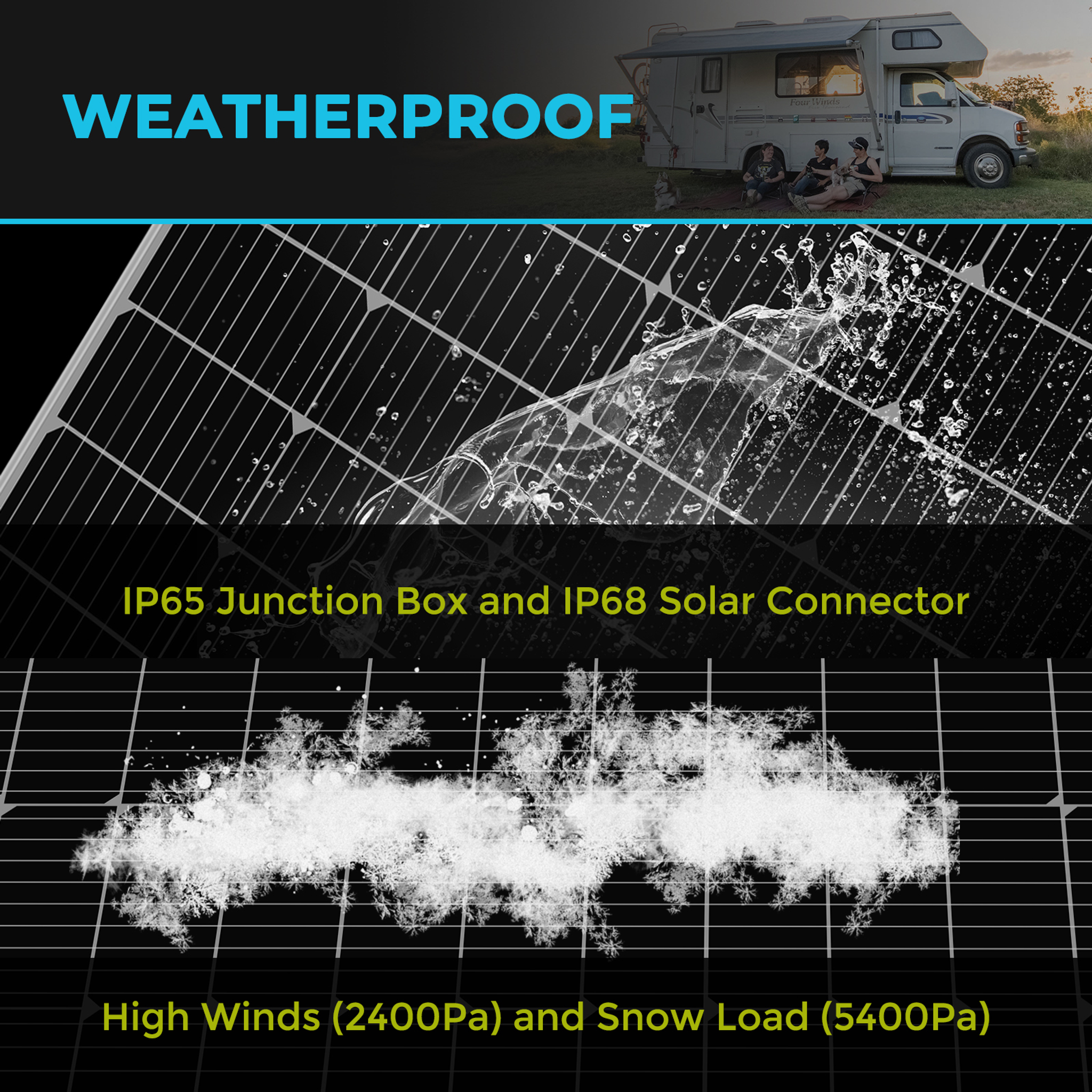

Corrosion-resistant aluminum frame provides extended outdoor use that ensures the panel can last for decades. The IP65 rated junction box is versatile due to its ability to withstand dirt, dust, debris, and low-pressure water jets.

The versatility of this panel is second to none with the applications endless. Being compatible for ground mounts and also with both on grid and off grid inverters delivers great flexibility.

Installation Ready

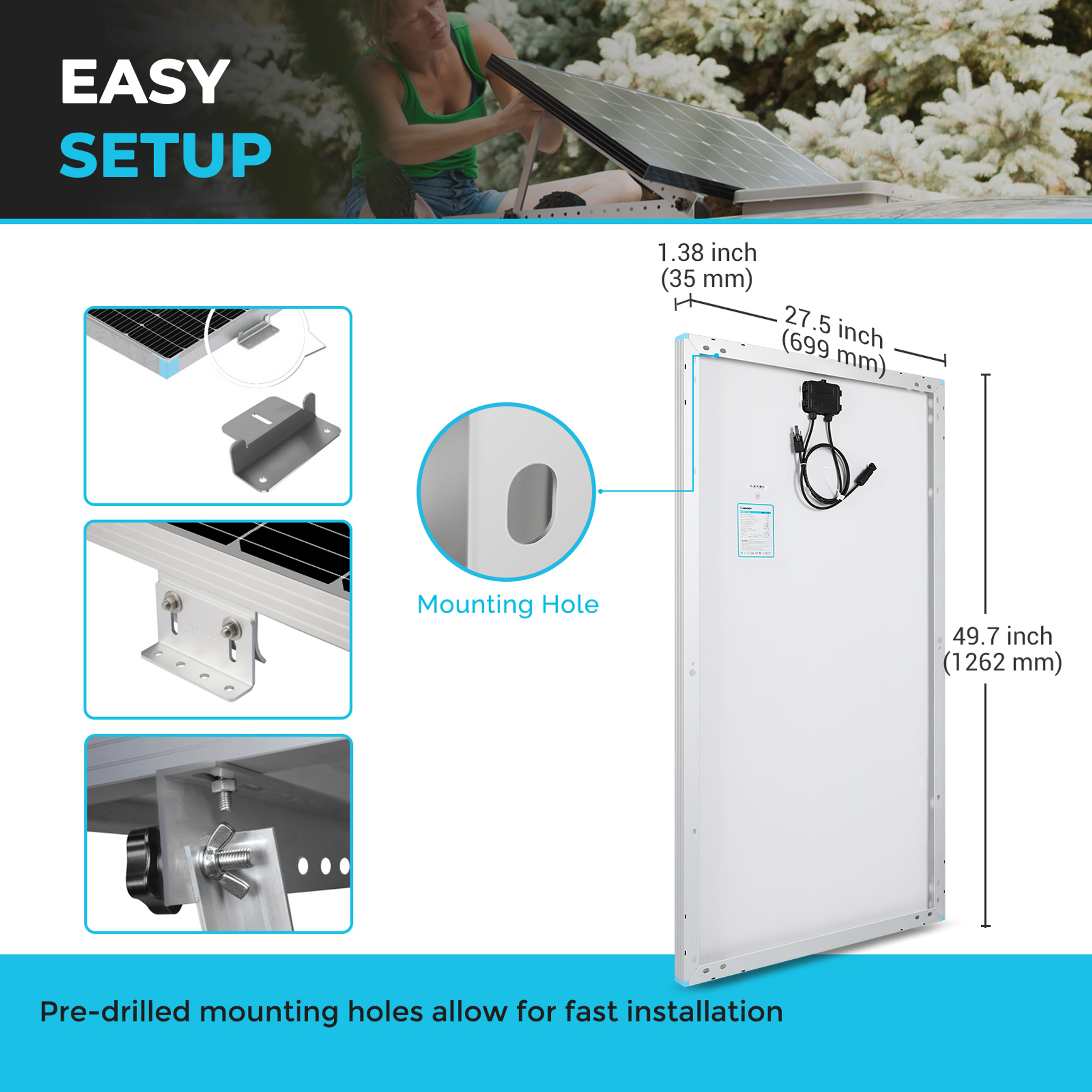

Pre-drilled holes on the back of the panel allow for fast mounting and securing, ideal for off-grid applications including RVs, rooftops, cabins, yachts, and more. They are directly compatible with Renogy ground mounts, Z Brackets, Corner Brackets, Pole Mounts, and Tilt Mounts.

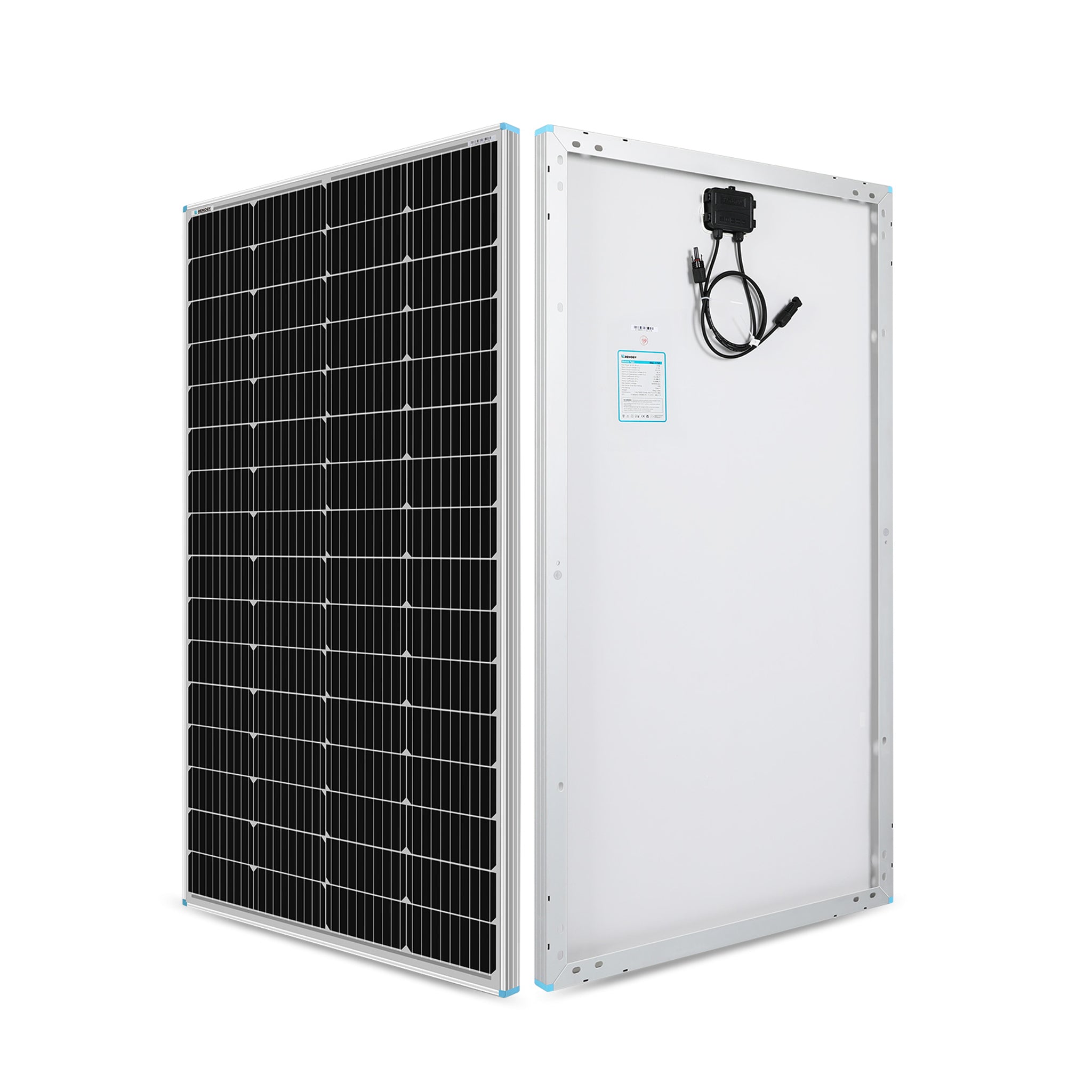

175 Watt Monocrystalline Solar Panel

175 Watt Monocrystalline Solar Panel

1 x


Max Power at STC 175W
Short Circuit Current (Isc) 10.31A
Optimum Operating Current (Imp) 9.67A
Open Circuit Voltage (Voc) 21.6V
Optimum Operating Voltage (Vmp) 18.1V
Operating Temperature  -40°C to 90°C / -40°F to 194°F
Module Efficiency 19.80%
Maximum System Voltage 1000 VDC (UL)
Number of Cells 32

1262mm x 699mm x 35mm

Weight 9kg
Panel Leads (Pair) 3.3088mm2, 0.7m long

Please see more details in the 'Data Sheets' tab.


All items subject to availability and will generally require a 1-3 business day turnaround.

We don't hold the stock on hand but have a trusted supplier who will send this direct from their nearest warehouse to ensure you receive it as soon as possible.

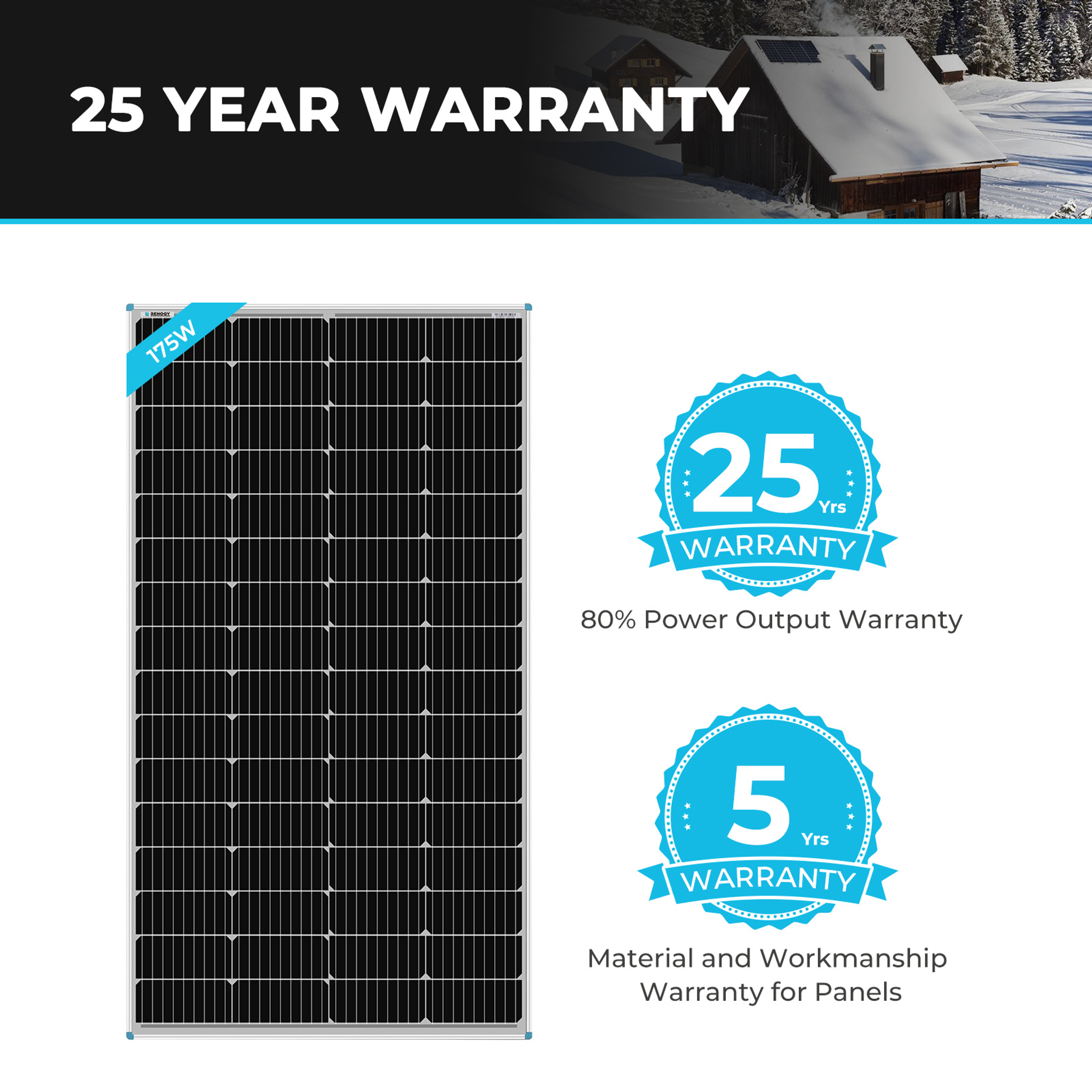

25 year power output warranty: 5 year 95% output, 10 year 90% output, 25 year 80% output.

Material and Workmanship Warranty: 5 year warranty
Accessories: 1 year warranty
