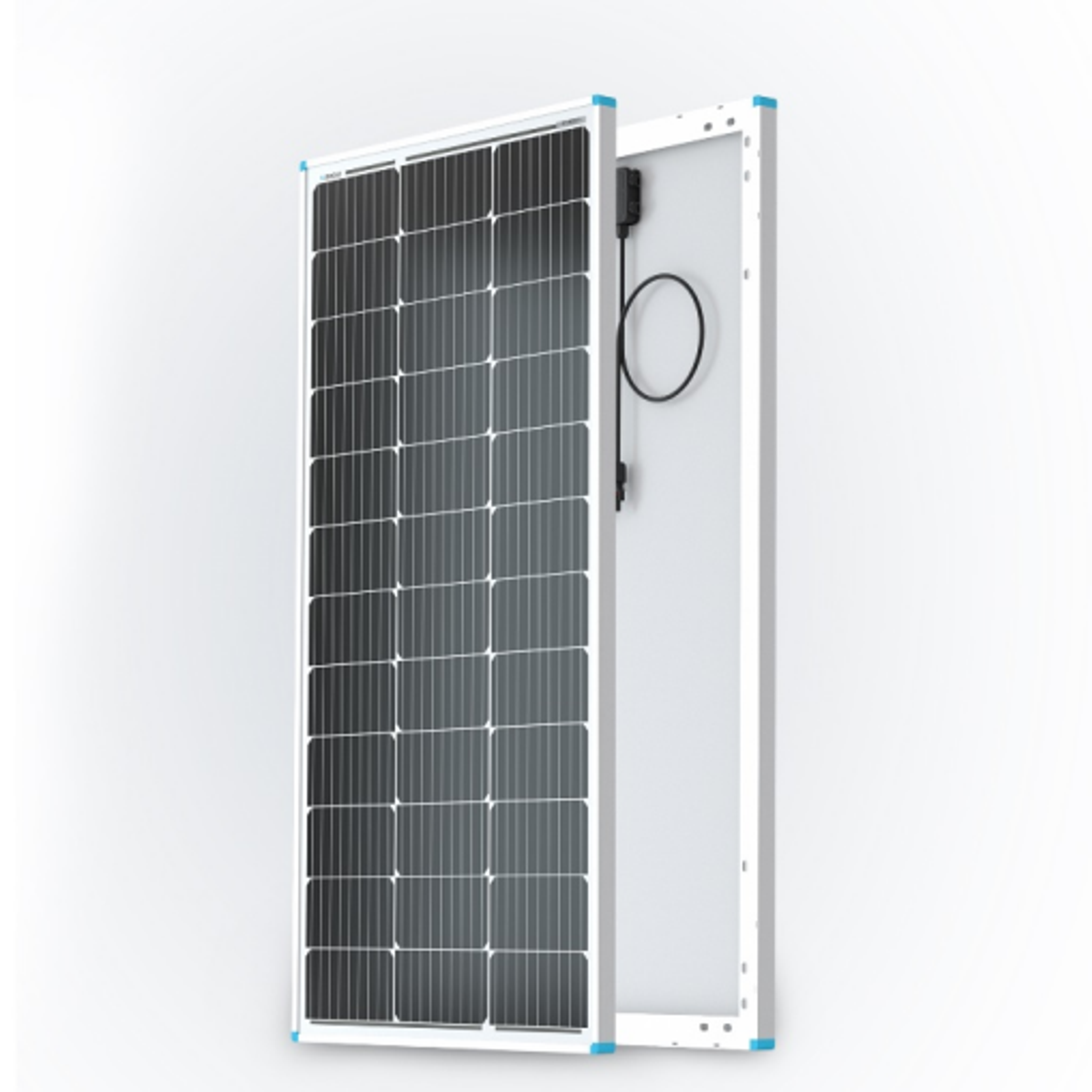

Renogy 100 Watt 12 Volt Monocrystalline Solar Panel (Compact Design)

$209.99
$219.99
$209.99
Subtotal: $209.99
Description

High in power, compact in size, this Renogy 100 Watt 12 Volt Monocrystalline Solar Panel is the perfect option for any off-grid application. Ideal for RVs, motorhomes, cabins, marine areas, home backup power, and more. The panels feature lightweight aluminum frames and shatter-resistant glass, making them perfect for outdoor applications.

It comes with pre-drilled mounting holes, solar connector leads, and a junction box. Allowing you to install, connect it to a controller, or expand with panels without breaking a sweat. The panels are made of premium Grade A+ monocrystalline solar cells that are more efficient than conventional polycrystalline solar cells.

Since 2010, Renogy has gained rich experience in designing and manufacturing the most efficient and robust solar panels and the most complete off-grid solar system. A focus on testing, quality control, and traceability ensures our solar power system offers an industry-leading warranty and reliability guarantee. Invest in yourself by going Renogy. This will be your most economical long-term investment yet.

KEY FEATURES

Reliable Power Output
Renogy's 100W monocrystalline solar panel can provide an average of 400-500 Watt-hours (Wh) or 33-41Amp-hours (Ah) of electricity per day (depending on sun availability).

Efficient Performance
Bypass diodes protect the solar cells from overheating and allow the solar panel to continue working during accidental shading by bypassing the underperforming cells.

Industry-Leading Technology
This Renogy 100W 12V Monocrystalline Panel is made from high purity silicon cells coated with advanced encapsulation material with multi-layered sheet laminations to enhance cell performance and provide long-lasting durability.

Built to Last
Corrosion-resistant aluminium frame provides extended outdoor use that ensures the panel can last for decades. The IP65 rated junction box is versatile due to its ability to withstand dirt, dust, debris, and low-pressure water jets.

Fast and Easy Installation
Pre-drilled holes on the back of the panel allow for fast mounting and securing, ideal for off-grid applications including RVs, rooftops, cabins, yachts, and more. They are directly compatible with Renogy ground mounts, Z Brackets, Corner Brackets, Pole Mounts, and Tilt Mounts.

PACKAGE INCLUDES

100 Watt 12 Volt Monocrystalline Solar Panel (Compact Design)

100 watts 12 volts solar panel

1 x 100 watts 12 volts solar panel



Specifications
Max Power at STC 100W
Short Circuit Current (Isc) 5.21A
Optimum Operating Current (Imp) 4.91A
Open Circuit Voltage (Voc) 24.3V
Optimum Operating Voltage (Vmp) 20.4V
Operating Temperature  -40°C to 80°C / -40°F to 176°F
Cell Efficiency 22%
Maximum System Voltage 600 VDC (UL)
Number of Cells 36
Dimensions

1061mm x 531mm x 35mm

Weight 6.4kg
Panel Leads (Pair) 2.0809mm2, 0.6m long
Certifications CE, ISO

Please see more details in the 'Data Sheets' tab.

Delivery

All items subject to availability and will generally require a 1-3 business day turnaround.

We don't hold the stock on hand but have a trusted supplier who will send this direct from their nearest warehouse to ensure you receive it as soon as possible.

Warranty

Material and Workmanship Warranty: 5 year warranty
Please call us for more details and to discuss your next step.

Data Sheets

Please see

100 Watt 12 Volt Monocrystalline Solar Panel Manual

100 Watt 12 Volt Monocrystalline Solar Panel Warranty
