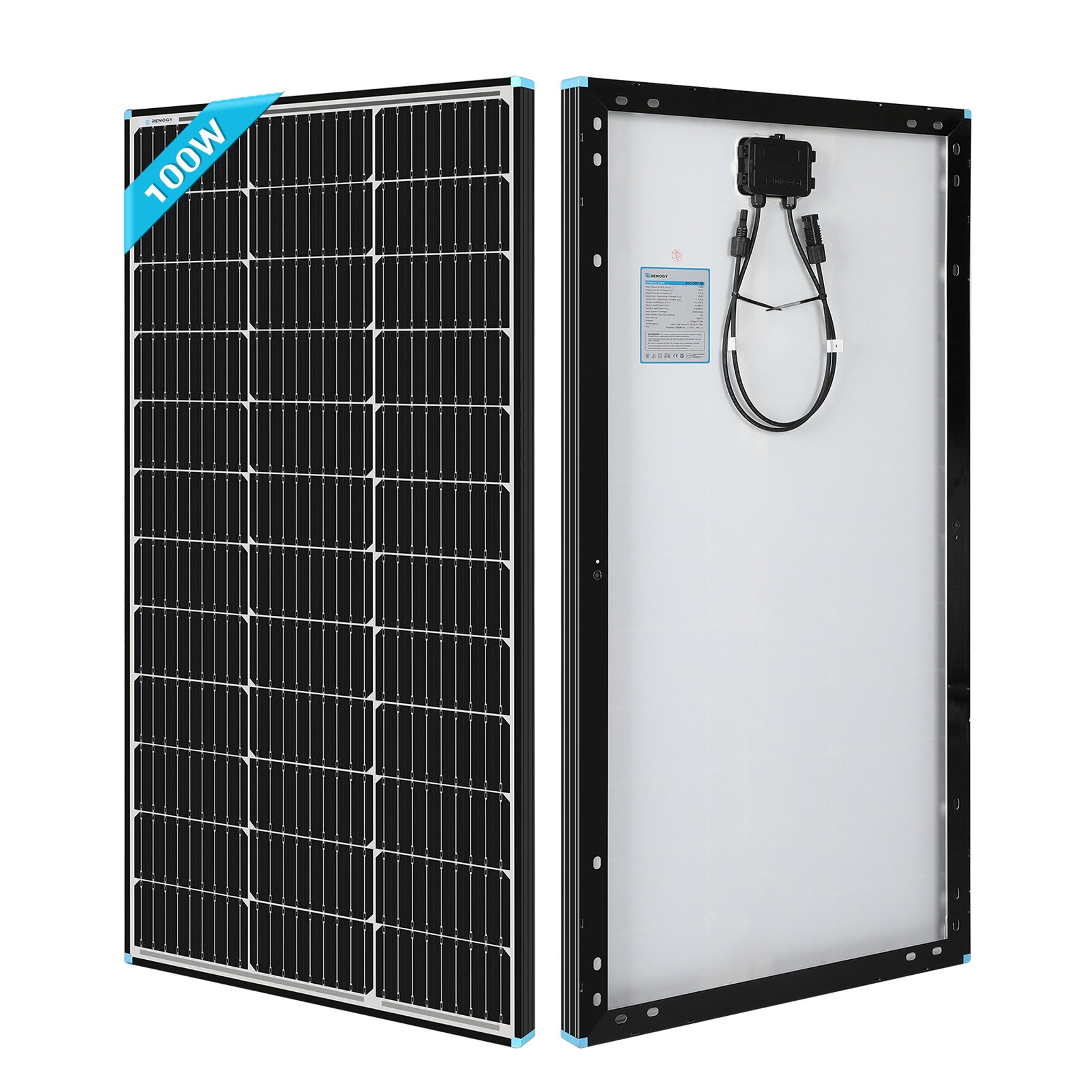

Solar Panel | Renogy | 100 Watt 12 Volt Monocrystalline Solar Panel (Black Frame)

$179.99
$0.00
$179.99

Read More Below

Subtotal: $179.99
Description

The Renogy 100 Watt 12 Volt Monocrystalline Solar Panel (Black Frame) is the perfect item for off-grid applications! High in power but compact in size, this 100W solar panel is a favourite for RVs, boats, campers, and similar applications, providing excellent efficiency per space. Ideal for starting a new project or expanding an existing one, Renogy 100W Monocrystalline Solar Panels will not disappoint.

KEY FEATURES

Reliable Power Output
Renogy's 100W monocrystalline solar panel can provide an average of 400-500 Watt-hours (Wh) or 33-41Amp-hours (Ah) of electricity per day (depending on sun availability).

Efficient Performance
Bypass diodes protect the solar cells from overheating and allow the solar panel to continue working during accidental shading by bypassing the underperforming cells.

Industry-Leading Technology
This Renogy 100W 12V Monocrystalline Panel is made from high purity silicon cells coated with advanced encapsulation material with multi-layered sheet laminations to enhance cell performance and provide long-lasting durability.

Built to Last
Corrosion-resistant aluminium frame provides extended outdoor use that ensures the panel can last for decades. The IP65 rated junction box is versatile due to its ability to withstand dirt, dust, debris, and low-pressure water jets.

Fast and Easy Installation
Pre-drilled holes on the back of the panel allow for fast mounting and securing, ideal for off-grid applications including RVs, rooftops, cabins, yachts, and more. They are directly compatible with Renogy ground mounts, Z Brackets, Corner Brackets, Pole Mounts, and Tilt Mounts.

PACKAGE INCLUDES



100W 12V Mono Solar Panel (black frame)

Renogy 100 Watt 12 Volt Monocrystalline Solar Panel

1 x





Specifications
Max Power at STC 100W
Short Circuit Current (Isc) 5.21A
Optimum Operating Current (Imp) 4.91A
Open Circuit Voltage (Voc) 24.3V
Optimum Operating Voltage (Vmp) 20.4V
Operating Temperature  -40°C to 85°C / -40°F to 185°F
Cell Efficiency 21%
Maximum System Voltage 600 VDC (UL)
Number of Cells 32
Dimensions

1062mm x 530mm x 35mm

Weight 6.4kg
Panel Leads (Pair) 2.0809mm2, 0.6m long
Certifications CE, ISO

Please see more details in the 'Data Sheets' tab.

Delivery

All items subject to availability and will generally require a 1-3 business day turnaround.

We don't hold the stock on hand but have a trusted supplier who will send this direct from their nearest warehouse to ensure you receive it as soon as possible.

Warranty

25 year power output warranty: 5 year 95% output, 10 year 90% output, 25 year 80% output.

Material and Workmanship Warranty: 5 year warranty
Accessories : 1 year material warranty
Please call us for more details and to discuss your next step.

Data Sheets

Please see

100 Watt 12 Volt Monocrystalline Solar Panel (Black Frame) Manual

100 Watt 12 Volt Monocrystalline Solar Panel (Black Frame) Warranty
