RNG-100DB-H-AU

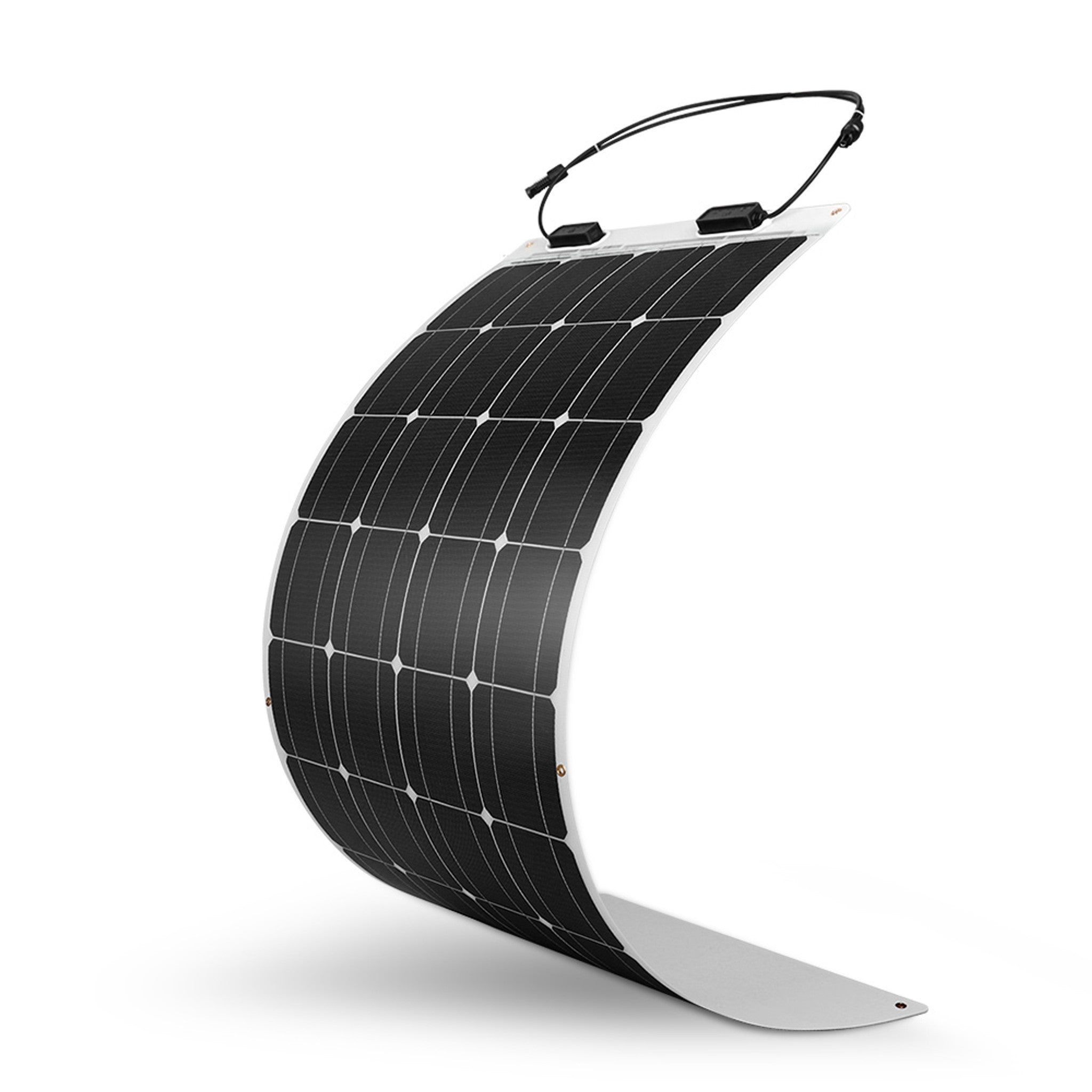

Traditional solar panels are rigid and often enclosed in tempered glass. The Renogy 100W Flexible Solar Panel is anything but traditional. Perfect for marine use or placement on top of a van or vehicle, the Renogy 100W Lightweight Solar Panel is thin and capable of flexing up to 248 degrees. At 1.8kg, this flexible solar panel weighs only a quarter of its traditional 100W counterpart. Highly flexible, this lightweight panel can easily be installed on curved surfaces. This panel can also be used for other various applications, including providing power on a boat or teardrop trailer.
Extremely Flexible
With a flex range of up to 248 degrees, this panel is capable of meeting a wide range of applications where standard panels can be inconvenient to mount, such as on the curved roof of an airstream.
Ultra Lightweight
Thanks to advanced polymer materials, this product weighs 70% less than conventional solar panels, making transportation and installation a breeze.
Super Thin Lamination
Discreet and thin, the Renogy 100W Lightweight Panel is only 2.5mm thick. Approximately 95% thinner than its rigid counterpart, this panel is ideal for a stealthy solar setup.
Highly Durable
Rigorously tested, the 100W panel is designed to withstand extreme wind of up to 2400Pa and snow loads of up to 5400Pa.
100W Flexible Solar Panel 1 x |
Max Power at STC | 100W |
Short Circuit Current (Isc) | 5.75A |
Optimum Operating Current (Imp) | 5.29A |
Open Circuit Voltage (Voc) | 22.5V |
Optimum Operating Voltage (Vmp) | 18.9V |
Cell Efficiency | 21% |
Maximum System Voltage | 600 VDC |
Number of Cells | 36 |
Dimensions |
1219mm x 546mm x 2mm |
Weight | 1.8kg |
Panel Leads (Pair) | 3.3088mm2, Negative 450mm long, Positive 150mm |
Please see more details in the 'Data Sheets' tab.
All items subject to availability and will generally require a 1-3 business day turnaround.
We don't hold the stock on hand but have a trusted supplier who will send this direct from their nearest warehouse to ensure you receive it as soon as possible.
25 year power output warranty: 5 year 95% output, 10 year 90% output, 25 year 80% output.
Material and Workmanship Warranty: 5 year warranty
Please call us for more details and to discuss your next step.
Please see
100 Watt 12 Volt Flexible Monocrystalline Solar Panel Manual
100 Watt 12 Volt Flexible Monocrystalline Solar Panel Warranty
