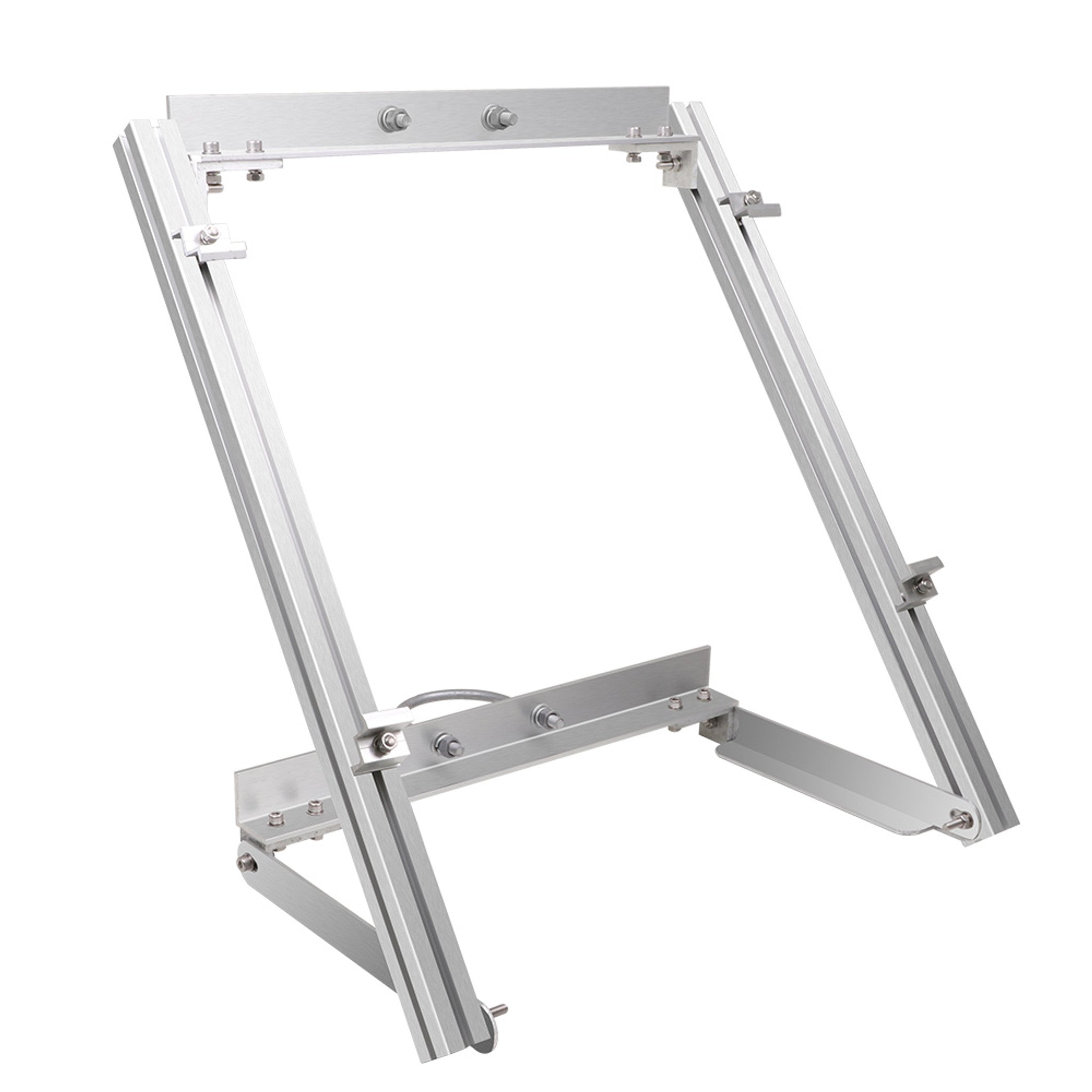

Renogy Single Side 695mm Pole Mount Support For Solar Panel

RNG-MTS-SP100-AU

$95.99
$0.00
$95.99

or 4 interest-free payments of  $23.99 with

Subtotal: $95.99
Description

The Renogy Solar Panel Pole Mount is designed for off-grid applications when mounting to a roof is not ideal. It comes complete with all fasteners to secure itself to the installation surface. The mount makes the installation of small solar systems easy, affordable and quick.

KEY FEATURES

Made from 5052-H32 aluminum and supplied with stainless steel fasteners, this Solar Panel Pole Mount provides peace of mind as it won't corrode while being exposed to the elements in whatever application you are using it in and whilst also being able to withstand wind speeds of up to 200km/h.

Easy and quick assembly and a range of movement between 15-65 degrees ensures you can make the most of the sunshine.

Recommended Tools for assembly and install:

  • Socket Wrench
  • Torque extension
  • Box-Leveler
  • Tape measure
  • 18mm wrench or socket for larger hex nut
  • 13mm wrench or socket for smaller hex nut

Caution

Do not attach solar panel to pole mount until mount is securely fit, and pole base has been secured. The chance to strip nuts and bolts is a possibility, we suggest that help is needed for installation.

This product is only compatible with Renogy 80W and 100W Solar Panels. Pole required for this mount to be secured.

Package Includes
Two T-Slotted Brackets Two L-Channels
Four L-Brackets Two Support Arms
Two U-Bolts Eight T-Bolts
Ten Cap Head Bolts and Eighteen Spring Washers Eighteen Washers (Small)
Four End Clamps Eight Nuts (Small)
Four Washers (Large) Eight Nuts (Large)

Please see more details in the 'Data Sheets' tab.

Delivery

All items subject to availability and will generally require a 1-3 business day turnaround.

We don't hold the stock on hand but have a trusted supplier who will send this direct from their nearest warehouse to ensure you receive it as soon as possible.

Warranty

Material and Workmanship Warranty: 1 year warranty

Accessories Warranty: 1 year warranty

Please call us for more details and to discuss your next step.

Data Sheets

Please see

Single Side 695mm Pole Mount Support For Solar Panel Manual

Single Side 695mm Pole Mount Support For Solar Panel Warranty

Single Side 695mm Pole Mount Support For Solar Panel Terms of Sale
