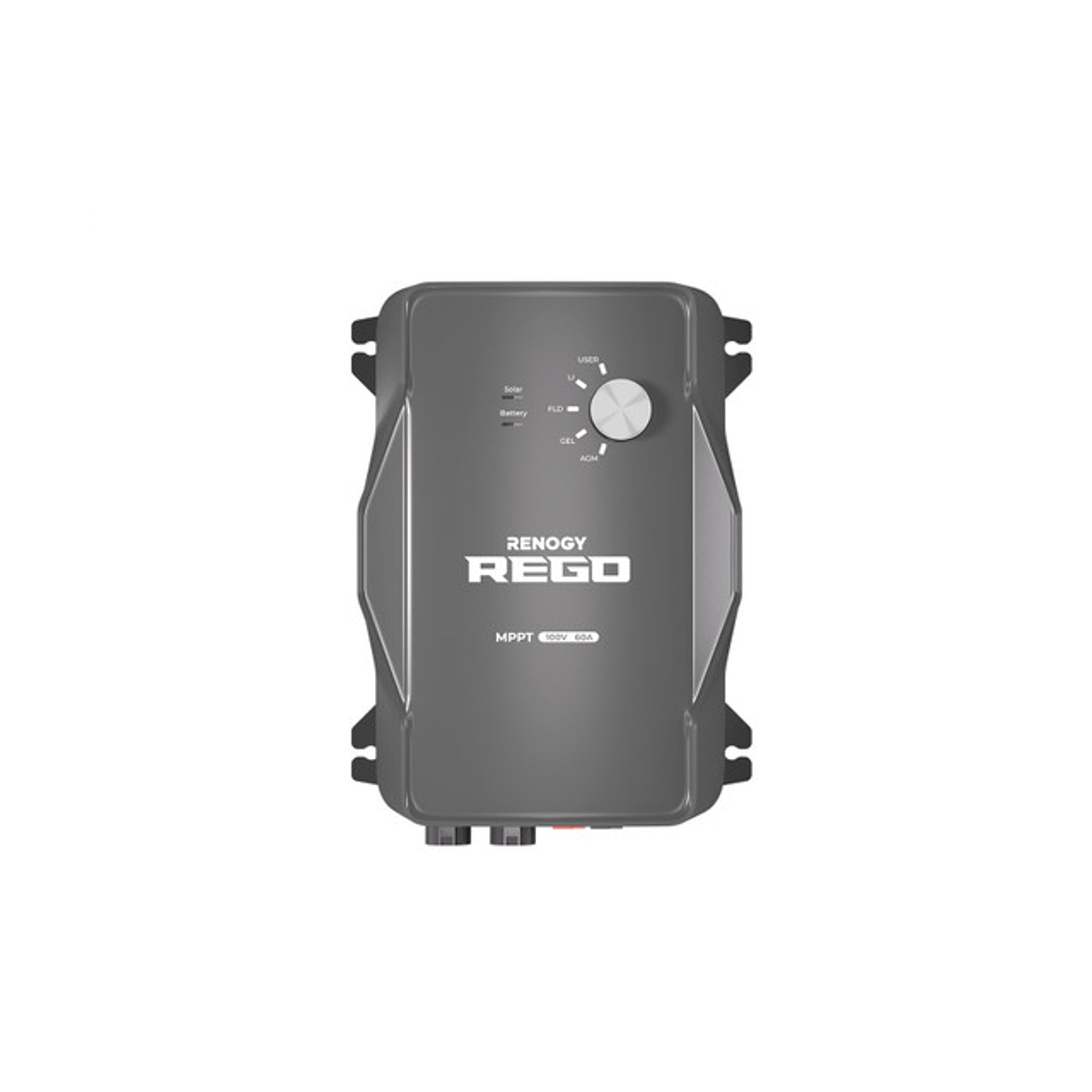

Solar Controller | Renogy | REGO 12V 60A MPPT Solar Charge Controller

Description The REGO 12V 60A MPPT Solar Charge Controller focuses on the simplified installation and comprehensive protections... Read More
$529.99
$0.00
$529.99
Vendor: Renogy
SKU: RCC60REGO-AU
Availability: Out Of Stock
Subtotal: $529.99

30-Day Money-Back Guarantee

Australian Phone Support

Locally-Based Australian Stock

Price Match Guarantee

Description

The REGO 12V 60A MPPT Solar Charge Controller focuses on the simplified installation and comprehensive protections for the whole solar system. Plug-and-play hookups for rapid connection, save on installation time than traditional controllers. The integrated high BPU (Battery Protect Unit) technology achieves the highest protection against battery cell damage and battery failure, safeguarding the entire system. With the most efficient MPPT technology with high tracking efficiency of up to 99%, maximum the power generated by solar panels to provide more power for your system. The compact and robust nature of the controller not only has a sense of technology and fashion but also saves on installation space relative to the competition. Add the REGO 12V 60A MPPT Solar Charge Controller, one of the most efficient and reliable controllers on the market yet to your system.

KEY FEATURES

Comprehensive Protections for Whole System
The REGO charge controller with multiple protections on both solar input and battery output terminals. The integrated high BPU (Battery Protect Unit) technology achieves the highest protection against battery cell damage and battery failure, safeguarding the entire system.

Easy Installation and Operation
REGO charge controller use Anderson terminals with a specially designed Anderson to MC4 adaptor cable for a simple and easy way to connect the controller to your solar panels, cutting installation time by 60%! REGO’s simple design eliminates tedious data settings and lets you switch between batteries by just turning a knob.

Ultra-High Tracking Efficiency
Innovative MPPT technology of the REGO provides high tracking efficiency of up to 99% and peak conversion efficiency of 98%, which is the best charging solution even in cloudy environments where the max power point of the solar panels will fluctuate all day. Adopts a four-stage charging(Bulk,Boost,Float,EQU), ensuring high charging efficiency and optimizing the battery status for a longer lifespan.

Compatible with Multiple Batteries Types
The REGO charge controller is compatible with multiple types of batteries: AGM, SLD, Flooded, Gel, and Lithium, able to be perfectly and easily added to your solar system, providing a powerful solution for different occasions.

Puts Monitoring and Control in Your Hands
Built-in Bluetooth allows you to monitor the REGO charge controller on your smartphone with the Renogy DC Home App. With the app, you can customize multiple battery data such as the boost voltage, float voltage, and duration data.

PACKAGE INCLUDES

REGO 12V 60A MPPT Solar Charge Controller

REGO 12V 60A MPPT Solar Charge Controller

1 x

Specifications
Model RCC60REGO
Rated Charge Current 60A
Battery Operating Range 10 -16V
Max Input Current (short-circuit, Isc) 50A
Solar Input Voltage Range (VOC) 100V
Idle Consumption ≤0.5W
Operating Temperature Range -20 ℃ - 60℃ / -4 ℉ - 140℉
Temperature Compensation -3mV / ℃ / 2V (Non-Lithium)
'0mV / ℃ / 2V; no compensation (Lithium)
Humidity 0%-90%RH
Terminal Size Anderson PP75
Rated System Voltage 12V
Rated Max Charge Power 800W
Battery Types SLD/AGM;FLD;GEL;USER;LI
Power Limiting Protection Up to 800W/12V
MPPT Voltage Range 15-100 VDC /12V
Grounding Type Common Negative Lug
Storage Temperature Range -25 ℃ - 65℃ / -13 ℉ - 149℉/
Communication Protocol CAN Bus

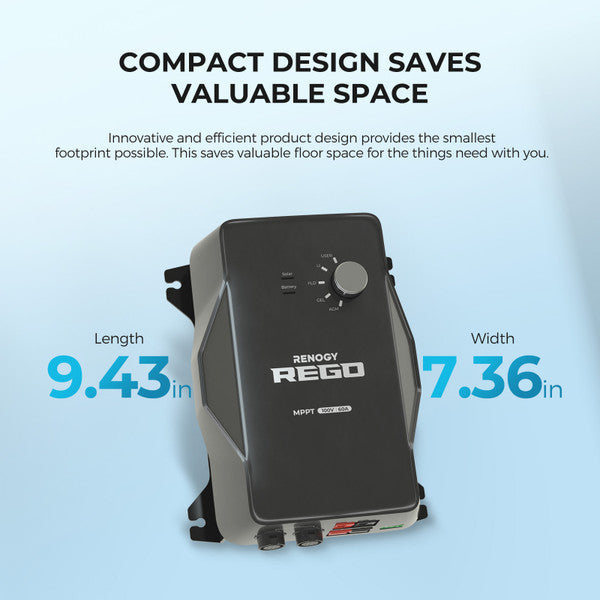

Dimensions (L x W x D) 239.4 x 187 x 108.8 mm
Terminal Range 8AWG-6AWG
Certifications CB+IEC 62109, FCC, CE and RoHS compliant, UL1741,CAN/CSA-C22.2 No.107.1, EMC,EN61000-3-1/-3;EN301489-1/17, RF,EN300328

Please see more details in the 'Data Sheets' tab.
