Solar Panel Accessories | Renogy | Solar Connector Waterproof In-Line Fuse Holder w/ Fuse

DESCRIPTION This product is a 10A/15A/20A/30A fuse embedded into a waterproof fuse holder. It features an solar connector lead... Read More
$16.99
$16.99
Vendor: Renogy
SKU: RNG-CNCT-FUSE-AU
Availability: Many In Stock
Subtotal: $16.99

30-Day Money-Back Guarantee

Australian Phone Support

Locally-Based Australian Stock

Price Match Guarantee

DESCRIPTION

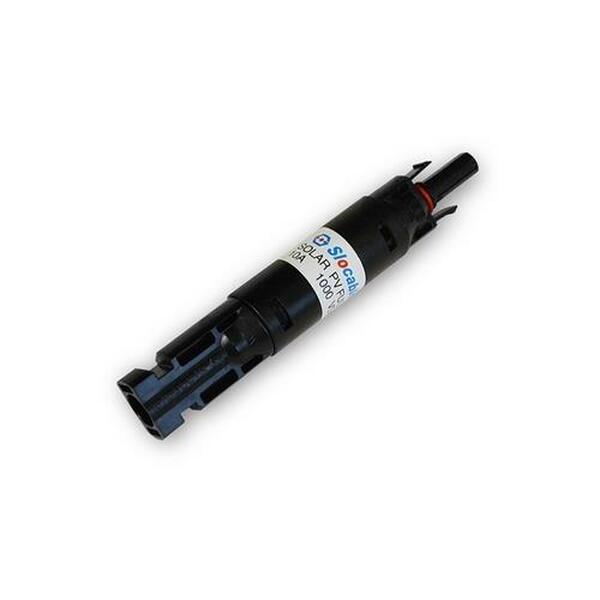

This product is a 10A/15A/20A/30A fuse embedded into a waterproof fuse holder. It features an solar connector lead on each end, making it compatible for use with an Adaptor Kit and solar panel leads. This Fuse Holder is designed to provide complete single circuit protection to your solar power array. The fuses prevent large currents from damaging the solar panels. Purchase this product for extra protection on your system.

KEY FEATURES

Ease of Use
  • Compatible with PV cables with different insulation diameters.
  • Designed for a wide range of DC applications.
  • Simple plug-and-play.
  • Auto-lock equipment of male and female points render connections easy and reliable.
Safe
  • Waterproof - IP67 Class Protection.
  • Insulation material PPO.
  • High current-carrying capacity
  • Protection Class II
  • Connector adopts touch and insertion of reed with inner-knob type

PACKAGE INCLUDES

Solar Connector Waterproof In-Line Fuse Holder w/ Fuse

Renogy MC4 Waterproof In-Line Fuse Holder w/ Fuse

1 x



SPECIFICATION

RENOGY 10A SOLAR IN-LINE FUSE HOLDER WATERPROOF W/ FUSE
Rated Current: 10A Degree of Protection: IP2*/IP67
Rated Voltage: 1000 V DC Flame Class: UL94-V0
Test Voltage: 6000V (50Hz,1 min) Safety Class: II
Overvoltage Category: CATIII Suitable Connector: Solar Connector
Contact Resistance of Plug Connector:1mΩ Insertion Force / Withdrawal Force: ≤50N / ≥50N
Contact Material: Copper, Silver Plated Fuse Can Replace
Insulation Material: PPO Temperature Range: -40 to +125°C
RENOGY 20A SOLAR IN-LINE FUSE HOLDER WATERPROOF W/ FUSE
Rated Current: 20A Degree of Protection: IP2*/IP67
Rated Voltage: 1000 V DC Flame Class: UL94-V0
Test Voltage: 6000V (50Hz,1 min) Safety Class: II
Overvoltage Category: CATIII Suitable Connector: solar Connector
Contact Resistance of Plug Connector:1mΩ Insertion Force / Withdrawal Force: ≤50N / ≥50N
Contact Material: Copper, Silver Plated Fuse Can Replace
Insulation Material: PPO Temperature Range: -40 to +125°C

RENOGY 30A SOLAR IN-LINE FUSE HOLDER WATERPROOF W/ FUSE
Rated Current: 30A Degree of Protection: IP2*/IP67
Rated Voltage: 1000 V DC Flame Class: UL94-V0
Test Voltage: 6000V (50Hz,1 min) Safety Class: II
Overvoltage Category: CATIII Suitable Connector: solar Connector
Contact Resistance of Plug Connector:1mΩ Insertion Force / Withdrawal Force: ≤50N / ≥50N
Contact Material: Copper, Silver Plated Fuse Can Replace
Insulation Material: PPO Temperature Range: -40 to +125°C


WARRANTY INFORMATION

Accessories 1-year material warranty
