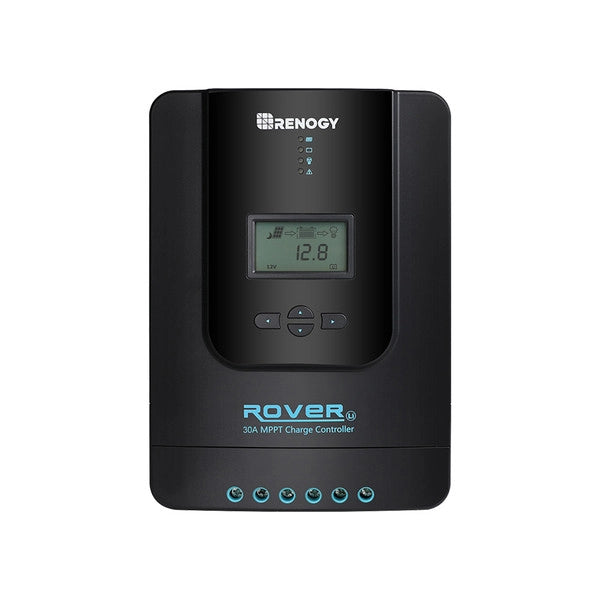

Solar Controller | Renogy | Rover Li 30 Amp MPPT Solar Charge Controller


Read More Below

Subtotal: $179.99


The Renogy 30A Rover MPPT Charge Controller is the most efficient type of charge controller. With up to 99% tracking efficiency, the Rover ensures maximum power point solar charging that gets more energy to your battery bank. Capable of automatically detecting 12V/24V lead acid battery systems, this crucial component is preset to also work with Gel, Flooded (wet cell), Sealed, and even Lithium batteries. When paired with the Renogy BT-1 Module and DC Home app you can view system performance in real-time and make parameter changes without having to get up!


  • Innovative MPPT Design

        Die-cast aluminium design ensuring excellent heat dissipation and Renogy Maximum Power Point Tracking technology with a high tracking efficiency of up to 99% and peak conversion efficiency of 98%. It is the best charging solution even in cloudy environments where the max power point of the solar panels will fluctuate all day.

  • 12V/24V Automatically Detect

         Automatically detects 12V or 24V DC system voltages, and the LCD screen and multiple LED indicators display the solar charging and battery operation information, customizable parameters, and error codes

  • Full System Protection

        Meant to safeguard your system, the self-diagnostic capability can assess and protect against reverse polarity, battery overcharging, battery over-discharging, overload, short-circuiting, and reverse current.

  • 4-Stage Safely Charging

        Features 4-stage charging (Bulk, Absorption, Float, and Equalization) of Lead Acid Batteries and 2-stage charging (Bulk and Absorption) for Lithiuim batteries as well as Lithium Reactivation

  • Diverse Load Control

        Connect DC appliances directly to the optional Load Terminals and monitor consumption or set up timer controls directly from the controller

  • Remote Monitoring

        RS232 communication port allows the Renogy Rover to communicate with the Renogy BT-1 Bluetooth module (NOT included in the package, highly recommend to add-on ) that will enable you to monitor the status and productivity of your panels through the Renogy DC Home App.





Rover Li 30 Amp MPPT Charge Controller

Rover Li 40 Amp MPPT Solar Charge Controller

1 x


Remote Temperature Sensor

Remote Temperature Sensor

1 x


Options: BT-1 Bluetooth Module

BT-1 Bluetooth Module

1 x



Nominal Voltage: 12/24V Auto Recognition
Rated Charge Current: 30 A
Max. PV Input Power: 12V/400W, 24V/800W
Max. PV Input Voltage: 100 VDC
Self-Consumption: < 100mA/12V; < 58mA/24V
Equalization Voltage: Sealed:14.6V; Flooded: 14.8V; Gel: N/A; Lithium(LFP): N/A
Float Voltage: Sealed:13.8V; Flooded: 13.8V; Gel: 13.8V; Lithium(LFP): N/A
Boost Voltage:  Sealed: 14.4V; Flooded: 14.6V; Gel: 14.2V ; Lithium(LFP): 14.4V
Operating Temperature: -35°C to 45°C; -31°F to 113°F
Temperature Compensation: -3mV/°C/2V
Dimensions: 210 x 151 x 59.5 mm; 8.27 x 5.94 x 2.34 in
Weight: 1.4kg / 3.08 lb
Enclosure: IP32
Terminals: Up to 8 AWG
Remote Temperature Sensor  Cable Length 3m
Communication Protocol: RS232 Port Type: RJ12
Input Voltage: 12V Protection Grade: IP54
Standby Power Consumption: 0.04W Operating Power Consumption: 0.05W
Communication Range: ≤82ft Serial Baud Rate: Fixed Baud Rate 9600bps
Cable Length: 5.00 m (16.4 ft) Dimensions: 2.65 X 1.38 X 0.55 in (67.3 X 35 X 14 mm)
Operation Temperature: -20℃~85℃(-4°F to 185°F) Weight: 130g (4.58oz)
FCC Class B Part 15 Compliant YES


Material and workmanship warranty 1 Year
