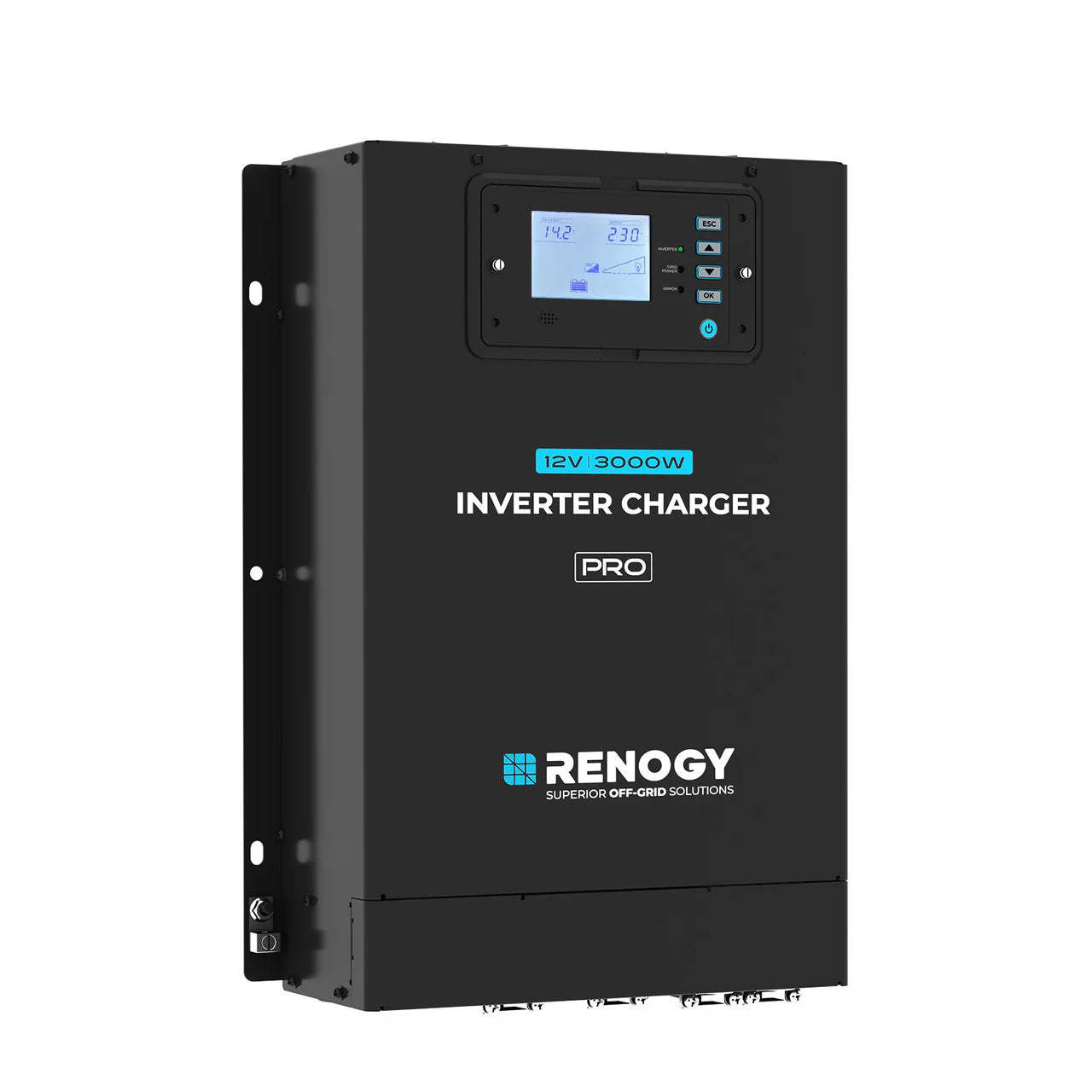

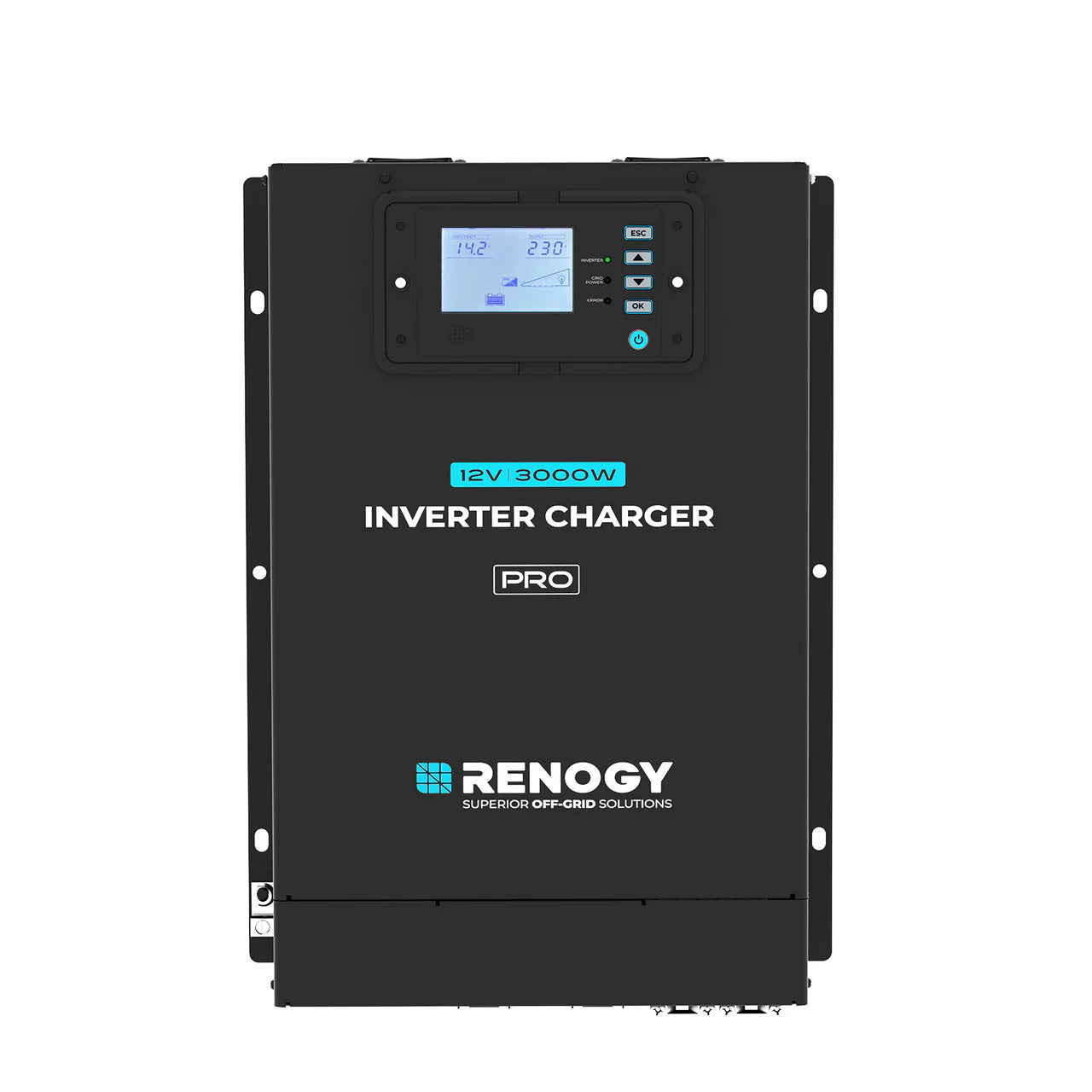

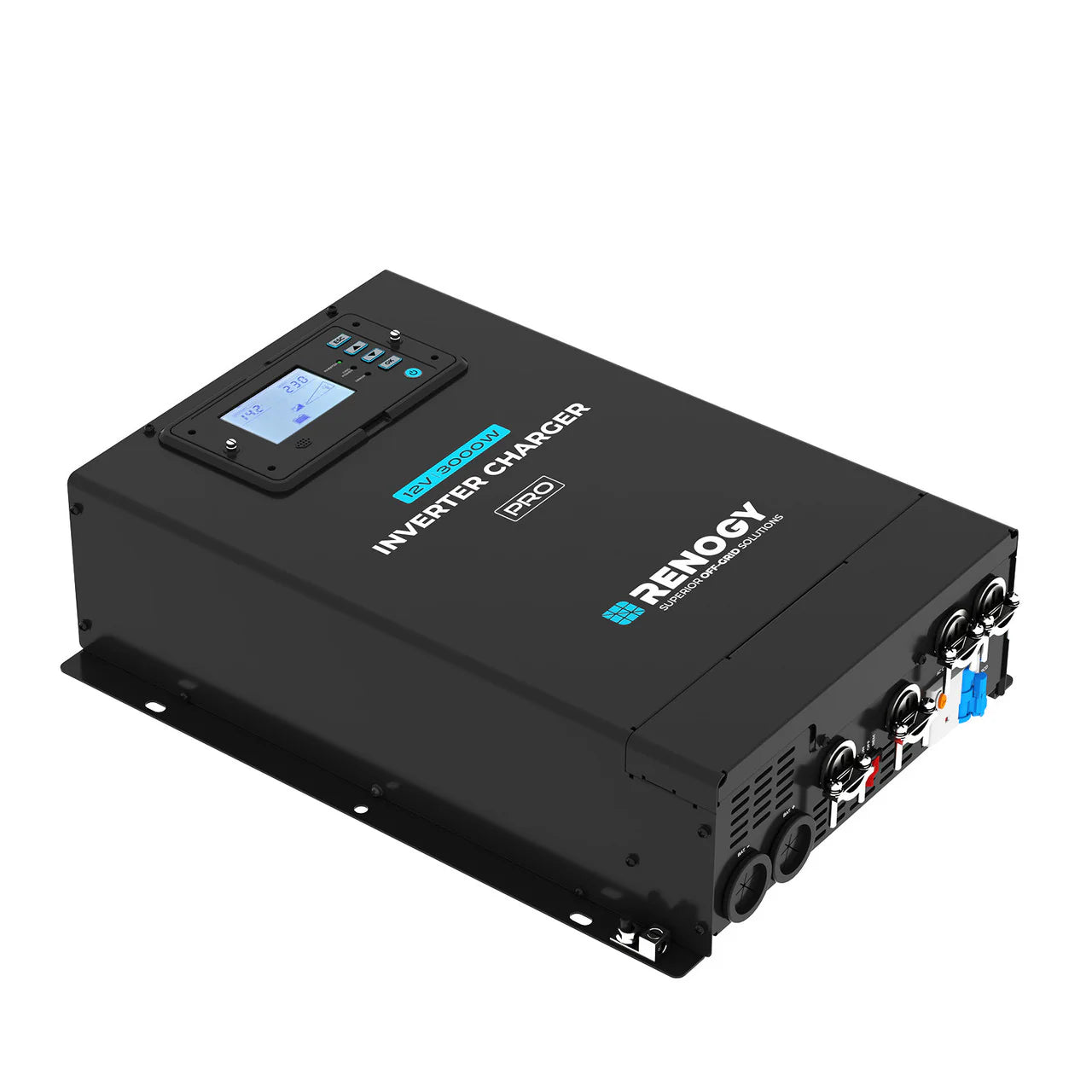

Renogy Pro 12V 3000W HF Inverter Charger
$921.99
RRP $1,151.99
YOU SAVE $230.00
or
4 interest-free payments of
$230.49
with
No credit check
Built-in RCD Protection – Instant leakage detection & auto-cut for Australian safety compliance
91%+ Efficiency & <10W Standby – Maximises battery life and reduces wasted power
6000W Surge Power – Starts fridges, air-con, and power tools with ease
Detachable LCD + Bluetooth Ready – Monitor & control via DC Home app anywhere
SKU: RIV1230PCH-24S-AU
WHY BUY FROM ZERO GRID?
Just me, Landon. Family run. No big corp BS.
My bus runs on this gear. I only sell what I’d use myself.
I’m your sparky. No call centres. No scripts.
Stuff up? Talk to me. I’ll sort it. No overseas runaround.
This is us with 'Sonny' our off grid bus home. Living the dream, slowly travelling Aus
Need a hand? Book a free 10 min chat with me (Landon) →
Description
The Renogy Pro 12V 3000W HF Inverter Charger delivers high-efficiency 12V DC to 240V AC conversion in a compact, lightweight design. Perfect for RVs, caravans, boats, and off-grid cabins, it combines pure sine wave inversion with intelligent battery charging and built-in RCD protection. The detachable LCD panel and optional BT-2 Bluetooth module enable convenient remote monitoring via the DC Home app.
With over 91% efficiency, ultra-low standby power (<10W), and a rapid 20ms transfer time, this all-in-one unit ensures uninterrupted power and maximum energy savings for both mobile and backup applications.
Key Features
- 3000W Continuous Output – Reliable power for home appliances, tools, and electronics.
- Pure Sine Wave Output – Safe for sensitive devices like laptops, TVs, and medical equipment.
- Built-in RCD Protection – Instantly detects leakage and cuts power for enhanced safety.
- 6000W Peak Surge – Handles startup loads of motors, fridges, and air conditioners.

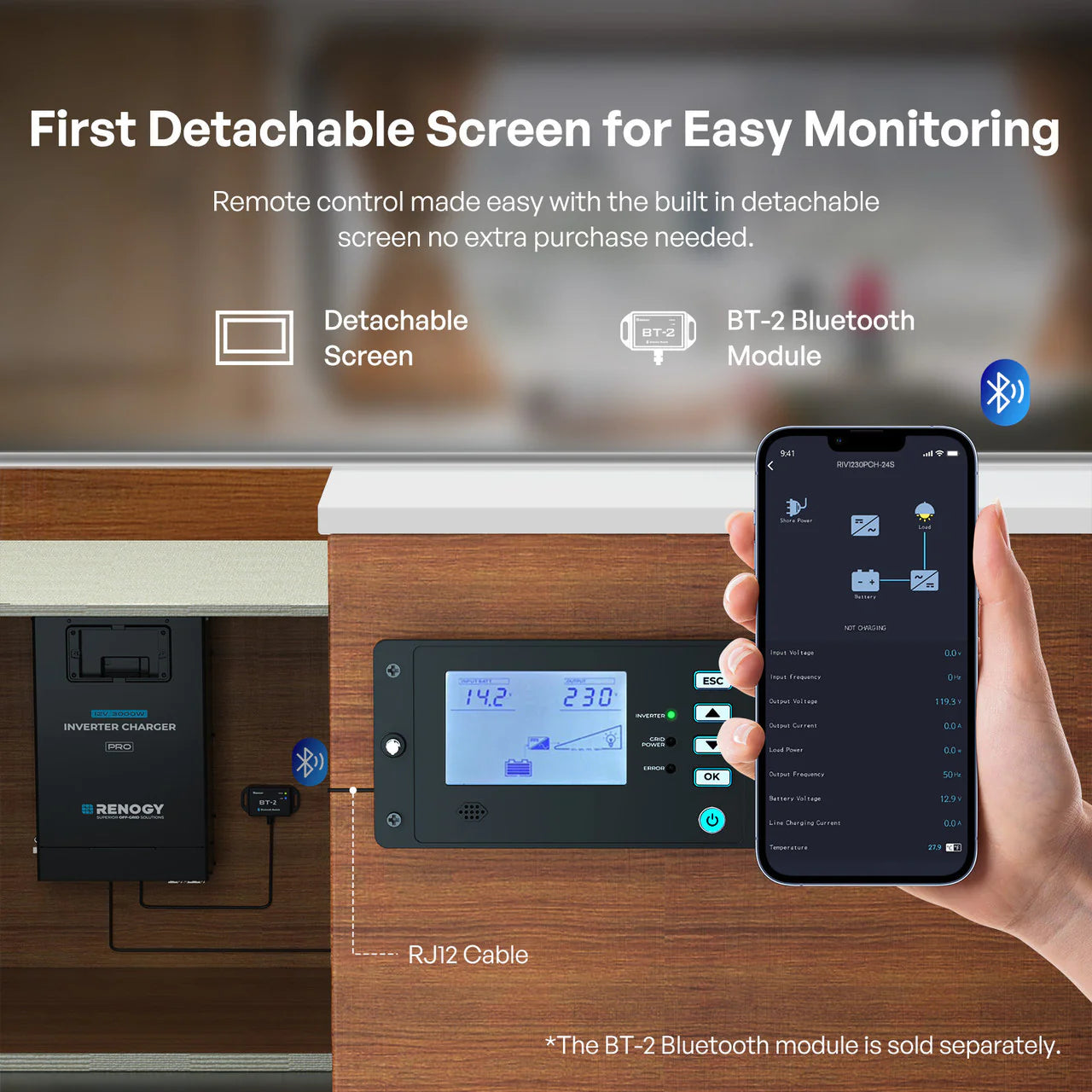

- Detachable LCD & Bluetooth Ready – Remote monitoring with BT-2 module and DC Home app.

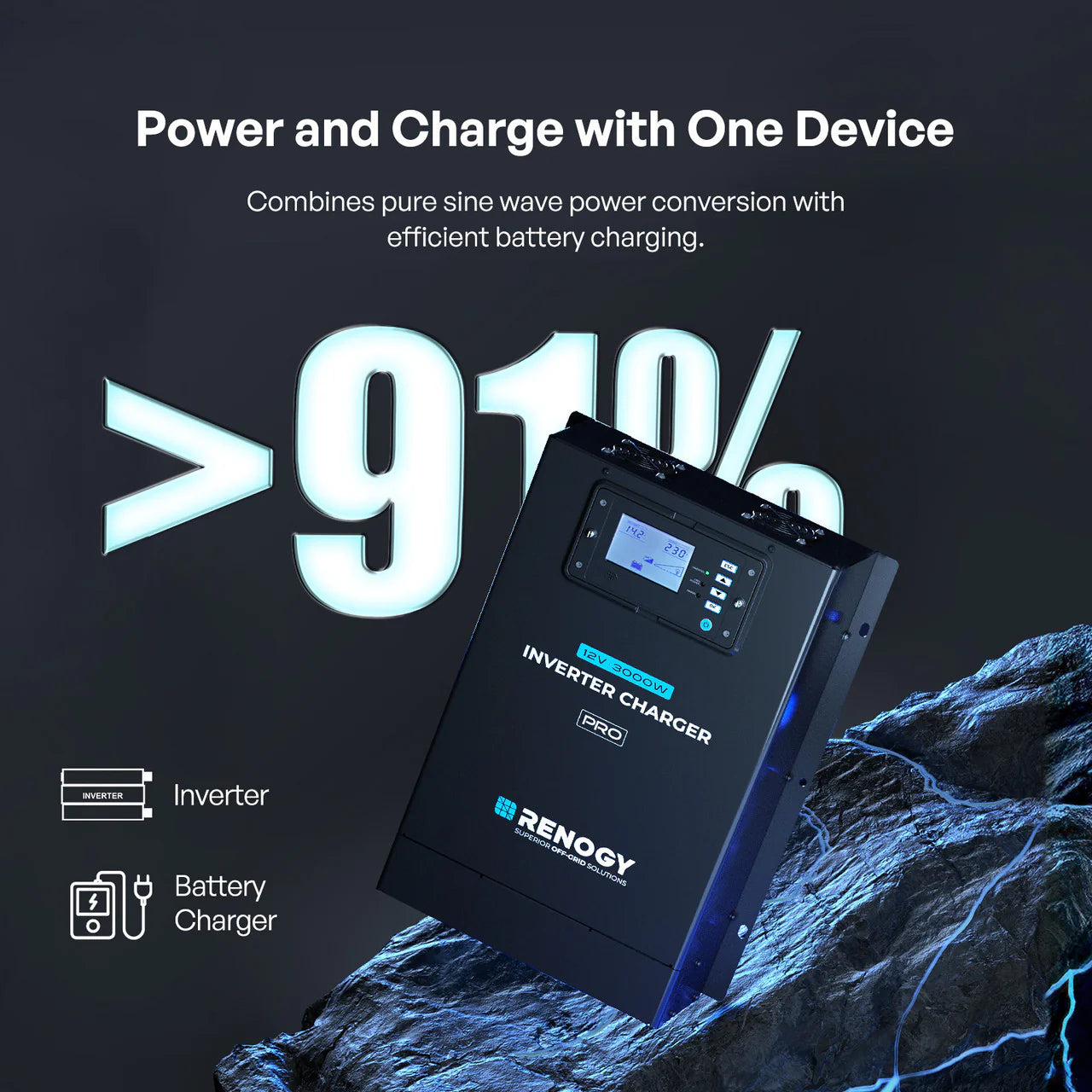

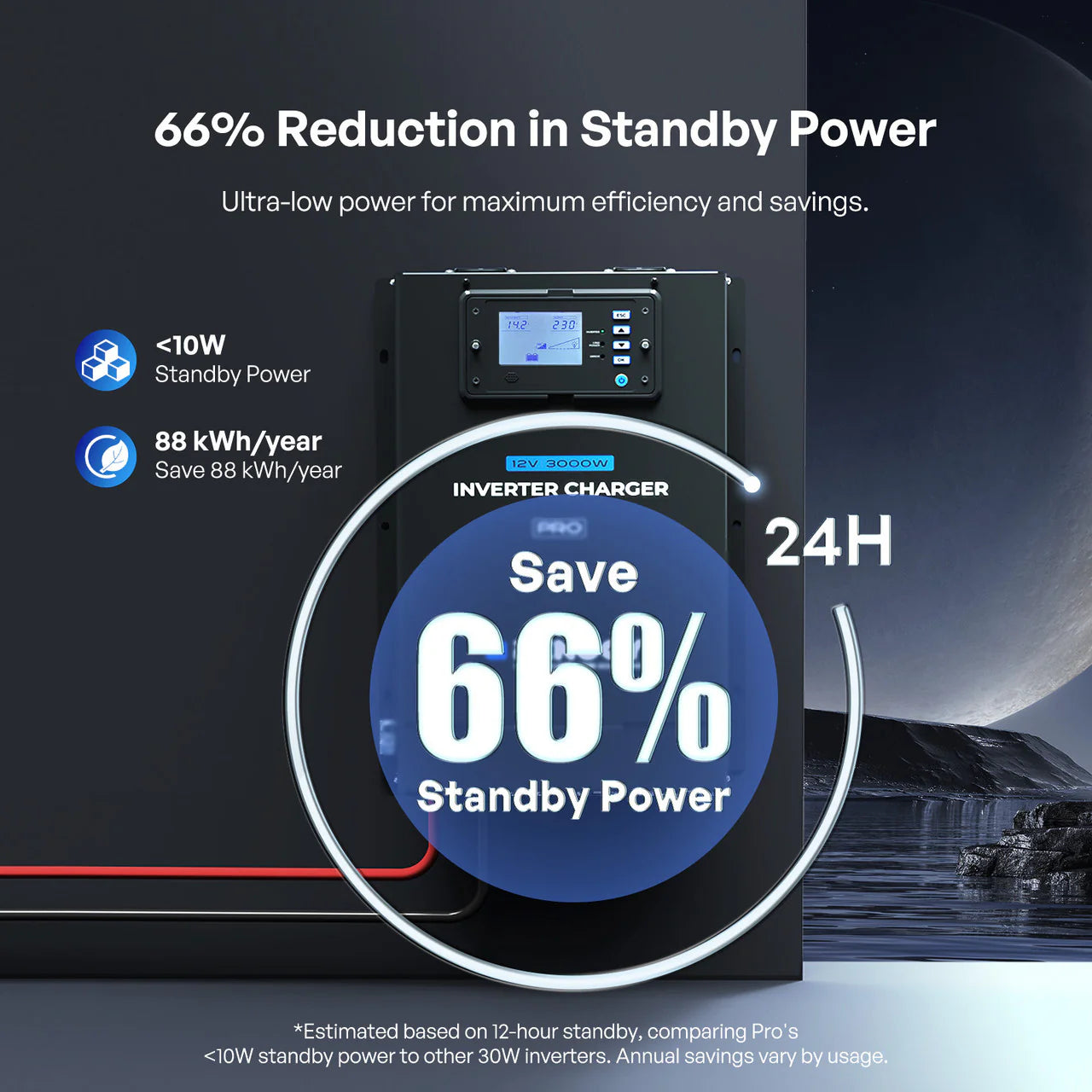

- 91%+ Efficiency & <10W Standby – Minimises energy waste and extends battery life.
- 20ms Transfer Switch – Seamless transition between grid/generator and battery power.
Specifications
Renogy Pro 12V 3000W HF Inverter Charger
| Continuous Power | 3000W |
| Surge Power (Peak Power) | 6000W |
| Input Voltage | 12V DC |
| DC Input Voltage Range | 10.5–15.5V DC |
| Output Voltage | 240V AC |
| Output Voltage Range | 220–240V AC (adjustable) |
| Output Frequency | 50/60 Hz ± 0.1 Hz (default 50 Hz) |
| Output Waveform | Pure Sine Wave |
| Efficiency | >91% peak |
| THD | <4% |
| No Load Current Draw | <10W |
| Transfer Time | Max. 20 ms |
| Transfer Rating | 16A Automatic Transfer Switch |
| Charging Current | 5–120A (adjustable in 5A intervals) |
| Battery Types | GEL, AGM, SLA, FLD, CAL, LI, USER |

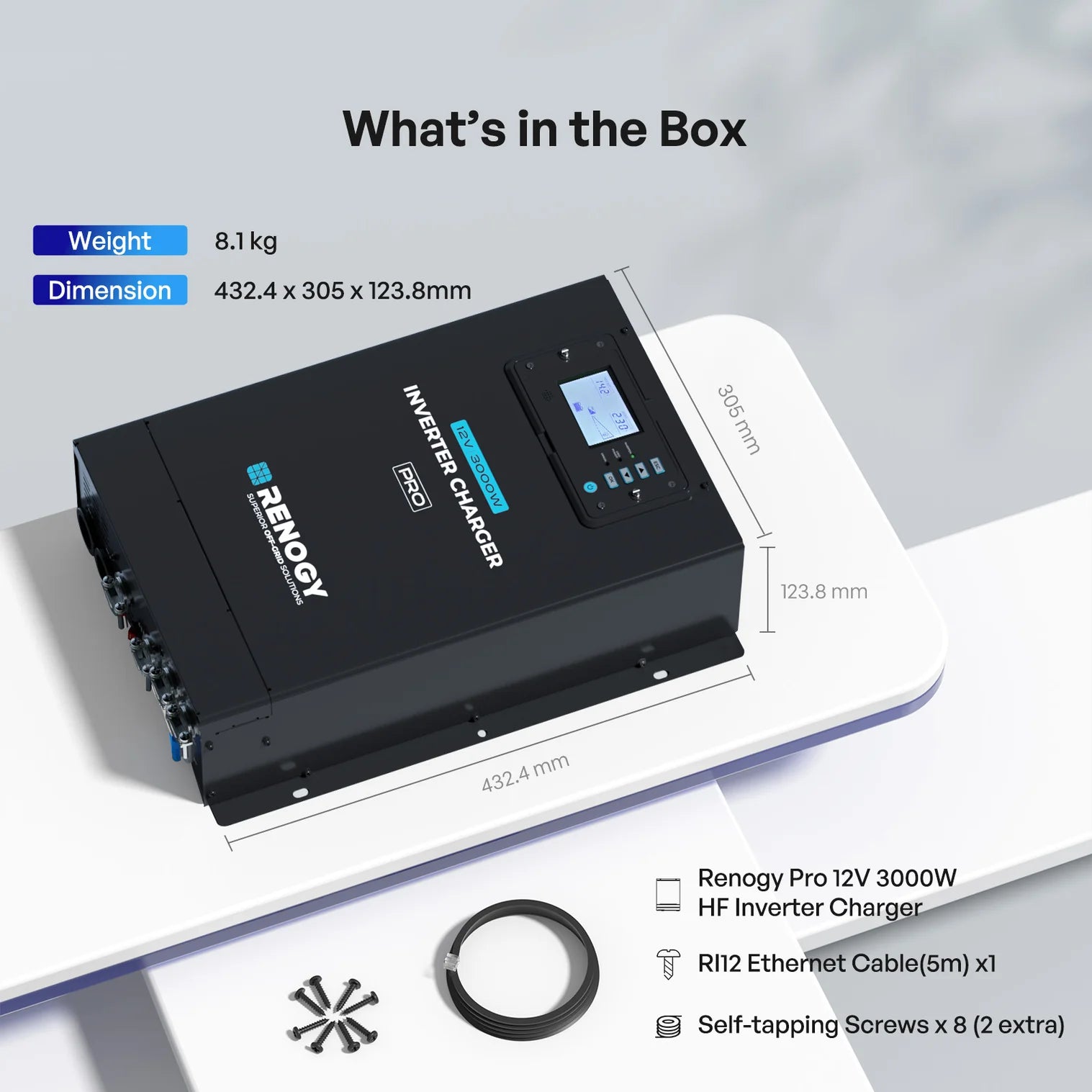

| Dimensions | 432.4 x 305 x 123.8 mm |
| Weight | 8.1 kg |

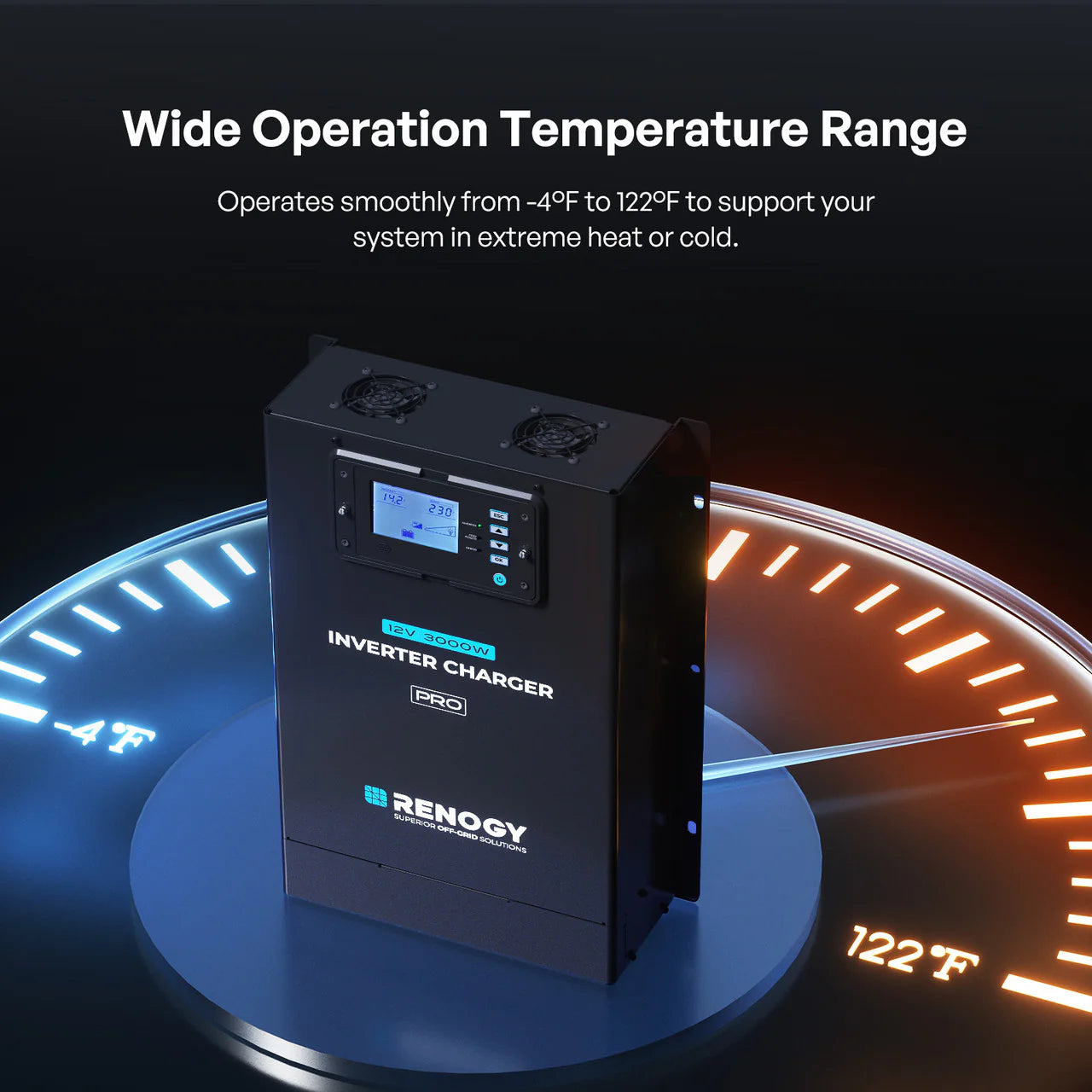

| Operating Temperature | -20°C to 50°C (derating above 30°C) |
| Noise | <55 dB |

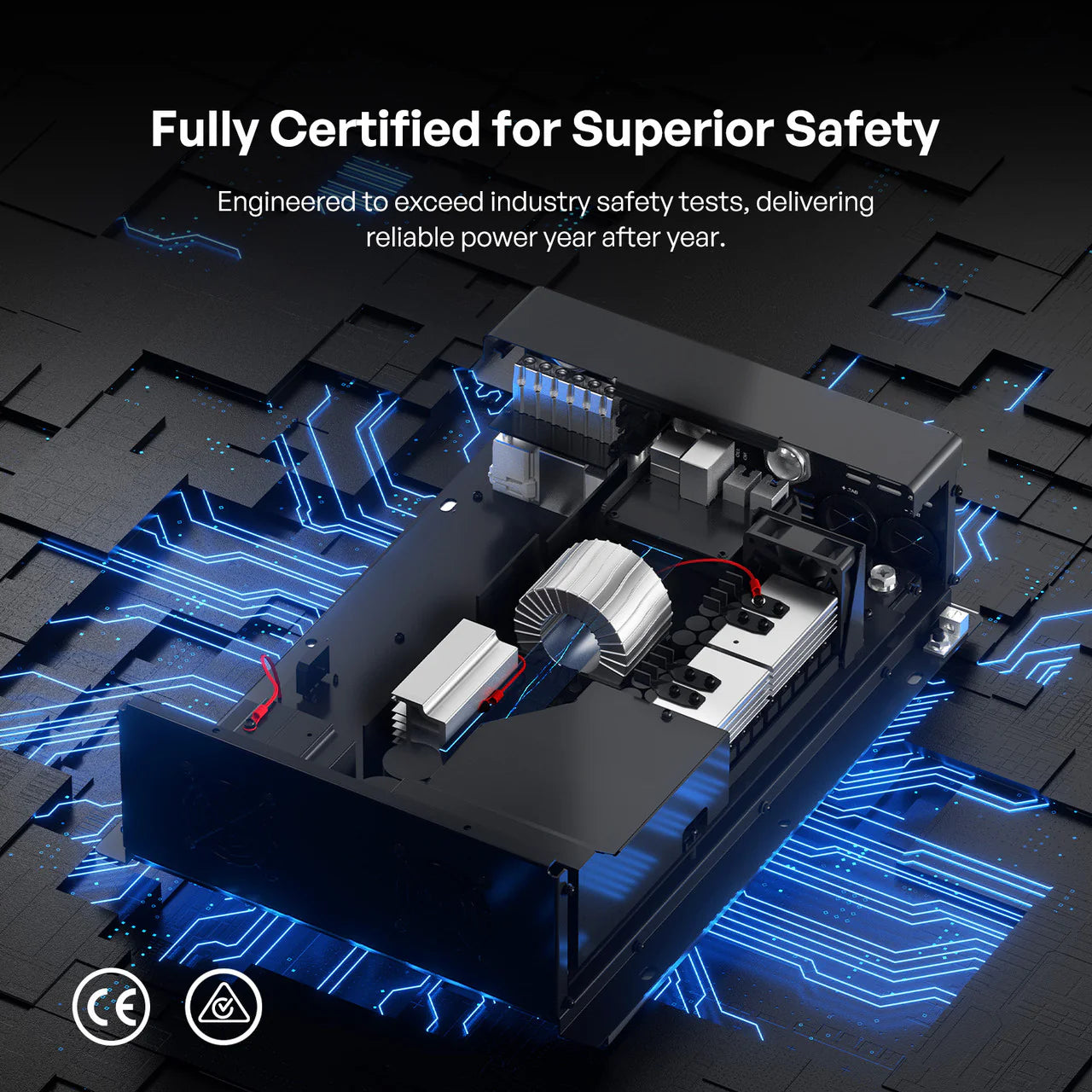

| Certifications | AS/NZS 60335, AS/NZS 4763, AS/NZS 61000-6-3, AS/NZS 4268, AS/NZS 2772.2 |
| Warranty | 3 years (material & workmanship) |
Delivery
Reliable delivery through our trusted supplier network. For more details, see our Shipping and Returns page.
Warranty
This product includes a 3-year material and workmanship warranty. For support, contact us or book a warranty consultation.
Data Sheets
Download product specifications and manuals:
Renogy Pro 12V 3000W HF Inverter Charger Manual & Datasheet (PDF)
FAQ's
Q: Can I use 2 x 100Ah lithium-ion batteries with this 3000W inverter?
A: Yes, but check your battery BMS continuous discharge rating. Most 100Ah LiFePO4 batteries are limited to ~100A; two batteries provide ~200A total (~2400W at 12V). For full 3000W continuous output, 3 x 100Ah batteries are recommended.
Q: How do I monitor the inverter remotely from my phone?
A: Pair the optional BT-2 Bluetooth module and download the free “DC Home” app from the App Store or Google Play. It displays real-time voltage, load, charging status, and more.
Q: Can this run an 1100W microwave without issues?
A: Absolutely—the 3000W continuous rating easily handles it. Ensure battery cables are heavy-gauge (≥50 mm² recommended) to avoid voltage drop.
Q: What is the built-in RCD protection?
A: The inverter includes a Residual Current Device that instantly detects earth leakage, cuts output power, and can be reset with the front switch—no external RCD required.
Q: Is this unit AS/NZS certified for Australia?
A: Yes, it meets AS/NZS 60335, AS/NZS 4763 (safety) and EMC standards AS/NZS 61000-6-3, AS/NZS 4268, AS/NZS 2772.2.
