Pre Wired Off Grid Kit | SkyEnergy | SkyBox 5kVA Off-Grid Series Pre-Wired Cabinet (Victron)
- $10,999.00
- $10,999.00
- Unit price
- per
Description
Discover True Energy Independence with SkyBox Off-Grid Series
Unlock the freedom to live off-grid with the robust SkyBox Off-Grid Series, your all-in-one solution for sustainable living. Each SkyBox combines a Victron inverter, optional battery bank, and switches, all secured within a custom IP54 weatherproof enclosure, ensuring reliability in any environment.
Key Features and Benefits:
- Seamless Integration: Manage power from your solar sources. SkyBox intelligently balances and stores energy, providing a dependable electricity supply without the grid.
- Cost-Effective Installation: Designed for simple installation by any electrician, saving you thousands compared to traditional off-grid systems.
- Flexible and Expandable: With significant upgradeable battery capacity, SkyBox grows with your energy needs. Just add more batteries to enhance your storage capacity.

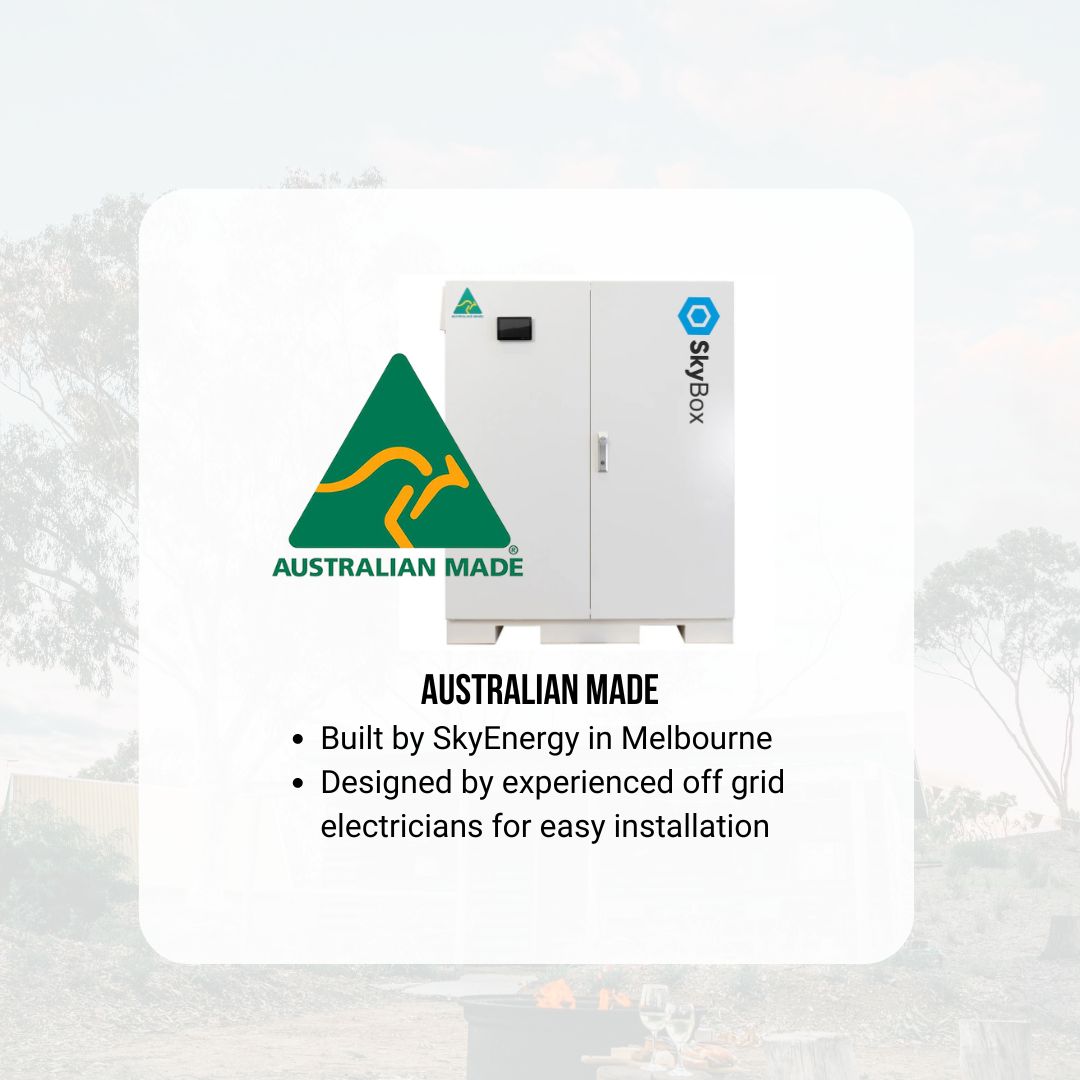

- Built to Last: Manufactured in Keysborough, Victoria, each unit is built to withstand harsh Australian conditions and comes with a 10-year warranty.

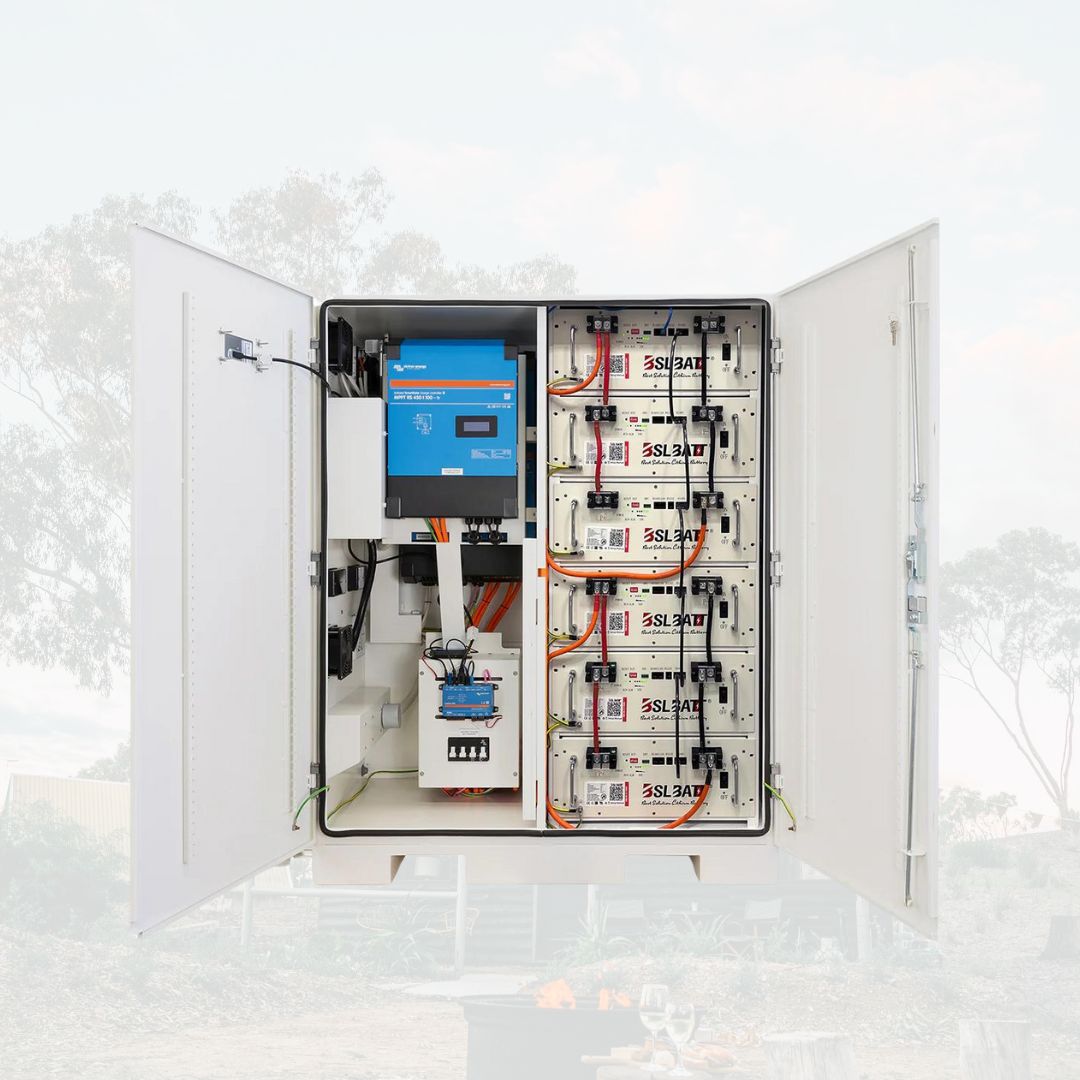

SkyBox Off-Grid 5kVA Pre-Wired Cabinet (Victron):

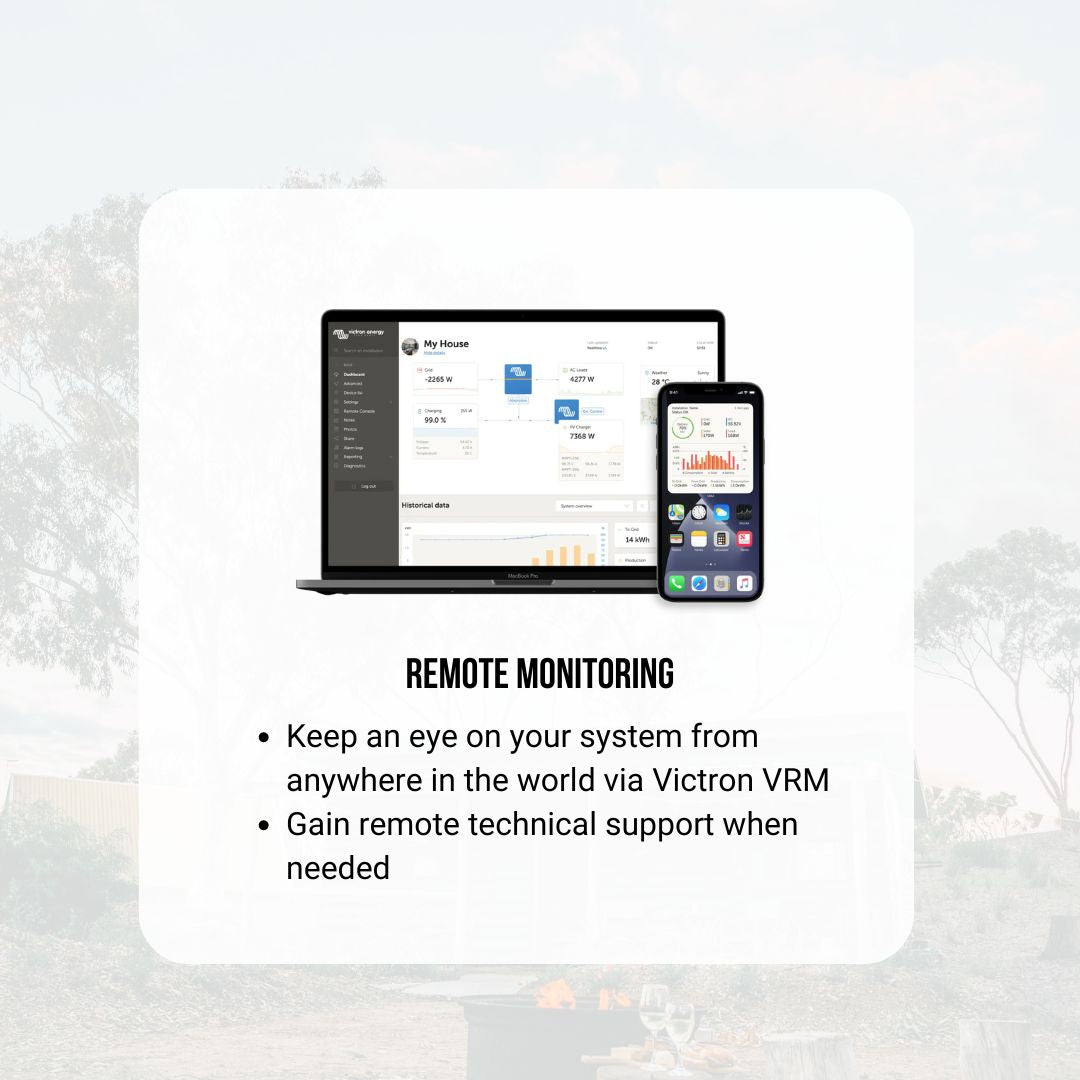

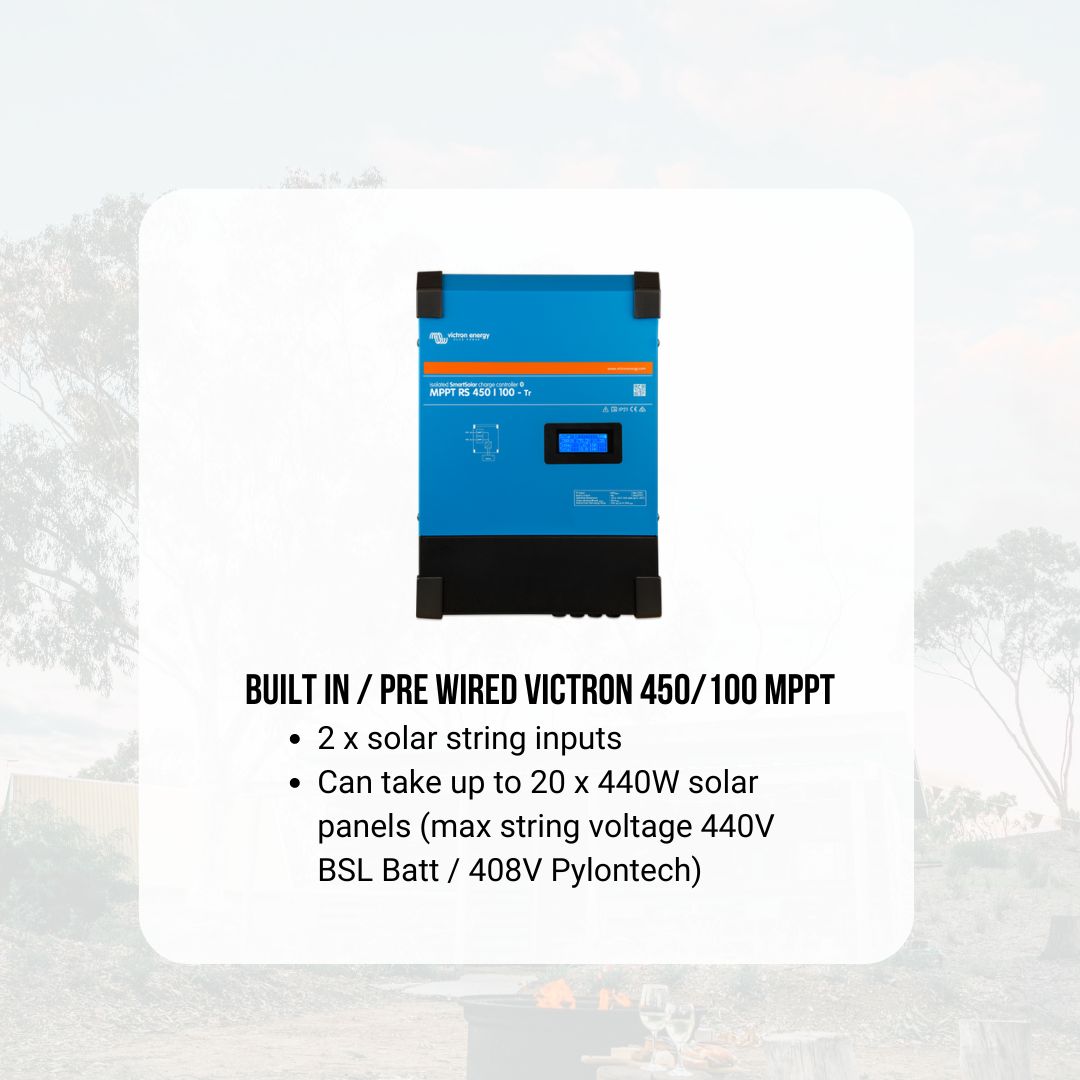

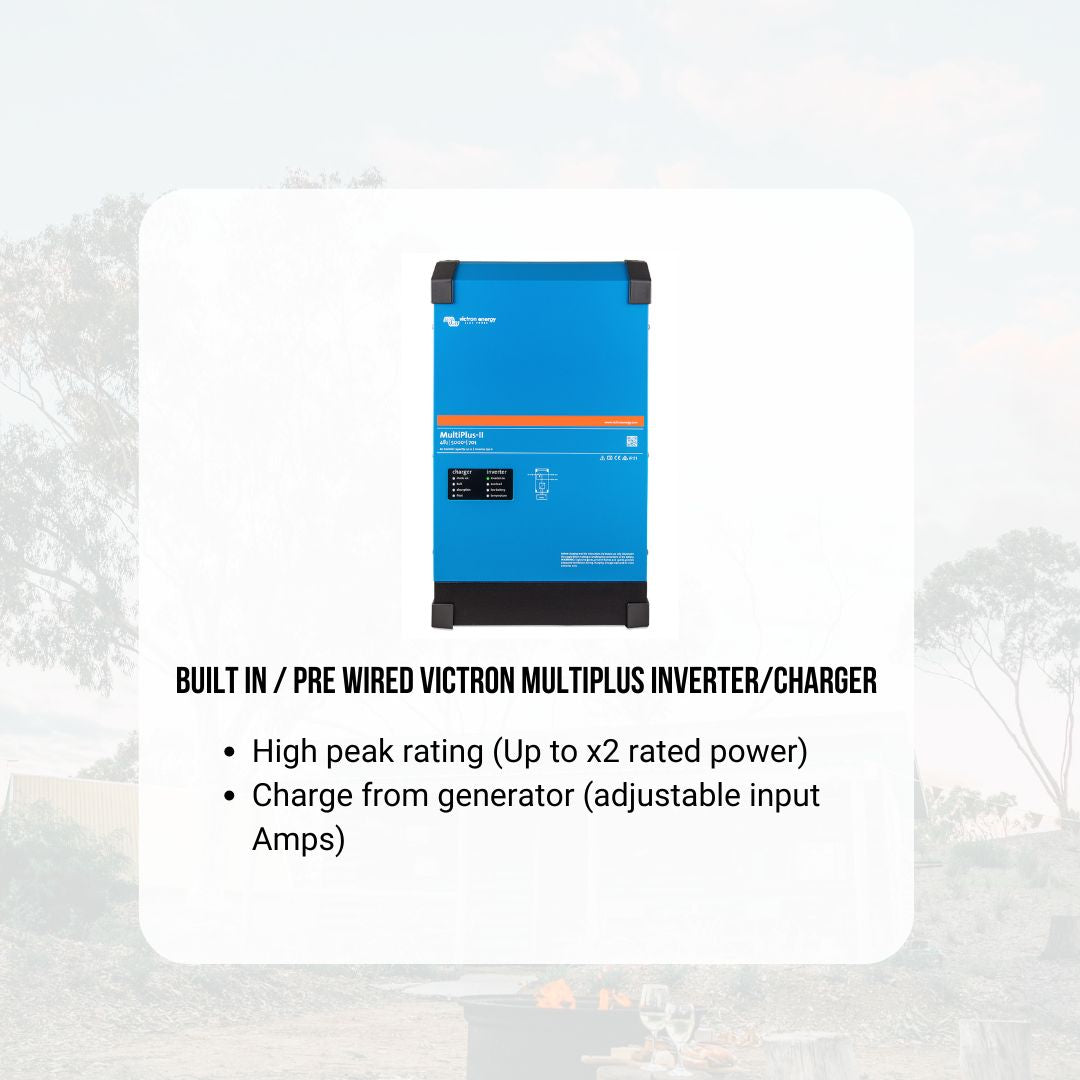

- In-built Victron Excellence: Equipped with a Victron MultiPlus II 48/5,000, a 450/100 Victron MPPT Solar charger, Victron Cerbo GX, Victron GX Touch, and a Victron 4G LTE Module & puck.
- Ready-to-Connect: Features a pre-wired AC external switchboard, external solar input, and connections for batteries, ensuring easy setup and expandability.

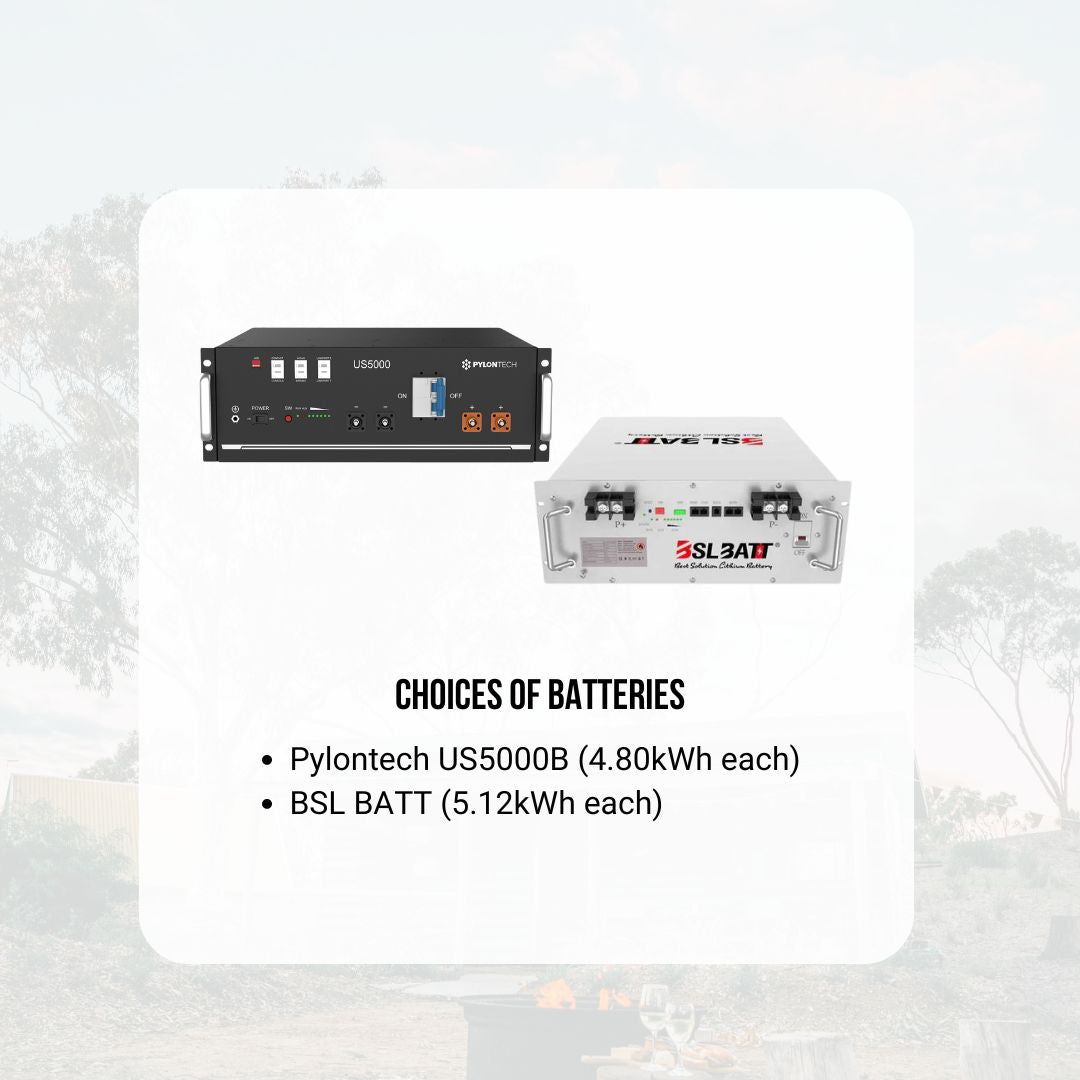

- Professional Installation Required: Designed for installation by a licensed electrician and accommodates 2-6 Pylontech US5000-B or BSL B-LFP48-100E rack mount lithium batteries (sold separately).
Embrace a life of independence and resilience. With SkyBox, power your home efficiently and sustainably. Start generating your own energy today and step into the future of power with SkyBox Off-Grid Series.
Specifications
| Inverter | |
| Output Voltage & Frequency | 230VAC, 50Hz |
| Continuous Output at 25°C (VA) | 5000VA |
| Continuous Output at 25°C (W) | 4000W |
| Continuous Output at 40°C (W) | 3700W |
| Continuous Output at 65°C (W) | 3000W |
| Max Apparent Feed-in Power | 5000VA |
| Peak Power (W) | 6000W |
| Maximum Efficiency | 96% |
| Transfer Switch | 50A |
| Max AC Input | 40A |
| Solar | |
| Max Output Current | 100A |
| Max PV Power | 8800W |
| Max Open Circuit Voltage (Pylontech/BSL) | 408V/438.4V |
| Max PV Short Circuit Current | 20A |
| Efficiency | 96% |
| MPPTs (Strings per Tracker) | 2 (1+1) |
| Batteries | |
| Nominal Voltage | 48V |
| Nominal Capacity (Wh) |
4800 (Wh) PYLONTECH / 5120 (Wh) BSL BATT
|
| Usable Capacity (Wh) |
4560 (Wh) PYLONTECH / 4966 (Wh) BSL BATT
|
| Min No. Modules | 2 |
| Max No. Modules (Single Unit) | 6 |
| Max Capacity (Single Unit) |
Pylontech 28.8kWh/BSLBATT 30.72Wh
|
| Working Temperature | 0°C−50°C |
| Design Life | 10+ Years |
| Cycle Life | >6000 Cycles |
| Authentication Level |
IEC62619/CE/UN38.3
|
| Warranty |
10 Years to 60% retention
|
| Monitoring | |
| WiFi | Yes |
| Ethernet | Yes |
| 4G LTE | Included |
| Enclosure | |
| Colour | White |
| Protection Category | IP54 |
| Dimensions (h x w x d) |
1072 x 1354 x 601 mm
|
Please see more details in the 'Data Sheets' tab.
Delivery
SkyBox Off-Grid cabinets are made to order and the lead time can vary from 3-4 weeks approx.
Warranty
Includes SkyCare Program for 10 Year after sales warranty and support. Please refer to the download.
SkyBox Off-Grid Series 5kVA Pre-Wired Cabinet (Victron) Warranty Sheet
Data Sheets
SkyBox Off-Grid Series 5kVA Pre-Wired Cabinet (Victron) Specifications
