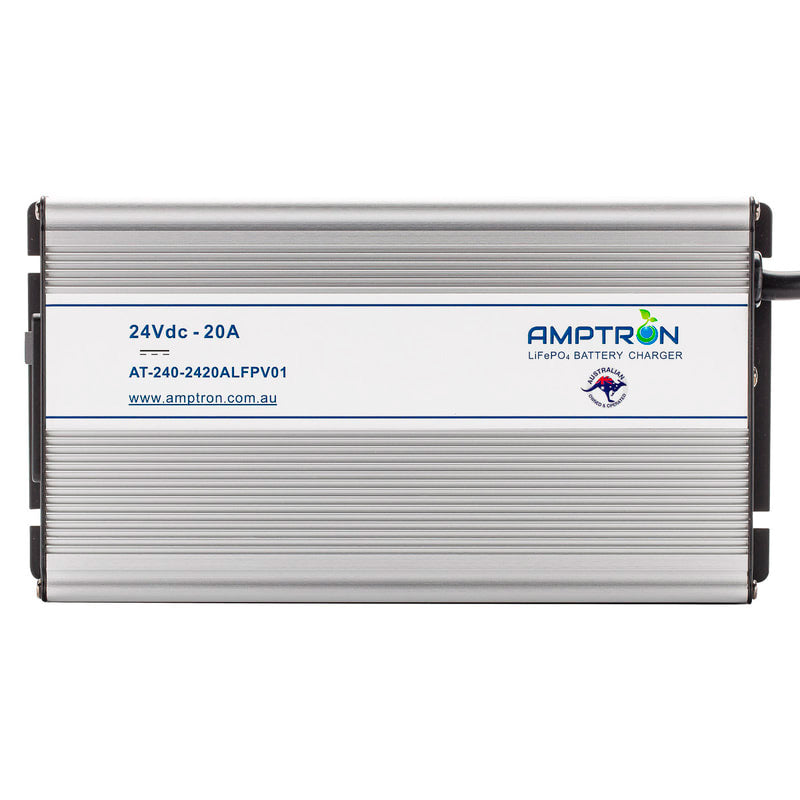

AT-240-2420ALFPV01B
AMPTRON® Lithium Iron Phosphate (LiFePO4) battery chargers are state-of-the-art battery chargers with a charging profile specifically designed to charge and maintain Lithium Iron Phosphate (LiFePO4) batteries, and can safely achieve a 100% State of Charge.
The 24V 20A model charger operates from mains AC 200-264V as input, supplying up to 20A charging output suitable for nominal 24V LiFePO4 battery banks. The charger’s built-in protection technology provides protection against Over Voltage and Over Current output, Short Circuit and Reverse Polarity making it very safe to use.
Item
|
Specification
|
Description/Remark
|
Model
|
AT-240-2420ALFPV01B
|
AC/DC 24V 20A LiFePO4 Battery Charger + Battery Wakeup
|
Input Voltage
|
min 200Vac to max 264Vac
|
|
Input Power
|
Max 729W
|
|
Constant charge voltage
|
Vdc min 29.0V to max 29.4V
|
|
Constant charge current
|
Min 19A to max 21A
|
|
Charge complete current
|
Vdc min 1.45A to max 1.75A
|
|
Ripple voltage
|
350mV
|
|
Efficiency
|
85%
|
At full load
|
Product Dimensions
|
L-207mm x W-120mm x H-70mm
|
|
Weight
|
2Kg
|
Please see more details in the 'Data Sheets' tab.
We don't hold the stock on hand but have a trusted supplier who will send this direct from their nearest warehouse to ensure you receive it as soon as possible.
AC-DC 24V 20A Lithium LiFePO4 Battery Charger c/w battery wakeup feature Warranty Sheet
AC-DC 24V 20A Lithium LiFePO4 Battery Charger c/w battery wakeup feature Specifications
