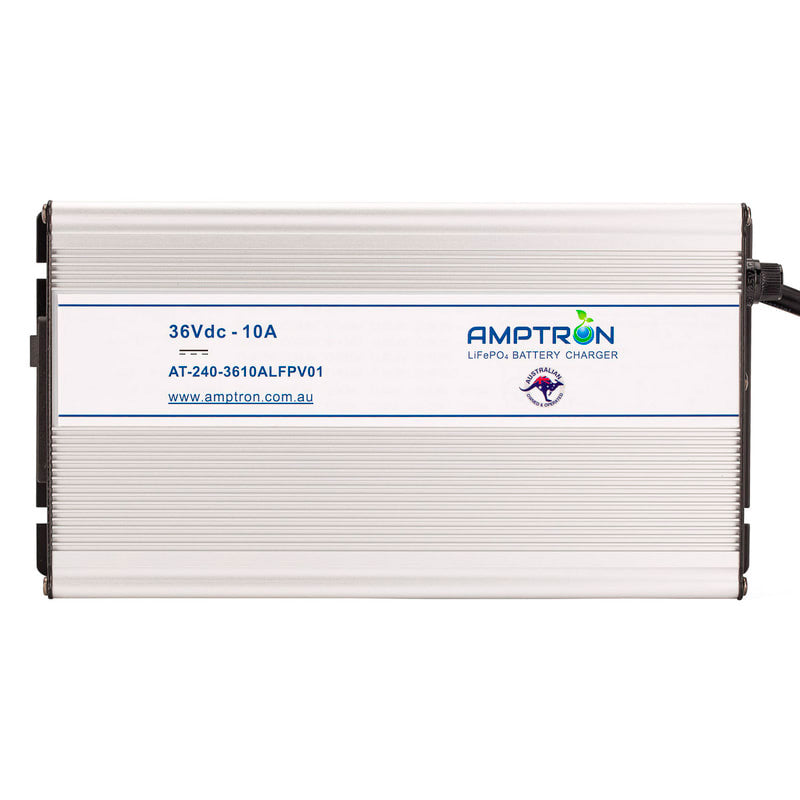

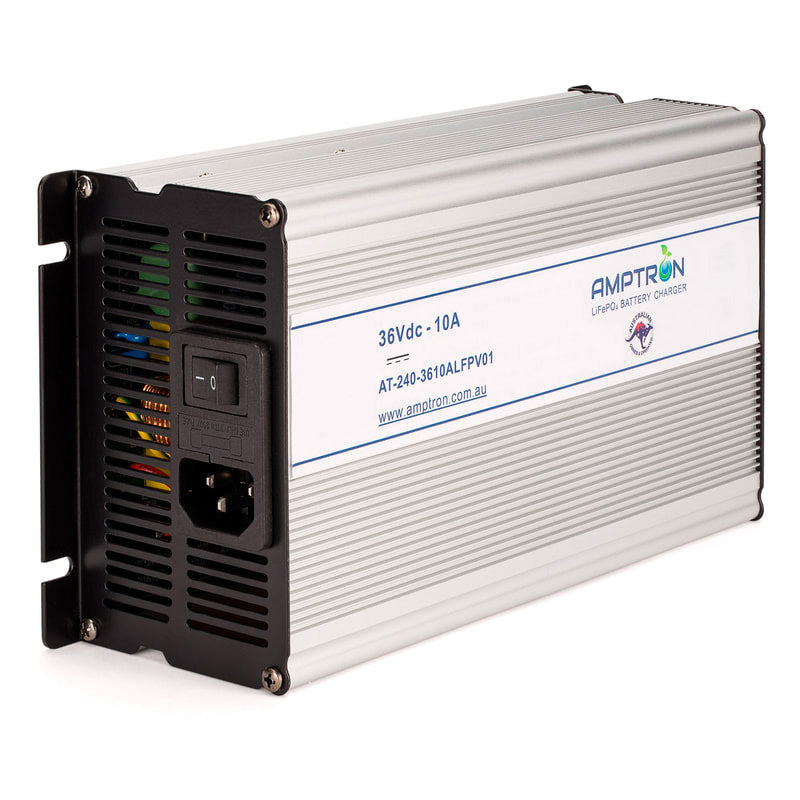

Portable Power Station | Eco Flow | AC-DC 36V 10A Lithium LiFePO4 Battery Charger c/w battery wakeup feature
- $316.00
- $316.00
- Unit price
- per
or 4 interest-free payments of
$79.00
with
Description
AMPTRON® Lithium Iron Phosphate (LiFePO4) battery chargers are state-of-the-art battery chargers with a charging profile specifically designed to charge and maintain Lithium Iron Phosphate (LiFePO4) batteries, and can safely achieve a 100% State of Charge.
The 36V 10A model charger operates from mains AC 200-264V as input, supplying up to 10A charging output suitable for nominal 36V LiFePO4 battery banks. The charger’s built-in protection technology provides protection against Over Voltage and Over Current output, Short Circuit and Reverse Polarity making it very safe to use.
Specifications
|
Item
|
Specification
|
Description/Remark
|
|
Model
|
AT-240-3610ALFPV01B
|
AC/DC 36V 10A LiFePO4 Battery Charger + Battery Wakeup
|
|
Input Voltage
|
min 200Vac to max 260Vac
|
|
|
Input Power
|
Max 526W
|
|
|
Constant charge voltage
|
Vdc min 43.5V to max 44.1V
|
|
|
Constant charge current
|
Min 9.5A to max 10.5A
|
|
|
Charge complete current
|
Vdc min 0.6A to max 1.0A
|
8% CC
|
|
Ripple voltage
|
500mV
|
|
|
Efficiency
|
85%
|
At full load
|
|
Product Dimensions
|
L-207mm x W-120mm x H-70mm
|
|
|
Weight
|
2Kg
|
Please see more details in the 'Data Sheets' tab.
Delivery
We don't hold the stock on hand but have a trusted supplier who will send this direct from their nearest warehouse to ensure you receive it as soon as possible.
Warranty
AC-DC 36V 10A Lithium LiFePO4 Battery Charger c/w battery wakeup feature Warranty Sheet
Data Sheets
AC-DC 36V 10A Lithium LiFePO4 Battery Charger c/w battery wakeup feature Specifications
