AC-DC 24V 20A Lithium LiFePO4 Battery Charger

Portable Power Station | Eco Flow | AC-DC 24V 20A Lithium LiFePO4 Battery Charger

$368.00
AC-DC 24V 20A Lithium LiFePO4 Battery Charger
AC-DC 24V 20A Lithium LiFePO4 Battery Charger

Portable Power Station | Eco Flow | AC-DC 24V 20A Lithium LiFePO4 Battery Charger

$368.00
Description
Description

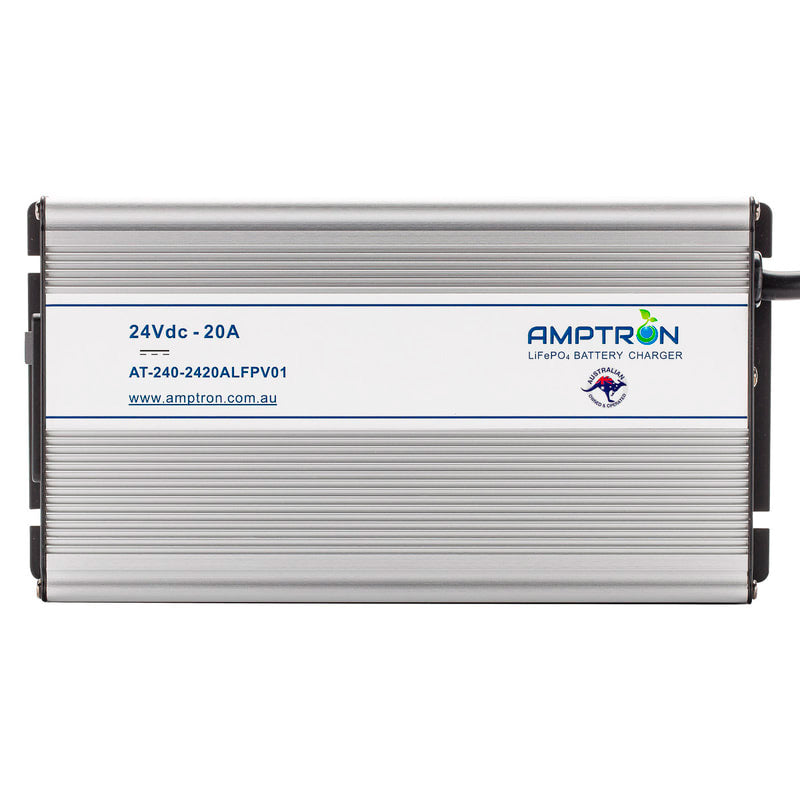

AMPTRON® Lithium Iron Phosphate (LiFePO4) battery chargers are state-of-the-art battery chargers with a charging profile specifically designed to charge and maintain Lithium Iron Phosphate (LiFePO4) batteries, and can safely achieve a 100% State of Charge.

The 24V 20A model charger operates from mains AC 200-264V as input, supplying up to 20A charging output suitable for nominal 24V LiFePO4 battery banks. The charger’s built-in protection technology provides protection against Over Voltage and Over Current output, Short Circuit and Reverse Polarity making it very safe to use.

Specifications
Item
Specification
Description/Remark
Model
AT-240-2420ALFPV01
AC/DC ​24V 20A LiFePO4 Battery Charger
Input Voltage
min 200Vac to max 264Vac

Input Power
Max 729W

Constant charge voltage
Vdc min 29.0V to max 29.4V

Constant charge current
Min 19A to max 21A

Charge complete current
Vdc min 1.45A to max 1.75A

Ripple voltage
350mV

Efficiency
85%
At full load
Product Dimensions
L-207mm x W-120mm x H-70mm
​
Weight
2Kg

Please see more details in the 'Data Sheets' tab.

Delivery

We don't hold the stock on hand but have a trusted supplier who will send this direct from their nearest warehouse to ensure you receive it as soon as possible.

Warranty

AC-DC 24V 20A Lithium LiFePO4 Battery Charger Warranty Sheet

Data Sheets

AC-DC 24V 20A Lithium LiFePO4 Battery Charger Specifications
