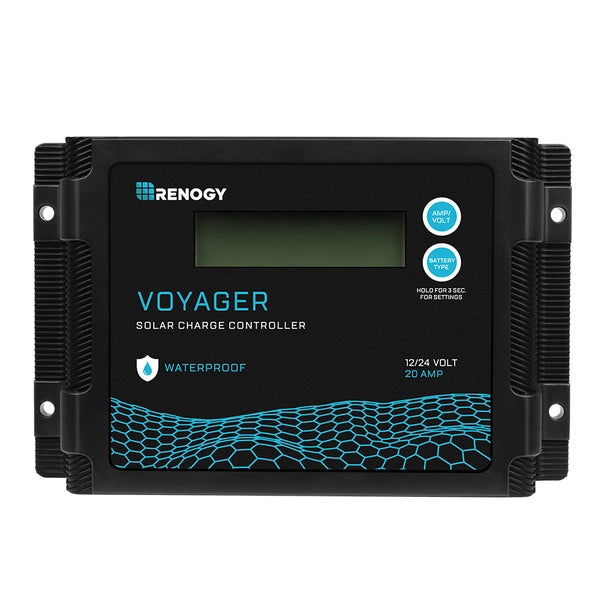

Solar Controller | Renogy | New Edition Voyager 20A PWM Waterproof Solar Charge Controller

DESCRIPTION The Voyager 20A is a class leading 20-amp charge controller with an IP67 rating. It is... Read More
$89.99
$89.99
Vendor: Renogy
SKU: RCC20VOYP-AU
Availability: Many In Stock
Subtotal: $89.99

30-Day Money-Back Guarantee

Australian Phone Support

Locally-Based Australian Stock

Price Match Guarantee

DESCRIPTION

The Voyager 20A is a class leading 20-amp charge controller with an IP67 rating. It is perfect for outdoor use, and can withstand water spray, rain, and condensation. Equipped with advanced PWM technology, it supports both 12V and 24V off-grid applications, and is compatible with 4 different battery types, including Lithium Iron Phosphate. The Voyager 20A also ensures your system's longevity with solar panel, battery, and controller protections.

KEY FEATURES

4-STAGE PWM Technology

  • The Voyager controller is equipped with advanced smart PWM technology with high charging efficiency. It provides 4-stage charging (Bulk, Absorption, Float and Equalization) in order to protect the battery.

IP67 Rated Waterproof

  • With an IP67 rated waterproof design, the Voyager controller is suitable for outdoor use and will remain fully operational when exposed to water spray, rain, or condensation.

Multiple Protections

  • The Voyager controller has multiple intelligent protections against reverse polarity, over charge, short-circuit, reverse current, overload, and over discharge, keeping your battery fully protected.

Support Multiple Battery Types

  • The Voyager controller can automatically sense 12V or 24V system voltage when paired with a Gel, AGM, or Flooded batteries. It also comes with a Lithium activation feature.

Backlit LCD displaying system

  • The Voyager comes with an LCD display showing accurate and timely information including charging current, generated energy, temperature, battery voltage, and error codes that allows users to monitor and control charging.


PACKAGE INCLUDES



New Edition Voyager 20A PWM Waterproof Solar Charge Controller

New Edition Voyager 20A PWM Waterproof Solar Charge Controller

1 x



SPECIFICATION


ELECTRICAL PARAMETERS
Nominal System Voltage: 12/24V Auto-Detect Power Consumption: 12V @ 0.24W / 24V@0.74W
Rated Charge Current: 20A Max Battery Voltage: 32V
PV Input Voltage Range: 15V-55V Ground Type: Positive
Max. Pv Open Circuit Voltage: 12V@25V   24V@55V Communication Port: N/A
Max. PV Input Power : 12V @ 260W / 24V@520W Battery Types: SLD/AGM, GEL, FLD. LI
Electrical Protection: Battery/Controller over-temperature protection,
PV/Battery reverse polarity, Over-voltage, Over-current protection

ENVIRONMENTAL DATA
Protection Level: IP67 Operating / Storage Humidity: 10%-90%, No Condensation
Operating Temperature Range :  -31°F - 113°F Temperature Compensation: -3mV/C/2V excludes LI
Storage Temperature Range :  -31°F - 167°F
MECHANICAL SPECIFICATIONS
Dimensions: 6.08*3.83*1.40 in Max. Cable Size : 6 AWG
Weight: 0.55Ibs Controller Terminals: 20 - 6 AWG, 2-pin terminals
CERTIFICATIONS
ETL Listed to UL 458 and CSA 22.2 NO 107.1-01: YES FCC Part 15 class B: YES

WARRANTY INFORMATION

Material and workmanship warranty
