RCC10VOYP-AU
RCC10VOYP-TS-AU
The Voyager 10A is a class leading 10-amp charge controller with an IP67 rating. It is perfect for outdoor use, and can withstand water spray, rain, and condensation. Equipped with advanced PWM technology, it supports both 12V and 24V off-grid applications, and is compatible with 4 different battery types, including Lithium Iron Phosphate. The Voyager 10A also ensures your system's longevity with solar panel, battery, and controller protections.

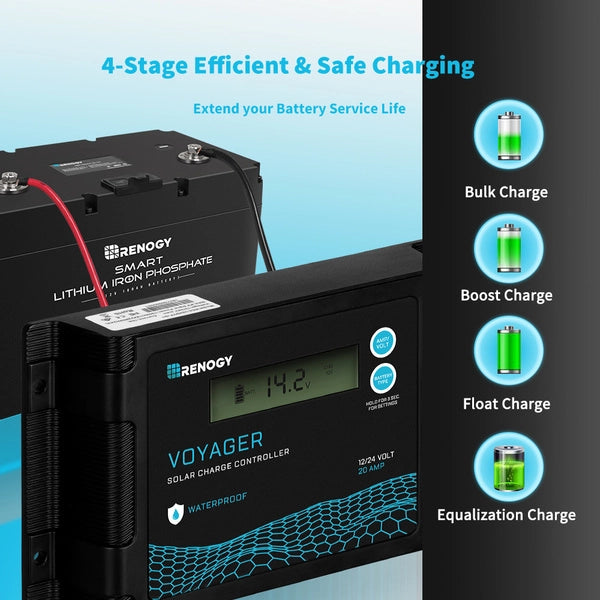

4-STAGE PWM Technology

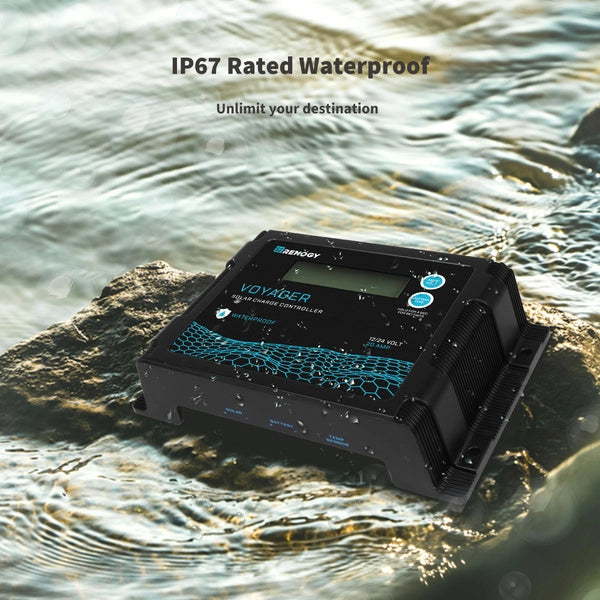

IP67 Rated Waterproof

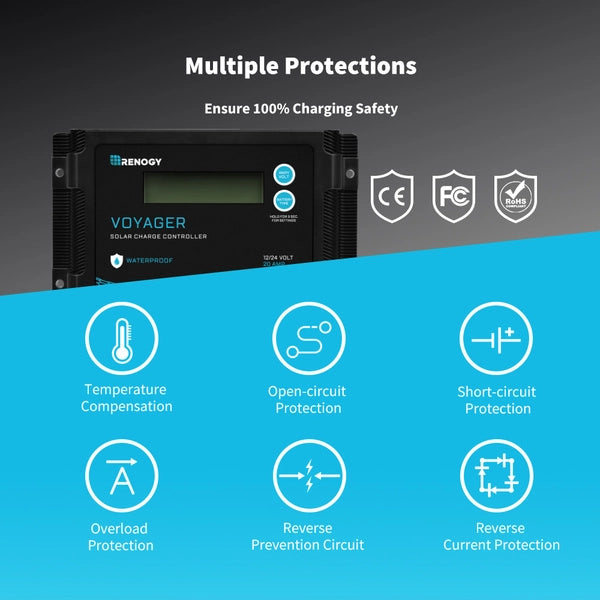

Multiple Protections

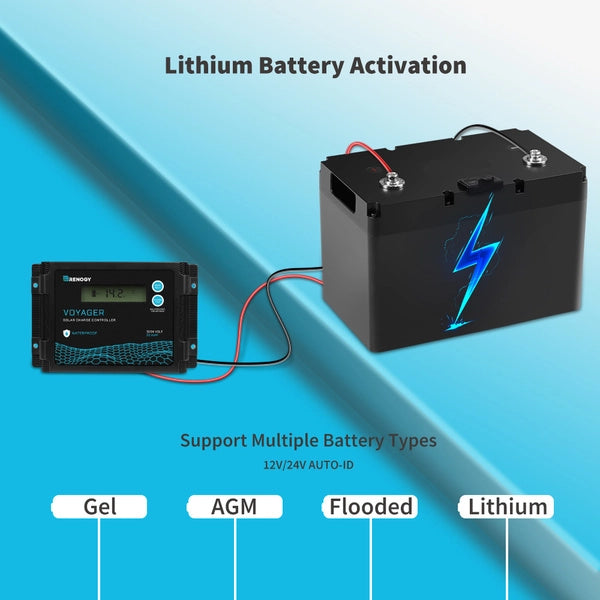

Support Multiple Battery Types

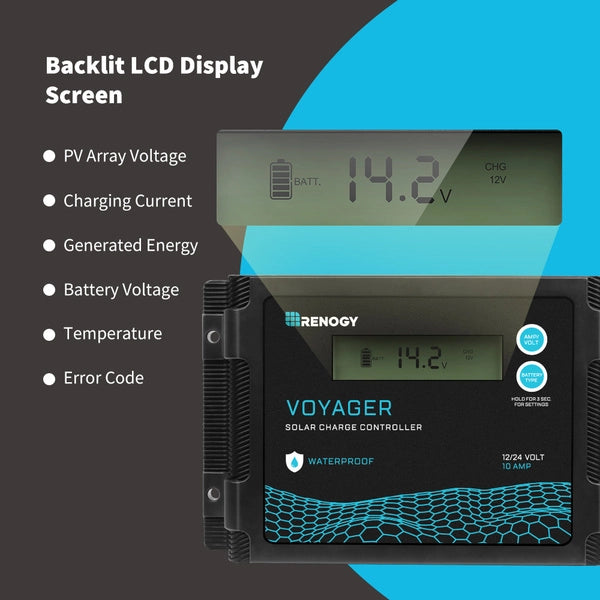

Backlit LCD displaying system

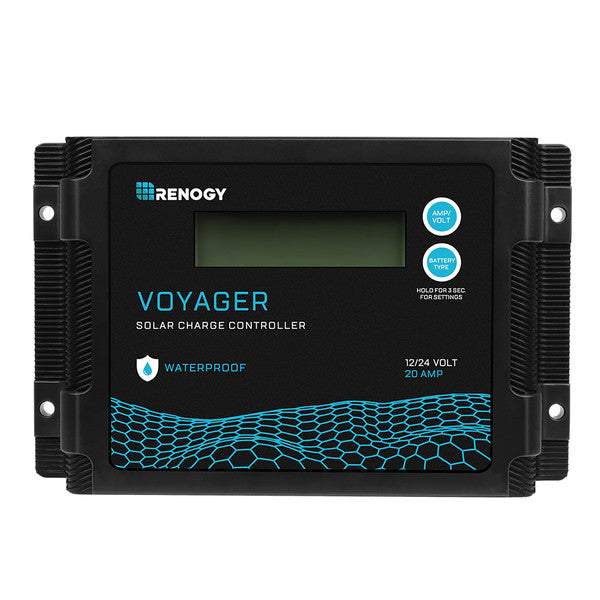

New Edition Voyager 10A PWM Waterproof Solar Charge Controller 1 x |
RENOGY 10A PWM WATERPROOF SOLAR CHARGE CONTROLLER | |
---|---|
Nominal System Voltage: 12V/24V Auto-Detect | Rated Charge Current: 10A |
PV Input Voltage Range:15V-55V | Max. PV Open Circuit Voltage:12V@25V 24V@55V |
Max. PV Input Power:12V @ 130W / 24V@260W | Max Battery Voltage:32V |
Power Consumption:12V @ 0.22W / 24V@0.72W | Battery Types:SLD/AGM, GEL, FLD, LI |
Ground Type:Positive | Electrical Protection:Battery/Controller over-temperature protection, PV/Battery reverse polarity, Over-voltage, Over-current protection |
Communication Port:N/A |
ENVIRONMENTAL DATA | |
---|---|
Protection Level:IP67 | Operating / Storage Humidity:10%-90%, No Condensation |
Operating Temperature Range: -31°F - 113°F | Temperature Compensation:-3mV / C / 2V excludes LI |
Storage Temperature Range: -31°F - 167°F |
MECHANICAL SPECIFICATIONS | |
---|---|
Dimensions:6.08*3.83*1.40 in | Controller Terminals:20 - 6 AWG, 2-pin terminals |
Weight:0.55Ibs | Max. Cable Size:6 AWG |
Material and workmanship warranty | 2-year |
