RBT24100LFPSH-AU
Renogy 12V 100Ah Core Series Deep Cycle Lithium Iron Phosphate Battery | |||
Electrical Specifications | Temperature Parameters | ||
Rated Capacity (0.5C, 25°C) | 100 Ah | Operation Temperature Range |
Charge: 32°F to 131°F / 0°C to 55°C
|
Nominal Voltage | 25.6 V | Operation Temperature Range |
Discharge: -4°F to 140°F / -20°C to 60°C
|
Energy | 2560Wh | Storage Temperature Range |
-13°F to 149°F / -25°C to 65°C
|
Cycle Life(0.5C/1C, 25℃) | 5000 Cycles (80% DOD 80% EOL) | Operation Relative Humidity | 10% to 95% |
Charging Parameters | Mechanical Specifications | ||
Charge Voltage | 29 V | Dimension (L x W x H) |
20.55 x 9.45 x 8.62 in / 522 x 240 x 219 mm
|
Maximum Continuous Charge Current | 100 A | Weight | 46.3 lbs. / 21.0 kg |
Discharging Parameters | Terminal Bolt Size |
M8 x 1.25 x 15 mmm
|
|
Maximum Continuous Discharge Current | 100A | Protection Rating | IP65 |

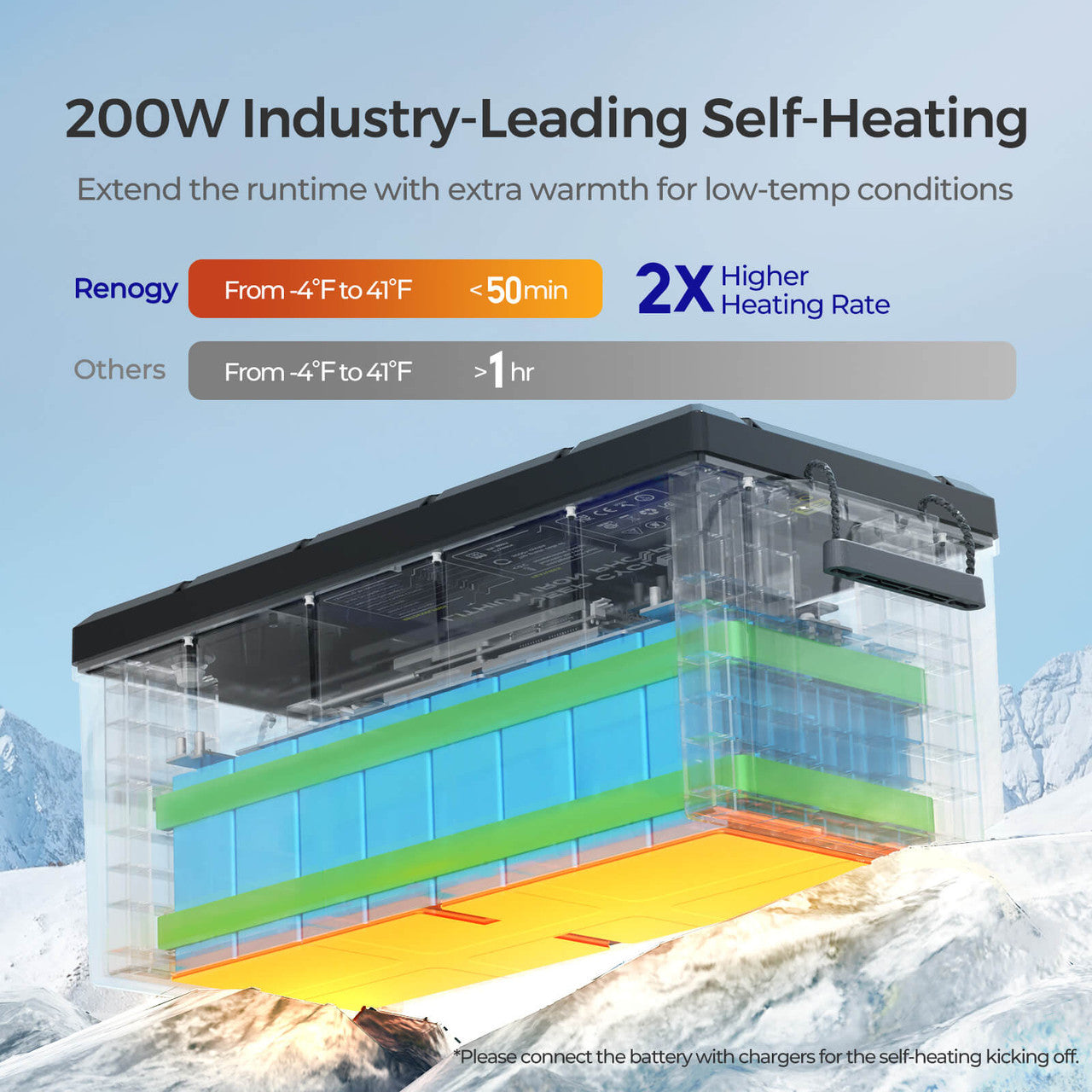

Peak Discharge Current | 300A@5s | Self-heating | YES |
Certifications | Warranty | ||
MSDS, UN38.3, FCC, PSE, CE, UKCA | YES | 5-year material Warranty |
All items subject to availability and will generally require a 1-3 business day turnaround.
We don't hold the stock on hand but have a trusted supplier who will send this direct from their nearest warehouse to ensure you receive it as soon as possible.
Material Warranty: 5 year warranty
Please call us for more details and to discuss your next step.
Please see
24V 200Ah Core Series Deep Cycle Lithium Iron Phosphate Battery Manual
24V 200Ah Core Series Deep Cycle Lithium Iron Phosphate Battery Specifications
