Description

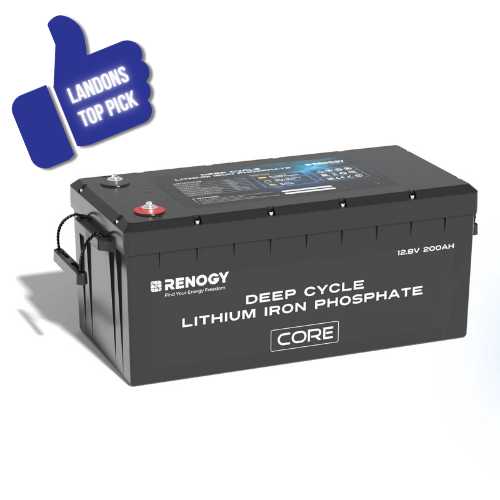

The Renogy Core Series 12V 200Ah Lithium Iron Phosphate Battery with Bluetooth is engineered for powerful, long-lasting energy storage in off-grid and mobile applications. This upgraded version supports 12V, 24V, and 48V systems, delivering genuine 200Ah capacity with up to 6% bonus energy, over 5000 cycles, and Bluetooth connectivity for real-time monitoring via the Renogy app. Ideal for solar setups, RVs, caravans, marine, and 4WDs, it features EV-grade cells for superior durability—lasting up to 10 times longer than lead-acid batteries.
With lithium iron phosphate (LiFePO4) technology, the Core Series battery ensures safe, efficient operation and high energy density. Its lightweight, maintenance-free design, combined with rugged IP65 protection for impacts and Australian conditions, makes it easy to install and reliable for demanding environments.
Key Features
-

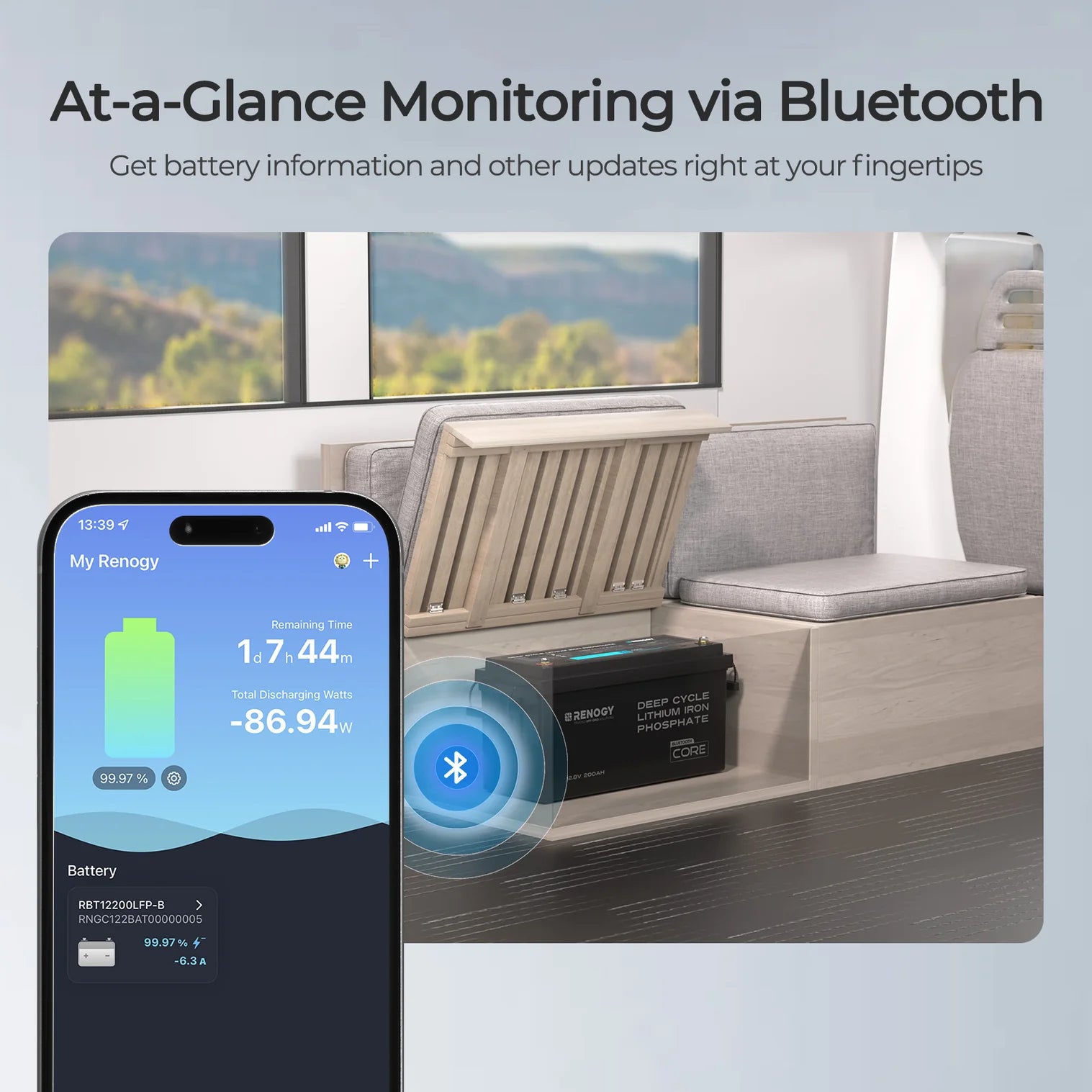

Bluetooth Monitoring – Connect via the Renogy app for real-time tracking of voltage, state of charge, current, temperature, history, and protection alerts.
-

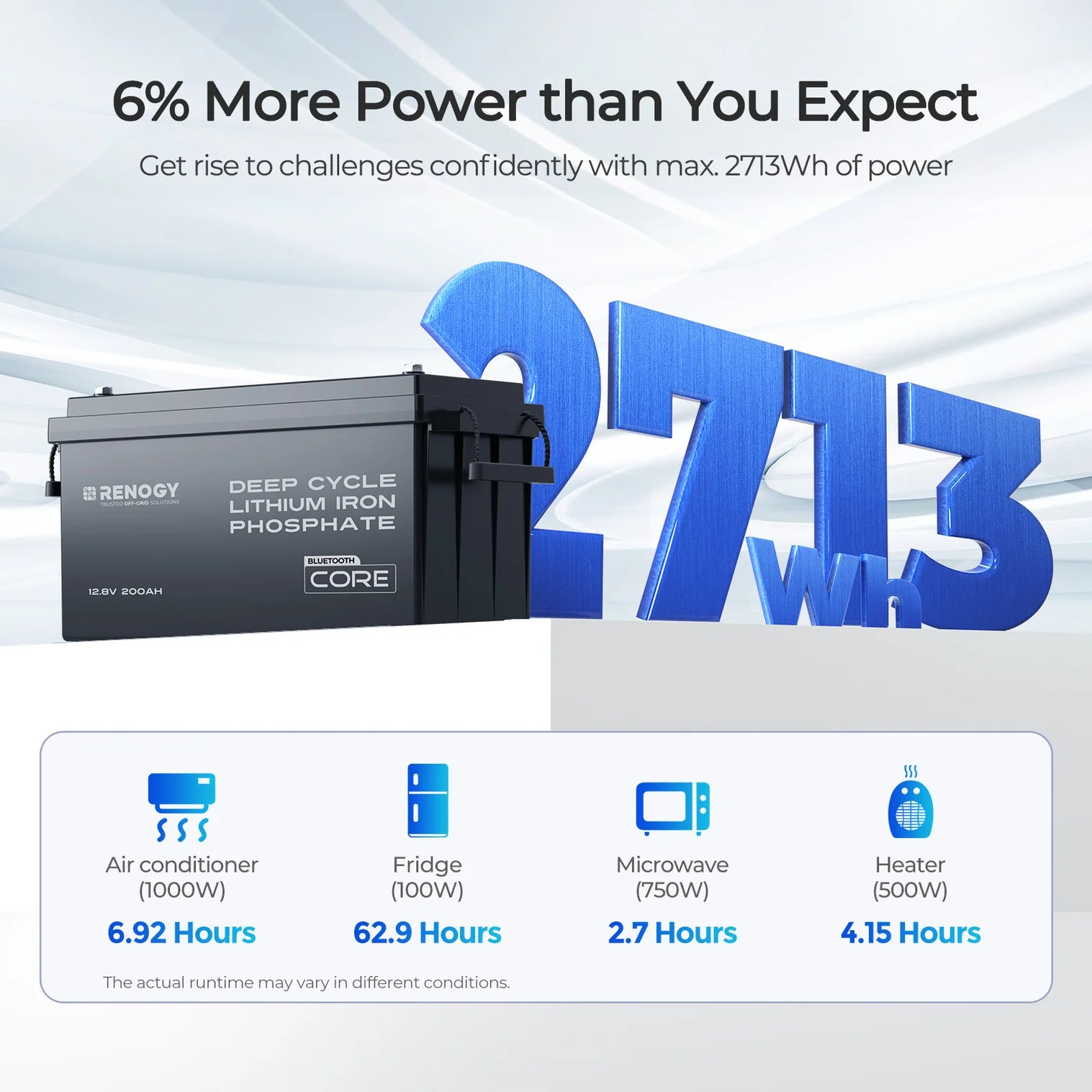

True Capacity + Extra Power – 200Ah rated with up to 6% bonus energy for extended runtime.
-
High Cycle Life – Over 5000 cycles (80% DOD, 80% EOL) for decade-long performance.
-

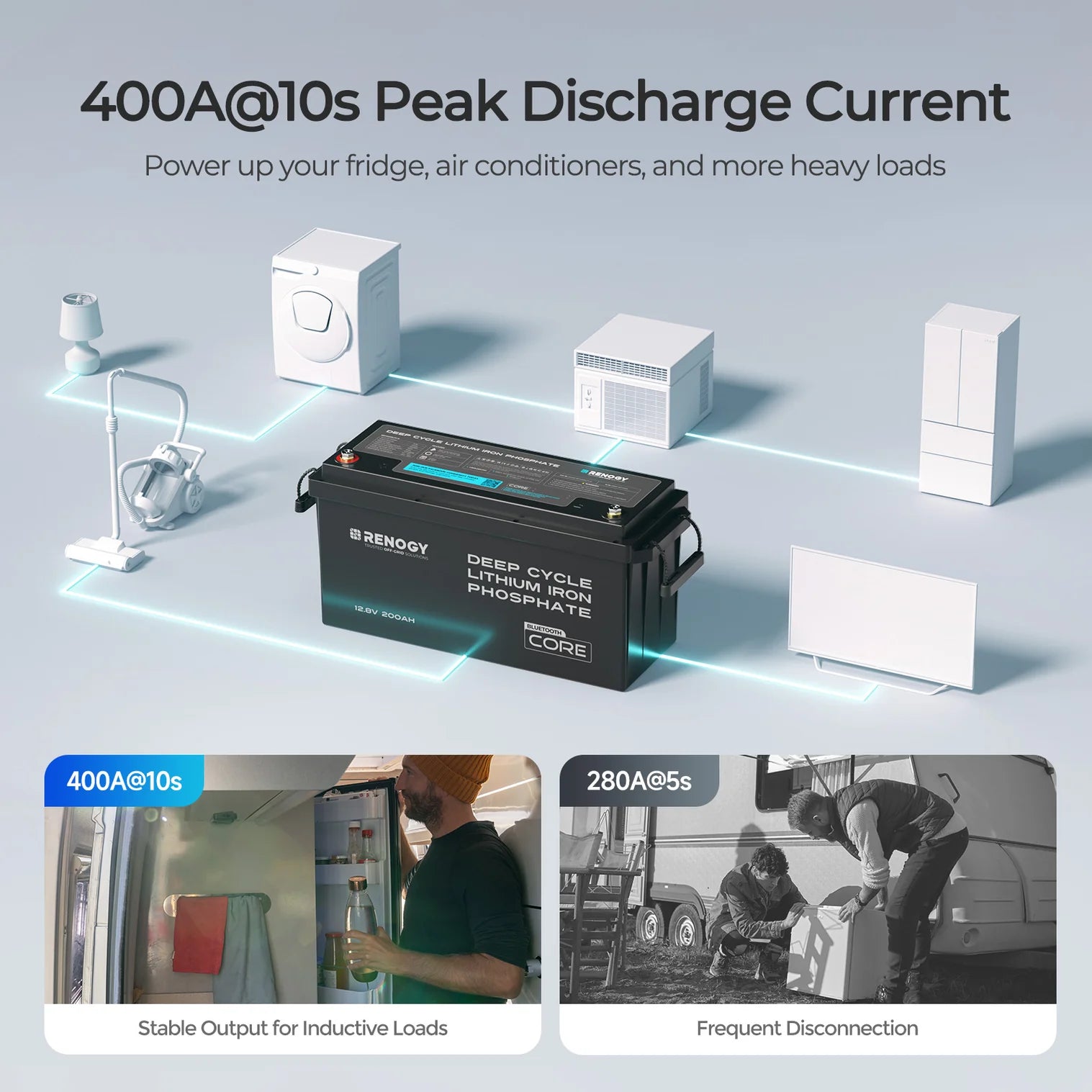

Powerful Surge – 400A peak discharge for 10 seconds to handle inverters and heavy loads.
-

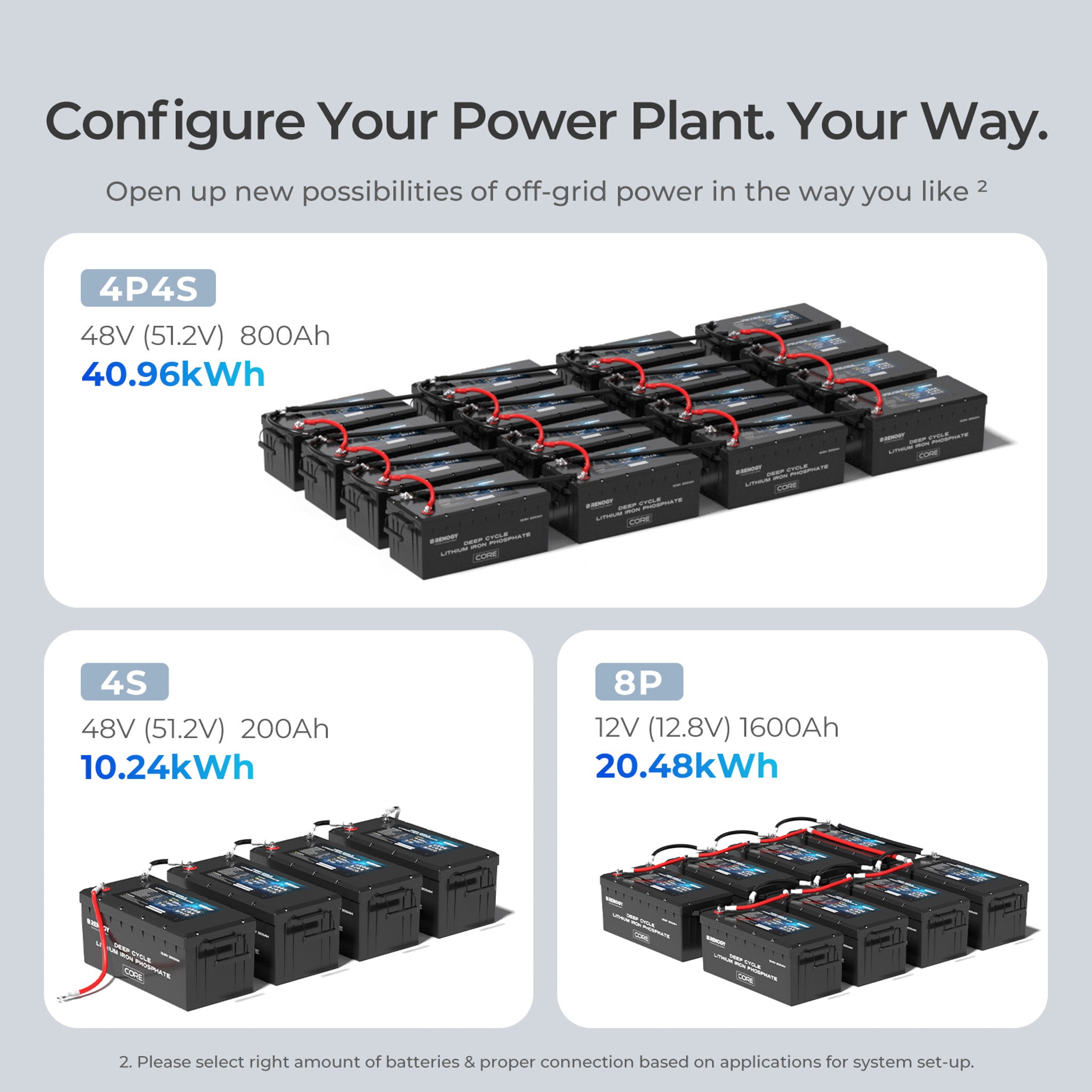

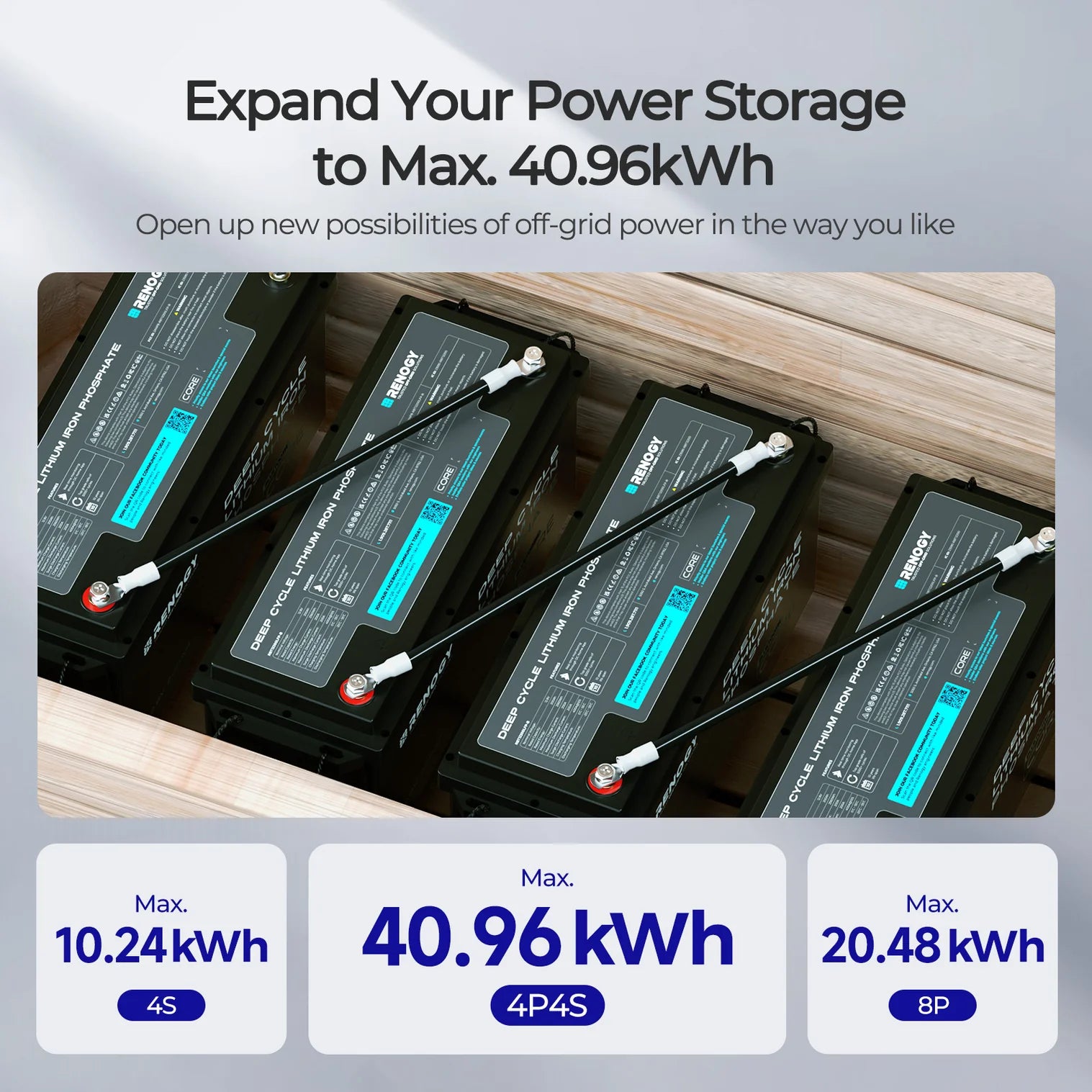

Flexible & Scalable – Connect up to 4 in series (24V/36V/48V), 8 in parallel, or 16 in series-parallel (up to 40.96kWh).
-
Advanced BMS Protection – 200A BMS with low-temperature cut-off, overload safeguards, and suitability for Aussie climates.
-
Safe & Efficient – LiFePO4 chemistry with EV-grade cells for safe, zero-maintenance use.
-
Compact & Rugged – Lightweight design with IP65 rating for easy installation in tight spaces.
Specifications
Renogy Core Series 12V 200Ah Lithium Iron Phosphate Battery w/ Bluetooth
| Rated Capacity (0.5C, 25°C) |
200Ah |
| Nominal Voltage |
12.8V |
| Voltage Range |
10V to 14.8V |
| Cycle Life (0.5C/1C, 25°C) |
5000 Cycles (80% DOD, 80% EOL) |
| Charge Voltage |
14.4V |
| Max. Continuous Charge/Discharge Current |
200A |
| Peak Discharge Current |
400A @ 10s |
| Chemistry |
Lithium Iron Phosphate (LiFePO4) |
| Voltage Compatibility |
12V, 24V, 48V (via series connections) |
| Operating Temperature (Charge) |
0°C to 50°C |
| Operating Temperature (Discharge) |
-20°C to 55°C |
| Storage Temperature |
-20°C to 65°C |
| Operating Relative Humidity |
10% to 95% |
| Dimensions (L x W x H) |
502 x 187 x 242 mm |
| Weight |
20.2 kg (44.53 lbs) |
| Terminal Bolt Size |
M8 x 1.25 x 15 mm |
| Protection Rating |
IP65 |
| Certifications |
MSDS, UN38.3, FCC, PSE, IC, RCM, RoHS, CE, UKCA |
| Warranty |
5-year material warranty |
Delivery
We provide fast and reliable delivery through our network of trusted suppliers. For more details, visit our Shipping and Returns page.
Warranty
This battery includes a 5-year material warranty for reliable long-term use. For any issues, contact us for support and assistance.
Data Sheets
Access detailed product specifications and user manual:
Renogy Core Series 200Ah Battery Manual
FAQ's
Q: Can I use this battery with the Renogy app?
A: Yes. Download the Renogy app to connect and track voltage, current, temperature, state of charge, and more. For multiple Bluetooth devices, Renogy ONE Core is recommended for easier monitoring.
Q: Will this Bluetooth version work with my old 12V 200Ah Core LiFePO4 Battery?
A: Yes, it is compatible with the previous generation of the 12V 200Ah Core Deep Cycle LFP battery. Contact support if unsure about your version.
Q: Can this battery support a 48V system?
A: Yes, connect up to 4 batteries in series for 24V, 36V, or 48V setups. Series-parallel configurations can reach up to 40.96kWh.
Q: Is this battery suitable for solar power storage?
A: Yes, it’s ideal for solar setups. Use a LiFePO4-compatible charge controller—do not connect panels directly to the battery. For example, 4x 100W panels work if your controller handles the output.
Q: What is the expected lifespan of this battery?
A: The Renogy Core Series 200Ah battery offers over 5000 cycles (80% DOD, 80% EOL), providing extended durability for up to a decade.
Q: How many batteries can I connect?
A: Up to 4 in series, 8 in parallel, or 16 in series-parallel, using the same model and similar capacity.
Q: How do I recharge this battery?
A: Use a solar charge controller, DC-DC charger, or AC-DC charger compatible with LiFePO4 batteries.
