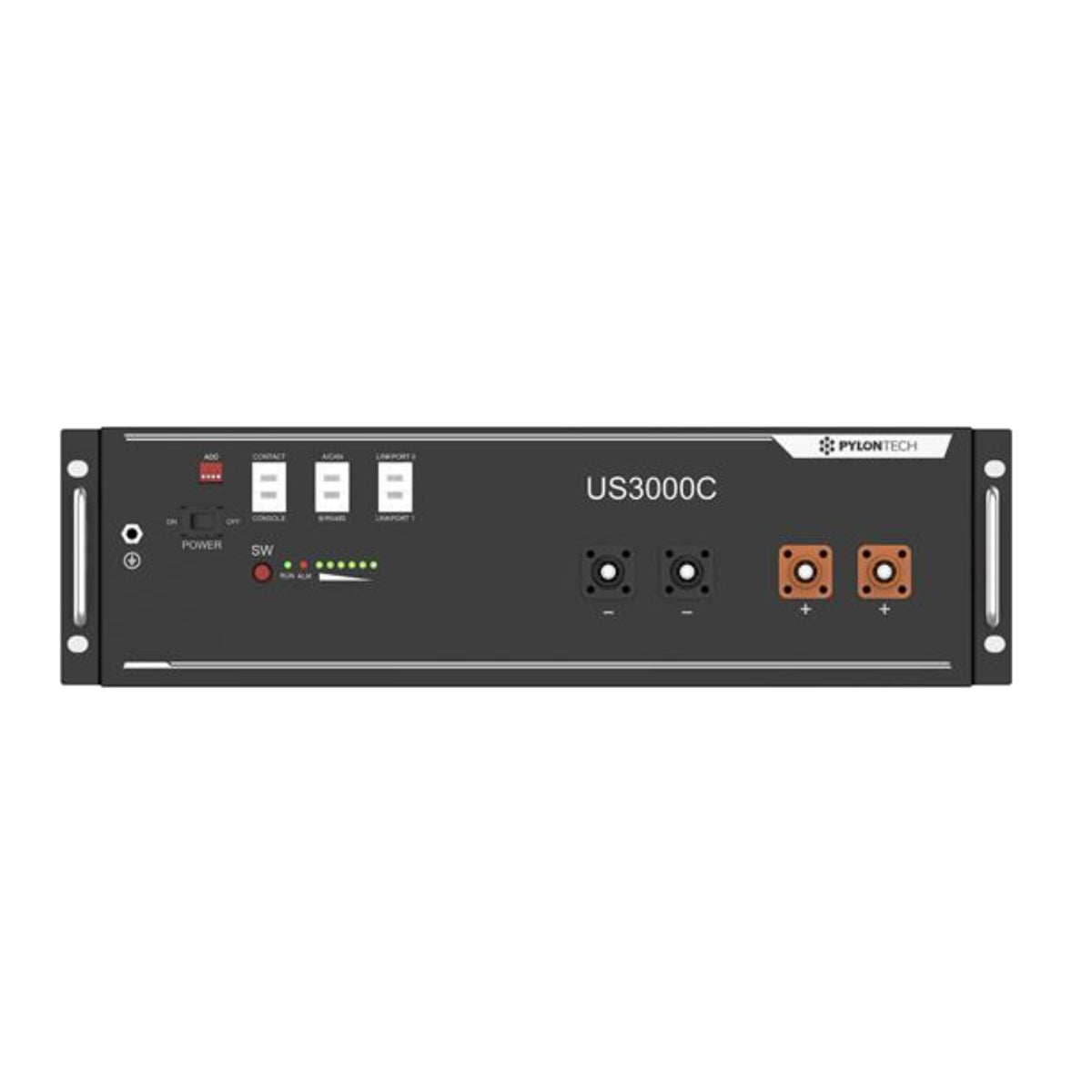

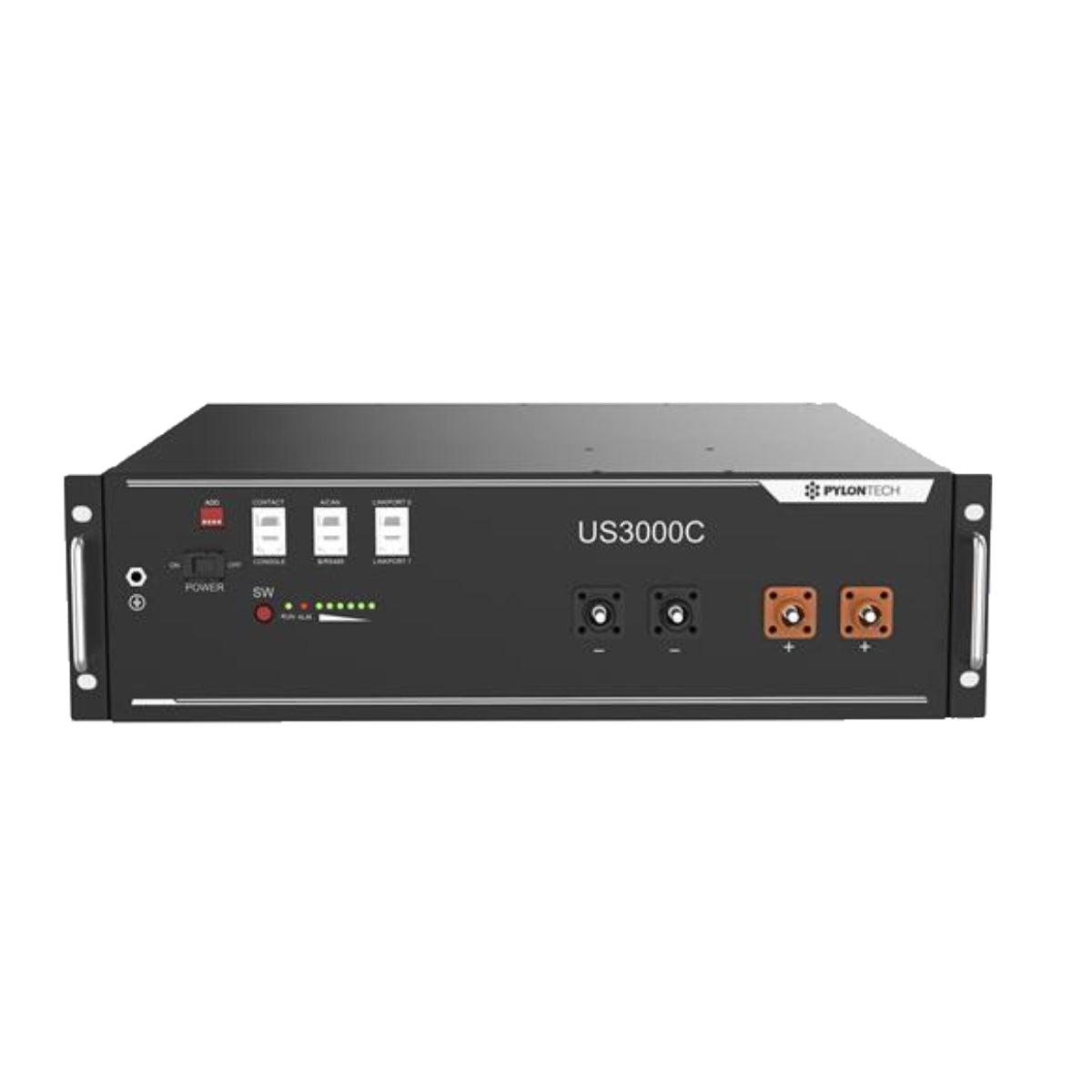

Lithium Battery | Pylontech | US3000C 48V 3.55kWh

Description US3000C is the latest ESS battery system provided by Pylontech. It’s designed around providing a longer... Read More
$2,149.00
$2,149.00
Vendor: Pylontech
SKU: PYL.US3000
Availability: Many In Stock
Subtotal: $2,149.00

30-Day Money-Back Guarantee

Australian Phone Support

Locally-Based Australian Stock

Price Match Guarantee

Description

US3000C is the latest ESS battery system provided by Pylontech. It’s designed around providing a longer service life at higher power output/density per module. Besides its high storage capacity and ease of installation it provides the ability to scale up to commercial sized storage systems and are used effectively in these high power demand environments.

Note that a Pylontech cable kit will be required to connect a single battery or battery bank to an inverter charger.

Features and benefits

  • The expected design life is 15+ years
  • Warranty of 10 years (>6000 cycles with 80% end-of-life capacity)
  • Greater depth of discharge (DOD 90%)
  • Usable capacity of 3.2kWh @ 48VDC
  • Working temperatures of between 0°C to 50°C
  • The internal molecular structure of the LFP batteries is more stable and therefore safer, allowing an increase in the combustion temperature of 600°C compared to 300°C relative to NMC and LCO
  • Advanced BMS that allows you to report alarms in real-time
For more information/setup tutorials check out the Pylontech knowledge centre here
    Specifications
    Nominal Voltage (V)
    48
    Nominal Capacity (Wh)
    3552
    Usable Capacity (Wh)
    3374
    Dimension (mm)
    442*420*132
    Weight (Kg)
    32
    Recommended Charge/Discharge Current (A) 37
    Max. Charge/Discharge Current (A) 37
    Peak Charge/Discharge Current 74~89@60sec , 90~200@15sec
    Communications
    RS485,CAN
    Single string quantity(pcs) 16
    Working Temperature/ ℃ Charge 0~50
    Working Temperature/ ℃ Discharge -10~50
    Shelf Temperature/ ℃ -20~60
    Short current/duration time <4000A/2ms
    IP rating of enclosure IP20
    Cooling type Natural
    Humidity 5% ~ 95%(RH) No Condensation
    Altitude(M) <4000
    Design life 15+ Years (25℃/77℉)
    Cycle Life >6,000 25℃
    Authentication Level UL1973 /UL1642/UL9540A /VDE2510-50/IEC63056 /IEC62619/IEC62040/IEC62477-1 /ICE61000-6-2/UN38.3

     Please see more details in the 'Data Sheets' tab.

    Delivery

    Delivery Cost for Lithium Batteries can be found here

    All items subject to availability and will generally require a 4-6 week turnaround.

    We don't hold the stock on hand but have a trusted supplier who will send this direct from their nearest warehouse to ensure you receive it as soon as possible.

    Warranty

    There is a 10 year warranty on all Pylontech equipment.  Products will need to be delivered to an authorised technician to be inspected and evaluated.

    Click Here to view Pylontech warranty statement

    Please call us for more details and to discuss your next step.

    Data Sheets



    Pylontech Data / Information Sheet

    Pylontech Warranty Statement
