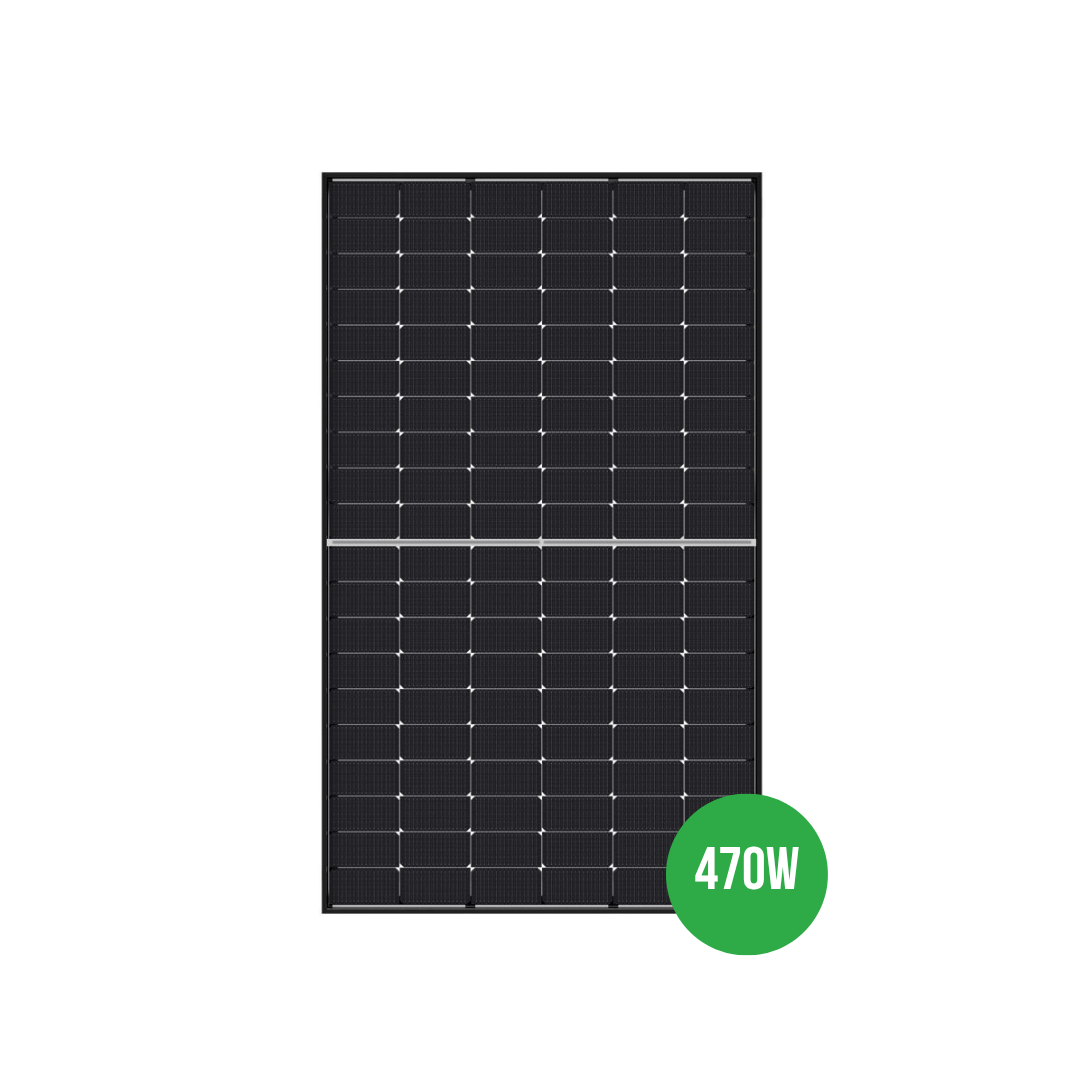

Jinko 470W House Solar Panel

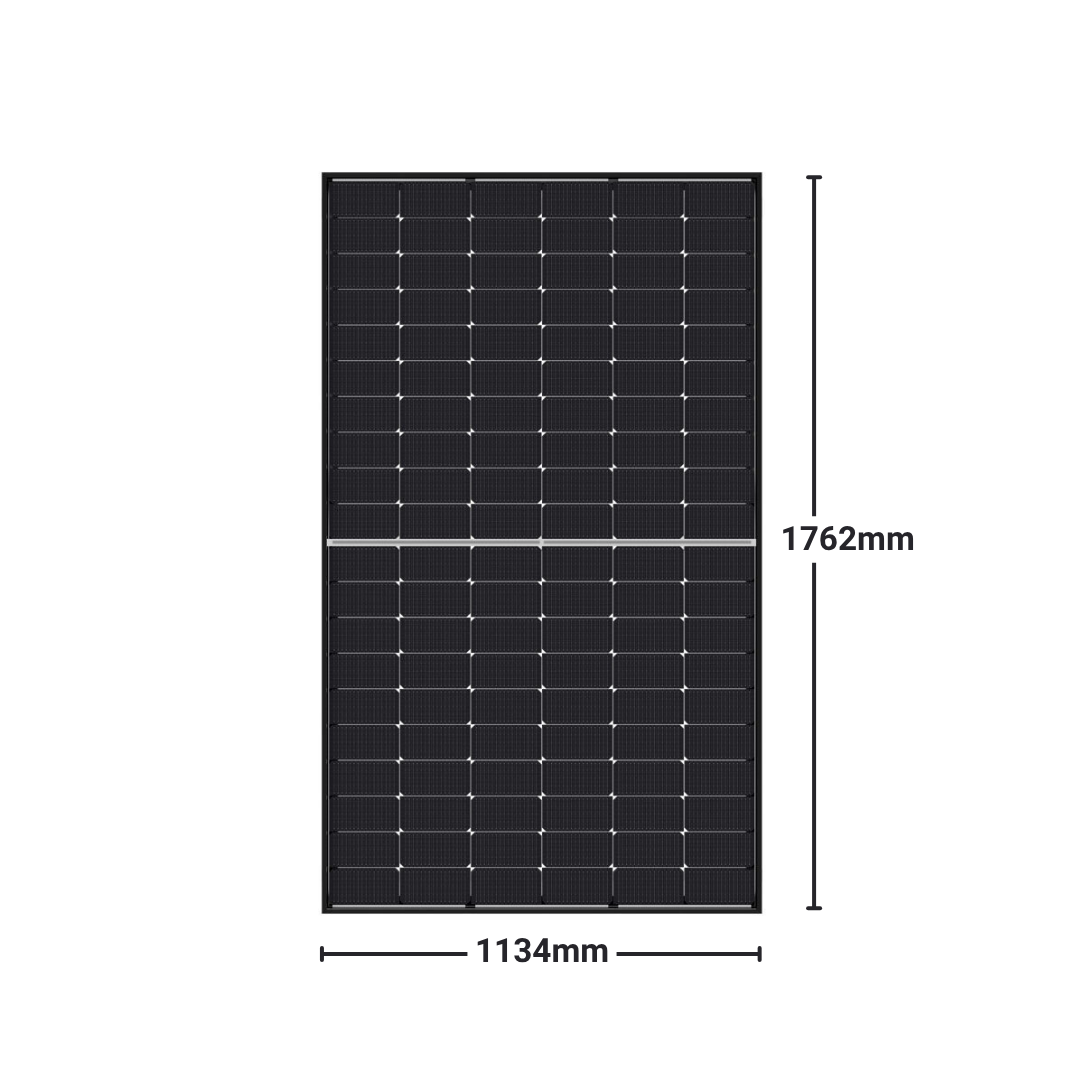

Jinko 470W Dimensions

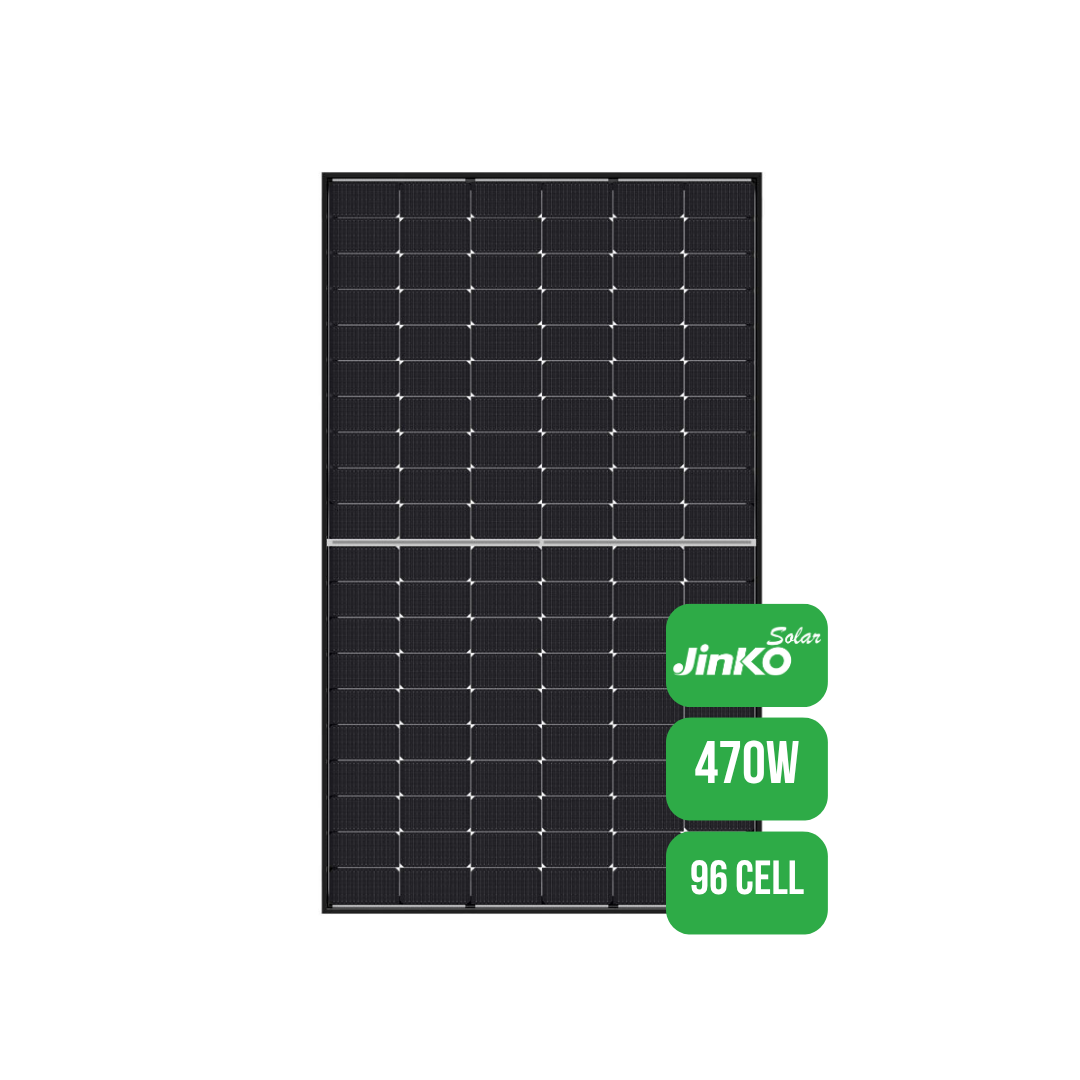

Jinko 470W Large Solar Panel
10 customers are viewing this product

Jinko 470 Watt TIGER NEO Dual Glass N-Type Black Solar Panel

$144.00
RRP $210.00 YOU SAVE $66.00

or 4 interest-free payments of $36.00 with No credit check

High Power Output (470 W) – Maximise energy yield for residential, commercial, and off-grid systems with superior performance
N-Type TOPCon Technology – Advanced cells deliver 22.5% efficiency, minimal LID degradation, and excellent low-light tolerance
Dual Glass Construction – Enhanced durability against impacts, PID, and harsh weather for a longer lifespan
Half-Cut 96-Cell Design – Reduces losses, boosts shade resistance, and ensures consistent output in real-world conditions
30-Year Performance Warranty – Backed reliability with low annual degradation, guaranteeing 87.4% output after 30 years

SKU: JKM470N-48HL4M-DV

Subtotal: $144.00

WHY BUY FROM ZERO GRID?

Small Aussie Business

Just me, Landon. Family run. No big corp BS.

I Live Off-Grid

My bus runs on this gear. I only sell what I’d use myself.

Real Sparky Support

I’m your sparky. No call centres. No scripts.

Warranty with Me

Stuff up? Talk to me. I’ll sort it. No overseas runaround.

Landon and family with Sonny, our off-grid bus home

This is us with 'Sonny' our off grid bus home. Living the dream, slowly travelling Aus

Need a hand? Book a free 10 min chat with me (Landon) →

Jinko 470 Watt TIGER NEO Dual Glass N-Type Black Solar Panel

Jinko 470 Watt TIGER NEO Dual Glass N-Type Black Solar Panel

$210.00 $144.00

Jinko 470 Watt TIGER NEO Dual Glass N-Type Black Solar Panel

$210.00 $144.00

Jinko 470 W Tiger Neo 96-Cell Solar Panel

Elevate your solar energy setup with the Jinko 470 W Tiger Neo Mono Facial Dual Glass N-Type panel, featuring advanced n-type TOPCon technology for superior efficiency and durability. Encased in a sleek 30 mm black frame with dual-glass construction, it achieves 22.5% efficiency, outstanding low-irradiance performance, and resistance to harsh conditions—perfect for residential rooftops, commercial arrays, and utility-scale projects.

Why Choose the Jinko Tiger Neo?

  • High Output (470 W): Boost energy yield for demanding installations, maximising ROI on larger solar systems.
  • N-Type TOPCon Cells: Deliver higher efficiency, minimal light-induced degradation (LID), and enhanced bifacial potential.
  • 96 Half-Cut Cell Design: Reduces resistive losses, improves shade tolerance, and ensures consistent performance even in partial shading.
  • Dual Glass Build: Provides exceptional mechanical strength, PID resistance, and a lifespan exceeding traditional modules.
  • High Efficiency: 22.5% module efficiency for optimal space utilization and higher power density.
  • Long-Term Reliability: Up to 30-year performance warranty with low annual degradation for sustained energy production.

Technical Specifications

Model Jinko 470 W Tiger Neo 96-Cell (SKU: JIN-TIGER470DUAL)
Power Output (Pmax) 470 W (Standard Test Conditions)
Dimensions 1,722 mm × 1,134 mm × 30 mm
Weight 24.5 kg
Cell Technology N-Type Monocrystalline TOPCon Half-Cut
Efficiency 22.5 %
Operating Temp. Range –40 °C to +85 °C
Max System Voltage 1,500 V
Frame Black anodized aluminum, 30 mm
Encapsulation Dual Glass (Front: Tempered Glass, Back: Transparent Glass)
Certifications IEC 61215, IEC 61730, UL 61730

Warranty & Support

This solar panel is supported by a 30-year linear performance warranty and a 12-year product warranty, guaranteeing at least 87.4% output after 30 years. For any support or claims, book a warranty phone call—our team will handle it efficiently.

Download the Product Datasheet

For in-depth specs, installation guides, and performance curves, download the datasheet: Jinko 470 W Tiger Neo Datasheet

FAQ

How much power does the Jinko 470 W Tiger Neo produce?
It generates up to 470 watts under STC, making it suitable for high-yield residential, commercial, and off-grid solar applications.
Is the Jinko panel compatible with other solar systems?
Absolutely—its industry-standard connectors and mounting holes ensure seamless integration with most inverters, racking, and balance-of-system components.
What makes dual-glass construction better?
Dual glass offers superior durability against impacts, moisture, and UV exposure, reducing microcracks and extending module life compared to standard backsheets.
