Inverter | Victron | Victron Phoenix Inverter Smart 24/2000

$980.16
$980.16

Read More Below

Subtotal: $980.16
Description

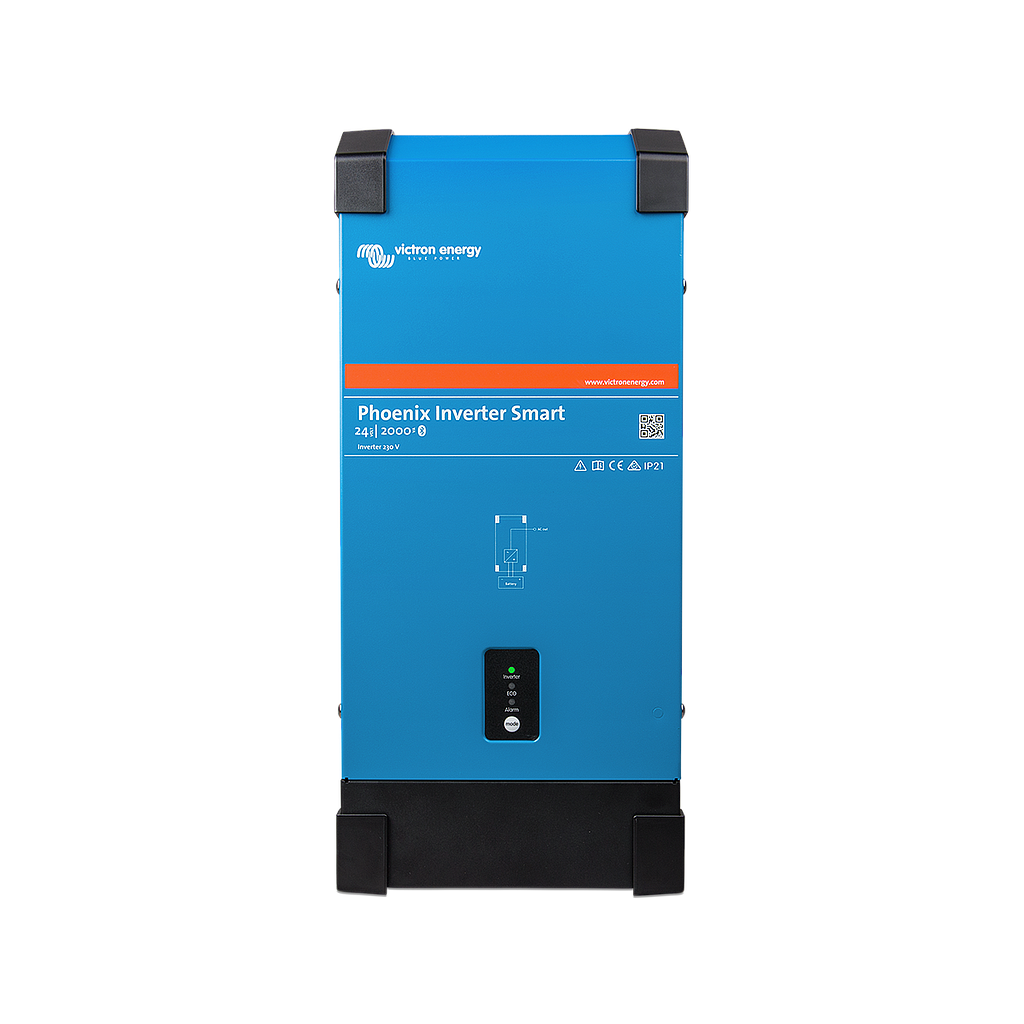

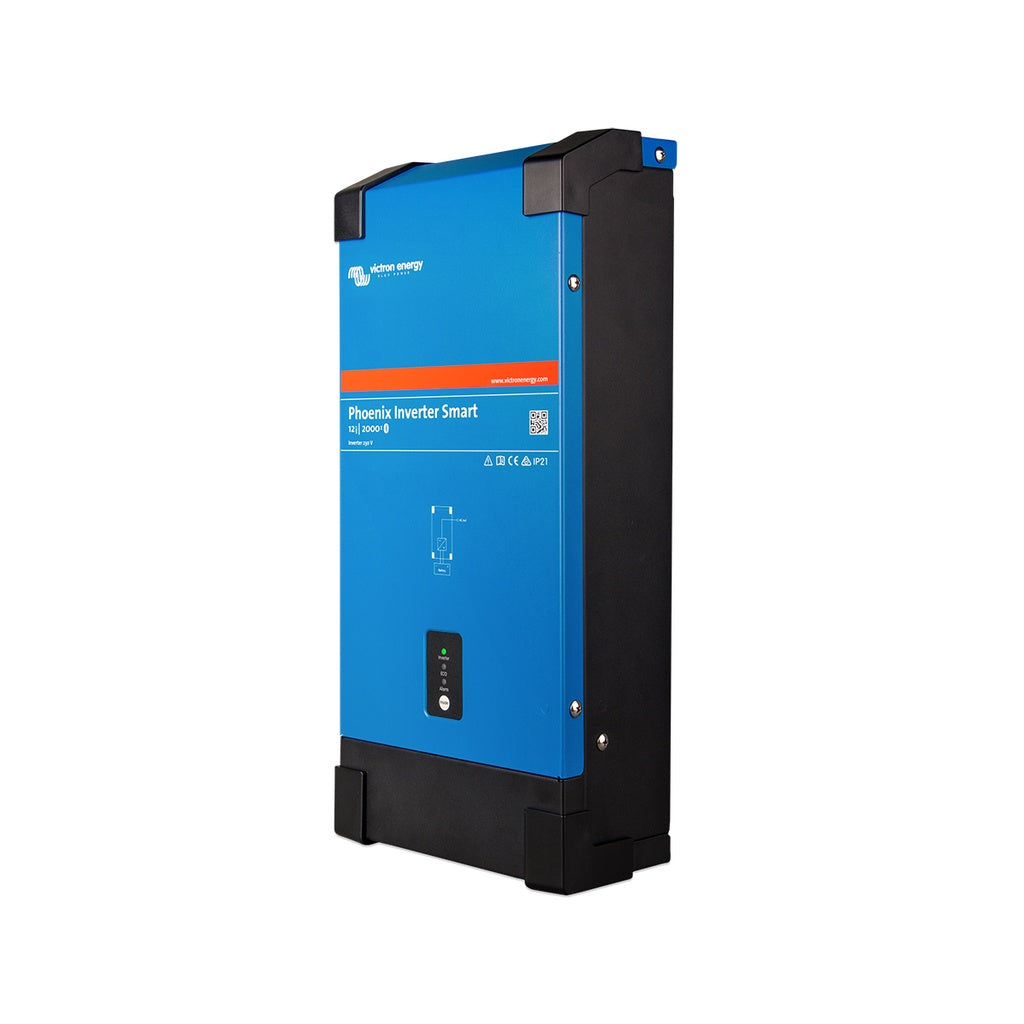

The Phoenix Inverter Smart is an efficient and reliable inverter. Built on our proven and field tested Phoenix inverter platform, it now comes with a new slimmer design and full metal casing. Models are available in 1600VA, 2000VA and 3000VA & 5000VA for 12, 24 or 48V systems.

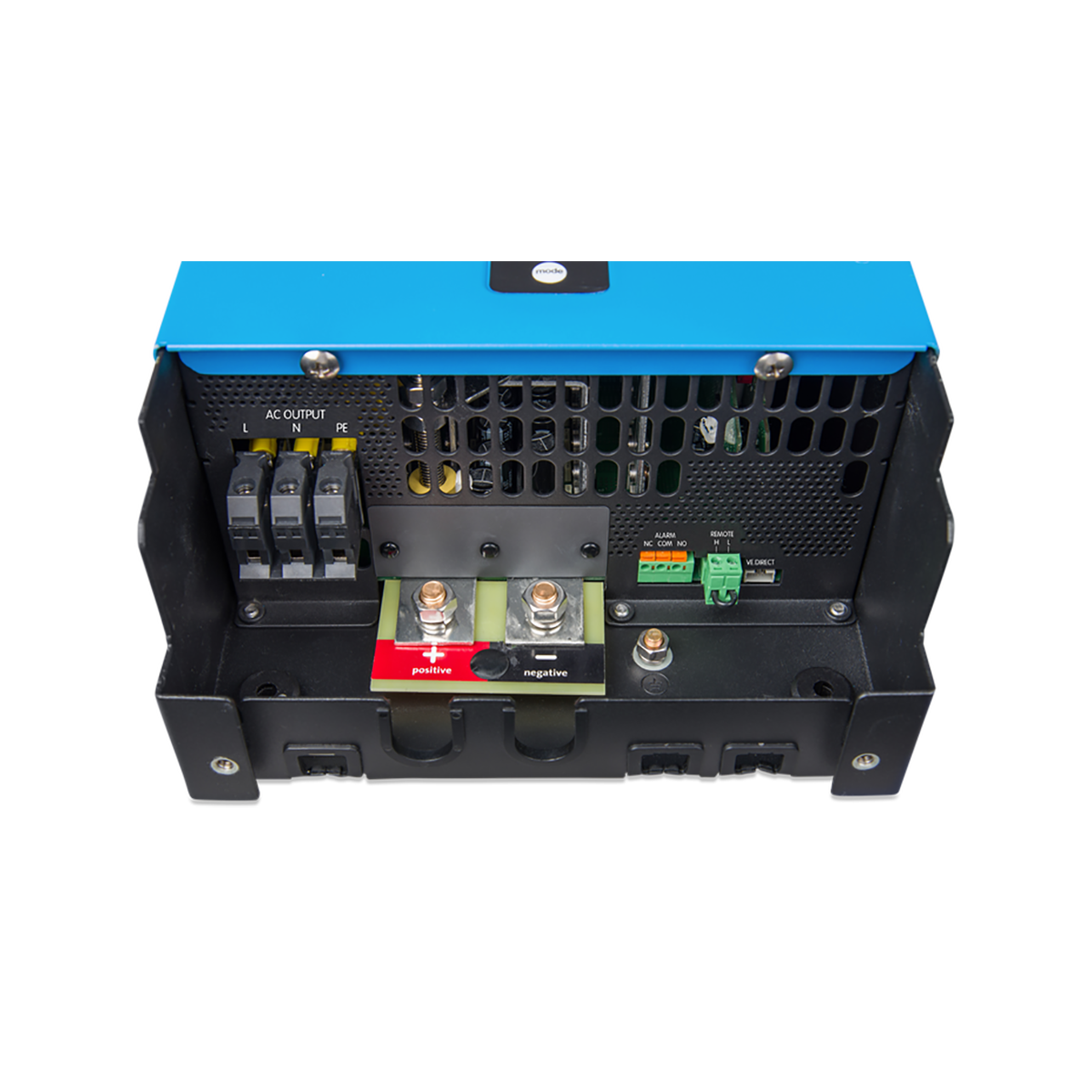

It’s powerful enough to supply most common plug in appliances in your car, boat, caravan or home. A toroidal transformer provides a high peak power surge capacity, stable voltage, frequency and high quality sine-wave. Installation is simpler than ever before with terminals now more accessible for the installer, enabling a more professional finish.

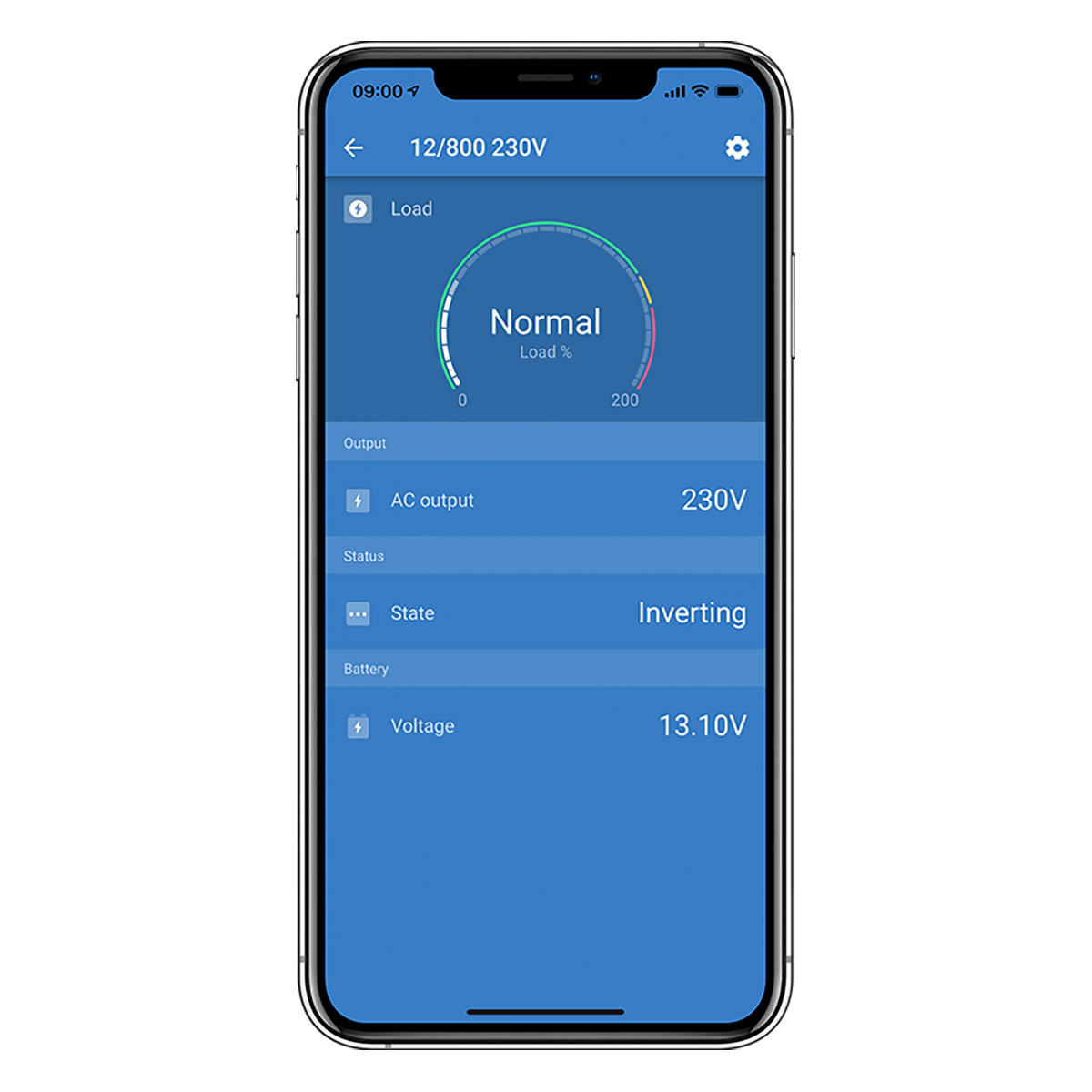

Bluetooth is built-in, and makes setting up your high power inverter easier than ever before. Configure alarms, alarm relay, voltage cut-off, output voltage, frequency, eco-mode and more, all from within VictronConnect.

Features:

Bluetooth built-in: fully configurable with a tablet or smartphone-

- Low battery voltage alarm

- Low battery voltage cut-off and restart levels

- Dynamic cut-off: load dependent cut-off level

- Output voltage: 210 - 245V

- Frequency: 50 Hz or 60 Hz

- ECO mode on/off and ECO mode sense level

- Alarm relay

Monitoring- In and output voltage, load and alarms

VE.Direct communication port- The VE.Direct port can be connected to a computer (VE.Direct to USB interface cable needed) to configure and monitor the same parameters.

Proven reliability- The full bridge plus toroidal transformer topology has proven its reliability over many years. The inverters are short circuit proof and protected against overheating, whether due to overload or high ambient temperature.

High start-up power- Needed to start loads such as power converters for LED lamps, halogen lamps or electric tools.

ECO mode- When in ECO mode, the inverter will switch to standby when the load decreases below a preset value. Once in standby the inverter will switch on for a short period every 2,5 seconds (adjustable). If the load exceeds the preset level, the inverter will remain on.

Remote on/off- A remote on/off switch or relay contact can be connected to a two pole connector. Alternatively, the H terminal (left) of the two pole connector can be switched to battery plus, or the L terminal (right) of the two pole connector can be switched to battery minus (or the chassis of a vehicle, for example).

LED diagnosis- Please see manual for a description.

To transfer the load to another AC source: the automatic transfer switch- For our low power inverters we recommend our Filax Automatic Transfer Switch. The Filax features a very short switchover time (less than 20 milliseconds) so that computers and other electronic equipment will continue to operate without disruption. Alternatively use a MultiPlus with built-in transfer switch.

Specifications
Parallel and 3-phase operation

No

Input voltage range
9.3 – 17V 18.6 – 34V 37.2 – 68V
Output
Output voltage: 230 VAC ±2% 50 Hz or 60 Hz ± 0.1% (1)
Cont. output power at 25ºC (1)
2000 VA
Cont. output power at 25ºC
1600 W
Cont. output power at 40ºC
1450 W
Cont. output power at 65ºC
1000 W
Peak power
4000 W
Dynamic (load dependent) DC low shut down (fully configurable)
Dynamic cut-off, see https://www.victronenergy.com/live/ve.direct:phoenix-inverters-dynamic-cutoff
Max. efficiency 12/ 24 /48 V
92 / 94 / 94%
Zero load power 12 / 24 / 48 V
8 / 9 / 11 W
Zero load power in ECO mode
0.6 / 1.3 / 2.1 W
Programmable relay (2)
Yes
Stop & start power ECO-mode
adjustable
Protection (3)
a - g
Bluetooth wireless communication
For remote monitoring and system integration
VE.Direct communication port
For remote monitoring and system integration
Remote on-off
Yes
Common Characteristics
Operating temperature range: -40 to +65ºC (fan assisted cooling) Humidity (non-condensing): max 95%
Common Characteristics
Material & Colour: steel (blue RAL 5012; and black RAL 9017) Protection category: IP21
Battery-connection
M8 bolts
230 V AC-connection
Screw terminals
Weight
13kg
Dimensions (hxwxd)
485 x 219 x 125mm
Safety
EN 60335-1
Emission Immunity
EN 55014-1 / EN 55014-2/ EN-IEC 61000-6-1 / EN-IEC 61000-6-2 / EN-IEC 61000-6-3
Automotive Directive
ECE R10-5

Please see more details in the 'Data Sheets' tab.

Delivery

We don't hold the stock on hand but have a trusted supplier who will send this direct from their nearest warehouse to ensure you receive it as soon as possible.

Data Sheets

Victron Phoenix Inverter Smart 24/2000 Data Sheet

Victron Phoenix Inverter Smart 24/2000 Warranty Sheet
