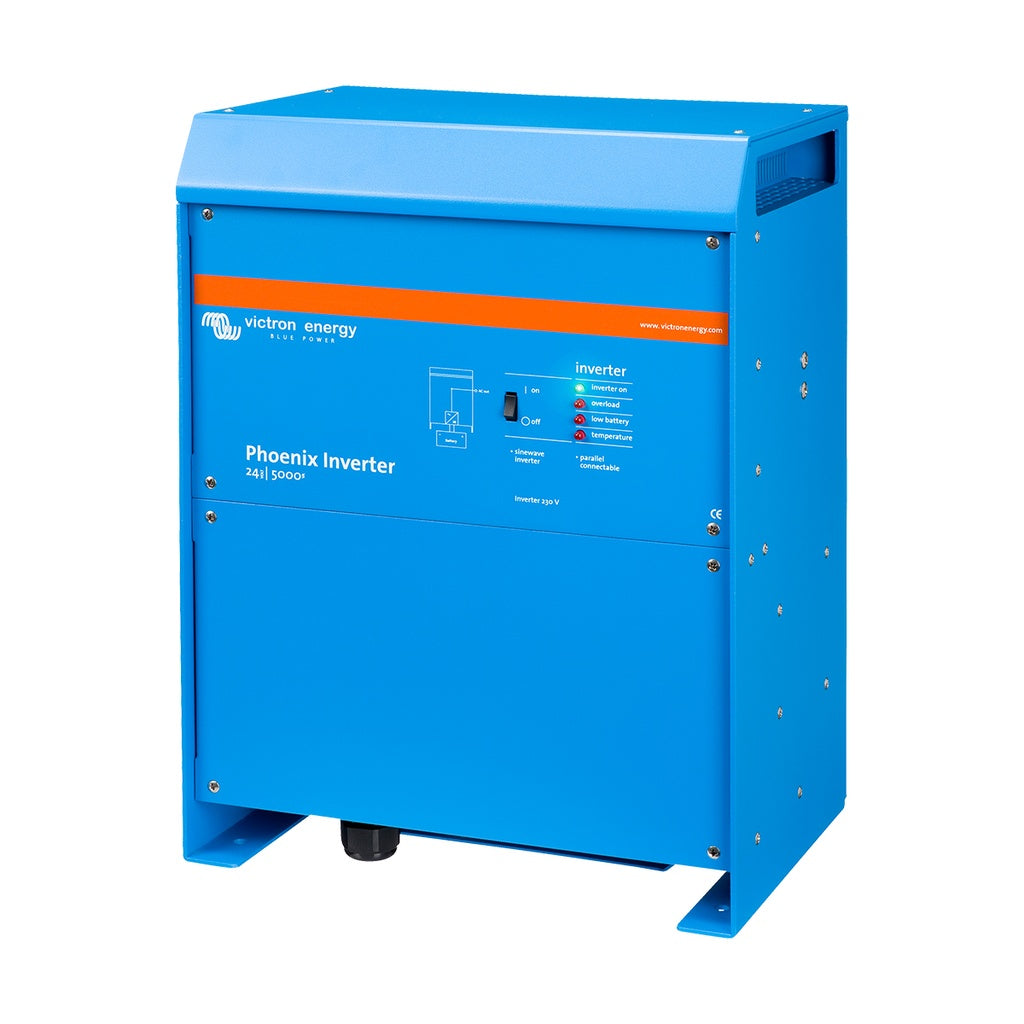

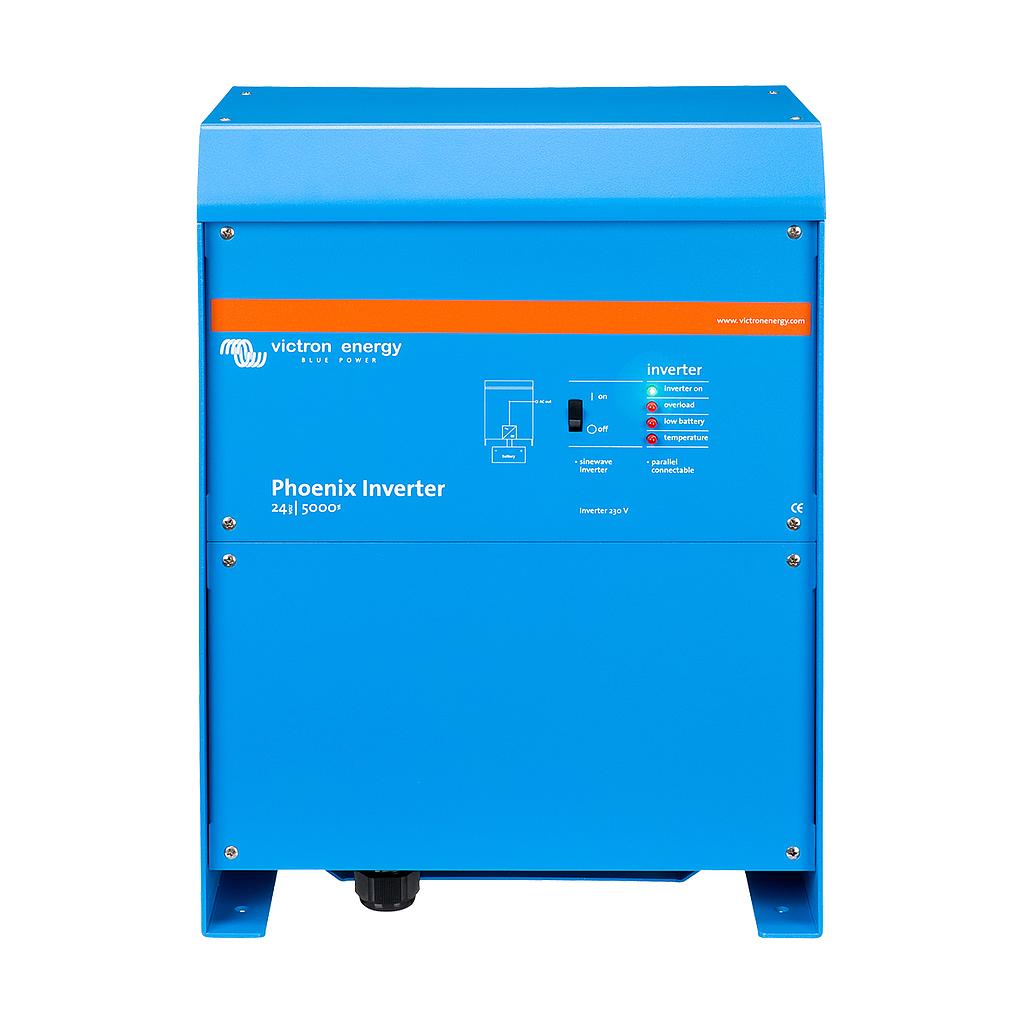

Inverter | Victron | Victron Phoenix Inverter 24/5000

Subtotal: $9,999.00


  • Pure Sinewave Inverter
  • BMV Battery Monitor
  • SinusMax Engineering
  • High Start-Up Power
  • VE.Direct Communication Port
  • 3-Phase or Split-Phase Operation

Pure sine wave output, high peak power and high efficiency. Combined high-frequency and line-frequency technologies ensure the best of both worlds.

More Product Features:

Parallel and 3-Phase Operation Capability:

Up to 6 Phoenix Inverters can operate in parallel to achieve higher power output. Six 24V 5000VA units, for example, will provide 24kW / 30kVA output power. Operation in a 3-phase configuration is also possible.

SinusMax - Superior Engineering:

Developed for professional duty, the Phoenix range of inverters is suitable for the widest range of applications. The design criteria have been to produce a true sine wave inverter with optimized efficiency but without compromising performance. Employing hybrid HF technology, the result is a top-quality product with compact dimensions, light in weight and capable of supplying power, problem-free, to any load.

Extra Start-up Power:

A unique feature of the SinusMax technology is very high start-up power. Conventional high-frequency technology does not offer such extreme performance. Phoenix Inverters, however, are well suited to power up difficult loads such as refrigeration compressors, electric motors and similar appliances.

Automatic Transfer Switch - to transfer the load to another AC source:

If an automatic transfer switch is required we recommend using the MultiPlus inverter/charger instead. The switch is included in these products and the charger function of the MultiPlus can be disabled. Computers and other electronic equipment will continue to operate without disruption because the MultiPlus features a very short switchover time (less than 20 milliseconds).

Computer Interface:

All models have an RS-485 port. All you need to connect to your PC is the MK3-USB VE.Bus to USB interface. Together with the VE Configure software, which can be downloaded free of charge from our website, all parameters of the inverters can be customized. This includes output voltage and frequency, over and under voltage settings and programming the relay. This relay can for example be used to signal several alarm conditions or to start a generator. The inverters can also be connected to VE Net, the new power control network of Victron Energy, or to other computerized monitoring and control systems.

New Applications of High-Power Inverters:

The possibilities of paralleled high-power inverters are truly amazing. For ideas, examples and battery capacity calculations please refer to the book ‘Energy Unlimited’ (available free of charge from Victron Energy and downloadable from

Parallel and 3-phase operation


Input voltage range (V DC)
9.5 – 17V 19 – 33V 38 – 66V
Output voltage: 230 VAC ± 2%,    Frequency: 50 Hz ± 0.1%
Cont. output power at 25ºC (VA)
Cont. output power at 25ºC (W)
Cont. output power at 40ºC (W)
Cont. output power at 65ºC (W)
Peak power (W)
Max. efficiency 12/ 24 / 48V (%)
94 / 95
Zero load power 12 / 24 / 48V (W)
30 / 35
Zero load power in AES mode (W)
25 / 30
Zero load power in Search mode (W)
10 / 15
Programmable relay
a - g
VE.Bus communication port
For parallel and three-phase operation, remote monitoring and system integration
Remote on-off
Common Characteristics
Operating temperature range: -40 to +65ºC (fan-assisted cooling),    Humidity (non-condensing): max 95%
Common Characteristics
Material & Colour: aluminium (blue RAL 5012),    Protection category: IP21
2+2 M8 bolts
230 V AC-connection
Screw terminals
444 x 328 x 240mm
EN 60335-1
Emission Immunity
EN 55014-1 / EN 55014-2


Please see more details in the 'Data Sheets' tab.
