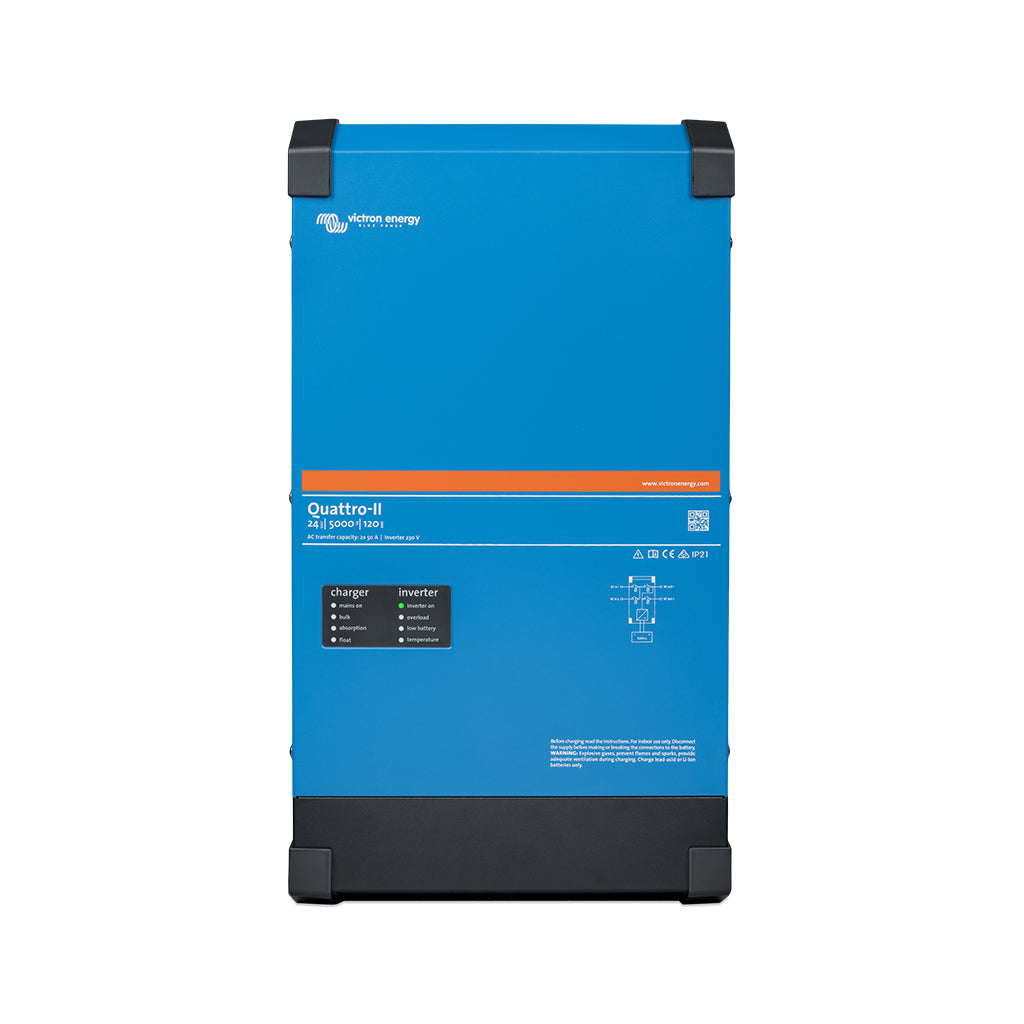

A Quattro, plus ESS (Energy Storage System) functionality
The Quattro-II can be connected to two independent AC sources, for example the public grid and a generator, or two generators. The Quattro-II will automatically connect to the active source.
PowerControl and PowerAssist - Boosting the capacity of the grid or a generator
A maximum grid or generator current can be set. The Quattro-II will then take account of other AC loads and use whatever is extra for battery charging, thus preventing the generator or grid from being overloaded (PowerControl function).
PowerAssist takes the principle of PowerControl to a further dimension. Where peak power is so often required only for a limited period, the Quattro-II will compensate insufficient generator, shore or grid power with power from the battery. When the load reduces, the spare power is used to recharge the battery
Solar energy: AC power available even during a grid failure
The Quattro-II can be used in off grid as well as grid connected PV and other alternative energy systems. It is compatible with both solar charger controllers and grid-tie inverters.
Two AC Outputs
The main output has no break functionality. The Quattro-II takes over the supply to the connected loads in the event of a grid failure or when shore/generator power is disconnected. This happens so fast (less than 20 milliseconds) that computers and other electronic equipment will continue to operate without disruption.
The second output is live only when AC is available on the input. Loads that should not discharge the battery, like a water heater for example, can be connected to this output
Parallel and three phase operation
Up to 6 Quatros can operate in parallel to achieve higher power output. Six 48/5000/70 units, for example, will provide 25 kW / 30 kVA output power with 420 Amps charging capacity
In addition to parallel connection, three units of the same model can be configured for three phase output, and up to 6 sets of three units can be parallel connected per phase for a 75 kW / 90 kVA inverter and more than 1200 Amps charging capacity.
On-site system configuring, monitoring and control
Settings can be changed in a matter of minutes with VEConfigure software (computer or laptop and MK3-USB interface needed).
Several monitoring and control options are available: Cerbo GX, Color Control GX, Venus GX, Octo GX, CANvu GX, laptop, computer, Bluetooth (with the optional VE.Bus Smart dongle), Battery Monitor, Digital Multi Control Panel.
Remote configuring and monitoring
Install a Cerbo GX or other GX product to connect to the internet.
Operational data can be stored and displayed on our VRM (Victron Remote Management) website, free of charge. When connected to the internet, systems can be accessed remotely, and settings can be changed.
More about Victron:
Victron Energy has a strong, unrivalled reputation for technical innovation, reliability, and build quality. Their products are widely considered to be a professional choice for independent electric power. Efficiently combining two or more distinct power sources is what they do best. Their products include sinewave inverters, sinewave inverters/chargers, battery chargers, DC/DC converters, transfer switches, battery monitors and more.
PowerControl & PowerAssist | Yes |
Transfer switch | 50 A |
Maximum AC input current | 50 A |
DC Input voltage range | 38-66 V |
Output | Frequency: 50 Hz ± 0,1% (1) |
Cont. output power at 25°C (3) | 5000 VA |
Cont. output power at 25°C | 4000 W |
Cont. output power at 40°C | 3700 W |
Cont. output power at 65°C | 3000 W |
Maximum apparent feed-in power | 5000 VA |
Peak power | 9000 W |
Maximum efficiency | 96% |
Zero load power | 18 W |
Zero load power in AES mode | 12 W |
Zero load power in Search mode | 2 W |
AC Input | Input voltage range: 187-265 VAC Input frequency: 45 – 65 Hz power factor: 1 |
Charge voltage 'absorption' | 28,8 / 57,6 V |
Charge voltage 'float' | 27,6 / 55,2 V |
Storage mode | 26,4 / 52,8 V |
Max. battery charge current (4) | 70 A |
Battery temperature sensor | Yes |
Auxiliary output | Yes (32A) Default setting: switches off when in inverter mode |
Programmable relay (5) | Yes |
Protection (2) | a – g |
VE.Bus communication port | For parallel and three phase operation, remote monitoring and system integration |
General purpose com. port | Yes, 2x |
Remote on-off | Yes |
Operating temperature range | -40 to +65°C (fan assisted cooling) |
Humidity (non-condensing) | max 95% |
Material & Colour | Steel, blue RAL 5012 |
Protection category | IP22 |
Battery-connection | M8 bolts |
230 V AC-connection | Screw terminals 13 mm² (6 AWG) |
Weight | 29 kg |
Dimensions (hxwxd) | 565 x 320 x 148 mm |
Safety | EN-IEC 60335-1, EN-IEC 60335-2-29, EN-IEC 62109-1, EN-IEC 62109-2 |
Emission, Immunity | EN 55014-1, EN 55014-2 EN-IEC 61000-3-2, EN-IEC 61000-3-3 IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3 |
Uninterruptible power supply | Please consult the certificates on our website. |
Anti-islanding | Please consult the certificates on our website. |
Please see more details in the 'Data Sheets' tab.
