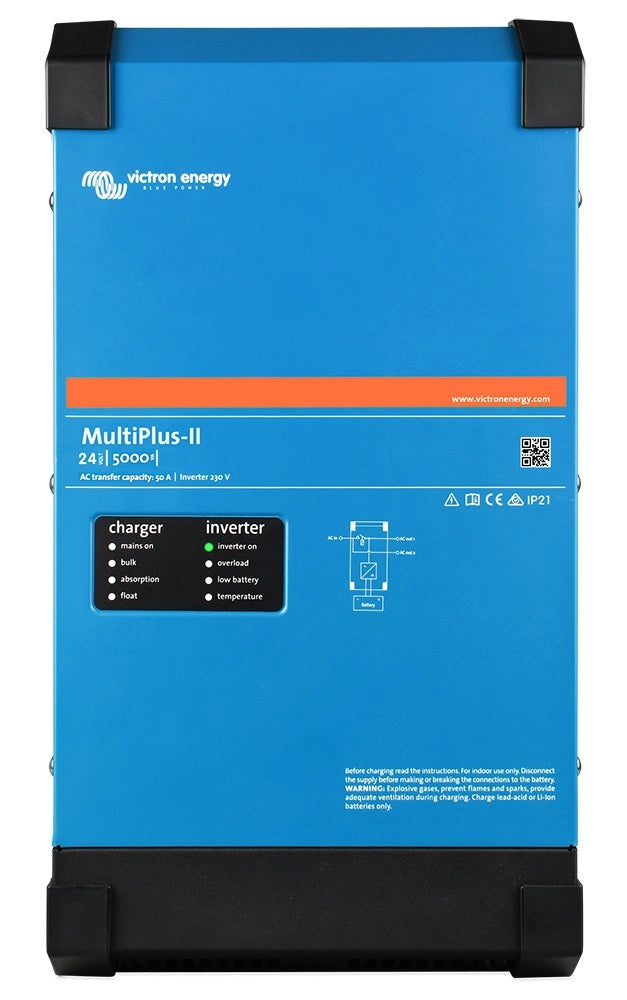

Victron Multiplus-Il 24/5000/120-50
 Victron Multiplus-Il 24/5000/120-50
10 customers are viewing this product

Inverter/Charger | Victron | Victron Multiplus-Il 24/5000/120-50

$3,474.10
$3,474.10
Subtotal: $3,474.10
Description

Features:

  • 230V Pure Sine Wave Inverter/Charger
  • 24V 5000va Inverter
  • 120A Battery Charger
  • 50A Automatic Transfer Switch
  • PowerControl & PowerAssist Functions

The MultiPlus-II combines the functions of the MultiPlus and the MultiGrid. It has all the features of the MultiPlus, plus an external current transformer option to implement PowerControl and PowerAssist and to optimise self-consumption with external current sensing (max. 32A). It also has all the features of the MultiGrid with built-in anti-islanding and an increasingly long list of country approvals.

The MultiPlus-II will prevent the overload of a limited AC source, such as a generator or shore power connection. First, battery charging will automatically be reduced when an overload occurs. The second level will boost the output of a generator or shoreside supply with power taken from the battery.

The MultiPlus-II is the key component in a Victron ESS system, providing the flexibility to combine with MPPT Solar Chargers or Grid-tie PV Inverters. For examples and more detailed information see the ESS (Energy Storage System) manual.

In the event of a grid failure, or when shore or generator power is disconnected, the inverter within the Multi is automatically activated and takes over the supply to the connected loads. This happens so fast (less than 20 milliseconds) that computers and other electronic equipment will continue to operate without disruption.

Monitor and control your Multi and system or systems locally (LAN) or remotely via the internet from anywhere in the world, using the free VRM app and free VRM portal website. Access can be from a phone, tablet, laptop or PC for multiple operating systems. There is no end to the level of control, via the required Color Control GX or Venus GX, from adjusting your Multi to auto-starting a back generator and more...



A MultiPlus with ESS (Energy Storage System) Functionality:

The MultiPlus-II is a multifunctional inverter/charger with all the features of the MultiPlus, plus an external current sensor option which extends the PowerControl and PowerAssist function to 50A resp. 100A. The MultiPlus-II is ideally suited for professional marine, yachting, vehicle and land-based off-grid applications. It also has built-in anti-islanding functionality and an increasingly long list of country approvals for ESS applications. Several system configurations are possible. For more detailed information see the ESS Design and configuration manual.

PowerControl and PowerAssist - Boosting the Capacity of the Grid or a Generator:

A maximum grid or generator current can be set. The MultiPlus-II will then take account of other AC loads and use whatever is extra for battery charging, thus preventing the generator or grid from being overloaded (PowerControl function). PowerAssist takes the principle of PowerControl to a further dimension. Where peak power is so often required only for a limited period, the MultiPlus-II will compensate for insufficient generator, shore or grid power with power from the battery. When the load reduces, the spare power is used to recharge the battery.

Solar Energy - Available AC Power Even During a Grid Failure:

The MultiPlus-II can be used in off-grid as well as grid-connected PV and other alternative energy systems. It is compatible with both solar charger controllers and grid-tie inverters.

Two AC Outputs:

The main output has no-break functionality. The MultiPlus-II takes over the supply to the connected loads in the event of a grid failure or when shore/generator power is disconnected. This happens so fast (less than 20 milliseconds) that computers and other electronic equipment will continue to operate without disruption. The second output is live only when AC is available on the input of the MultiPlus-II. Loads that should not discharge the battery, like a water heater, for example, can be connected to this output.

Virtually Unlimited Power Thanks to Parallel and Three-Phase Operation:

Up to 6 Multis can operate in parallel to achieve higher power output. Six 48/5000/70 units, for example, will provide 25 kW / 30 kVA output power with 420 Amps charging capacity. In addition to parallel connection, three units of the same model can be configured for three-phase output. But that’s not all: up to 6 sets of three units can be parallel connected for a 75 kW / 90 kVA inverter and more than 1200 Amps charging capacity.

On-Site System Configuring, Monitoring and Control:

Settings can be changed in a matter of minutes with VEConfigure software (computer or laptop and MK3-USB interface needed). Several monitoring and control options are available: Color Control GX, Venus GX, Octo GX, CANvu GX, laptop, computer, Bluetooth (with the optional VE.Bus Smart dongle), Battery Monitor, and Digital Multi Control Panel.

Remote Configuring and Monitoring:

Install a Color Control GX, Cerbo GX or other GX products to connect to the internet. Operational data can be stored and displayed on our VRM (Victron Remote Management) website, free of charge. When connected to the internet, systems can be accessed remotely, and settings can be changed.

More about Victron:

Victron Energy has a strong, unrivalled reputation for technical innovation, reliability, and build quality. Their products are widely considered to be a professional choice for independent electric power. Efficiently combining two or more distinct power sources is what they do best. Their products include sinewave inverters, sinewave inverters/chargers, battery chargers, DC/DC converters, transfer switches, battery monitors and more.

Applications

Specifications
PowerControl & PowerAssist

Yes

Transfer switch
50 A
Maximum AC input current
50 A
DC Input voltage range
12V - 9.5–17V    24V - 19–33V    48V – 38-66V
Output
Output voltage: 230 VAC ± 2%,    Frequency: 50 Hz ± 0.1%
Cont. output power at 25°C
5000 VA
Cont. output power at 25°C
4000 W
Cont. output power at 40°C
3700 W
Cont. output power at 65°C
3000 W
Max apparent feed-in power
5000 VA
Peak power
9000 W
Maximum efficiency
96%
Zero load power
18 W
Zero load power in AES mode
12 W
Zero load power in Search mode
2 W
AC Input
Input voltage range: 187-265 VAC,    Input frequency: 45 – 65 Hz
Charge voltage 'absorption'
14.4 / 28.8 / 57.6 V
Charge voltage 'float'
13.8 / 27.6 / 55.2 V
Storage mode
13.2 / 26.4 / 52.8 V
Max. battery charge current
120 / 70 A
Battery temperature sensor
Yes
Auxiliary output
Yes (32A)
External AC current sensor (optional)
50A or 100A
Programmable relay
Yes
Protection
a – g
VE.Bus communication port
For parallel (not for 8k, 10k and 15k models) and three-phase operation, remote monitoring and system integration
General purpose com. port
Yes, 2x
Remote on-off
Yes
Operating temperature range
-40 to +65°C (fan-assisted cooling)
Humidity (non-condensing)
max 95%
Material & Colour
Steel, blue RAL 5012
Protection category
IP22
Battery-connection
M8 bolts
230 V AC-connection
Screw terminals 13 mm² (6 AWG)
Weight
30 kg
Dimensions
607 x 330 x 149mm
Safety
EN-IEC 60335-1, EN-IEC 60335-2-29, EN-IEC 62109-1, EN-IEC 62109-2
Emission, Immunity
EN 55014-1, EN 55014-2 EN-IEC 61000-3-2, EN-IEC 61000-3-3 IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3



Please see more details in the 'Data Sheets' tab.

Delivery

We don't hold the stock on hand but have a trusted supplier who will send this direct from their nearest warehouse to ensure you receive it as soon as possible.

Warranty

INSERT WARRANTY INFO HERE

Data Sheets

Victron Multiplus-Il 24/5000/120-50 Data Sheet

Victron Multiplus-Il 24/5000/120-50 Warranty Sheet
