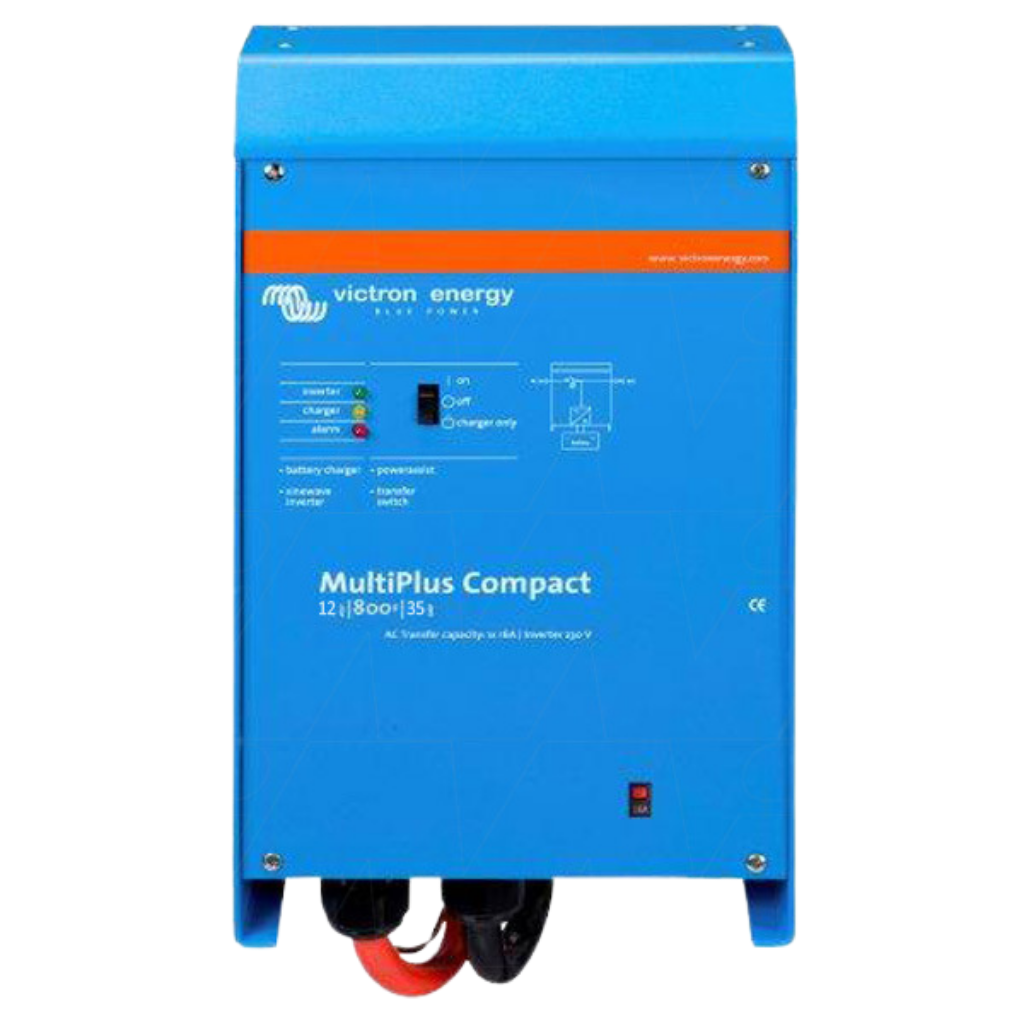

Victron MultiPlus Compact 12/800/35-16
 Victron MultiPlus Compact 12/800/35-16
10 customers are viewing this product

Inverter/Charger | Victron | Victron MultiPlus Compact 12/800/35-16

CMP128010000

$714.95
$714.95

or 4 interest-free payments of  $178.73 with

Subtotal: $714.95
Description

Features:

  • 230V Compact Pure Sine Wave Inverter/Charger
  • 12V 800va Inverter
  • 35A Battery Charger
  • 16A Automatic Transfer Switch
  • Three-Phase Capability
  • PowerControl & PowerAssist Functions

The MultiPlus, as the name suggests, is a combined inverter and charger in one elegant package. Its many features include a true sine wave inverter, adaptive charging, hybrid PowerAssist technology, plus multiple system integration features. The MultiPlus will prevent the overload of a limited AC source, such as a generator or shore power connection. First, battery charging will automatically be reduced when otherwise an overload occurs. The second level will boost the output of a generator or shore side supply with power taken from the battery.

In the event of a grid failure, or when shore or generator power is disconnected, the inverter within the Multi is automatically activated and takes over the supply to the connected loads. This happens so fast (less than 20 milliseconds) that computers and other electronic equipment will continue to operate without disruption. Up to 6 Multis can operate in parallel to achieve higher power output. Three-phase or split-phase operation is also possible. Please check our datasheets to see which models have paralleling, three-phase and split-phase capabilities.

Monitor and control your MultiPlus and system or systems locally (LAN) or remotely via the internet from anywhere in the world, using the free VRM app and free VRM portal website. Access can be from a phone, tablet, laptop or PC for multiple operating systems. There is no end to the level of control, via the required Color Control GX or Venus GX, from adjusting your MultiPlus to setting a Geofence for hire vehicles and more.


More Product Features:

Two AC Outputs:

The main output has no-break functionality. The MultiPlus takes over the supply to the connected loads in the event of a grid failure or when shore/generator power is disconnected. This happens so fast (less than 20 milliseconds) that computers and other electronic equipment will continue to operate without disruption. The second output is live only when AC is available on the input of the MultiPlus. Loads that should not discharge the battery, like a water heater for example can be connected to this output (second output available on models rated at 3 kVA and more).

Virtually Unlimited Power Thanks to Parallel Operation:

Up to 6 Multis can operate in parallel to achieve higher power output. Six 24/5000/120 units, for example, will provide 25 kW / 30 kVA output power with 720 Amps charging capacity.

Three-Phase Capability:

In addition to parallel connection, three units of the same model can be configured for three-phase output. But that’s not all: up to 6 sets of three units can be parallel connected for a huge 75 kW / 90 kVA inverter and more than 2000 Amps charging capacity.

PowerControl - Dealing with limited generator, shore side or grid power:

The MultiPlus is a very powerful battery charger. It will therefore draw a lot of current from the generator or shore side supply (nearly 10 A per 5 kVA Multi at 230 VAC). With the Multi Control Panel, a maximum generator or shore current can be set. The MultiPlus will then take account of other AC loads and use whatever is extra for charging, thus preventing the generator or shore supply from being overloaded.

PowerAssist - Boosting the capacity of shore or generator power:

This feature takes the principle of PowerControl to a further dimension. It allows the MultiPlus to supplement the capacity of the alternative source. Where peak power is so often required only for a limited period, the MultiPlus will make sure that insufficient shore or generator power is immediately compensated for by power from the battery. When the load reduces, the spare power is used to recharge the battery.

Solar energy: AC Power Available Even During a Grid Failure:

The MultiPlus can be used in off-grid as well as grid-connected PV and other alternative energy systems. Loss of mains detection software is available.

System configuring:

  • In the case of a stand-alone application, if settings have to be changed, this can be done in a matter of minutes with a DIP switch setting procedure.
  • Parallel and three-phase applications can be configured with VE.Bus Quick Configure and VE.Bus System Configurator software.
  • Off-grid, grid interactive and self-consumption applications, involving grid-tie inverters and/or MPPT Solar Chargers can be configured with Assistants (dedicated software for specific applications).

On-site Monitoring and Control:

Several options are available: Battery Monitor, Multi Control Panel, Color Control Panel, smartphone or tablet (Bluetooth Smart), laptop or computer (USB or RS232).

Remote Monitoring and Control:

Victron Ethernet Remote, Venus GX and the Color Control Panel. Data can be stored and displayed on our VRM (Victron Remote Management) website, free of charge.

Remote Configuring:

When connected to the Ethernet, systems with a Color Control panel can be accessed remotely and settings can be changed.

More about Victron:

Victron Energy has a strong, unrivalled reputation for technical innovation, reliability, and build quality. Their products are widely considered to be a professional choice for independent electric power. Efficiently combining two or more distinct power sources is what they do best. Their products include sinewave inverters, sinewave inverters/chargers, battery chargers, DC/DC converters, transfer switches, battery monitors and more.

Specifications

MultiPlus Compact


PowerControl

Yes

PowerAssist

Yes

Transfer Switch (A)

16

Inverter


Input voltage range (V DC)

9.5 – 17 V 19 – 33 V 38– 66 V

Output

Output voltage: 230VAC ± 2% Frequency: 50Hz ± 0.1% (1)

Cont. output power at 25°C (VA)

800

Cont. output power at 25°C (W)

700

Cont. output power at 40°C (W)

650

Cont. output power at 65°C (W)

400

Peak power (W)

1600

Maximum efficiency (%)

92

Zero load power (W)

8

Zero load power in AES mode (W)

5

Zero load power in Search mode (W)

2

Charger


AC Input

Input voltage range: 187-265 VAC, Input frequency: 45 – 65 Hz, Power factor: 1

Charge voltage 'absorption' (V DC)

14.4 / 28.8 / 57.6

Charge voltage 'float' (V DC)

13.8 / 27.6 / 55.2

Storage mode (V DC)

13.2 / 26.4 / 52.8

Charge current house battery (A)

35

Charge current starter battery (A)

4

Battery temperature sensor

Yes

General


Auxiliary output

n.a.

Programmable relay

Yes

Protection

a - g

VE.Bus communication port

For parallel and three-phase operation, remote monitoring and system integration

General purpose com. port

n.a.

Remote on-off

Yes

Operating Temperature Range

-40 to +65°C (fan assisted cooling)

Humidity

max 95%

Enclosure


Material & Colour

Aluminium (blue RAL 5012)

Battery-Connection

M8 Bolts

230 V AC-connection

Spring-clamp

Weight

10

Dimensions

520 x 255 x 125mm

Standards


Safety

EN-IEC 60335-1, EN-IEC 60335-2-29, IEC 62109-1

Emission, Immunity

EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3, IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3

Road vehicles

12V and 24V models: ECE R10-4

Anti-islanding

See Victron website



Please see more details in the 'Data Sheets' tab.
