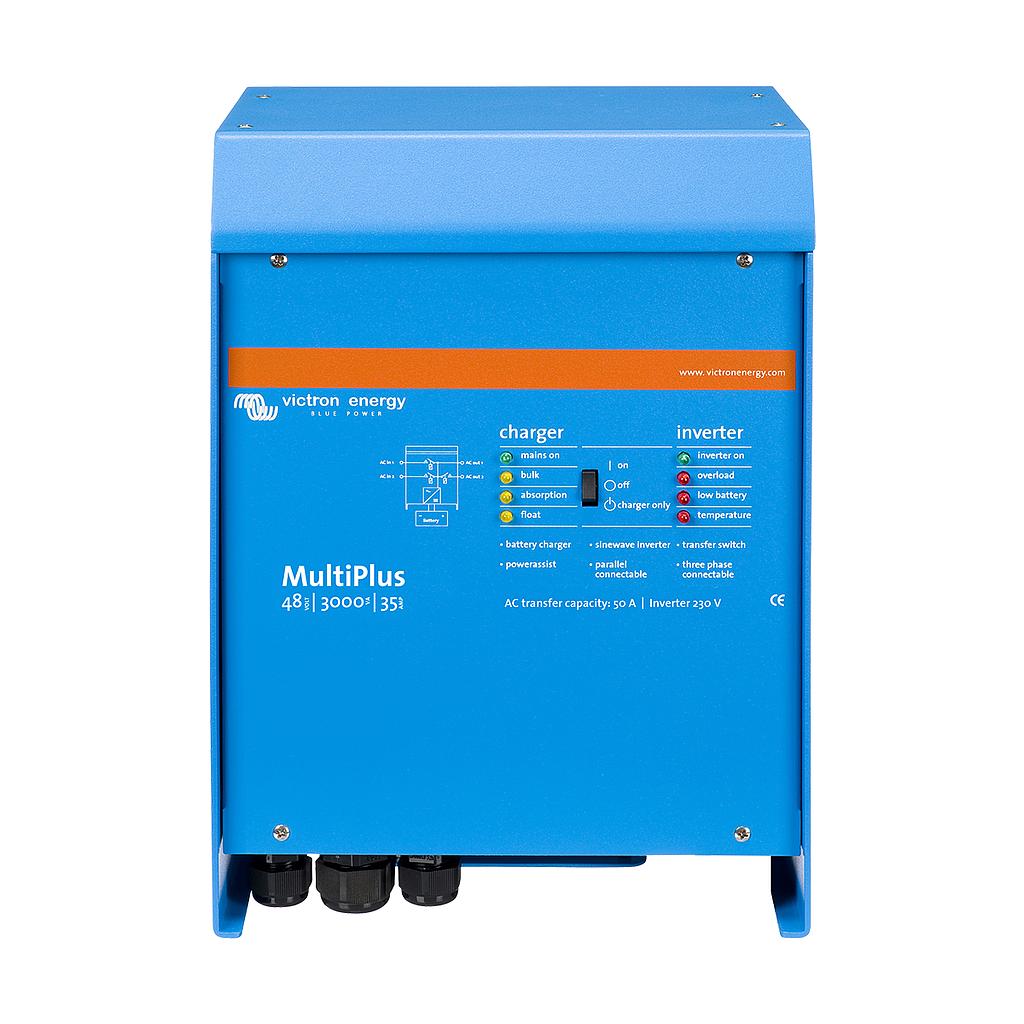

Victron MultiPlus 48/3000/35-16
Victron MultiPlus 48/3000/35-16
10 customers are viewing this product

Inverter/Charger | Victron | Victron MultiPlus 48V/3000/35-16

PMP483020001

$1,246.95
$1,246.95

or 4 interest-free payments of  $311.73 with

Subtotal: $1,246.95
Description

Features:

  • Pure Sine Wave Inverter/Charger
  • 48V 3000va Inverter
  • 35A Battery Charger
  • 16A Automatic Transfer Switch
  • Three-Phase and Parallel Capability
  • Hybrid Power Assist Technology
  • Adaptive Charging

The MultiPlus, as the name suggests, is a combined inverter and charger in one elegant package. Its many features include a true sine wave inverter, adaptive charging, hybrid PowerAssist technology, plus multiple system integration features. The MultiPlus will prevent overload of a limited AC source, such as a generator or shore power connection. First, battery charging will automatically be reduced when otherwise an overload would occur. The second level will boost the output of a generator or shoreside supply with power taken from the battery.

In the event of a grid failure, or when shore or generator power is disconnected, the inverter within the Multi is automatically activated and takes over the supply to the connected loads. This happens so fast (less than 20 milliseconds) that computers and other electronic equipment will continue to operate without disruption.

Up to 6 Multis can operate in parallel to achieve higher power output. Three-phase or split-phase operation is also possible. Please check our datasheets to see which models have paralleling, three-phase and split-phase capabilities.

Monitor and control your MultiPlus and system or systems locally (LAN) or remotely via the internet from anywhere in the world, using the free VRM app and free VRM portal website. Access can be from a phone, tablet, laptop or PC for multiple operating systems. There is no end to the level of control, via the required Color Control GX or Venus GX, from adjusting your MultiPlus to setting a Geofence for hire vehicles and more.

More Product Features:

Two AC Outputs:

The main output has no-break functionality. The MultiPlus takes over the supply to the connected loads in the event of a grid failure or when shore/generator power is disconnected. This happens so fast (less than 20 milliseconds) that computers and other electronic equipment will continue to operate without disruption. The second output is live only when AC is available on the input of the MultiPlus. Loads that should not discharge the battery, like a water heater for example can be connected to this output (second output available on models rated at 3000VA and more).

Virtually Unlimited Power:

Up to 6 Multis can operate in parallel to achieve higher power output. Six 24/5000/120 units, for example, will provide 25 kW / 30 kVA output power with 720 Amps charging capacity.

Three-phase Capability:

In addition to parallel connection, three units of the same model can be configured for three-phase output. But that’s not all: up to 6 sets of three units can be parallel connected for a huge 75 kW / 90 kVA inverter and more than 2000 Amps charging capacity.

PowerControl - Dealing with limited generator, shore side or grid power:

The MultiPlus is a very powerful battery charger. It will therefore draw a lot of current from the generator or shoreside supply (nearly 10 A per 5 kVA Multi at 230 VAC). With the Multi Control Panel, a maximum generator or shore current can be set. The MultiPlus will then take account of other AC loads and use whatever is extra for charging, thus preventing the generator or shore supply from being overloaded.

PowerAssist - Boosting the capacity of shore or generator power:

This feature takes the principle of PowerControl to a further dimension. It allows the MultiPlus to supplement the capacity of the alternative source. Where peak power is so often required only for a limited period, the MultiPlus will make sure that insufficient shore or generator power is immediately compensated for by power from the battery. When the load reduces, the spare power is used to recharge the battery.

Solar energy - AC power is available even during a grid failure:

The MultiPlus can be used in off-grid as well as grid-connected PV and other alternative energy systems. Loss of mains detection software is available.

On-site Monitoring and Control:

Several options are available: Battery Monitor, Multi Control Panel, Color Control Panel, smartphone or tablet (Bluetooth Smart), laptop or computer (USB or RS232).

Remote Monitoring and Control:

Victron Ethernet Remote, Venus GX and the Color Control Panel. Data can be stored and displayed on our VRM (Victron Remote Management) website, free of charge.

Remote Configuring:

When connected to the Ethernet, systems with a Color Control panel can be accessed remotely and settings can be changed.

More about Victron:

Victron Energy has a strong, unrivalled reputation for technical innovation, reliability, and build quality. Their products are widely considered to be a professional choice for independent electric power. Efficiently combining two or more distinct power sources is what they do best. Their products include sinewave inverters, sinewave inverters/chargers, battery chargers, DC/DC converters, transfer switches, battery monitors and more.

Specifications
PowerControl

Yes

PowerAssist
Yes
Transfer switch (A)
16
Input voltage range (V DC)
9.5 – 17V   19 – 33V   38– 66V
Output
Output voltage: 230VAC ± 2%,    Frequency: 50Hz ± 0.1%
Cont. output power at 25°C (VA)
3000
Cont. output power at 25°C (W)
2400
Cont. output power at 40°C (W)
2200
Cont. output power at 65°C (W)
1700
Peak power (W)
6000
Maximum efficiency (%)
93 / 94 / 95
Zero-load power (W)
20 / 20 / 25
Zero load power in AES mode (W)
15 / 15 / 20
Zero load power in Search mode (W)
8 / 10 / 12
AC Input
Input voltage range: 187-265 VAC,    Input frequency: 45 – 65 Hz,    Power factor: 1
Charge voltage 'absorption' (V DC)
14.4 / 28.8 / 57.6 V
Charge voltage 'float' (V DC)
13.8 / 27.6 / 55.2 V
Storage mode (V DC)
13.2 / 26.4 /52.8 V
Charge current house battery (A)
120 / 70 / 35
Charge current starter battery (A)
4 (12 V and 24 V models only)
Battery temperature sensor
yes
Auxiliary output
Yes (16A)
Programmable relay
Yes
Protection
a - g
VE.Bus communication port
For parallel and three-phase operation, remote monitoring and system integration
General purpose com. port
Yes
Remote on-off
Yes
Common Characteristics
Operating temp. range: -40 to +65°C (fan-assisted cooling),    Humidity (non-condensing): max 95%
Common Characteristics
Material & Colour: aluminium (blue RAL 5012) Protection category: IP 21
Battery-connection
Four M8 bolts (2 plus and 2 minus connections)
230 V AC-connection
Screw terminals 13 mm2 (6 AWG)
Weight
18kg
Dimensions
362 x 258 x 218mm
Safety
EN-IEC 60335-1, EN-IEC 60335-2-29, IEC 62109-1
Emission, Immunity
EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3, IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3
Road vehicles
12V and 24V models: ECE R10-4



Please see more details in the 'Data Sheets' tab.

Delivery

We don't hold the stock on hand but have a trusted supplier who will send this direct from their nearest warehouse to ensure you receive it as soon as possible.

Warranty

INSERT WARRANTY INFO HERE

Data Sheets

Victron MultiPlus 48/3000/35-16 Data Sheet

Victron MultiPlus 48/3000/35-16 Warranty Sheet
