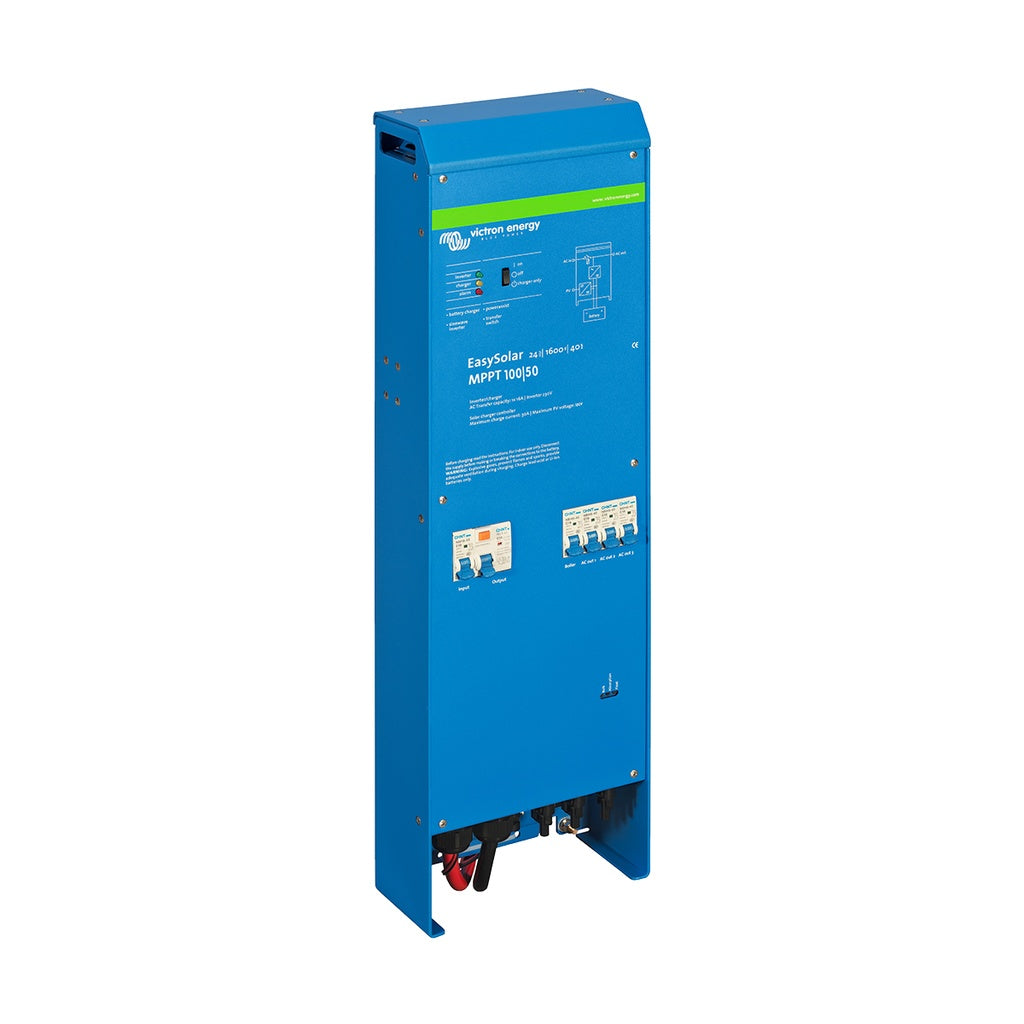

Inverter/Charger | Victron | Victron EasySolar 24/1600/40-16 MPPT 100/50
$1,899.95
or
4 interest-free payments of
$474.98
with
No credit check
SKU: CEP241621010
WHY BUY FROM ZERO GRID?
Just me, Landon. Family run. No big corp BS.
My bus runs on this gear. I only sell what I’d use myself.
I’m your sparky. No call centres. No scripts.
Stuff up? Talk to me. I’ll sort it. No overseas runaround.
This is us with 'Sonny' our off grid bus home. Living the dream, slowly travelling Aus
Need a hand? Book a free 10 min chat with me (Landon) →
Description
All-in-one solar power solution:
The EasySolar combines an MPPT solar charge controller, an inverter/charger and AC distribution in one enclosure. The product is easy to install, with a minimum of wiring.
The solar charge controller: Blue Solar MPPT 100/50
Up to three strings of PV panels can be connected to three sets of MC4 (PV-ST01) PV connectors.
The inverter/charger: MultiPlus Compact 12/1600/70 or 24/1600/40:
The MPPT charge controller and the MultiPlus Compact inverter/charger share the DC battery cables (included). The batteries can be charged with solar power (BlueSolar MPPT) and/or with AC power (inverter/charger) from the utility grid or a genset.
AC distribution:
The AC distribution consists of a RCD (30 mA/16 A) and four AC outputs protected by two 10A and two 16A circuit breakers. One 16A output is controlled by the AC input: it will switch on only when AC is available.
More about Victron:
Victron Energy has a strong, unrivalled reputation for technical innovation, reliability, and build quality. Their products are widely considered to be a professional choice for independent electric power. Efficiently combining two or more distinct power sources is what they do best. Their products include sinewave inverters, sinewave inverters/chargers, battery chargers, DC/DC converters, transfer switches, battery monitors and more.
Specifications
| Inverter/Charger |
|
|
Transfer Switch |
50A |
|
Inverter |
|
|
Input Voltage Range |
19 - 33V |
|
‘Heavy Duty’ Output AC 0 |
16A |
|
Output |
Output Voltage: 230 VAC ± 2%, Frequency: 50Hz ± 0.1% |
|
Maximum Efficiency |
94% |
|
Zero Load Power |
10W |
|
Charger |
|
|
AC Input |
Input Voltage Range: 187 - 265 VAC, Input Frequency: 45 - 65Hz |
|
Charge Voltage 'Absorption' |
28.8V |
|
Charge Voltage 'Float' |
27.6V |
|
Charge Current House Battery |
40A |
|
Battery Temperature Sensor |
Yes |
|
Programmable Relay |
Yes |
|
Solar Charge Controller |
|
|
Model |
MPPT 100/50 |
|
Maximum Output Current |
50A |
|
Maximum PV Power |
1400W |
|
Maximum PV Open Circuit Voltage |
100V |
|
Maximum Efficiency |
98% |
|
Charge Algorithm |
Multi-stage Algorithm |
|
Operating Temperature Range |
-20 to +50°C (fan-assisted cooling) |
|
Enclosure |
|
|
Material & Colour |
Aluminium, Blue RAL 5012 |
|
Protection Category |
IP21 |
|
Battery Connection |
Battery Cables of 1.5m |
|
PV Connection |
Three Sets of MC4 (PV-ST01) PV Connectors |
|
Weight |
15kg |
|
Dimensions |
745 x 214 x 110mm |
Please see more details in the 'Data Sheets' tab.
Delivery
We don't hold the stock on hand but have a trusted supplier who will send this direct from their nearest warehouse to ensure you receive it as soon as possible.
Warranty
INSERT WARRANTY INFO HERE
Data Sheets
Victron EasySolar 24/1600/40-16 MPPT 100/50 Data Sheet
Victron EasySolar 24/1600/40-16 MPPT 100/50 Warranty Sheet
