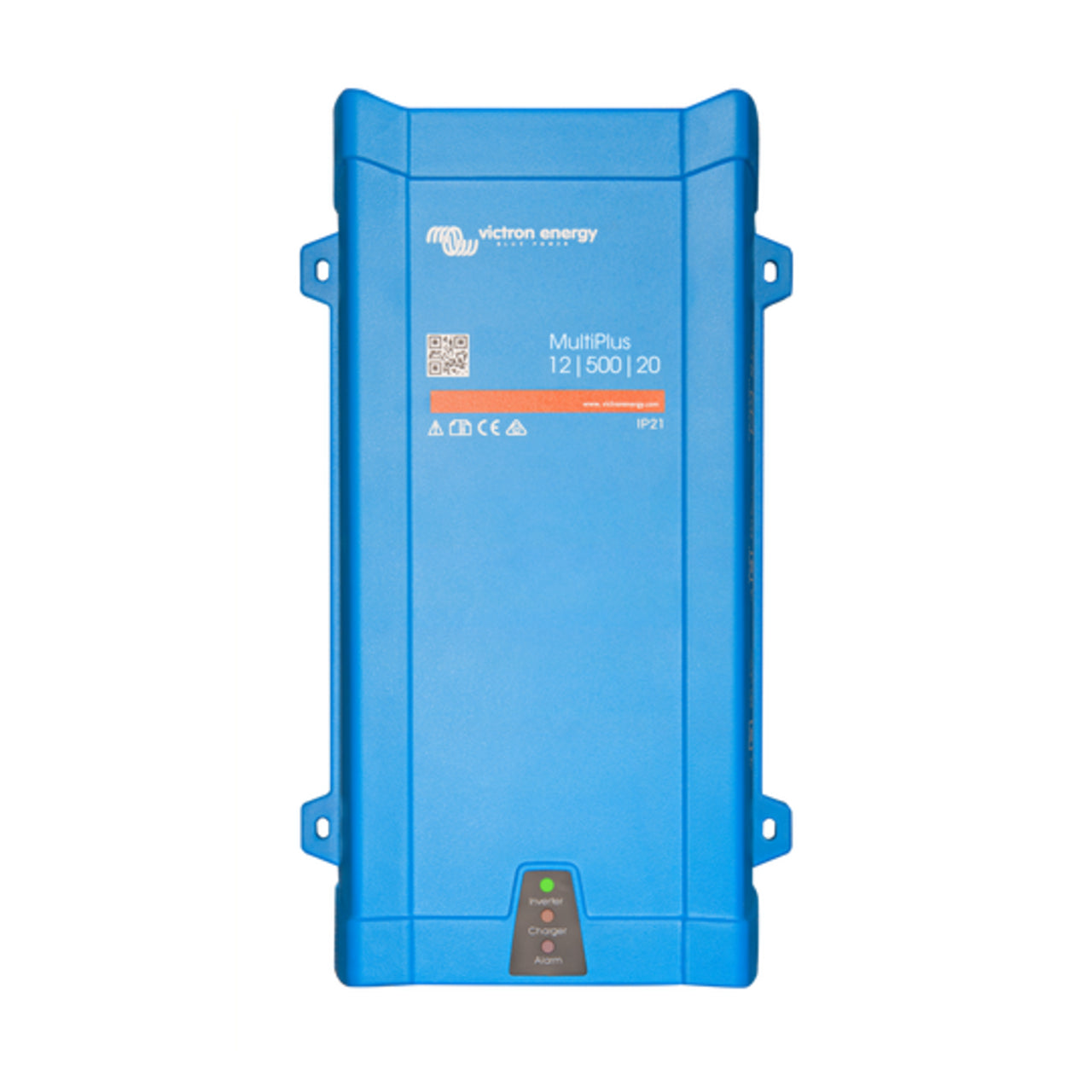

Victron MultiPlus 230-volt AC, 12-volt 500-VA inverter charger with 20-amp battery charging and 16-amp AC transfer capability compatible with all batteries including Lithium.
Multifunctional
The new style MultiPlus is set to replace the earlier MultiPlus Compact range. It is a powerful true sine wave inverter, a sophisticated battery charger that features adaptive charge technology and a high-speed AC transfer switch in a single compact enclosure.
Uninterrupted AC power (UPS function)
In the event of a grid failure, or when shore or generator power is disconnected, the inverter within the Multi is automatically activated and takes over the supply to the connected loads. This happens so fast (less than 20 milliseconds) that computers and other electronic equipment will continue to operate without disruption.
Remote Monitoring and Control
When coupled with a GX device (e.g. Cerbo GX) you can monitor and control your Multi and system or systems' locally (LAN) or remotely via the internet from anywhere in the world, using the free VRM app and free VRM portal website. Access can be from a phone, tablet, laptop or PC for multiple operating systems. There is no end to the level of control, from adjusting your Multi to auto starting a backup generator and more.
Continuous Power (Watts) | 430W |
Peak Power (Watts) | 900W |
AC Output (Volts) | 230V ±2% |
DC Input Range (Volts) | 9.5V - 17V |
Output Current Rating (Amps) | 20.0A |
Operating Temperature Range | -40 °C to 65°C |
AC Input Range (Volts) | 187-265V / 45-65Hz |
Inverter Output Efficiency | ~90% |
No Load Power Consumption | 6W / 2W (In Search Mode) |
Product Dimensions | L 182mm x W 100mm x H 311mm |
Net Weight | 4.4 Kg |
Please see more details in the 'Data Sheets' tab.
All items subject to availability and will generally require a 4-6 week turnaround.
We don't hold the stock on hand but have a trusted supplier who will send this direct from their nearest warehouse to ensure you receive it as soon as possible.
There is a 5 year replacement warranty on all Victron equipment (excluding batteries). Products will need to be delivered to an authorised technician to be inspected and evaluated.
Please call us for more details and to discuss your next step.
