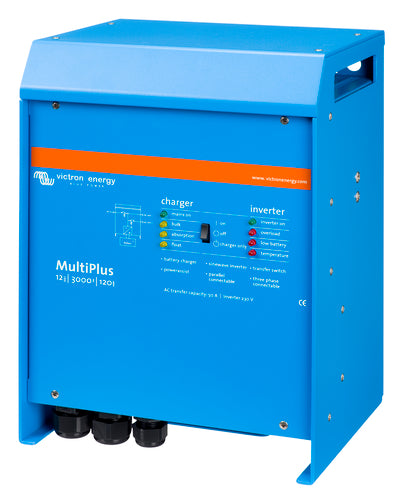

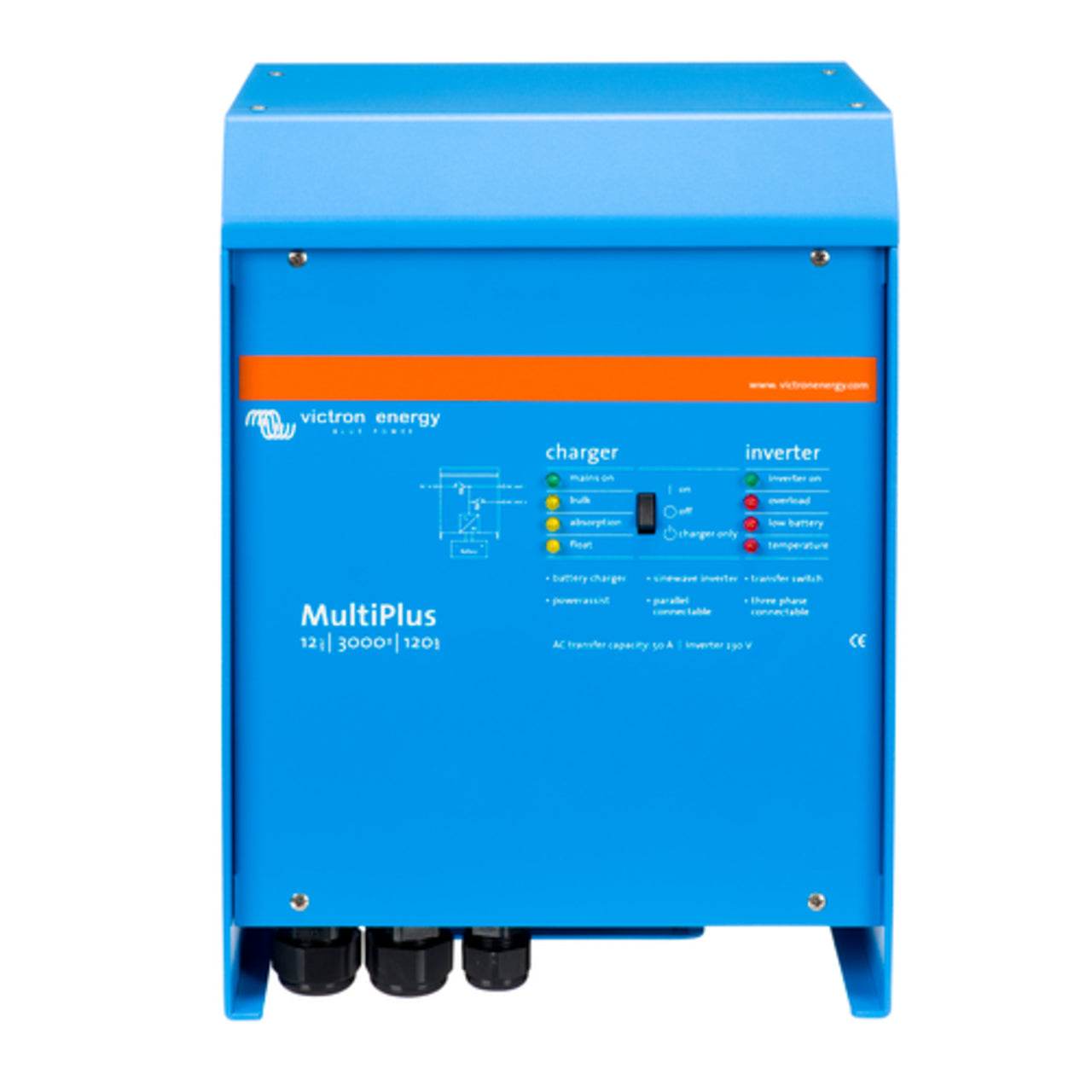

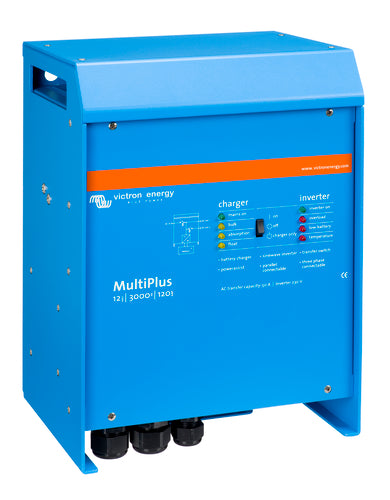

Victron MultiPlus 12V / 3000VA / 120-16
- $2,077.00
- $2,077.00
- Unit price
- per
- Reliable Victron Inverter / Charger
- Works well in caravans / motorhomes with auto changeover to shore power
- One of Landon's favourite Victron components
SKU: PMP122300001
The Victron MultiPlus 12V / 3000VA / 120-16 is a premium inverter/charger, designed to provide reliable and efficient power for both off-grid and mobile applications. Whether you’re powering a 4WD, caravan, boat, or tiny house, the Victron MultiPlus ensures that you have a stable and robust energy source to meet your needs. This Victron MultiPlus 12/3000 model features a 12V input and a 3000VA power output, delivering high performance for demanding setups.
With its dual functionality as an inverter and charger, the Victron MultiPlus 12 3000 is equipped with advanced features such as PowerControl and PowerAssist. PowerControl allows the system to manage power distribution effectively, preventing overloads, while PowerAssist increases the output capacity by drawing power from the batteries to supplement a weak AC source. This makes it perfect for situations where power demands fluctuate, ensuring uninterrupted operation.
The Victron MultiPlus 12V / 3000VA / 120-16 also supports parallel operation, allowing you to connect multiple units to increase output power or to run a three-phase setup. Additionally, it comes with an integrated transfer switch that enables seamless transition between grid power and battery power, making it ideal for applications that require a reliable backup system. Its robust construction, combined with smart design features, ensures long-term reliability and easy installation.
When you choose the Victron MultiPlus 12/3000, you’re investing in a product that offers exceptional efficiency, durability, and the flexibility to adapt to a wide range of power needs. This makes it a top choice for those looking to enhance their off-grid systems with a reliable and versatile power solution.
Specifications
|
PowerControl |
Yes |
|
PowerAssist |
Yes |
|
Transfer switch (A) |
16 |
|
Input voltage range (V DC) |
9.5 – 17V 19 – 33V 38– 66V |
|
Output |
Output voltage: 230VAC ± 2%, Frequency: 50Hz ± 0.1% |
|
Cont. output power at 25°C (VA) |
3000 |
|
Cont. output power at 25°C (W) |
2400 |
|
Cont. output power at 40°C (W) |
2200 |
|
Cont. output power at 65°C (W) |
1700 |
|
Peak power (W) |
6000 |
|
Maximum efficiency (%) |
93 / 94 / 95 |
|
Zero-load power (W) |
20 / 20 / 25 |
|
Zero load power in AES mode (W) |
15 / 15 / 20 |
|
Zero load power in Search mode (W) |
8 / 10 / 12 |
|
AC Input |
Input voltage range: 187-265 VAC, Input frequency: 45 – 65 Hz, Power factor: 1 |
|
Charge voltage 'absorption' (V DC) |
14.4 / 28.8 / 57.6 V |
|
Charge voltage 'float' (V DC) |
13.8 / 27.6 / 55.2 V |
|
Storage mode (V DC) |
13.2 / 26.4 /52.8 V |
|
Charge current house battery (A) |
120 / 70 / 35 |
|
Charge current starter battery (A) |
4 (12 V and 24 V models only) |
|
Battery temperature sensor |
yes |
|
Auxiliary output |
Yes (16A) |
|
Programmable relay |
Yes |
|
Protection |
a - g |
|
VE.Bus communication port |
For parallel and three-phase operation, remote monitoring and system integration |
|
General purpose com. port |
Yes |
|
Remote on-off |
Yes |
|
Common Characteristics |
Operating temp. range: -40 to +65°C (fan-assisted cooling), Humidity (non-condensing): max 95% |
|
Common Characteristics |
Material & Colour: aluminium (blue RAL 5012) Protection category: IP 21 |
|
Battery-connection |
Four M8 bolts (2 plus and 2 minus connections) |
|
230 V AC-connection |
Screw terminals 13 mm2 (6 AWG) |
|
Weight |
18kg |
|
Dimensions |
362 x 258 x 218mm |
|
Safety |
EN-IEC 60335-1, EN-IEC 60335-2-29, IEC 62109-1 |
|
Emission, Immunity |
EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3, IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3 |
|
Road vehicles |
12V and 24V models: ECE R10-4 |
