PMP482507010

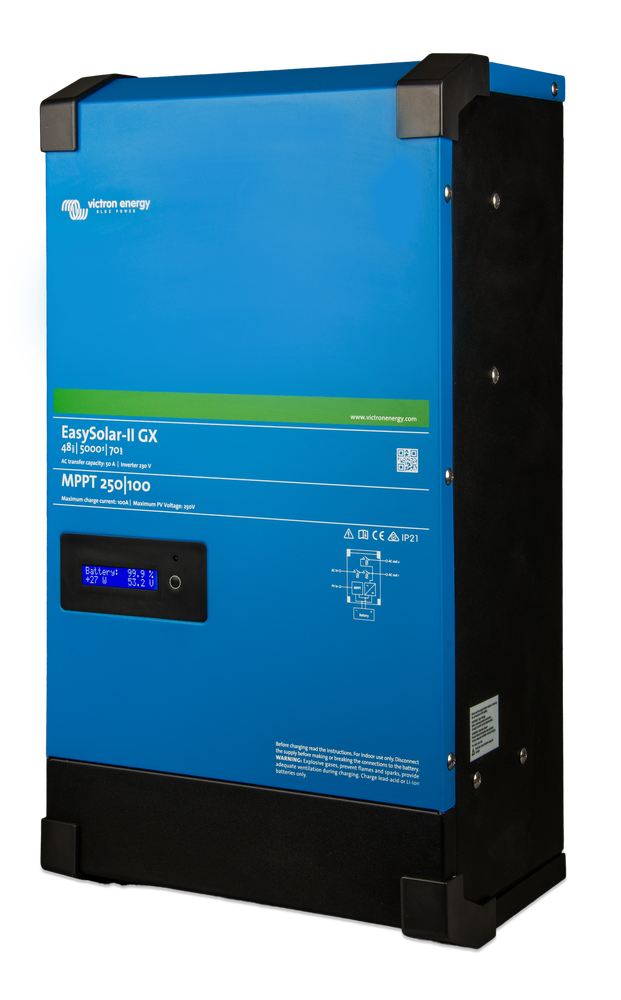

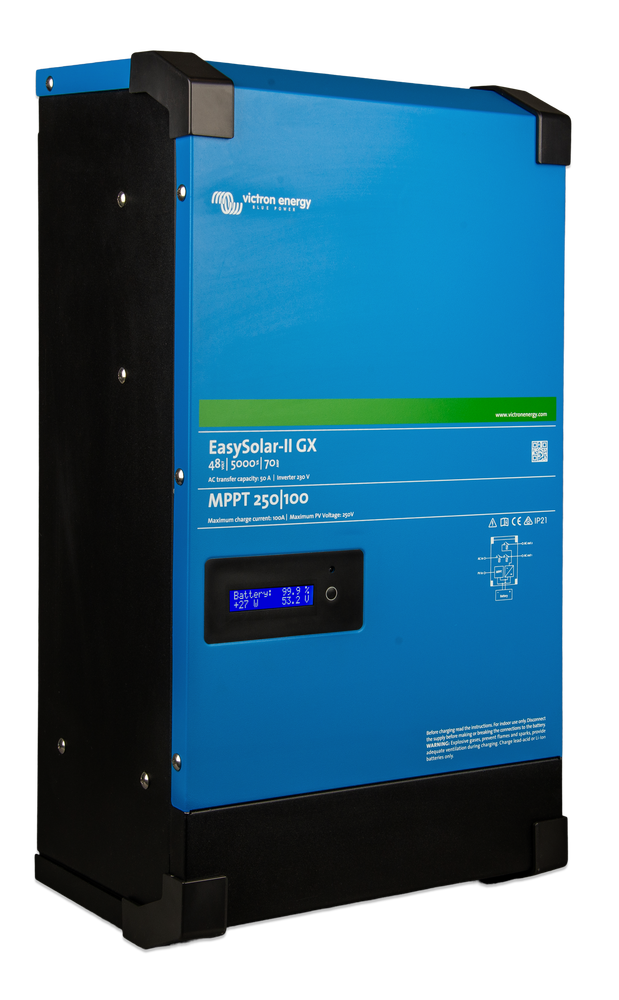

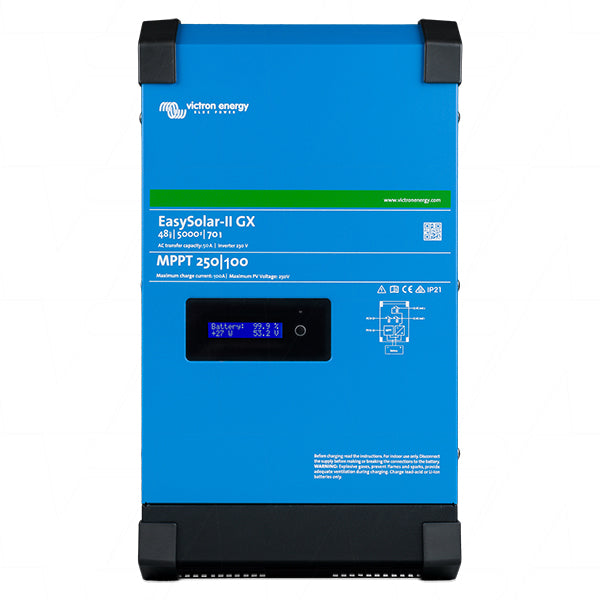

The all-in-one solar power solution
The Victron EasySolar-II GX integrates the following elements:
These elements come prewired together inside a single unit. This greatly simplifies most installations, saving time and money.
Display and Wi-Fi
The display reads battery, inverter and solar charge controller parameters.
The same parameters can be accessed with a smartphone or other Wi-Fi enabled device.
In addition, Wi-Fi can be used to set up the system and to change settings.
Solar charge controller
The DC output of the SmartSolar MPPT is parallel wired with the DC connection of the MultiPlus-II inverter/charger.
The on/off mechanism of the MultiPlus-II also controls the SmartSolar MPPT.
GX device
The integrated GX device includes:
The GX device controls the MultiPlus-II and the SmartSolar MPPT with respectively a VE.Bus and a VE.Direct connection.
Grid in-line topology
The EasySolar-II GX will use excess PV power to charge the batteries or to feed power back into the grid and will discharge the battery or use power from the grid to supplement a shortage of PV power. In case of a power outage, the EasySolar-II GX will disconnect the grid and continue to supply the loads.
Loads that should shut down when AC input power is not available can be connected to a second output (not shown). These loads will be taken into account by the PowerControl and PowerAssist function in order to limit AC input current to a safe value.
Grid parallel topology
The EasySolar-II GX will use data from the external AC current sensor (must be ordered separately) or power meter to optimise self-consumption and, if required, to prevent grid feed. In case of a power outage, the EasySolar-II GX will continue to supply the critical loads
Continuous Power (Watts) | 4000 W |
Peak Power (Watts) | 9000W |
AC Output (Volts) | 230V ±2% |
Input Voltage Range | 38 – 66 V |
Maximum Effeciency | 96% |
Maximum battery charge current (AC In) | 70A |
Maximum output current (Solar) | 100A |
Maximum PV power | 5800W |
No Load Power Consumption | 18W / 2W (In Search Mode) |
Product Dimensions | 604mm x 323mm x 253mm |
Net Weight | 38.6 Kg |
All items subject to availability and will generally require a 4-6 week turnaround.
We don't hold the stock on hand but have a trusted supplier who will send this direct from their nearest warehouse to ensure you receive it as soon as possible.
There is a 5 year replacement warranty on all Victron equipment (excluding batteries). Products will need to be delivered to an authorised technician to be inspected and evaluated.
Please call us for more details and to discuss your next step.
Victron EasySolar-II 48V / 5000VA / 70-50 MPPT 250/100 GX Specifications
Victron EasySolar-II 48V / 5000VA / 70-50 MPPT 250/100 GXManual
