Earth Fault Protection | AERL | EarthGuard Ground Fault Detection EG-300


Read More Below

Subtotal: $651.00

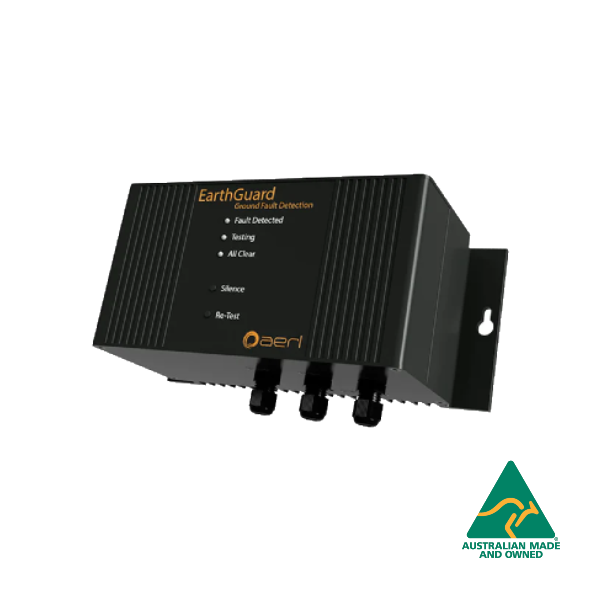

AERL EarthGuard Ground Fault Detection - EG-300

Utilizing proprietary detection techniques, the AERL EarthGuard Insulation Monitoring Device simultaneously monitors the unearthed PV Array (60 - 300V) and Battery Storage System (48/120V) for conductor insulation degradation.

Installed on the battery bus, the EarthGuard monitoring device satisfies the earth fault detection requirements of both AS/NZS 5033:2014 & AS/NZS 5139:2019 with onboard audio/visual alarms and an alarm relay output for external fault indication.

Featuring support for full integration with AERL’s CoolMax SRX charge controller range, EarthGuard can be utilized in an integrated arrangement or as a standalone device for use with approved third-party controllers, power conversion equipment
and battery systems.


Weight 1.2 kg
Dimensions (L x W x H) 140 x 230 x 110 mm
Enclosure Type Indoor Type 1 / IP20
Operating Temperature -25 to 60°C
Storage Temperature -25 to 80°C
Connection Terminals Screwless Terminals (0.25 mm2 -> 5.25 mm2 )
Input Power (12V Input) 10 – 14 Vdc (12V Nominal)
Max Power Consumption (12V Input) 120mA
Input Power (5V Input – USB C) 4.5 – 5.5 Vdc (5V Nominal)
Max Power Consumption (5V Input) 290mA
Alarm Indication Relay Signal (Dry Contact)
PV Array Monitoring Range 60 – 300 Vdc
Supported Battery Voltages 48 Vdc | 120 Vdc
Input Load Under Test 0.5 Mohm
Input Load Not Under Test 300 Mohm
Leakage Trip Current (+/-10%) > 80uA | > 210uA
Isolation to Low Voltage Side 1000V (Transient)
Electrical Safety AS/NZS 3100:2017
EMC (Domestic) AS/NZS 61000.6.3:2012

Please see more details in the 'Data Sheets' tab.


All items subject to availability and will generally require a 4-6 week turnaround.

We don't hold the stock on hand but have a trusted supplier who will send this direct from their nearest warehouse to ensure you receive it as soon as possible.
