DC-DC Charger | Renogy | DCC30S 12V 30A Dual Input DC to DC Battery Charger with MPPT *WITH FREE DIAGRAM*

DESCRIPTION Renogy's DC to DC MPPT on-board Battery Charger is designed to give you options! This multi-stage,... Read More
$319.99
$0.00
$319.99
Vendor: Renogy
SKU: RBC30D1S-AU
Availability: Many In Stock
Subtotal: $319.99

30-Day Money-Back Guarantee

Australian Phone Support

Locally-Based Australian Stock

Price Match Guarantee

DESCRIPTION

Renogy's DC to DC MPPT on-board Battery Charger is designed to give you options! This multi-stage, multi-input battery charger can charge a service battery from a starting battery linked to an alternator or by utilizing solar panels connected directly to the unit. While your vehicle's alternator prioritizes your starting battery, this unit will allow your solar system to charge your service battery first! It's the smart way to keep yourself fully charged and off-grid longer! And with multi-stage charging and multi-chemistry functionality, Renogy's DC to DC MPPT Charger has you covered whether you're using Flooded, Gel, AGM, or Lithium batteries. With RJ45 communication port featured, you can unlock monitoring features exclusively using the BT-2 Bluetooth Module and Renogy DC Home App, control and monitor the device remotely through your phone in real time.

KEY FEATURES

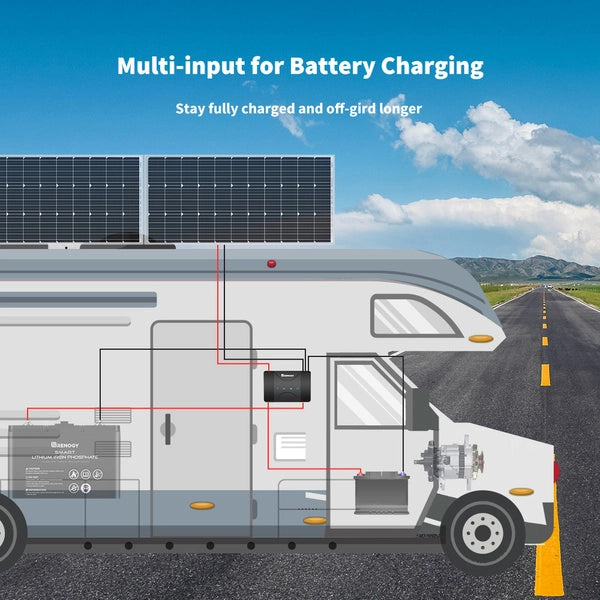

  •  Multi-input for Battery Charging

    Renogy DC-DC On-Board Battery Charger is designed to charge service batteries from a starting battery linked to an alternator or by utilizing solar panels connected directly to the unit, offering multiple charging options and ensuring your battery stay fully charged.

  • 3-phase MPPT Charging Technology

    With Built-in Maximum Power Point Tracking (MPPT), Renogy DC-DC On-Board Battery Charger will charge your service batteries with maximized solar power, providing 3-phase charging (Bulk, Boost and Float) to regulate the whole charging and ensure the batteries will be accurately charged at the correct voltage levels to 100%.

  • Multiple Protections

   Renogy DC-DC On-Board Battery Charger has multiple intelligent protections includes battery isolation, over-voltage protection, battery temperature protection, over-current protection, overheat protection, reverse current protection, solar panel and alternator reverse polarity protection, guaranteeing charging safety and protecting you batteries.

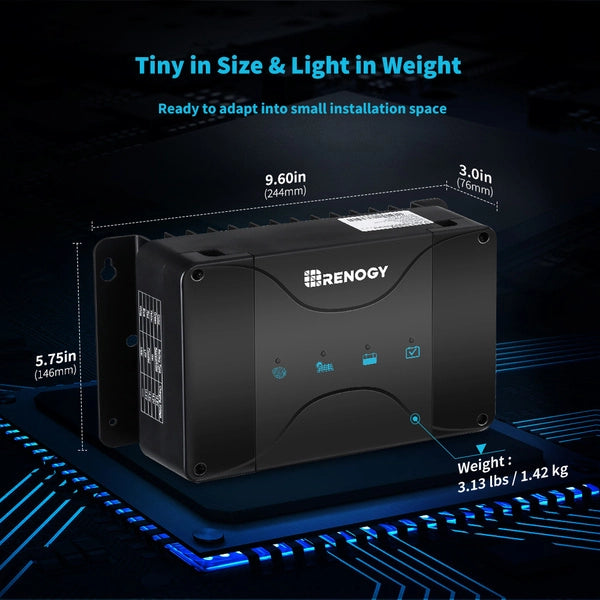

  • Light & Small, Ready to be Set Up

   With only 9.6in in length, 5.7in in height, and 3.13lbs in weight, Renogy DC-DC On-Board Battery Charger is ready to be installed and adapt to any tiny narrow installation space, resolving your concern from limited room in you vehicle.

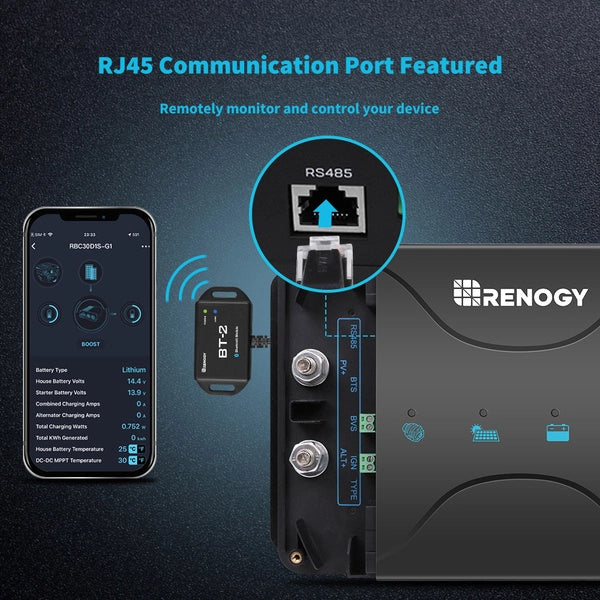

  • RJ45 Communication Port Featured

Bluetooth Monitoring Ready! Exclusively available with the BT-2 Bluetooth Module accessory and Renogy DC Home App available on the IOS and Google Play Stores, you can monitor this device remotely and simply through your phone and stay constantly updated.

PACKAGE INCLUDES



12V 30A DC-DC On-Board Battery Charger with MPPT

12V 30A DC-DC On-Board Battery Charger with MPPT

1 x



 Battery Temperature Sensor

Battery Temperature Sensor

1 x



IGN Signal Wire

IGN Signal Wire

1 x



RS485 Communication Cable

RS485 Communication Cable

1 x



Option: Renogy BT-2 Bluetooth Module

Renogy BT-2 Bluetooth Module

1 x



Option: Monitoring Screen

Monitoring Screen

1 x



SPECIFICATION


SPECIFICATIONS
System Voltage : 12VDC Battery Voltage Range : 9-16VDC
Maximum Charging Current  : 30A Battery Type : SLD/AGM, GEL, FLD, LISER
Service Battery Charging Mode: MPPT Charging Efficiency : Up to 97%
Max. Solar Input Voltage : 25V Maximum Solar Input Power : 400W
Alternator Input Voltage : Traditional Alternator: 13.2-16VDC
Smart Alternator (Euro 6): 12-16VDC
Maximum Alternator Input Power : 400W
Self-consumption : 60mA Operating Temperature Range : -31°F ~ 149°F
Dimensions : 9.6*5.7*3.0in Weight : 3.13 lbs / 1.42 kg
Communication Protocol:RS485 Ground Type:Negative
Terminal Size:M8*1.25 - 10mm Temperature Compensation: '-3mV/C/2V
Storage Temperature Range: -40°F - 176°F Operating / Storage Humidity: 0%-95%, No Condensation
Certifications
FCC YES
ROHS YES
OPTIONS: MONITORING SCREEN
Supply Voltage: 5VDC Communication Port: RJ45 (RS485 Protocol)
Supply Current: 30mA Display: Backlit LCD
Power Consumption: <1W User Interface: 4 Front Menu Buttons
Operating Temperature Range: -4°F~113°F / -20°C~45°C Mounting System: Wall Mount
Cable Length: 5.00 m (16.4 ft) Voltage Accuracy: ±0.1V
Dimension: 2.76 x 4.33 x 1.25 inch / 70 x 110 x 31.8 mm Operation Temperature: -4°F to 185°F (-20℃~85℃)
Current Accuracy: ±0.1A Weight: 0.14 lbs / 62 g
Wire Length: 16.4ft / 5m
OPTIONS: BT-2 BLUETOOTH MODULE
Communication Protocol: RS232 Port Type: RJ45
Input Voltage: 5V or 12V Protection Grade: IP54
Standby Power Consumption: 0.04W Operating Power Consumption: 0.05W
Communication Range: ≤82ft Serial Baud Rate: Fixed Baud Rate 9600bps
Cable Length: 5.00 m (16.4 ft) Dimensions: 2.65 X 1.38 X 0.55 in (67.3 X 35 X 14 mm)
Installation Dimensions: 67.3 φ3.5mm(2.66 φ 0.14in) Operation Temperature: -4°F to 185°F (-20℃~85℃)
Weight: 130g (4.58oz)
Certifications:
FCC Class B Part 15 Compliant YES

WARRANTY INFORMATION


Accessories 2-year material warranty
