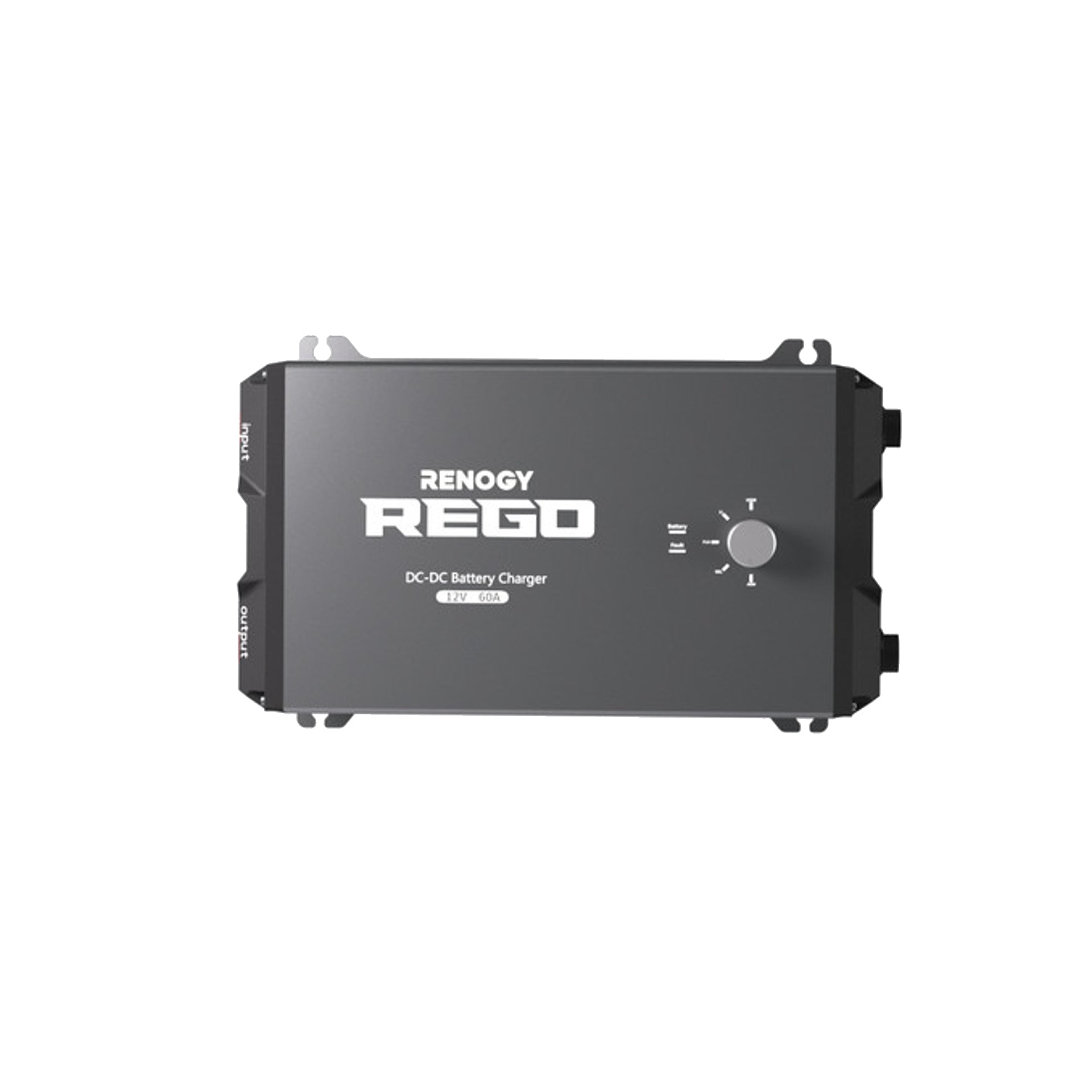

DC-DC Charger | Renogy | REGO 12V 60A DC-DC Battery Charger *WITH FREE DIAGRAM*


Read More Below

Subtotal: $479.99

The REGO DC-DC Battery Charger's exclusive bidirectional charging technology not only provides the most effective way to charge your house batteries from the starter battery on the go but also recharges and maintains your starter battery when the house batteries are full. The battery charger is compatible with the most popular 12V alternators and batteries. 4-Stage charging provides reliable and effective charging of your batteries. The REGO DC-DC battery charger is ideal for RVs, commercial vehicles, boats, yachts, and vans that need stable energy on the go!


Exclusive Bidirectional Charging
This battery charger can charge your house batteries from the starter battery when driving and recharge your starter battery when the house batteries are full. Keep your house batteries and starter battery at peak performance on the go.

Easy Installation and Operation
REGO DC-DC battery chargers use Anderson terminals instead of ring terminals for a simple, easy connection that reduces installation time by 60%! REGO’s simple design eliminates tedious data settings and lets you switch between batteries by just turning a knob.

High-Efficiency Charging
4-stage charging technology (Bulk, Float, Absorption and Equalize) maximize charging efficiency and optimizes battery levels for a longer lifespan.

Compatible with Most Batteries and Alternators
The REGO DC-DC battery charger is compatible with multiple types of batteries: AGM, SLD, Flooded, Gel, and Lithium, providing a powerful solution for different occasions. Moreover, it can interoperate with both traditional and smart alternators.

Integrated Safety Features
REGO chargers offer Overvoltage Protection, Overtemperature Protection, and Reverse Polarity Protection on both inputs and outputs to ensure operation safety. They have reverse polarity protection and multiple safety certifications including FCC-ID, CE-RED, MIC, etc.


REGO 12V 60A DC-DC Battery Charger

100 Watt 12 Volt Lightweight ETFE Monocrystalline Solar Panel

1 x


System Voltage 12V
Rated Max Charge Power 800 W
Self-Consumption ≤50 mA
Charge Efficiency Up to 94%
Max.Alternator Input Voltage 16V
Alternator Input Voltage Traditional Alternator: 13.5-16VDC
Smart Alternator (Euro 6): 12.5-16VDC
Operating Temperature Range -20 ℃ - 60℃ / -4 ℉ - 140℉
Storage Temperature Range -35 ℃ - 65℃/ -31℉ - 149℉
Humidity 0%-95%, No Condensation
Temperature Compensation -3mV / ℃ / 2V (Non-Lithium)
'0mV / ℃ / 2V; no compensation (Lithium)
Terminal Size Anderson PP75
Rated Max Charge Current 60A
Max.Alternator Input Current 70A
Max.Alternator Input Power 800W
Battery Operating Range 10 -16V
Power Limiting Protection Up to 800W/12V
Grounding Type Common Negative Lug
Communication Modebus ; RV-C
Dimensions (L x W x D) 353.53 X 212.75 X 102.21mm
Weight 3.12kg
Terminal Range 8AWG - 6AWG

Please see more details in the 'Data Sheets' tab.


All items subject to availability and will generally require a 1-3 week turnaround.

We don't hold the stock on hand but have a trusted supplier who will send this direct from their nearest warehouse to ensure you receive it as soon as possible.


Material and Workmanship Warranty: 5-year material warranty
