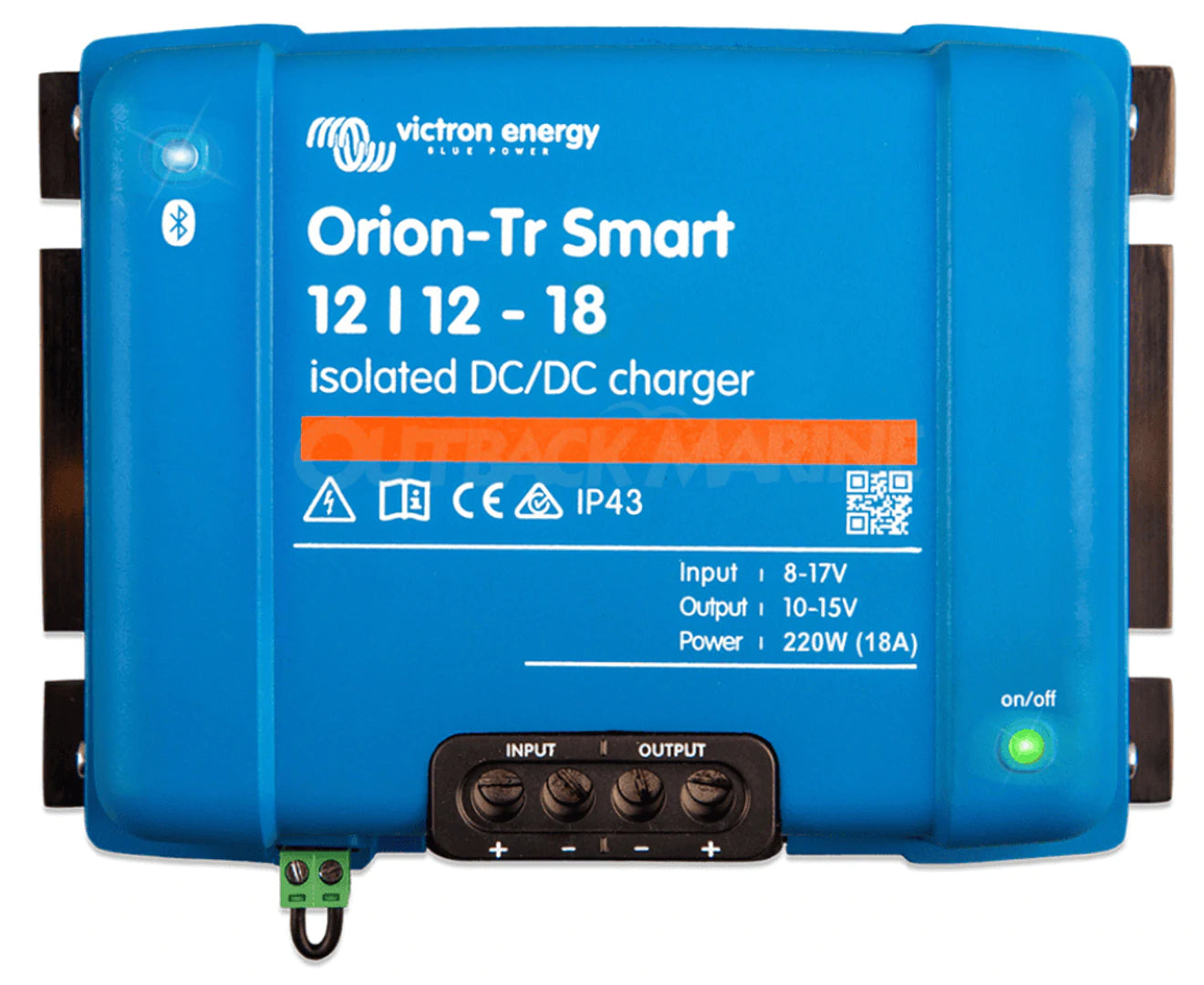

Introducing the Victron Orion-Tr Smart 12/12-18A DC-DC Charger âĄ
Key Features:
- 12V - 12V / 18Amps
- Intelligent DC-DC ChargingÂ
- Built-in BluetoothÂ
- IP43 ProtectionÂ
- Easy InstallationÂ
Â
Overview: The Victron Orion-Tr Smart DC-DC Charger is a versatile power solution for dual battery systems in vehicles, boats, and more. Its built-in Bluetooth allows easy monitoring and programming. This charger excels in 12V and 24V systems, working with both lead acid and lithium batteries.
Advanced Charging and Protection: The charger employs a 3-stage charge algorithm, adapting to different battery types. It's equipped with engine running detection and a remote on/off feature for smart charging control.
Full Programmability: Use the VictronConnect app to configure and control the charger.
Applications: Ideal for marine đĽď¸, RVs đ, motorhomes đĄ, 4WD đ, and motor vehicles đ.
About Victron: Victron Energy is a trusted name known for technical innovation and reliability in power solutions. Their products are a professional choice for independent electric power.
Upgrade your power system with the Victron Orion-Tr Smart DC-DC Charger.Â
Specifications
| Model | 12/12-18A (220W) |
| Input Voltage Range | 8-17V |
| Under Voltage Range | 7V |
| Under Voltage Restart | 7.5V |
| Nominal Output Voltage | 12.2V |
| Output Voltage Adjust Range | 10-15V |
| Continuous Output Current at Nominal Output Voltage (40°C) | 18A |
| Maximum Output Current (10s) at Nominal Output Voltage Minus 20% | 25A |
| Short Circuit Output Current | 40A |
| Continuous Output Power at 25°C | 280W |
| Continuous Output Power at 40°C | 220W |
| Efficiency | 87% |
| Operating Temperature Range | -20 to +55 °C (derate 3 % per °C above 40 °C) |
| DC Connection | Screw Terminals |
| Maximum Cable Cross-Section | 16mm² |
| Warranty | 5 Years |
| Weight | 1.3kg |
| Dimensions | 130 x 186 x 70mm |
