Description

Introducing Renogy ONE M1, your all-in-one energy monitoring and off-grid smart living center that revolutionizes comfort when you live in your off-grid home or RV.

Renogy ONE M1 is the heart of your off-grid system, with a sleek, flush-mount touchscreen that looks great anywhere. A 4'' HD display lets you monitor every Renogy device in your home from one screen. And with the DC Home app, you'll have the same system monitoring wherever you go on your smartphone.

Live off-grid without compromising comfort with Renogy ONE M1. It gives you control of up to 3 devices at a time through the direct connection with panel relays. For instance, you can create an "Evening" mode that automatically turns on lights, or a "Sleep" mode that dims the lights and shuts down the connected appliances.

Renogy ONE M1 delivers peace of mind with enhanced security feature for your off-grid home or RV. Renogy ONE is compatible with our Door and Window Sensors, Motion Sensors and sends instant alerts right to your DC Home app if there's a security breach.

Quick View Energy Dashboard

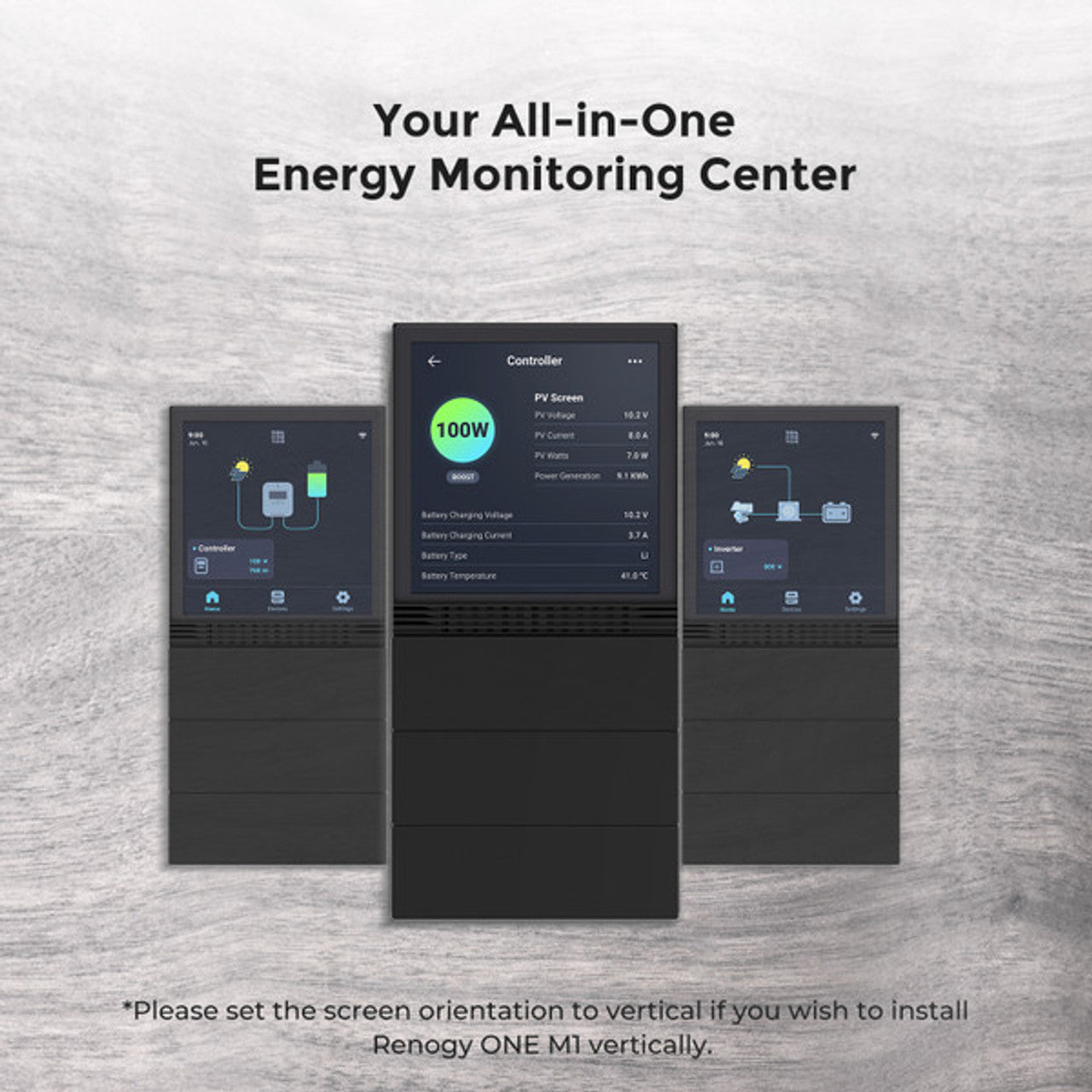

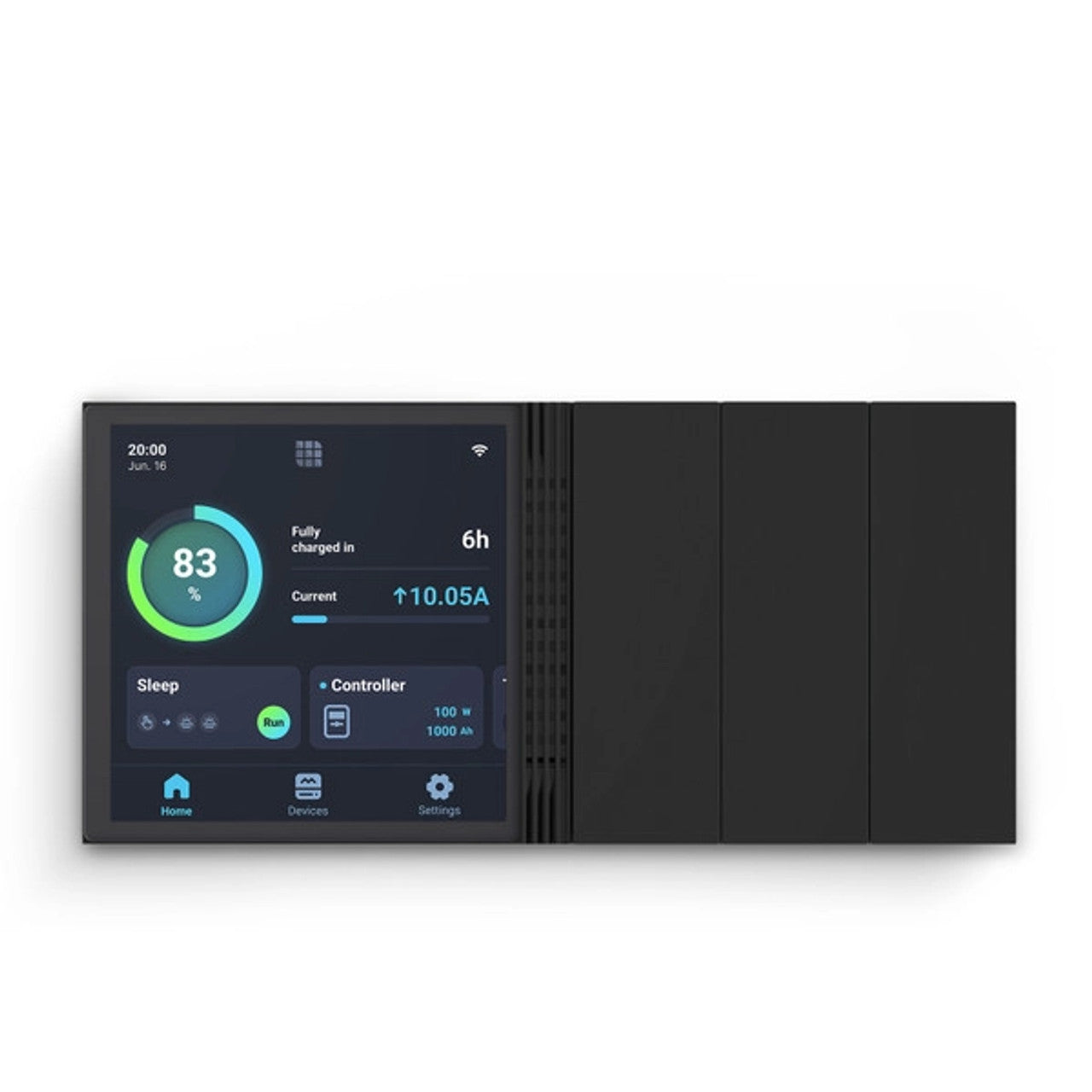

  • Get rid of cumbersome cables and multiple monitors with the flush-mount Renogy ONE M1. Its 4″ HD touchscreen lets you monitor and control compatible Renogy devices in your home from one screen.

Control All Your Connected Devices

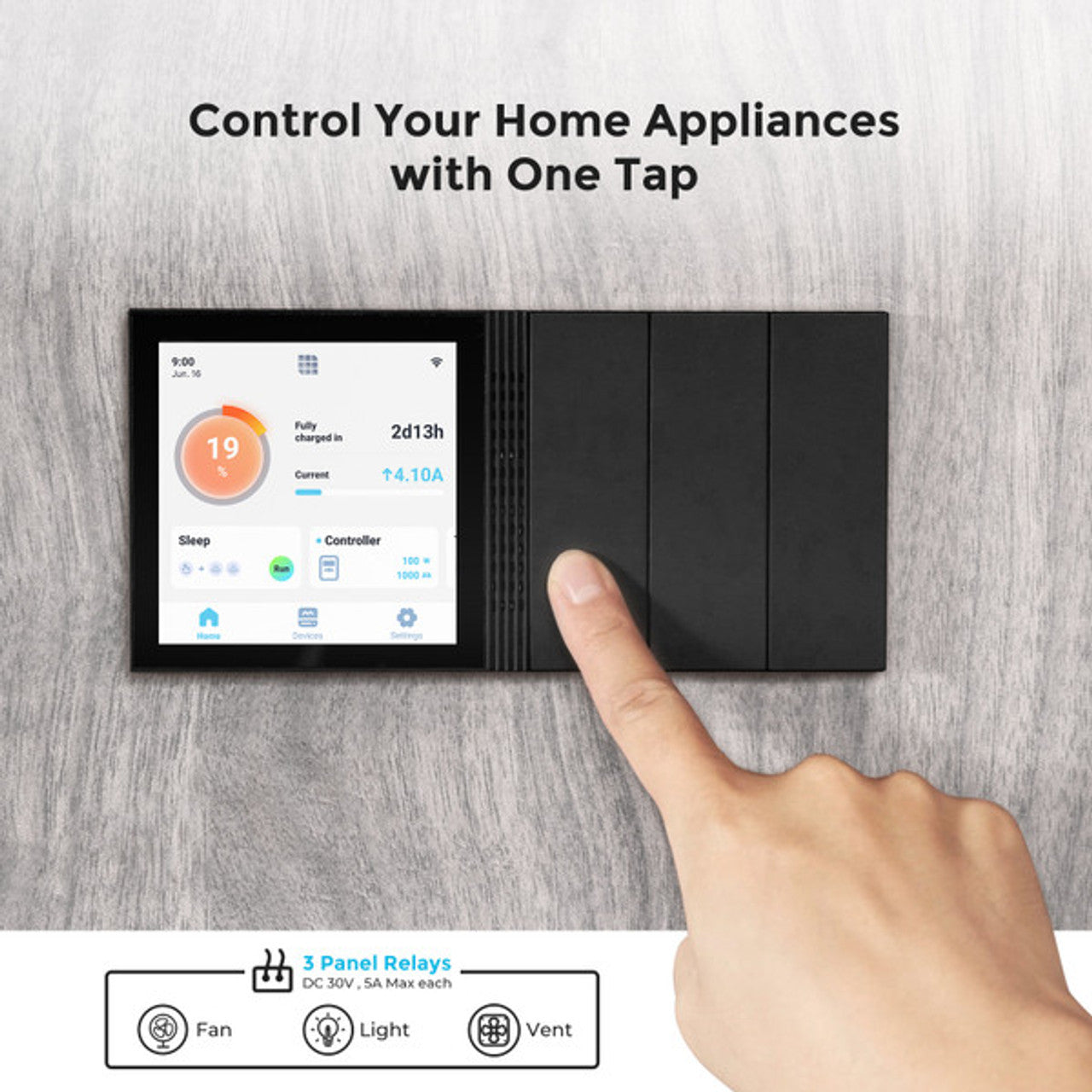

  • Panel relays of Renogy ONE M1 allow you to switch on/off up to 3 DC appliances at a time through the panel switches or the DC Home app. You can even set up different smart scenes to control devices together, depending on how you live. For instance, you can create an "Evening" mode that automatically turns on lights, or a "Sleep" mode that turns off home appliances for you.

Remote Energy Monitoring

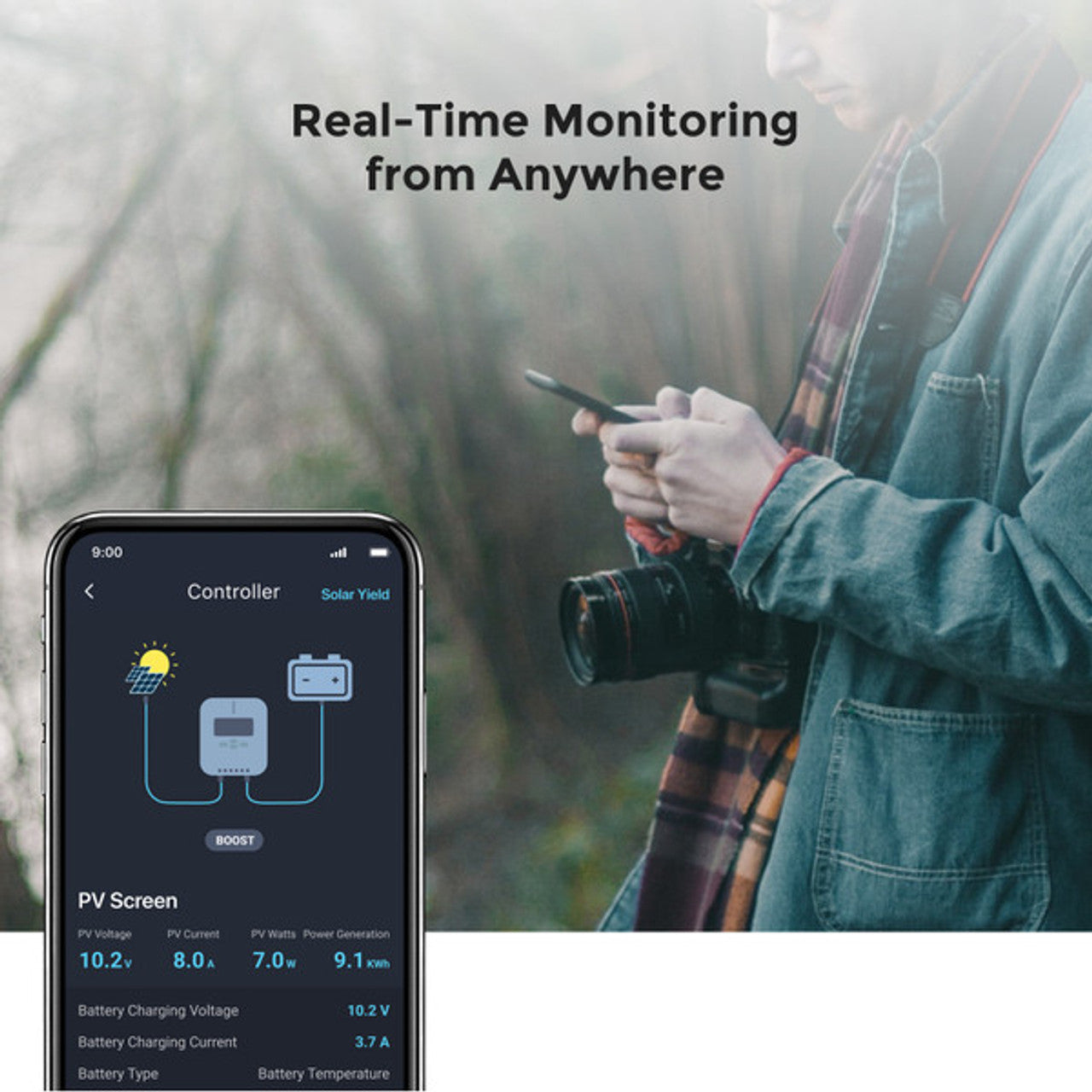

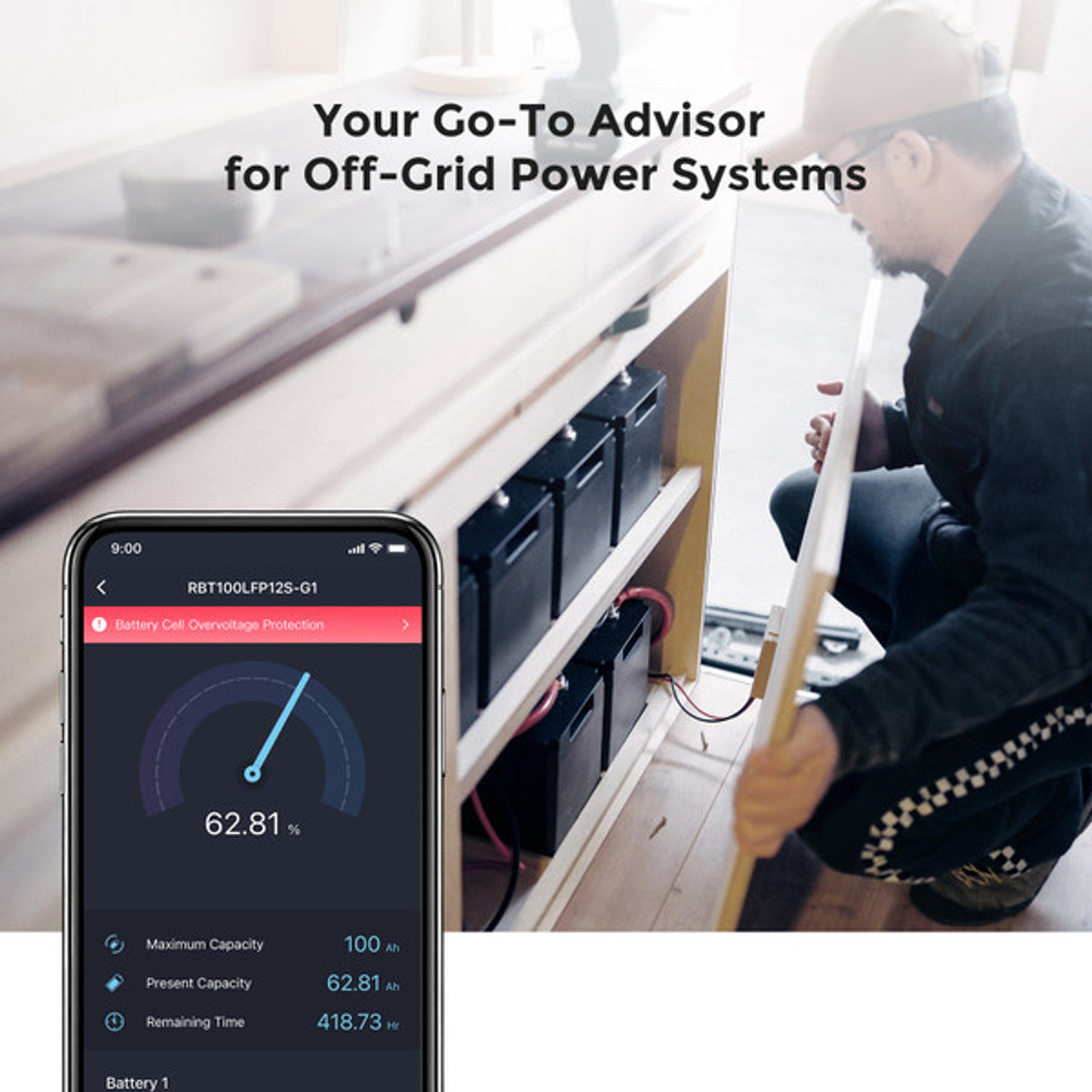

  • Wi-Fi connectivity uploads energy data while you're off the grid so that you can monitor your system in real time, wherever you are, with the DC Home app. You can monitor the status of batteries, charge controllers, and other connected energy devices.

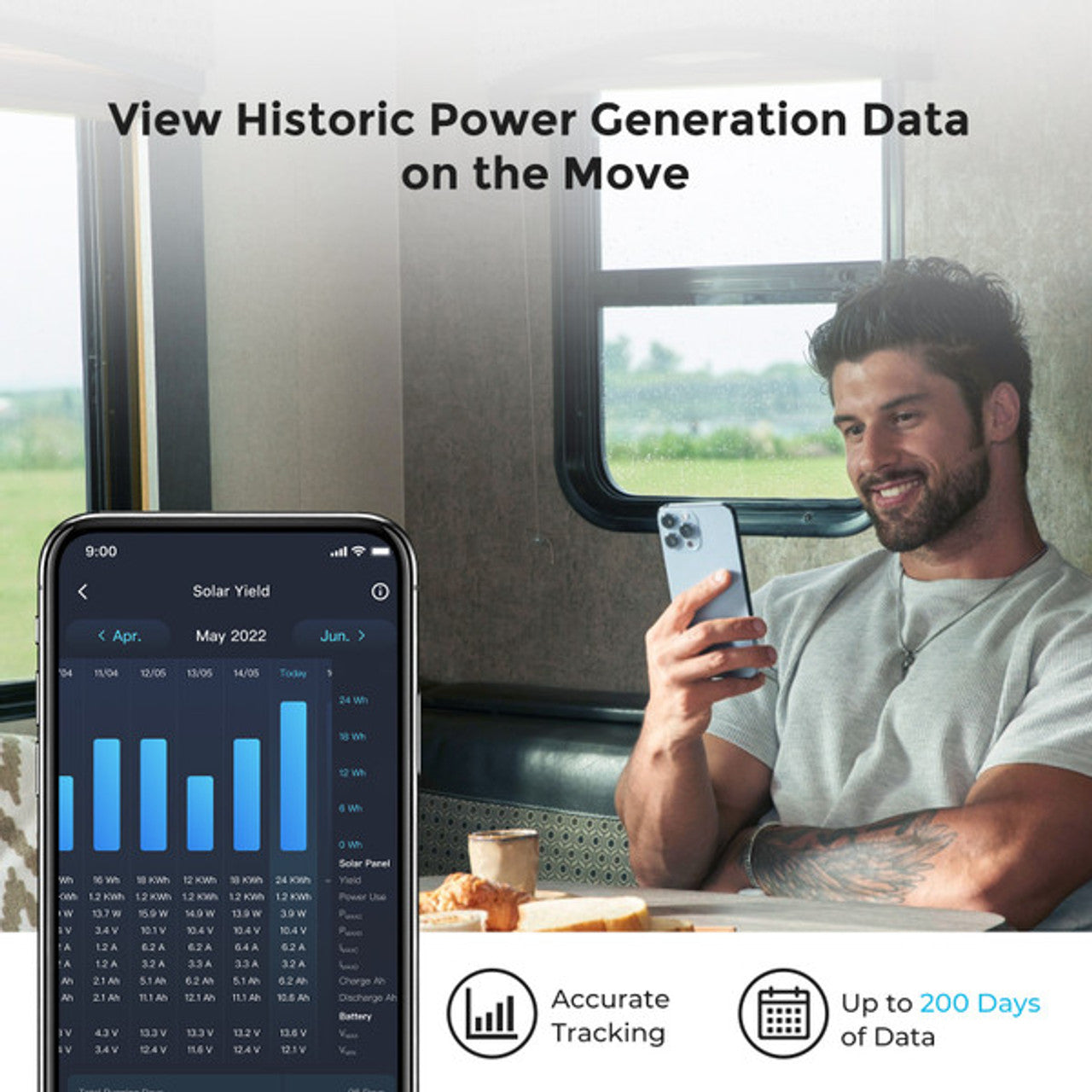

    *You can view historic power generation data for the past 200 days.

Specifications
Power Supply: Rated Power 3.5W
● Power Port: 8V DC-16V DC
● Type-C Port: 5V DC
Load: ≤30V DC, 5A Max Power Consumption: < 2.5W (standby)
Ports:  ● USB Type-C (5V DC)
● RJ45 (CAN & RS485)
● 2-pin 2.54 mm pluggable terminal block (12V DC)
Wireless Communication ● Wi-Fi (IEEE 802.11b/g/n 2.4 GHz)
● Bluetooth 2.1/4.2 and Bluetooth LE
● Zigbee (IEEE 802.15.4)
Zigbee: IEEE 802.15.4 Protocols: RV-C/Modbus/Zigbee 3.0
Touch Screen: 4 inches (480 x 480p)
White backlight with adjustable brightness		 Dimension: 181.8 x 86.8 x 42.2 mm (7.16 x 3.42 x 1.66 in)
Installation: Flush mounting Weight: 286 g/0.83 lbs
Color: Black Casing Material: PC+ABS V0
Applicable Place: Indoor Operating Altitude: Less than 2000 m above sea level
Operating Temperature: -20℃~50℃ (-4℉~122℉) Operating Humidity: 0%~95%RH


Delivery

All items subject to availability and will generally require a 1-3 business day turnaround.

We don't hold the stock on hand but have a trusted supplier who will send this direct from their nearest warehouse to ensure you receive it as soon as possible.

Warranty
Product Warranty

2 Years

RENOGY ONE M1 Warranty Info

Data Sheets

RENOGY ONE M1 Spec sheet

RENOGY ONE M1 Manual
