$299.99
$299.99

Read More Below

Subtotal: $299.99
Description



Need leveling for more comfort?
ONE Core assists you in adjusting your RV's position to achieve optimal stability, ensuring a comfortable and safe experience.

Built-in 6-axis leveling sensor
Highly accurate and responsive detection of changes in orientation and rotational movement

Real-time RV leveling status
Instant and accurate updates about your vehicle's stability on both ONE Core Panel and DC Home App.

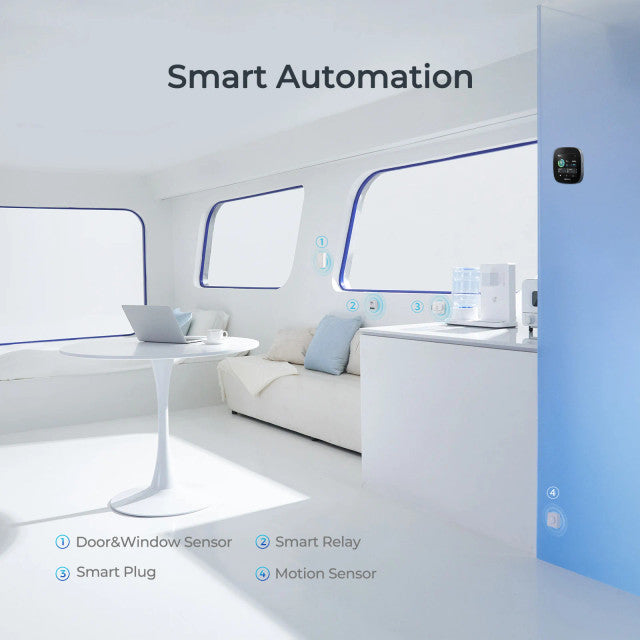

Make it a smart home
ONE Core also serves as a smart home hub, allowing you to connect your smart home appliances like door entry alert or climate sensors, enjoy added convenience and security of home automation.

PACKAGE INCLUDES

Renogy ONE Core


1 x



Quick Guide


1x



Power Cable


5m



Mounting Screw


M3.5 x14mm x4

(1 extra)





Specifications
ELECTRICAL DATA
Operating Voltage
8-60 VDC (5 VDC for USB Type-C)
Power Consumption at 12V
Operating, WiFi On, 100% illumination: 3.2 W
Operating, WiFi On, 50% illumination: 2.4 W
Operating, WiFi On, 0% illumination: 1.9 W
Off, logger still active: 1.5 W

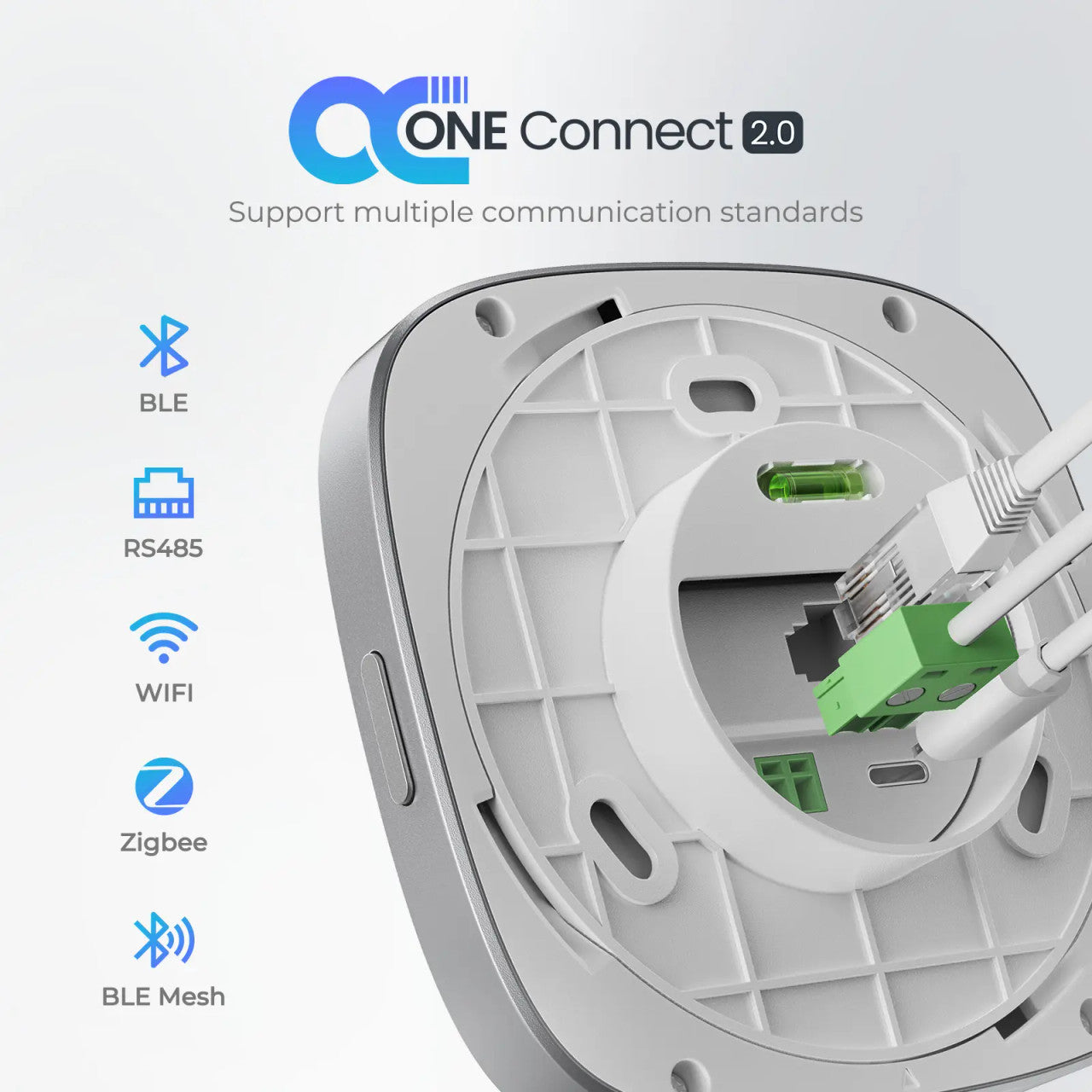

Communication
Wi-Fi (IEEE 802.11b/g/n 2.4 GHz)
Bluetooth LE and Bluetooth Mesh
Zigbee 3.0 (IEEE 802.15.4)
RS-485
Touch Screen
4 inches (480 x 480p)
Leveling Range and Accuracy ±89°, 0.1°
GENERAL DATA
Model
RSHGWSN-W02W-G1
Operating Temperature
-4℉ to 158℉ (-20℃ to 70℃)
Operating Humidity 0% to 95% RH
Operating Altitude
Less than 5000m above sea level
Installation
Flush mount or place on a table

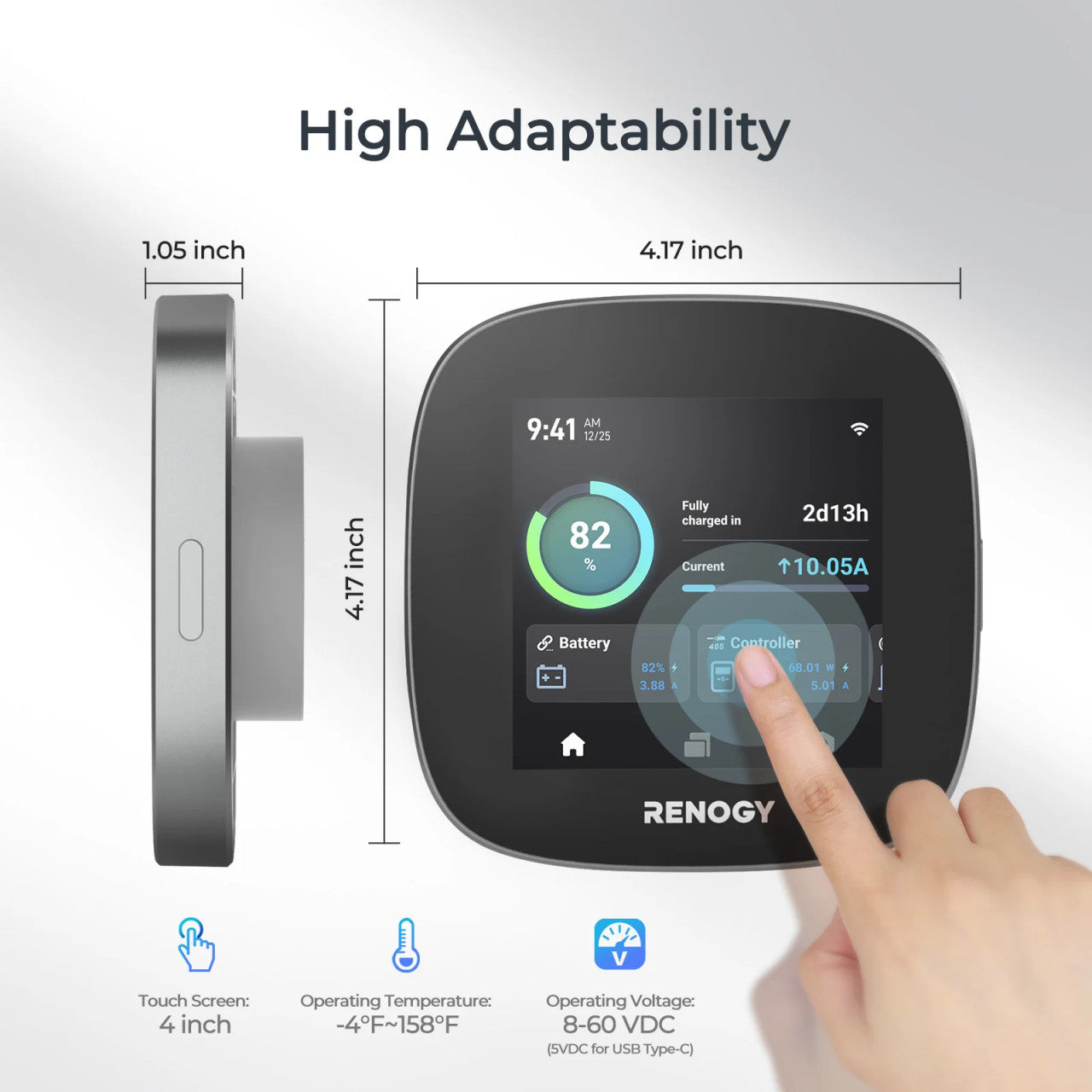

Dimensions
4.17 x 4.17 x 1.05 in (106 x 106 x 26.6 mm)
Weight 0.28 lb (128g)
Certification
CE, FCC, RoHS, TSCA, BQB, IC-ID
Warranty 2 years

Delivery

All items subject to availability and will generally require a 1-3 business day turnaround.

We don't hold the stock on hand but have a trusted supplier who will send this direct from their nearest warehouse to ensure you receive it as soon as possible.

Warranty
Product Warranty

2 Years


Data Sheets

RENOGY RENOGY ONE Core Quick quide

RENOGY RENOGY ONE Manual

RENOGY RENOGY ONE Specification
