DESCRIPTION

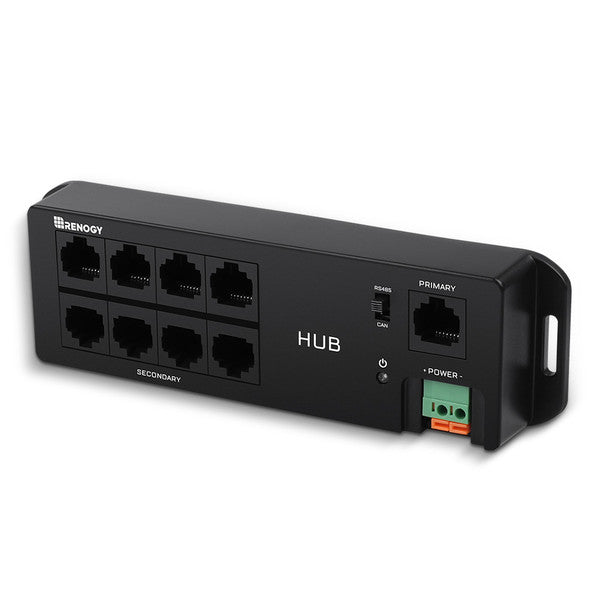

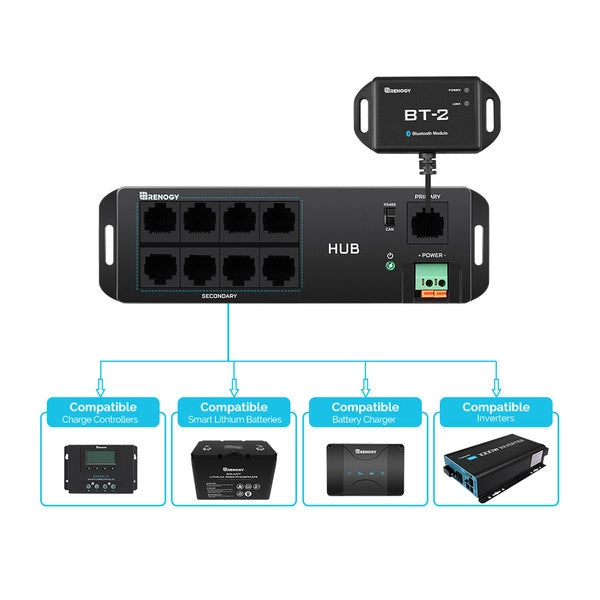

The Renogy Communication Hub allows you to connect multiple Renogy appliances with an RJ45 port and RS485 communication protocol to just one BT-2 Bluetooth module. Now you can use your phone to monitor multiple devices at the same time! The Renogy Communication Hub also supports both RS485 and CAN communication protocols – giving you a wider selection of compatible devices. The Renogy Communication Hub is compatible with all Renogy Products with RJ45 Port.
KEY FEATURES
- Compatible with all Renogy Products with RJ45 Port.
- Monitor multiple devices at the same time with a single Bluetooth module.
- Connect to our user-friendly smartphone App, Renogy DC Home, to keep track of your system.
- Supports both RS485 and CAN communication protocol.

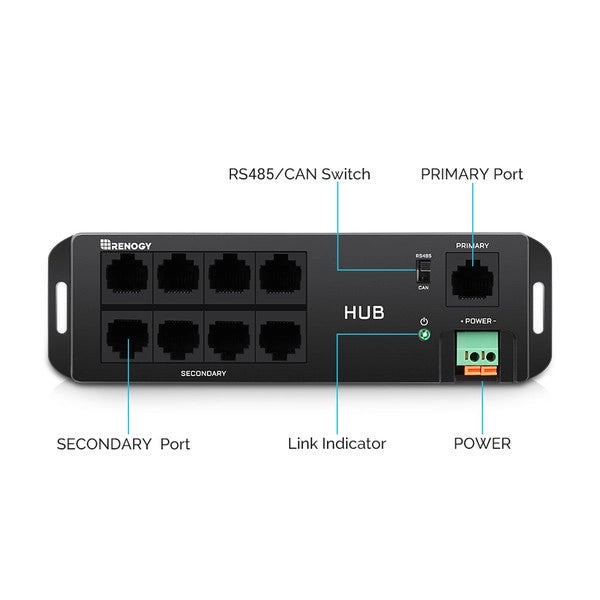

- Green LED lights indicate which communication protocol is currently on.
PACKAGE INCLUDES
|
Renogy Bluetooth Hub
1 x
|
SPECIFICATION
| SPECIFICATIONS | |
|---|---|
| Input Voltage: 9V - 60V | Standby Power Consumption: 0.324W |
| Operating Power Consumption: <0.35W | Communication Range: ≤82ft |
| Serial Baud Rate: RS485-9600 bps CAN-500 kbps | Communication Protocol: RS485 CAN |
| Port Type: RJ45 | Cable Length: 5.00 m (16.4 ft) |

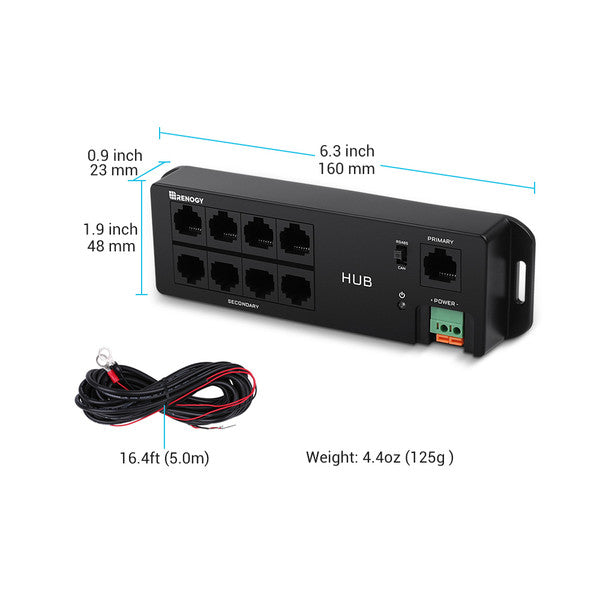

| Dimensions: 6.29 X 1.89 X 0.91in (160 x 48 X 23mm) | Installation Dimensions: 151.4 φ3.5mm（5.96 φ 0.14in） |
| Operation Temperature: -20°C to 85°C (-4°F to 185°F) | Weight: 125g (4.41oz) |
WARRANTY INFORMATION
| Accessories | 1-year material warranty |
